3D model description

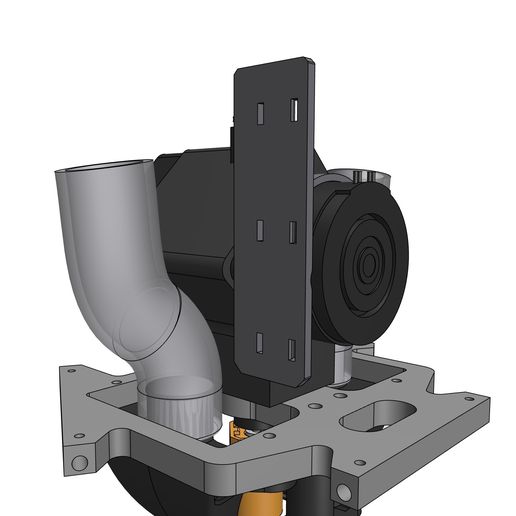

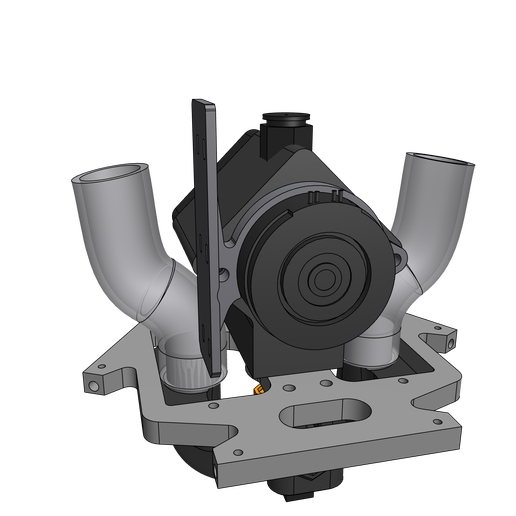

This project includes the following pieces:

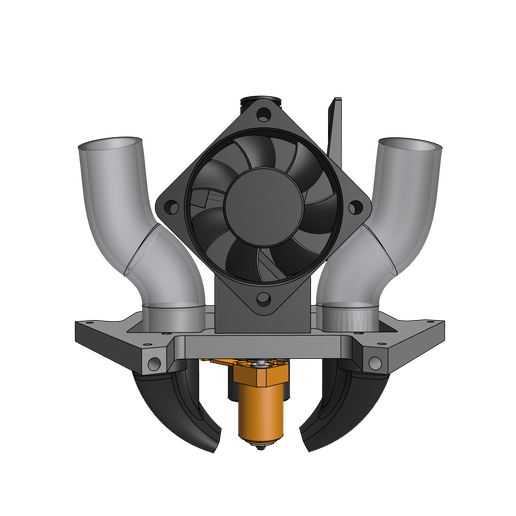

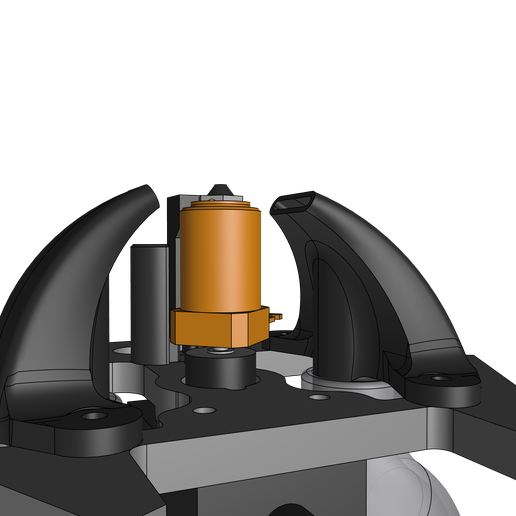

2x fan duct for 15mm cpap tubings (cpap tube has to be inserted in the ducts and then, optional, you can use zip ties to lock it in place)
1x Y splitter for 15mm cpap tubing (same as before)
1x cpap ws7040 fan mount + adapter for 15mm tubing ( you will need to drill two holes in the frame of the printer depending where you want to put the cpap fan. the mount can be tightened with a zip tie)

1x cable management bracket (mounted behind the extruder motor, you will probably need to use longer screws for the motor and this bracket. The bracket can be fixed in place with 2x m3 nut)

1x gl-8h inductive sensor mount for bed levelling (you will need to modify the klipper cfg and recalibrate z offset)

Each mod can be used by itself, it is not mandatory to install all these mods.

Links for purchasing the required hardware:

Cpap fan: https://a.aliexpress.com/_mt2dfgY (there are many even cheaper)

Cpap tubing: https://a.aliexpress.com/_mt2dfgY (same as before)

Gl-8h inductive sensor: https://a.aliexpress.com/_mtR6P4s (choose gl-8h)

3D printing settings

All pieces were printed in ABS, but material is your choice

Supports needed only ducts (printed upside down)

cable bracket has to be mirrored depending on where you want your cable to go (default = cable on the left of the extruder, contrary of what is shown on the pictures)
