A cooling system to be used with GoPro cameras, watch the video below to see what it can and can not do.

INTRO: https://www.youtube.com/watch?v=BLwynnLo-L4

BUILD VIDEO:
https://www.youtube.com/watch?v=XUtvZBP4IIw&t=116s

PARTS:
Fan
https://www.amazon.com/dp/B08ML4LWGD?psc=1&ref=ppx_yo2ov_dt_b_product_details

A Type Speed Controller
https://www.amazon.com/NOYITO-Stepless-Controller-Regulator-Switch/dp/B07PMNLMMH/ref=sr_1_2?crid=2H5DAEHAQ6A4X&keywords=fan+speed+control+switch+5v+usb&qid=1649427998&sprefix=fan+speed+control+switch+5v+usb%2Caps%2C60&sr=8-2

B Type Speed Controller
https://www.amazon.com/dp/B08HDCJBVZ?psc=1&ref=ppx_yo2ov_dt_b_product_details

Both Controllers function the same

USB Cable
Glue

BUY BUILT
https://www.ebay.com/itm/125374673834

GROUP:
https://www.facebook.com/groups/541547619887950

VIDEOS:
https://www.youtube.com/channel/UC-dZpDgCGSf7w-vZWgO2Nsg

You know you like it, hit the button!

3D printing settings

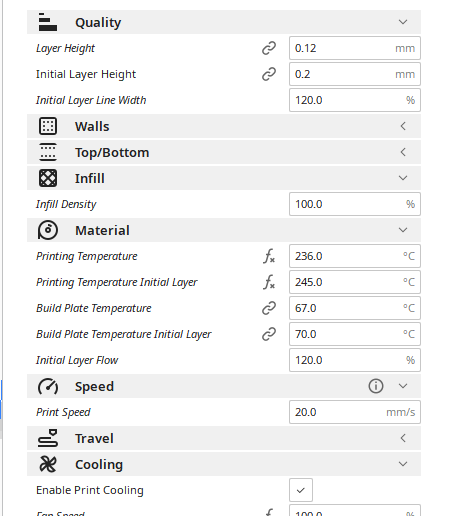

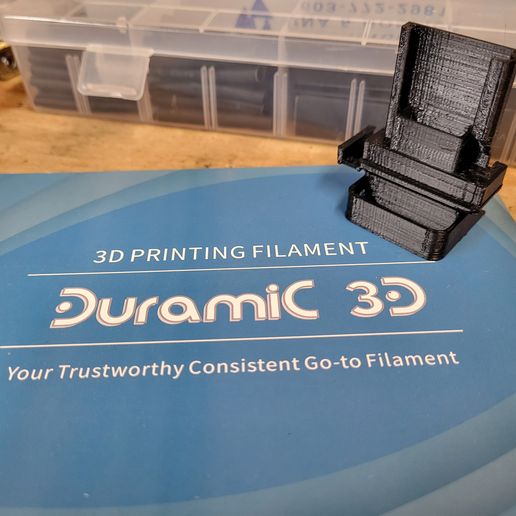

Cura presets, .2 layer for everything except the fan retainer which you should print at a .12 layer. for the best fit. print the retainer positioned on end, very slow 20mm, travel 60mm, reduce all the different speed settings to those variables. print the main body positioned on end 30mm. Use very easy to print Duramic PETG, my temps were 240/70 first layer, then 236/67. Lots of fan unless your ambient is low. Keep PETG temps as low as possible for a pretty print.
