Emergency stop button for 3 phase manual motor starter
- 560 views
- 0 likes
- 0 downloads
3D model description

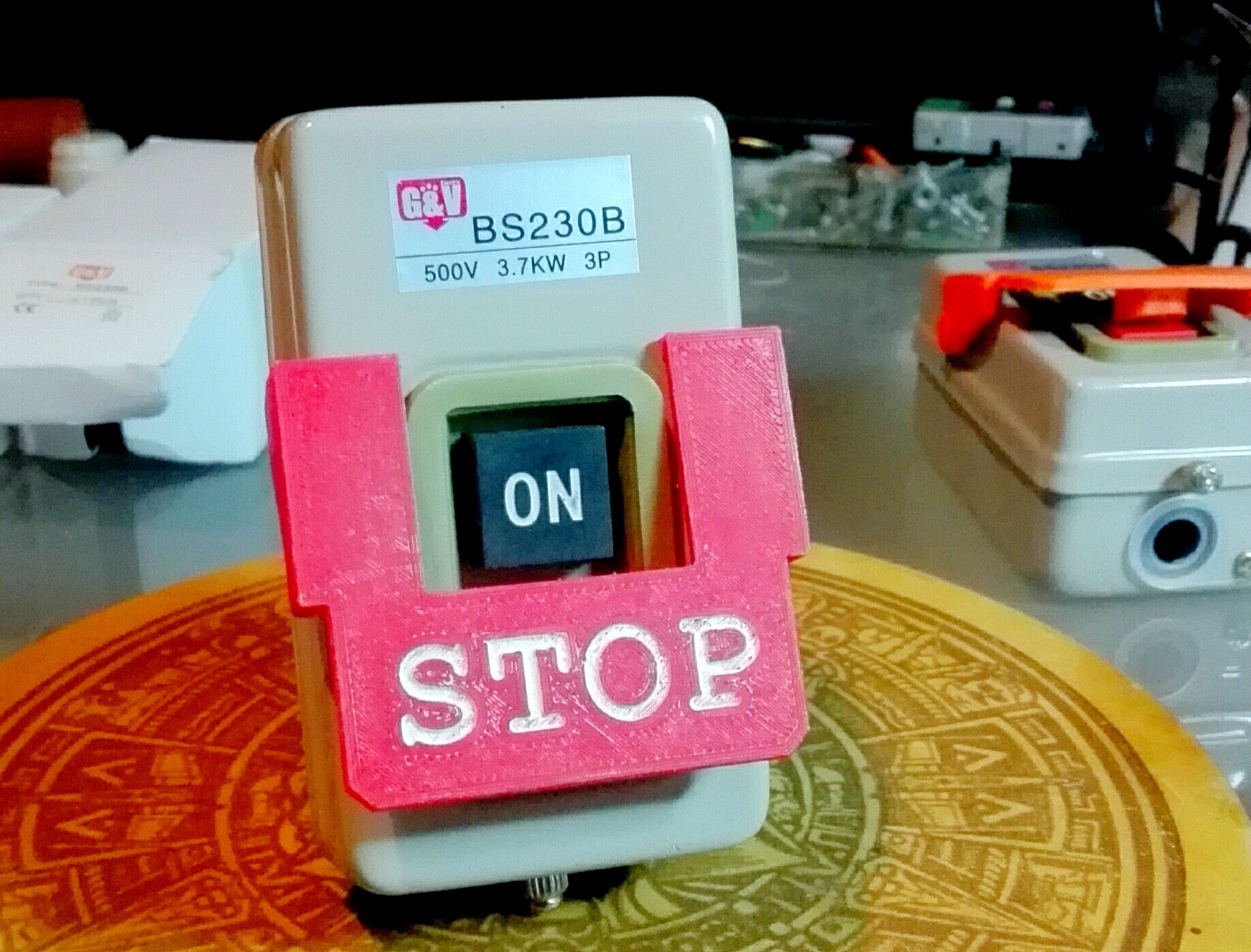

This is an auxiliary release button, for those cheap manual 3 phase motor starter.
Instead of adding an additional emergency stop button to your motor control, you can add this lever for a quick release.
3D printing settings
Printed in Pet G
Layer height 0.2 mm
Just supports in the pivot pins.

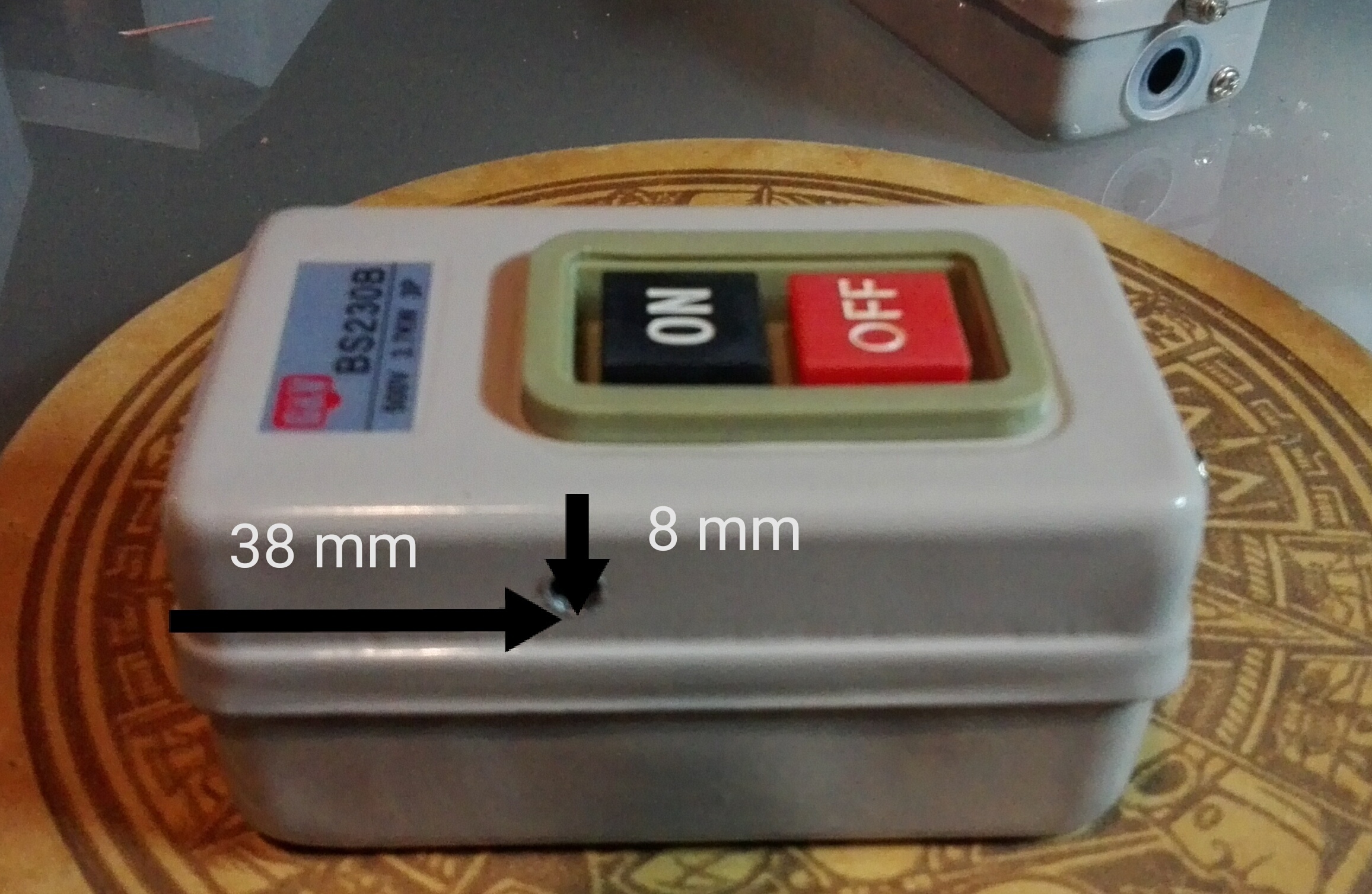

Need to make a pair of 5 mm holes in the front cover of the starter (shown in the picture).
- 3D file format: STL
- 3D model size: X 65 × Y 55 × Z 18.5 mm
