CR-10S 左側風扇 Left Side Fan Rack

3D model description

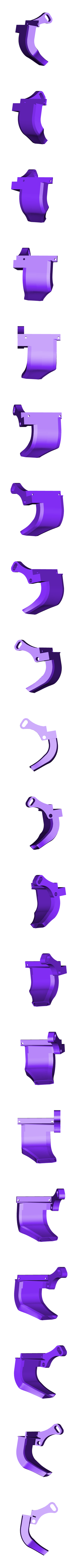

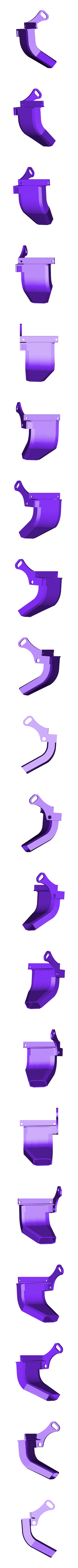

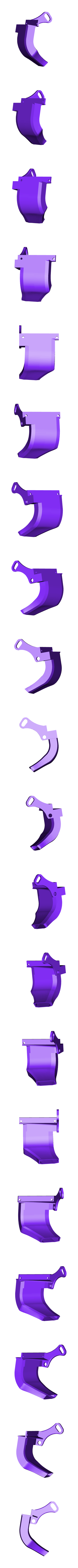

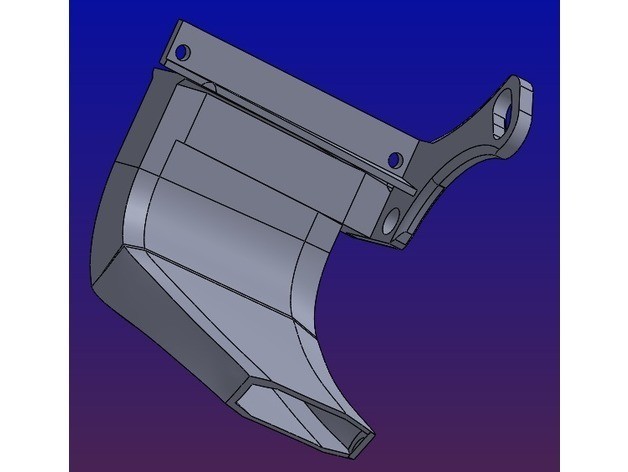

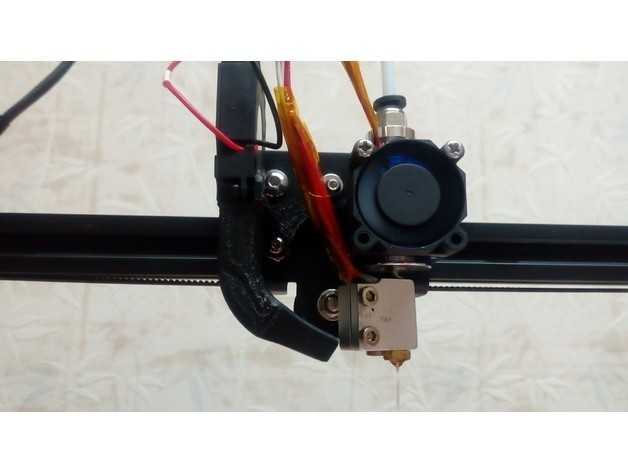

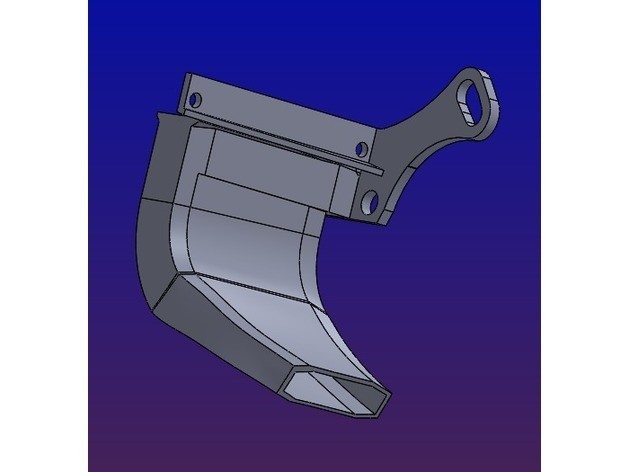

It's a design for stock cooling fan, you will need it if you tune to E3D Volcano or V6.

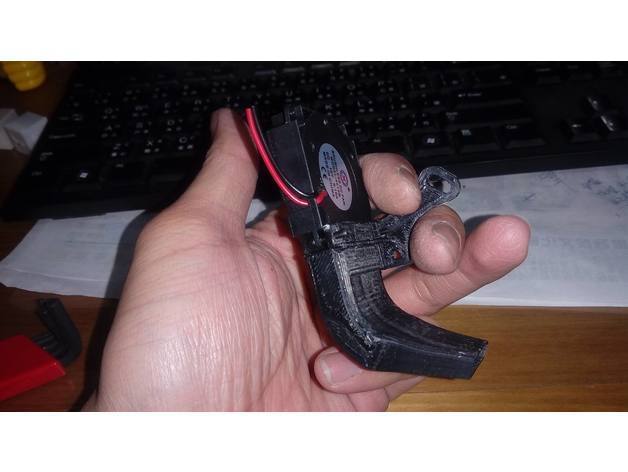

The thickness of Flow Tube wall is 0.7mm, don't sqeeze it, and pls remove the complete printing by the bottome.
Don't ry this if you only use stock hotend, it requires to remove the stock fan cover and the screw holes.

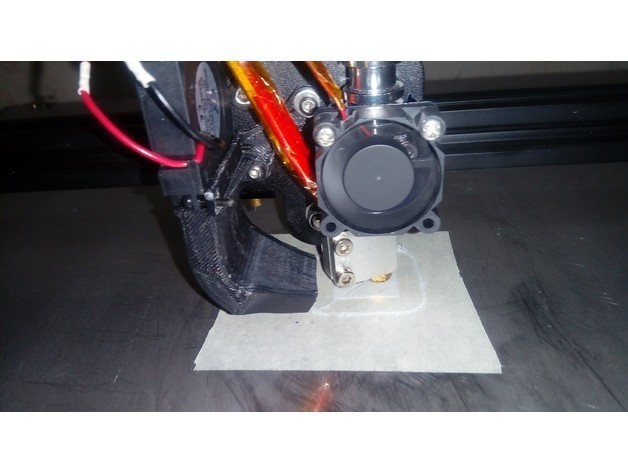

No internal support is needed for print, fill in 100%, only need manual penetration if you find the two .5 screw holes are sealed, also trimming to adjust the outtake length fitting the distance from hotend.(about 5-DEGREES for outtake height adjustment)
Take some washers if you find the rack interfered by roller screws.

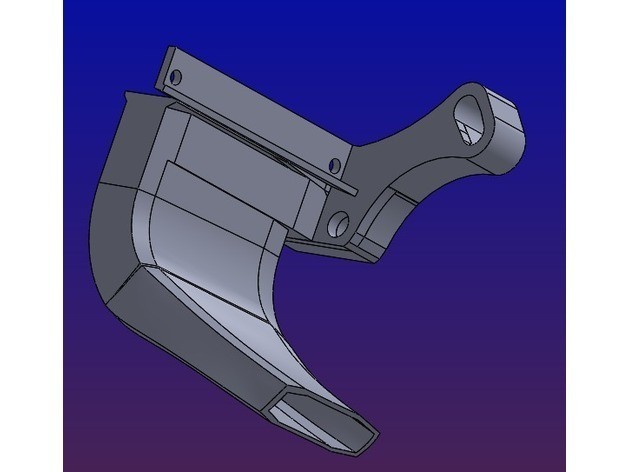

Or you can choose Rack2 the thicker one for settle without washers.
Any comment pls let me know,
Hope you enjoy it!

本設計是給E3D火山噴頭或V6使用,將原廠風扇改裝到左側一公分位置,
導風管厚度只有0.7mm,勿擠壓,列印完成拆除時請從底座抓持。
安裝時虛要移除原廠的風扇鐵殼,並固定於鐵殼固定的螺絲位置。
列印時不需要使用內部支撐,使用100%填充列印,
如發現螺絲孔被封住,則需要手動以工具貫穿,噴風口長度可手動裁剪。
(有大約五度角傾斜空間可調整噴風高度)
如果安裝發現和左上角滾輪螺絲有空間上的抵觸,請使用墊圈偏移位置。
或可使用Rack2第二種較厚的形式直接安裝,而不用墊圈來調整位置。
有設計上的問題請通知我,
使用愉快。
