創吉藝Trunkey CR-10S5 Frame Brace 龍門框補強架

Makes created by the community

Did you 3D print this model?

3D model description

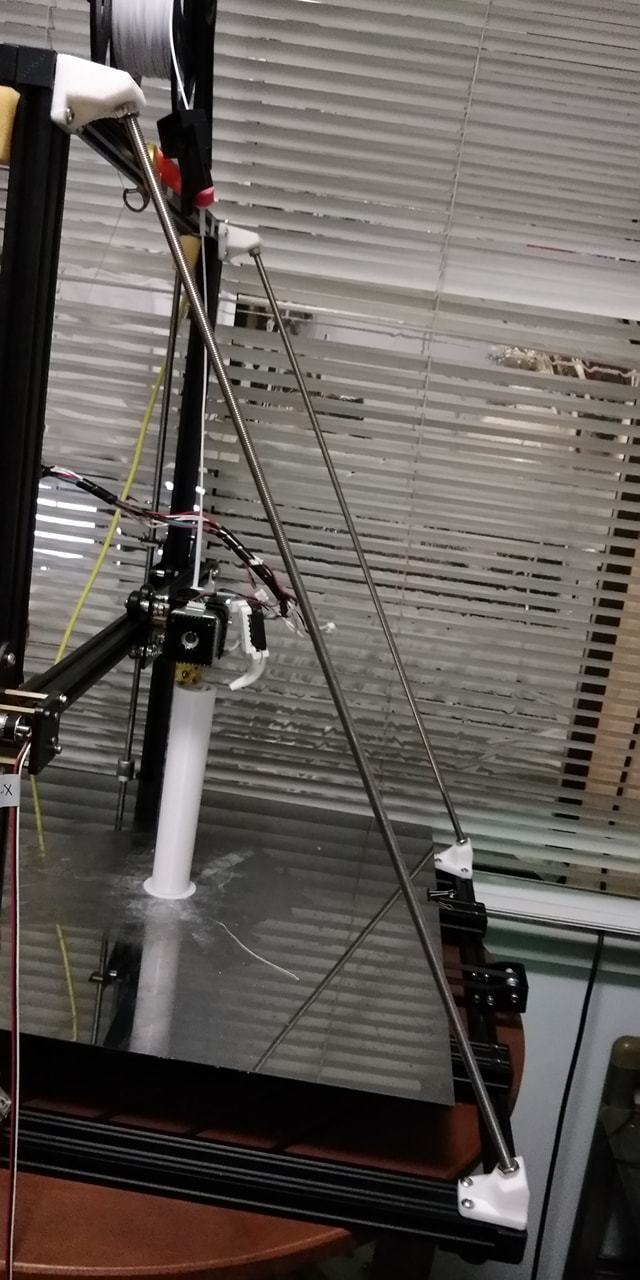

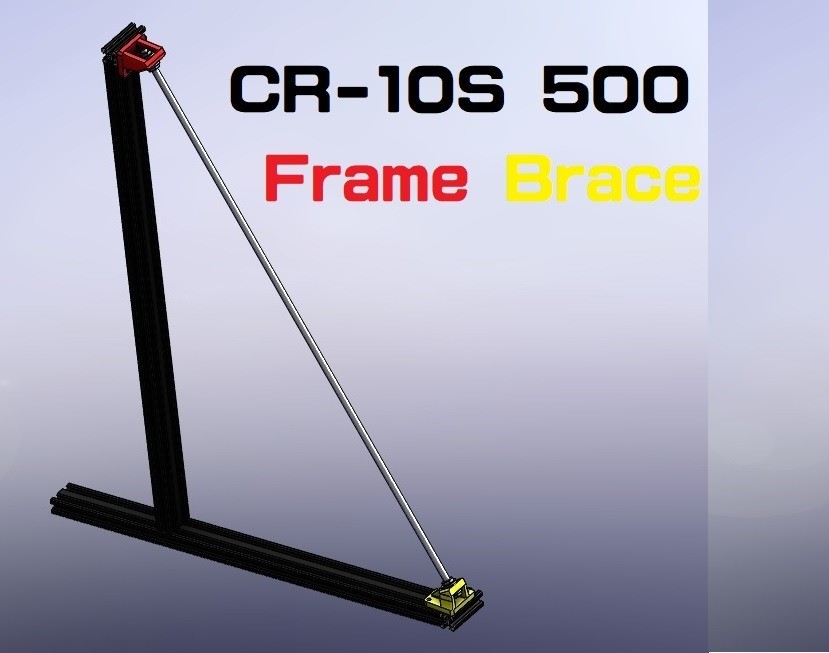

It's a set frame brace for CR-10S 500 Series.

You'll need stuff as following:

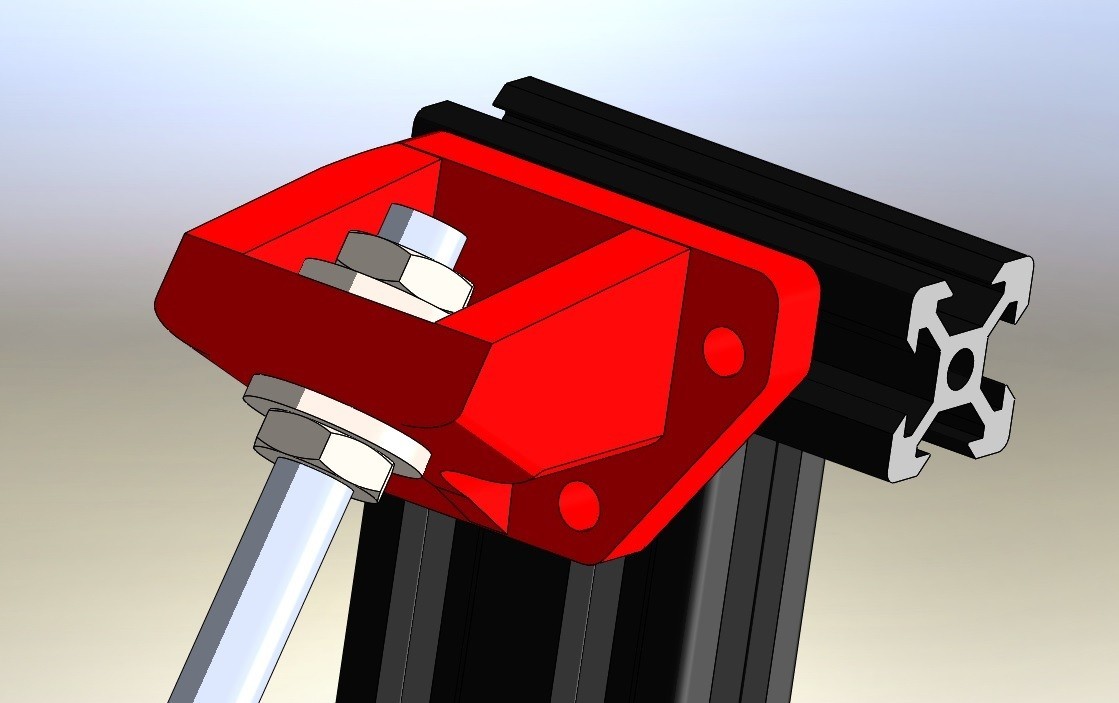

A. The length about 735~745mm M8 Thread Rod 2 PCS (SUS304/316/430)
B. M8 hexagon Nut 8 PCS
C. Narrow type M8 Flat Washer 8 PCS (Optional)
D. M5 button head screw 12mm 12 PCS
E. M5 T-Nut *12PCS

CR-10S 500機種專用框架補強

另外需自行準備材料:

A. M8牙條 長度約735~745mm 2 支 (不鏽鋼的好)
B. M8 螺帽 8 粒
C. M8 平窄滑司 8 片(也可以不用)
D. M5 圓頭螺絲 12mm長 12 顆
E. M5 鋁軌用T型螺帽 *12 塊

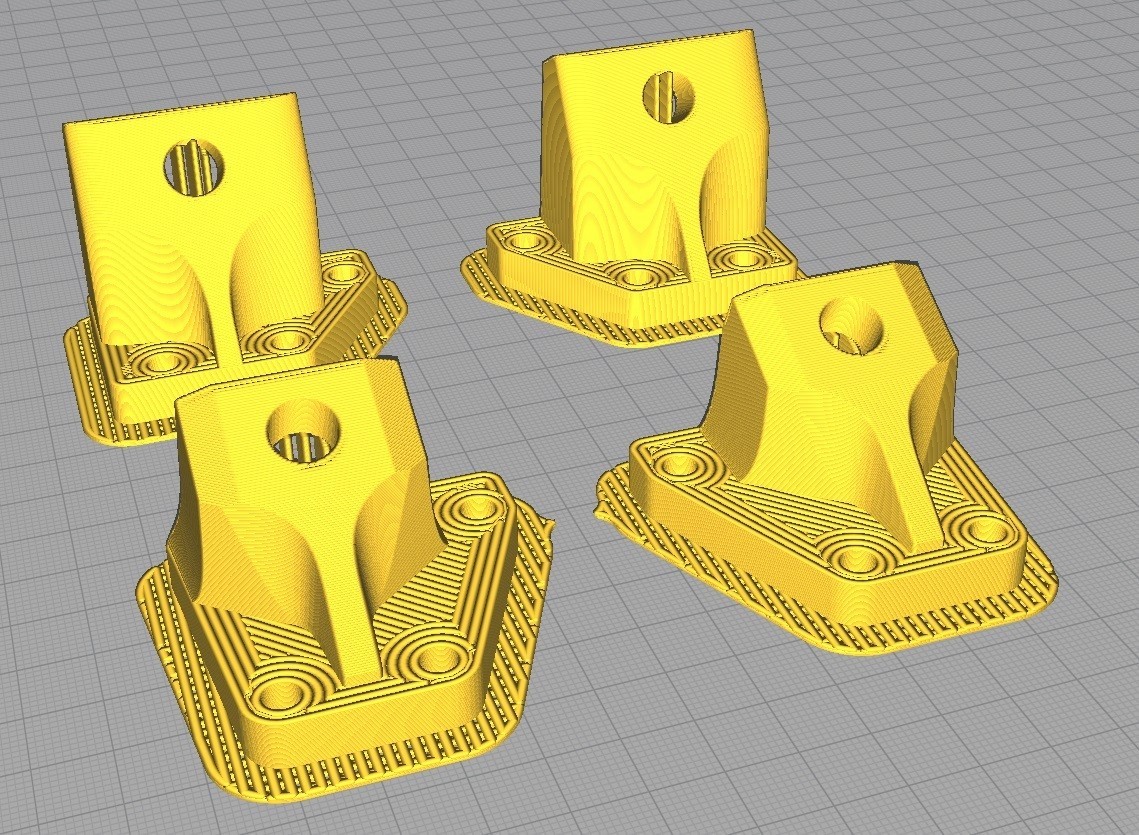

3D printing settings

It'd be better if printing by PLA +Ultra filament with high strength performance
to ease frame resonance.

建議用PLA+Ultra系列線材列印,
強度韌性夠並能減少共振。

填充Infill: 60%↑
Top/ Bottom/ Wall thickness壁厚/頂部/底部厚度: 2mm↑
Open your Support 使用支撐

  • 3D model format: STL

Tags

Creator

歡迎來到創吉藝工坊
Welcome to Trunkey workshop

Set mind free, share your joy of creativity.
心思擺脫,分享心中的喜樂創造。

Hope you enjoy it.
希望你會喜歡

https://www.facebook.com/TrunkeyTW/
