Cabinet Handle Jig

IMG_20181014_181536_1.jpg Download free STL file Cabinet Handle Jig • 3D printable design, ThinkSolutions IMG_20181014_184337.jpg Download free STL file Cabinet Handle Jig • 3D printable design, ThinkSolutions IMG_20181013_151651.jpg Download free STL file Cabinet Handle Jig • 3D printable design, ThinkSolutions
CabinetHandleJigRevA.stl Download free STL file Cabinet Handle Jig • 3D printable design, ThinkSolutions
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 14 likes
  • 144 downloads

3D model description

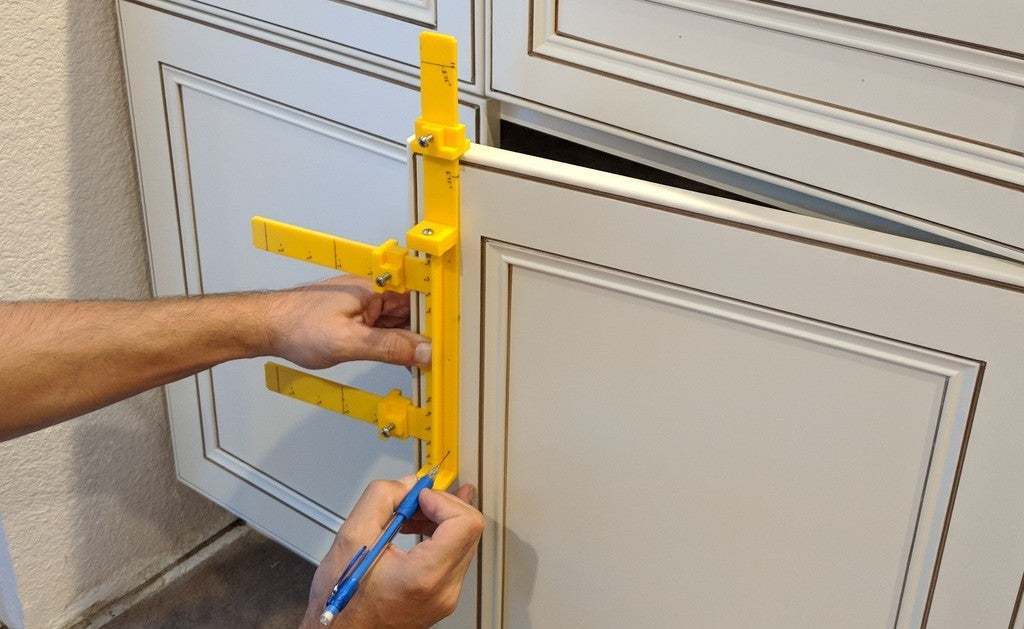

This is a simple Jig to help with tracing the hole location of cabinet handles.

I'm remodeling our kitchen and needed a jig. I didn't really need an adjustable model, but I decided that if I made it adjustable it would likely be useful to other DIY people on the thingiverse.

The sliding stops have holes for both 8-32 or 1/4" machine screws.

This version comes with holes for the following handle spacings:
3", 3.5", 3.75", 4", 4.5", 5" ,5.5", 6", 6.5", 7", 7.5" and 16 cm.

However I added a rail in case I need to add an adjustable hole slider.

This object was designed in inches. Please scale up by a factor of 25.4 to print in mm.

11/26/18 Update:
I added the AutoCAD.DXF file to make it easier for remixing.

  • 3D file format: STL
  • 3D model size: X 8 × Y 6.75 × Z 1 mm
  • Publication date: 2020/03/31 at 14:48

Tags

Creator

ThinkSolutions ThinkSolutions
Designs 34
Downloads 1.7k
Followers 13

I believe 3D printing and design sharing can reduce the environmental impact of product packaging and shipping, save countless hours of engineering time, and accelerate innovation.

...and it is a lot of fun!!!

License

CC BY
