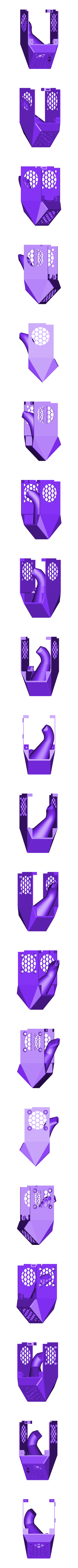

Anycubic_Hotend_Cover_V2-assembled.stl Anycubic I3 Mega Hotend Cover V2

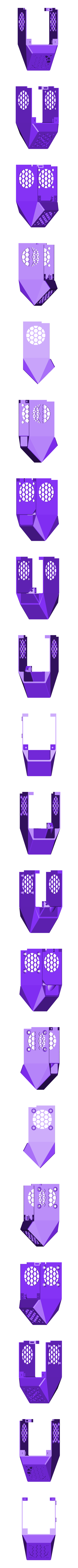

Anycubic_Hotend_Cover_V2-Chassis.stl Anycubic I3 Mega Hotend Cover V2

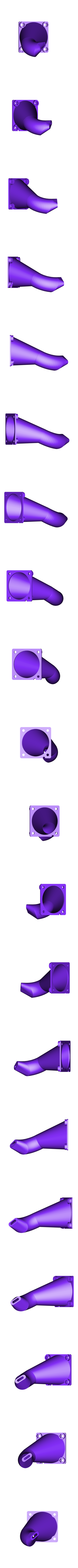

Anycubic_Hotend_Cover_V2-LuefterDuese.stl Anycubic I3 Mega Hotend Cover V2

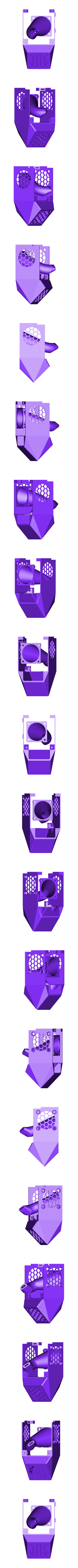

Anycubic_Hotend_Cover_V2.stl Anycubic I3 Mega Hotend Cover V2
e019ca367e625ba4d8c7fdd2f633e94a_display_large.jpg Anycubic I3 Mega Hotend Cover V2
42f8487259bcecfff1166be27e7e378d_display_large.jpg Anycubic I3 Mega Hotend Cover V2
a436584768036124324364424108c2e7_display_large.jpg Anycubic I3 Mega Hotend Cover V2
Anycubic_Hotend_Cover_V2-assembled.stl Anycubic I3 Mega Hotend Cover V2
Anycubic_Hotend_Cover_V2-Chassis.stl Anycubic I3 Mega Hotend Cover V2
Anycubic_Hotend_Cover_V2-LuefterDuese.stl Anycubic I3 Mega Hotend Cover V2
Anycubic_Hotend_Cover_V2.stl Anycubic I3 Mega Hotend Cover V2
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
4 files (STL) Close
  • Anycubic_Hotend_Cover_V2-Chassis.stl
  • Anycubic_Hotend_Cover_V2-LuefterDuese.stl
  • Anycubic_Hotend_Cover_V2-assembled.stl
  • Anycubic_Hotend_Cover_V2.stl

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 38738
Design author dede67
dede67

dede67

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

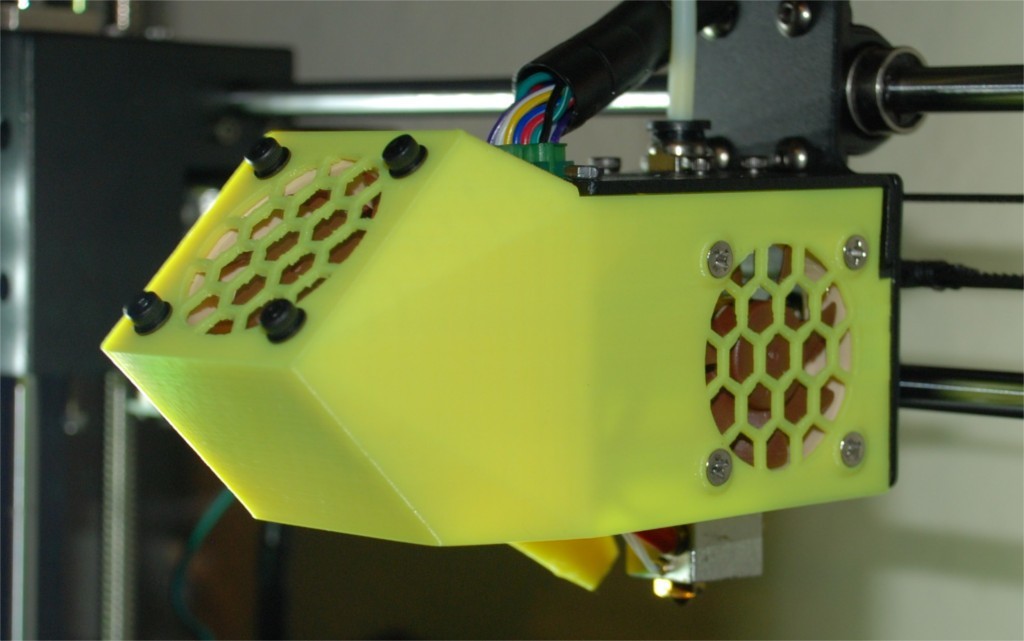

This is the second version of my hotend cover for the Anycubic I3 Mega.
The primary change (aside from the color) is the area for the front fan. That fan now has to be 20mm deep.
This one: Noctua NF-A4x20 FLX 40mm (more airflow, less noise)

It takes some dexterity to install the nuts in the pipe ... and a bit of brute force.

Print time was about 0:51h for the pipe and 2:48h for the chassis.
Filament usage: 11g for the pipe and 37g for the chassis.

BOM
4x screw M3x30 (fan/front)
2x screw M3x6 (chassis/rear)
2x screw M3x10 (chassis/top)
8x nut M3

But .... there is a problem: the NF-A4x20 does not turn [yet]!
It turns, if I connect it to 12V.
And the NF-A4x10 still turns on the Anycubic -> no driver blown.

That means: the model fits but the electronics does not yet do what it should do.
