GoPro Handlebar Mount (customizable)

Capture d’écran 2018-05-10 à 10.44.52.png Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
Capture d’écran 2018-05-10 à 10.44.57.png Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
Capture d’écran 2018-05-10 à 10.45.02.png Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
Capture d’écran 2018-05-10 à 10.45.07.png Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
GoPro-Lenkrad-Halterung_-_connector_bot_32mm.stl Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
GoPro-Lenkrad-Halterung_-_connector_gopro.stl Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
GoPro-Lenkrad-Halterung_-_connector_top_32mm.stl Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
GoPro-Lenkrad-Halterung_-_extension_50mm.stl Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
GoPro-Lenkrad-Halterung_-_screw_handle.stl Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
GoPro-Lenkrad-Halterung.stl Free STL file GoPro Handlebar Mount (customizable)・3D printable object to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

dede67

dede67

3D model description

A GoPro connector for the handlebar of a bicycle.
The diameter of the handlebar and the length of the arm is customizable.

Three M4 screws (DIN 933, 2x16mm & 1x20mm) and self-locking nuts are needed for the handlebar connector.
Two M5 screws (DIN 933, 20mm & 50mm) and nuts are needed for the GoPro connectors.

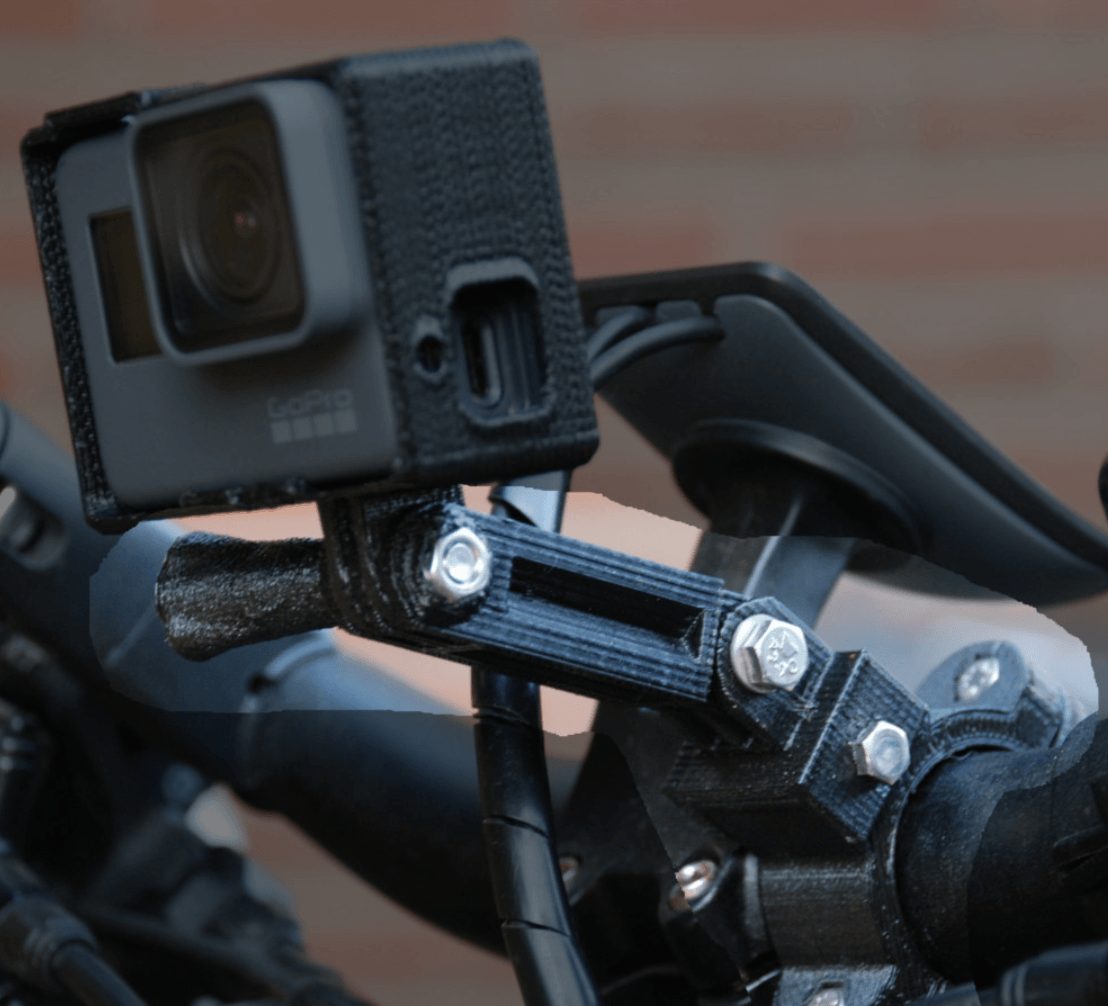

I glued half of a bicycle patch in each of the handlebar connectors - to have a better grip on the handlebar (see photo).
The screw_handle needs a screw M5x50, an additional nut and some hot glue.

The case for the GoPro Hero 5 is this one: https://cults3d.com/en/3d-model/gadget/case-for-gopro-hero5-no-support-needed

3D printing settings

Printer:

Velleman K8200

Rafts:

No

Supports:

No

Resolution:

0.25mm

Infill:

25% - 100% (depends on the part / decide for yourself)

Notes:
The design was made to allow printing without support and also have areas, where stress occurs, be printed in one piece (without retraction).

3D printer file information

  • Design number: 25116
  • 3D design format: STL and ZIP Folder details Close
    • GoPro-Lenkrad-Halterung.scad.zip
    • GoPro-Lenkrad-Halterung.stl
    • GoPro-Lenkrad-Halterung_-_connector_bot_32mm.stl
    • GoPro-Lenkrad-Halterung_-_connector_gopro.stl
    • GoPro-Lenkrad-Halterung_-_connector_top_32mm.stl
    • GoPro-Lenkrad-Halterung_-_extension_50mm.stl
    • GoPro-Lenkrad-Halterung_-_screw_handle.stl

    Learn more about the formats

  • Publication date: 2018-05-10 at 08:47

License

CC BY-SA - Attribution - Share alike
