3D model description

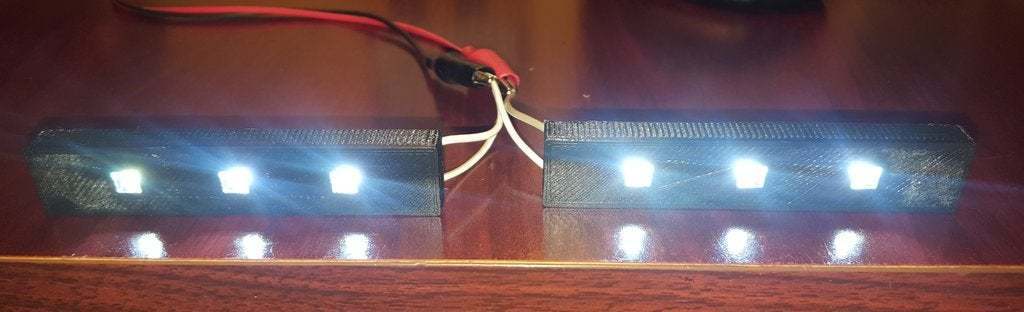

I like these 5050 3 LED modules on Ebay.
They are very bright.
I think they are meant to be used for signs and store fronts.
I like them for spot lighting and under cabinet lighting.

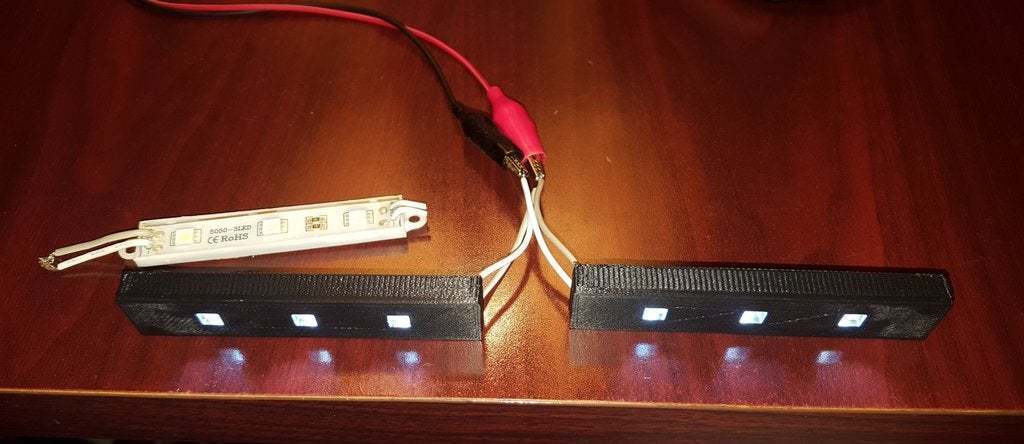

The modules I bought measure
77.4mm long without the ears
90.5mm long with the ears
14mm wide
4.2mm tall
There are 3 5050 LED's spaced 25mm's apart center to center.

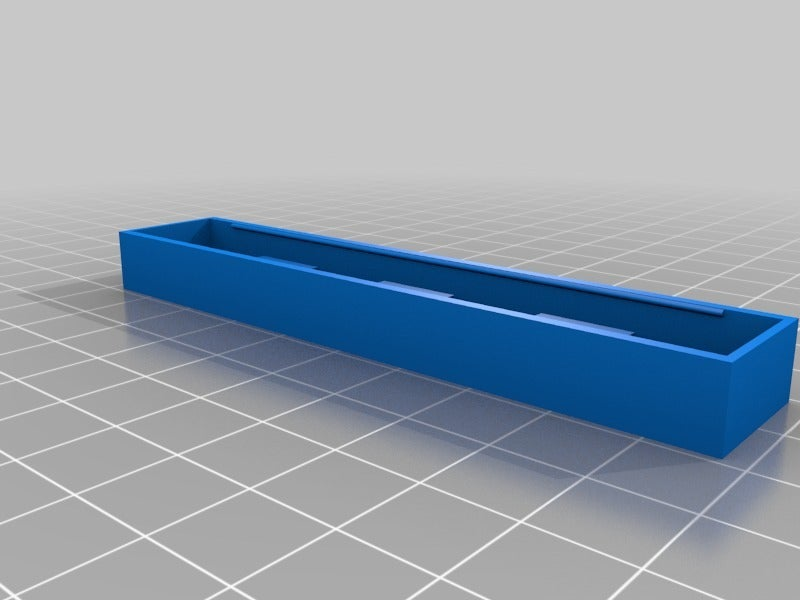

My little cover dresses it up a bit.
Now I can mount these where they might be seen.
I might even use them as DRL on my truck.

REVISION:

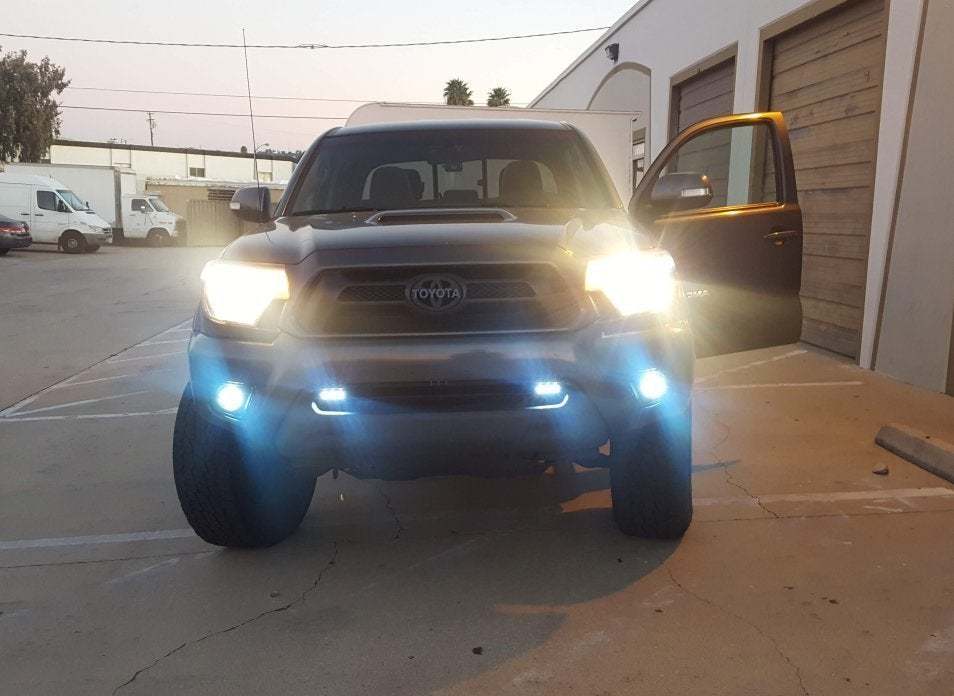

I did end up using them as drl's on my truck. I mounted them with double sided tape.

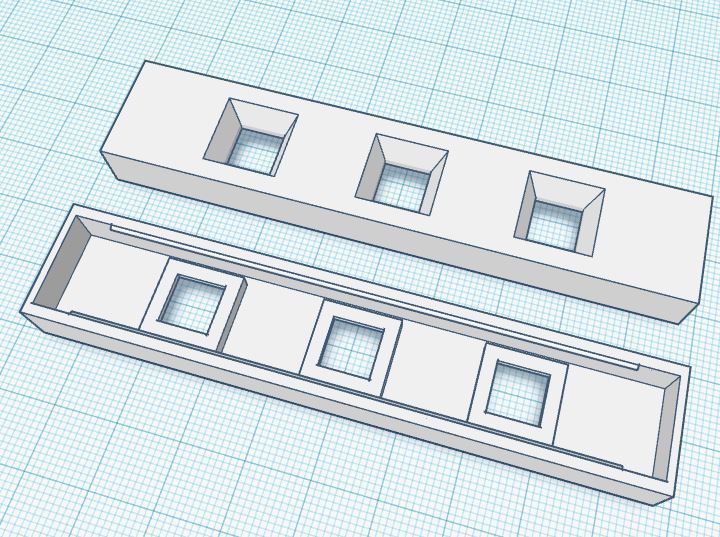

I re-mixed them slightly. I made the square hole a little bigger for the LED's and I angled the hole out a little bit.

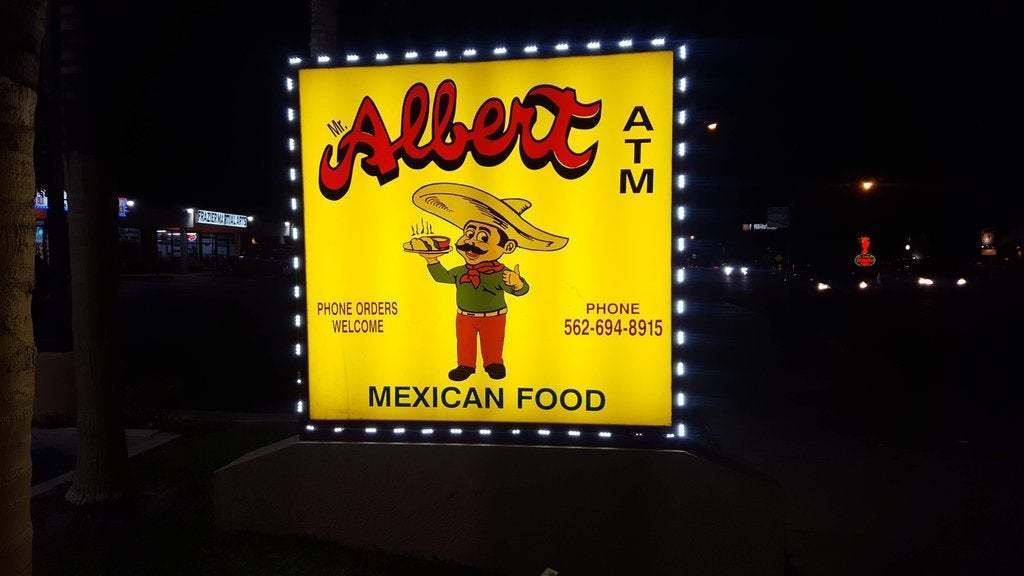

I just hope nobody figures out that my drl's are the same as the led's that are around the Mr. Albert Mexican Food sign! haha

Printed in ABS .2 layer 25% infill
