my arduino boxes

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 917 views
  • 10 likes
  • 114 downloads

3D model description

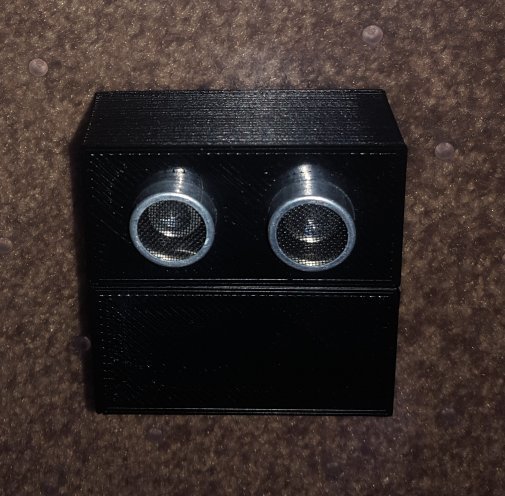

I designed these boxes to be interchangeable. Any lid will fit into any box. I have 1, 2, 3, and 4 chamber boxes. Only 1 and 2 are in the picture.
And 6 different lids: blank, HC-SR04, PIR, LM2596, Arduino Nano, and relay.
You will probably need a couple of drops of super glue to hold the PIR in place. All the other components slide into place and stay put.

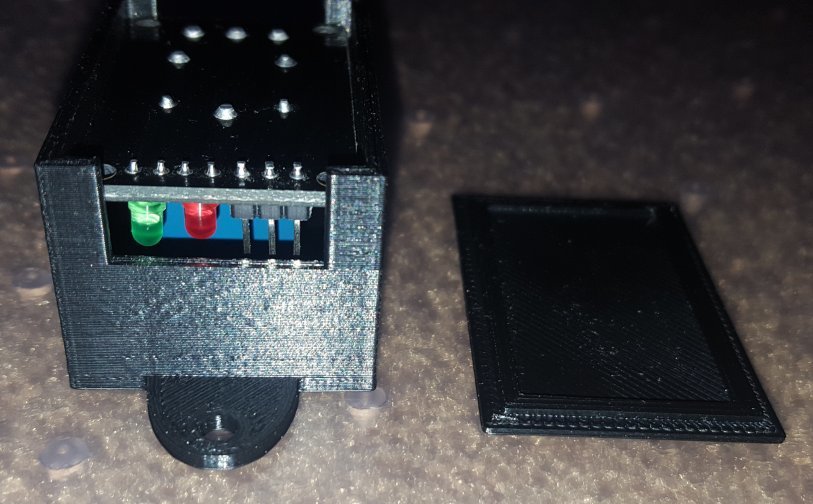

I have 2 different dimensions for relays. On one of them the circuit board is 46mm long X 17mm wide. This one will fit into the lid.

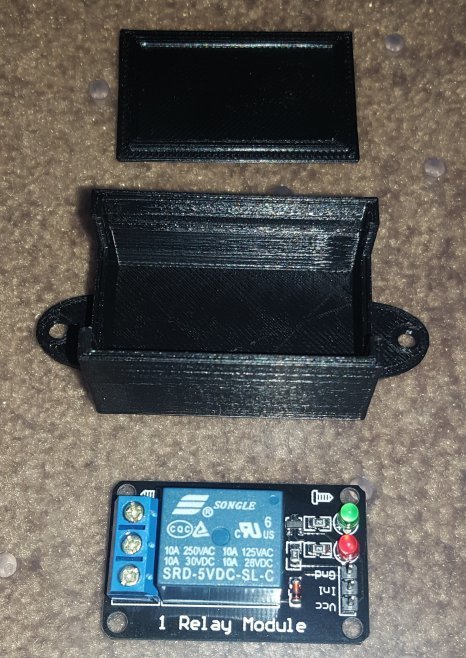

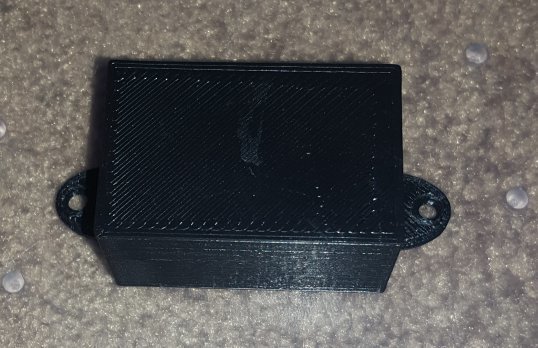

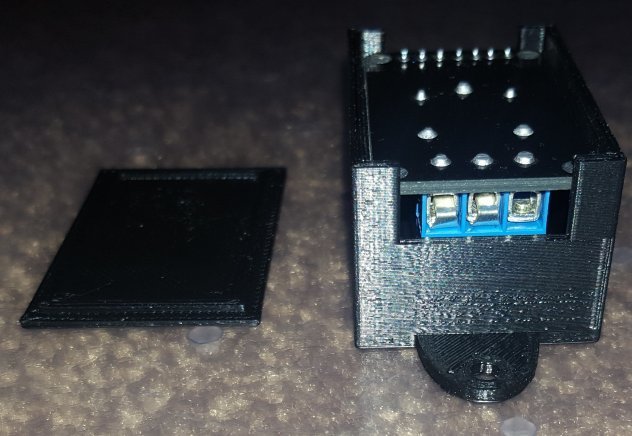

The other relay I have measures 43.5mm long X 26.5mm wide. I made a different box for this size. It is a little too wide for my universal boxes. It will hang upside down in the box.

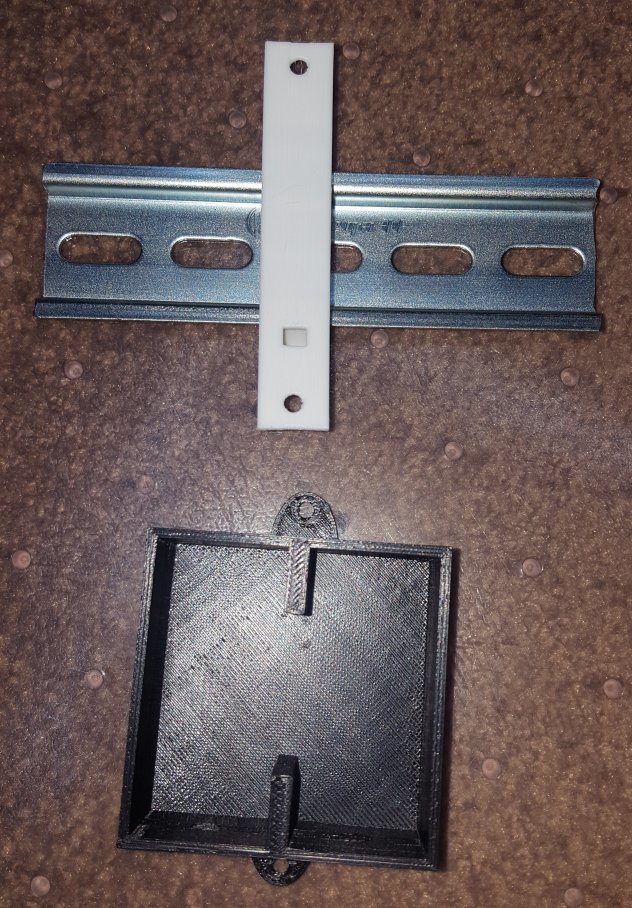

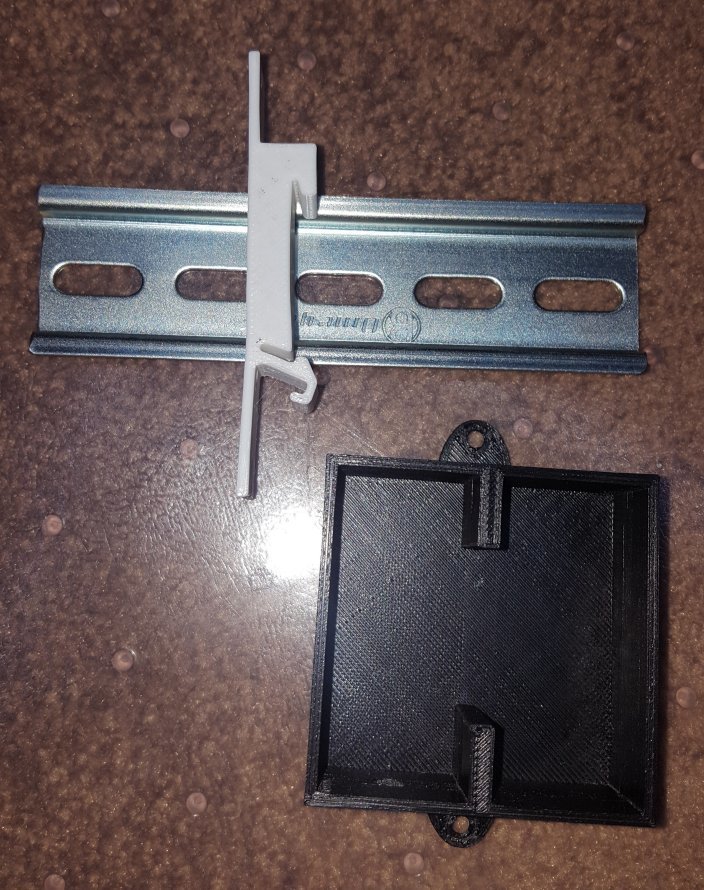

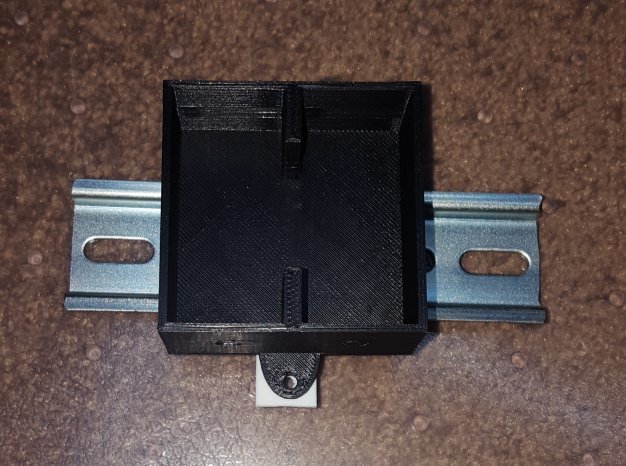

I also have a din rail clip so you can mount these boxes to a din rail.

3D printing settings

doesn't matter
