3-in-1 spool holder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 2 likes
  • 97 downloads

3D model description

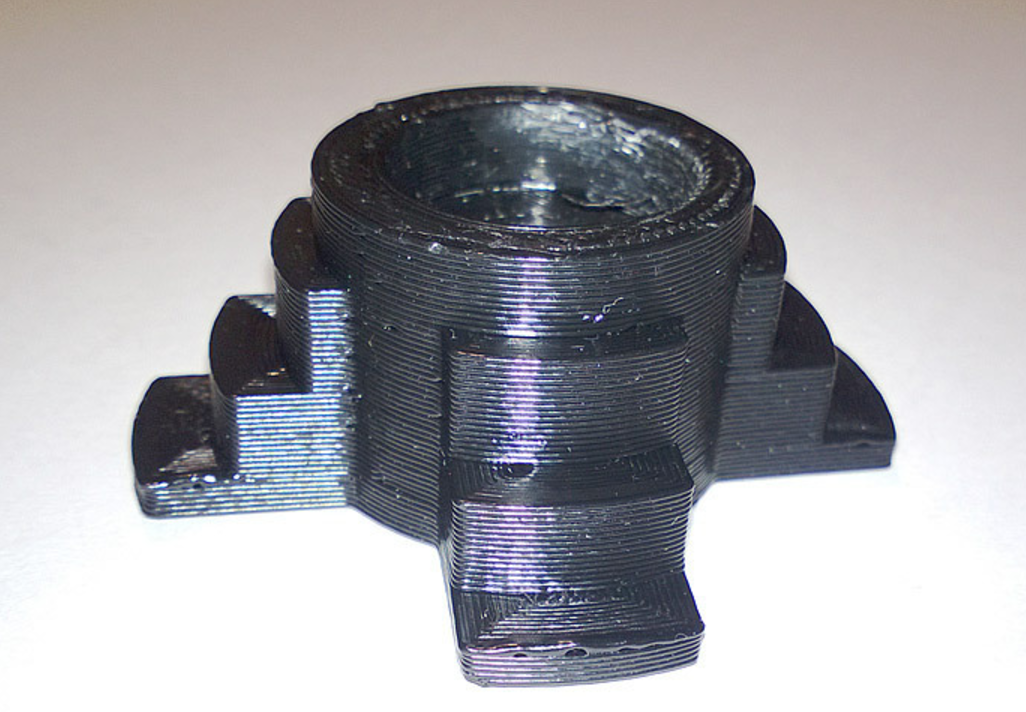

A holder for the most common filament spools: 48mm, 38mm and 32mm. It allows the spools to spin freely on a 8mm shaft.

It can be used as printed but it can also take 608 bearings at one or both ends..

3D printing settings

Print at 0.4-0.5 layer height (not terribly important), with support. With some luck it is possible to print without support, but cleaning is much harder.
Clean the internal hole with a 8mm drill, if necessary (there should be a 0.2mm clearance around the shaft).

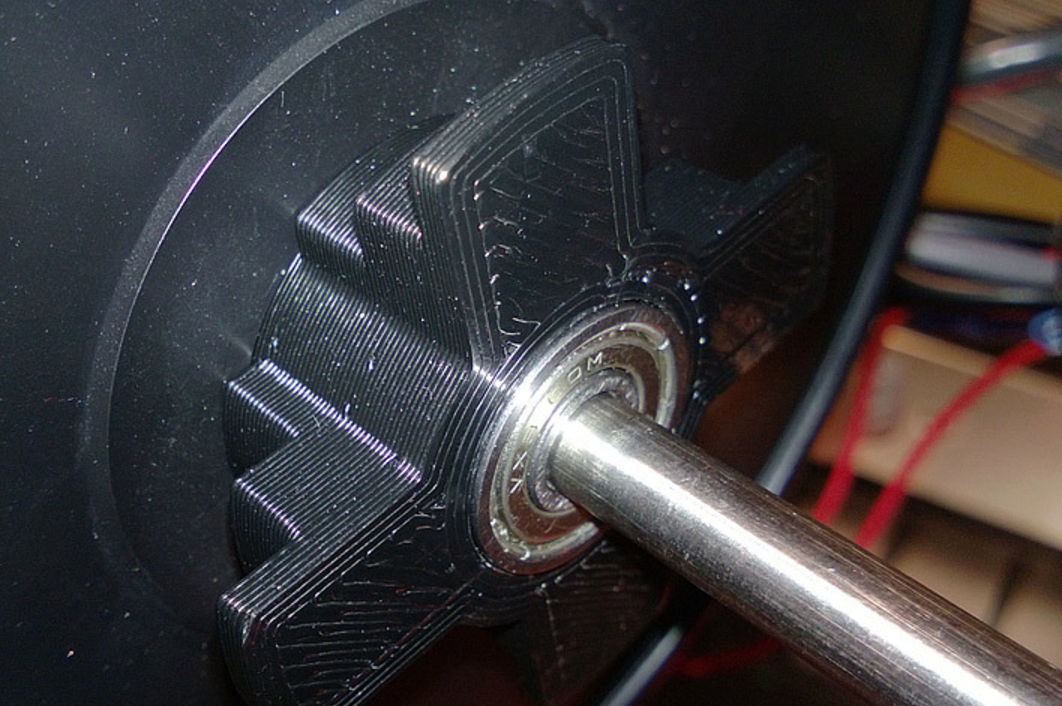

Push a 608 bearing inside with the help of a vise (and some pieces of plastic to prevent bearing and holder marks).

  • 3D file format: STL
  • Publication date: 2017/08/28 at 14:05

Tags

Creator

Designs 47
Downloads 6.9k
Followers 50

I enjoy designing minimalist-functional 3D objects.

License

CC BY
