Vikings Lantern - with changeable panels

Advertising
Download US$ 2.72+
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
79 files (STL) Close
  • VikingLantern_PANEL_Circles-Small.stl 74.60545400000001 × 40.830505 × 0.8 mm
  • VikingLantern_PANEL_Circles-Small_Heavy.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles-Small_Heavy_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles-Small_Lite.stl 74.60545400000001 × 40.830505 × 0.8 mm
  • VikingLantern_PANEL_Circles-Small_Lite_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles-Small_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles_Heavy.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles_Heavy_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles_Lite.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles_Lite_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Circles_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Helm-Of-Awe_center.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Helm-Of-Awe_center_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Helm-Of-Awe_top.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Helm-Of-Awe_top_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Knot_double.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Knot_double_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Knot_frame.stl 74.60545400000001 × 40.830505 × 0.800001 mm
  • VikingLantern_PANEL_Knot_frame_diffused.stl 74.60545400000001 × 40.830505 × 0.800001 mm
  • VikingLantern_PANEL_Knot_single.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Knot_single_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Knot_tripple.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Knot_tripple_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Horn_bottom.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Odin-Horn_bottom_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Odin-Horn_center.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Horn_center_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Horn_top.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Horn_top_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_bottom.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_bottom_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_center.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_center_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_dual.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_dual_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_top.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Odin-Spear_top_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Original.stl 74.605458 × 40.830505 × 0.800003 mm
  • VikingLantern_PANEL_Original_diffused.stl 74.605458 × 40.830505 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_double.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_double_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_frame-small.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_frame-small_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_frame.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Tripple-knot_frame_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Tripple-knot_single-w-frame.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_single-w-frame_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800003 mm
  • VikingLantern_PANEL_Tripple-knot_single.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Tripple-knot_single_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Troll-Cross_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Valknut_bottom.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Valknut_bottom_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Valknut_center.stl 74.60545400000001 × 40.830505 × 0.8 mm
  • VikingLantern_PANEL_Valknut_center_diffused.stl 74.60545400000001 × 40.830505 × 0.8 mm
  • VikingLantern_PANEL_Valknut_frame.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Valknut_frame_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Valknut_top.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Valknut_top_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Web-Of-Wyrd.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Web-Of-Wyrd_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Web-Of-Wyrd_small.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Web-Of-Wyrd_small_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Yggdrasil_bottom.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Yggdrasil_bottom_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Yggdrasil_center.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Yggdrasil_center_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Yggdrasil_top.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL_Yggdrasil_top_diffused.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_PANEL__Solid.stl 74.60545400000001 × 40.83051300000001 × 0.800002 mm
  • VikingLantern_TEST_bar-bottom.stl 5.975845000000007 × 7.31945 × 3.5999990000000004 mm
  • VikingLantern_TEST_bar-top.stl 4.696990999999997 × 7.319443000000007 × 3.599874 mm
  • VikingLantern_TEST_bottom.stl 7.599921999999999 × 7.5999289999999995 × 2.900001 mm
  • VikingLantern_TEST_top.stl 6.909019000000001 × 6.909027 × 2.9000020000000006 mm
  • VikingLantern__BAR.stl 5.975845000000007 × 87.75 × 3.5999989999999986 mm
  • VikingLantern__BAR_x6.stl 55.97584500000001 × 87.750015 × 3.5999989999999986 mm
  • VikingLantern__BASE.stl 94.660958 × 85.158256 × 3.000001 mm
  • VikingLantern__DIFFUSER.stl 90.764397 × 80.327252 × 73.598976 mm
  • VikingLantern__TOP.stl 94.660949 × 85.158249 × 2.900058 mm

Learn more about the formats
Last update
Publication date
Design number 522832
Design author c47
c47

c47

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

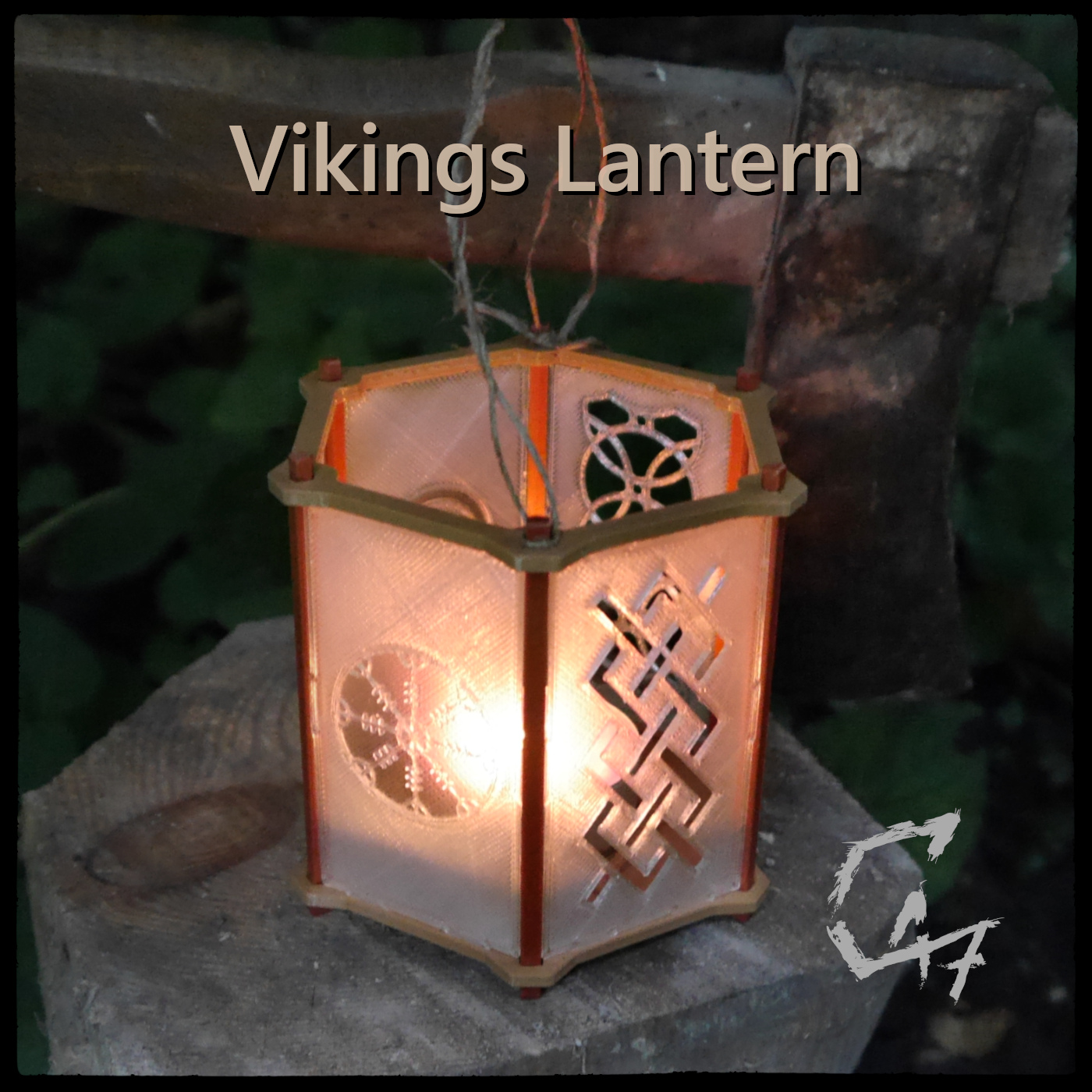

Assemble Candle / tealight covers with 35 changeable panels with Viking's shapes and patterns to choose.

  • 9,5cm diameter
  • 8,7cm high

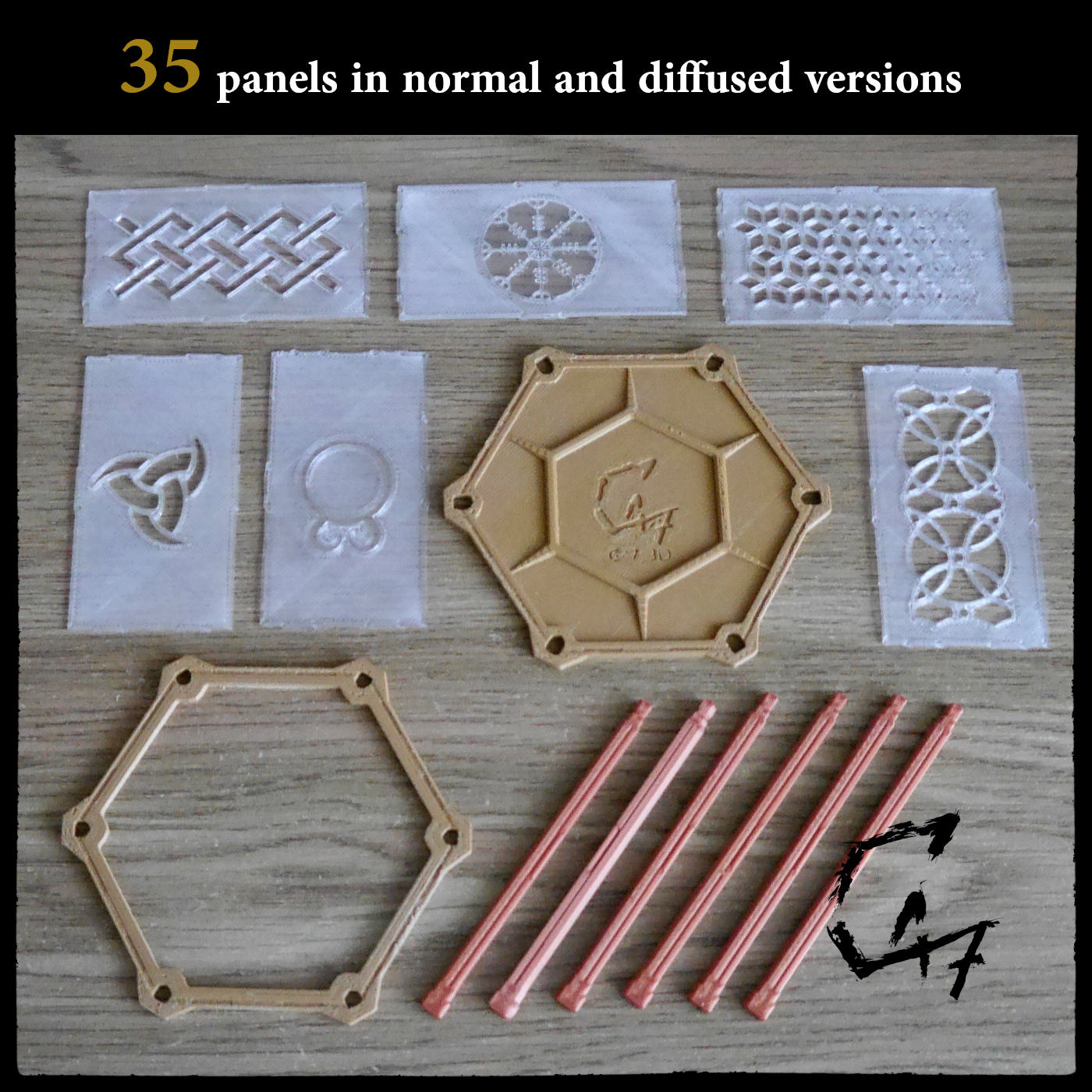

  • printed in 14 pieces (base, top, 6 bars, 6 panels)
  • no need of glueing (but it's safer to hold it by the bars when moving, especially when tealight or candle is inside)
  • you can additionally lock the bars with a thread (tie it around the cutted part of bars - see photos with an axe) and use the thread as a handle too
  • you can disassemble it, so it will use less storage space, and assemble it again when needed

FREE version of Lantern if you want to check if you like the model before you buy the Vikings Set
https://cults3d.com/en/3d-model/home/assamble-lantern-with-changeable-panels

Assembling and 360* (on the end with normal light and a lighter) video:
https://youtu.be/5GyPAtmXjb8

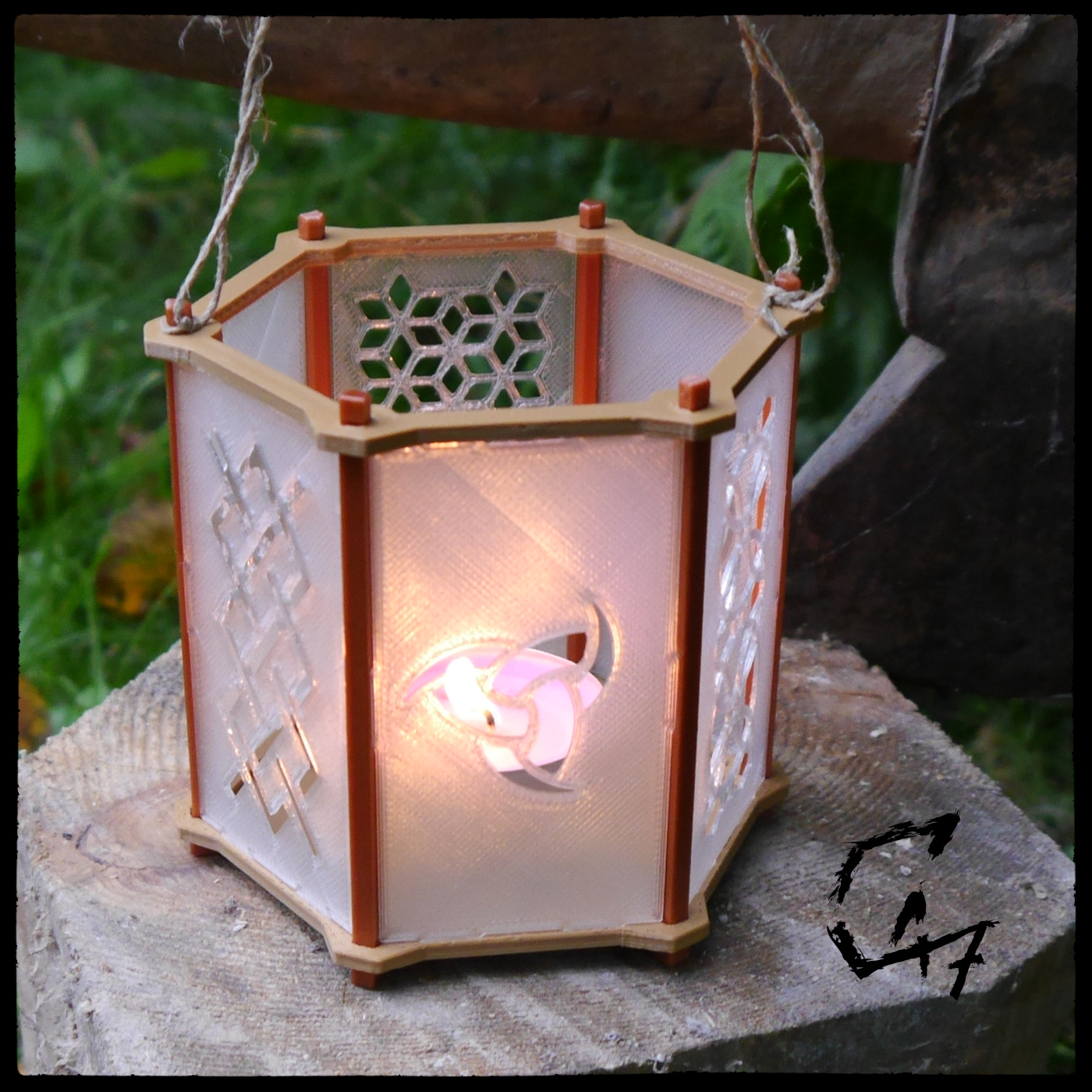

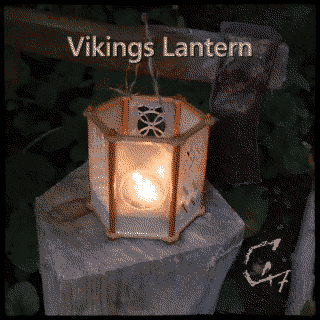

Some outdoor photos and short video with a tealight
https://www.instagram.com/p/CUCi8L_r04W/

Test print video with black and white filament with some different panels:
https://www.instagram.com/p/CTxdqezFKA_/

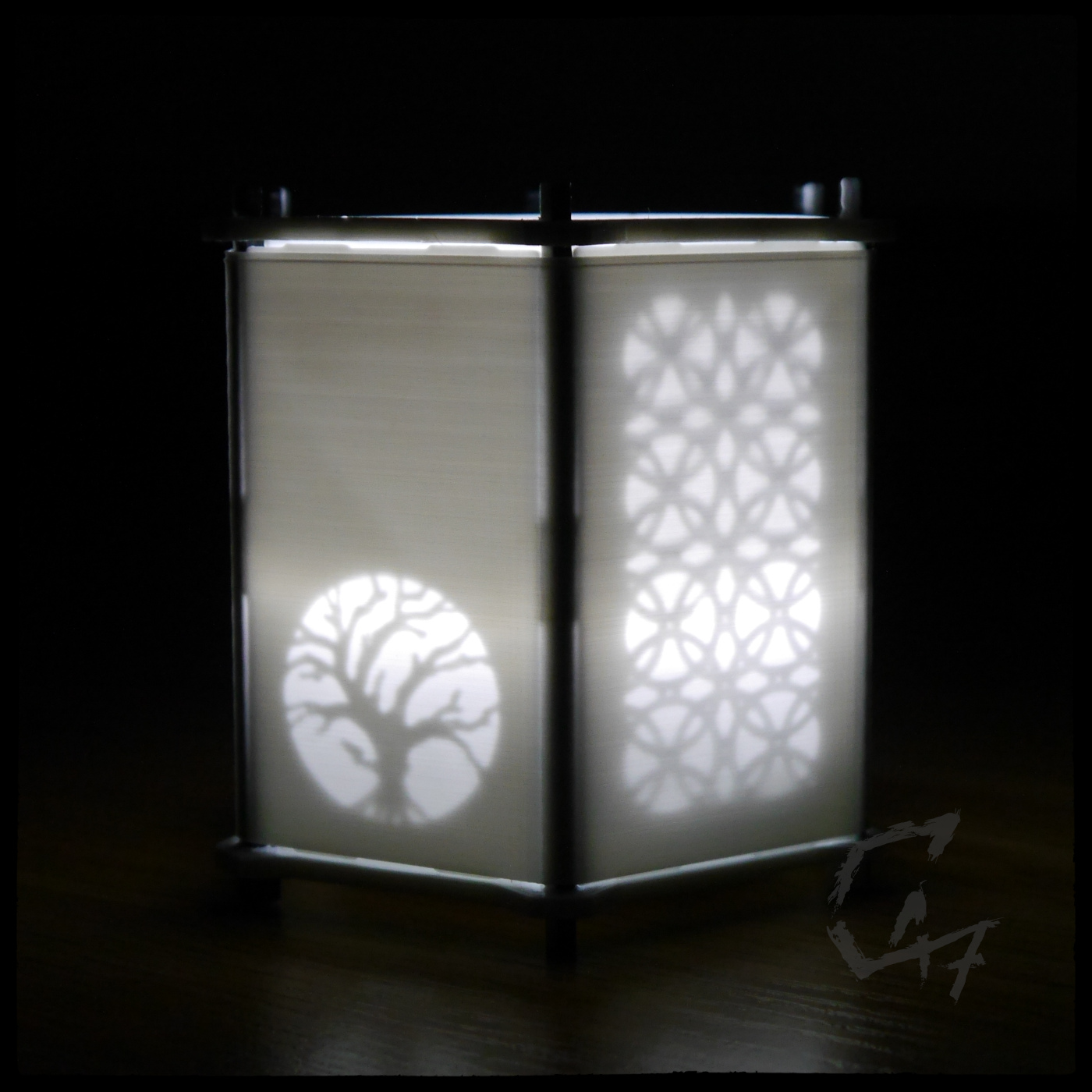

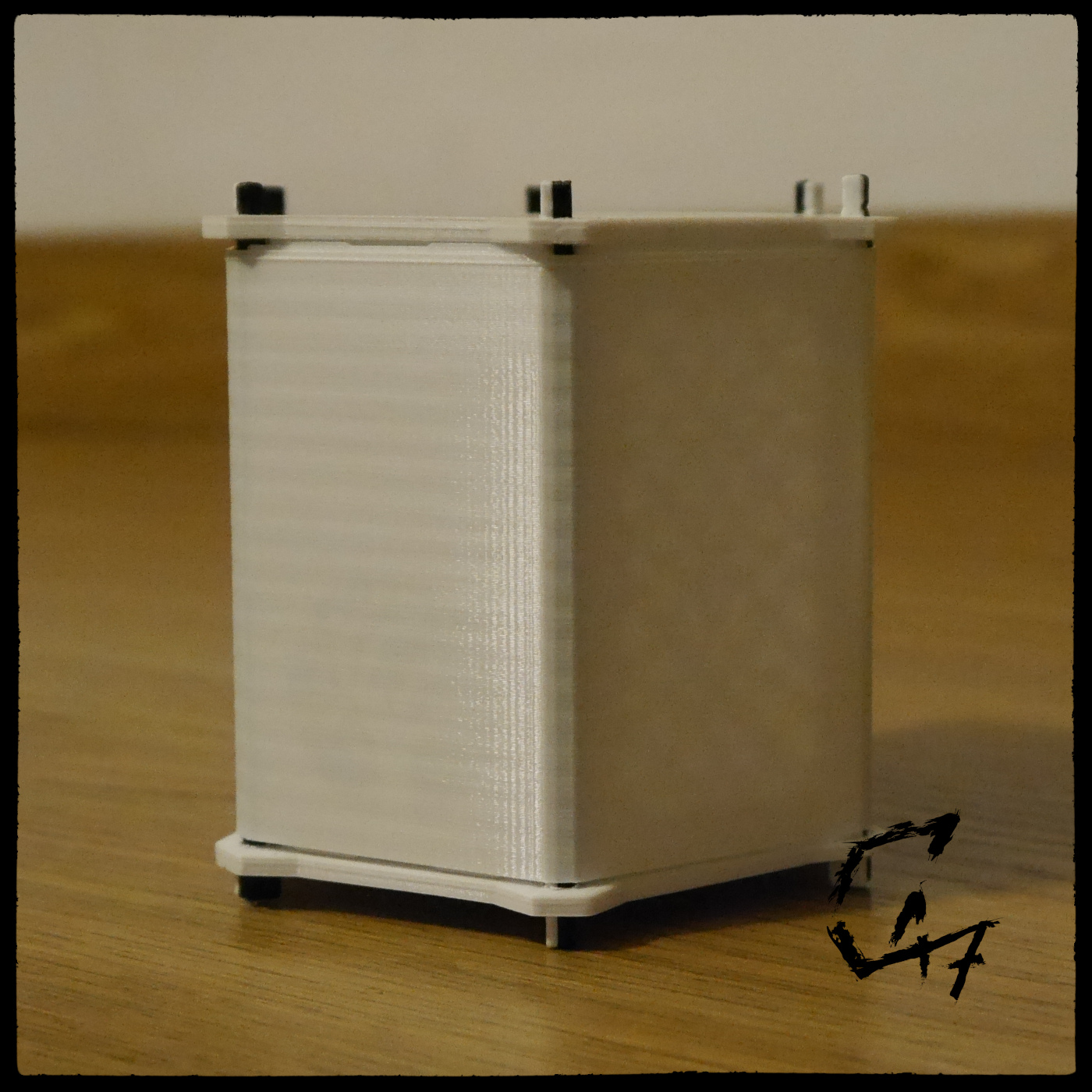

Photos of a test print with an additional diffuser: (sorry for print errors)
https://www.instagram.com/p/CTzklCDtnEl/

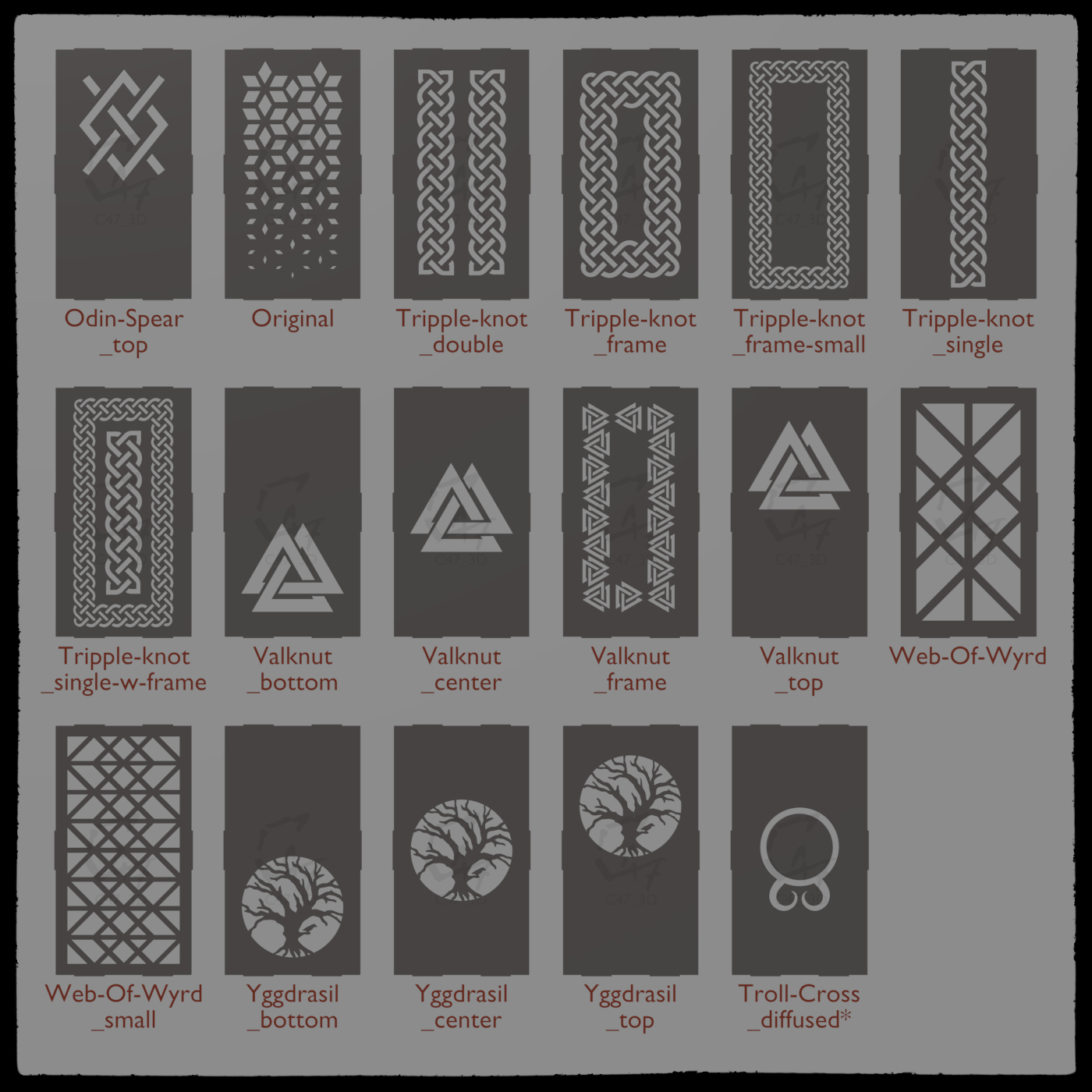

  • there is 12 basic shapes in 35 configurations
  • all (exept one - Troll Cross - the last on panels list) are in normal (with holes through) and diffused versions (with solid base that diffuse light more)
  • additional diffuser model for a closer to original vikings lanterns look - print it in vase mode (spiralize) for best look
  • you can use a diffuser with or without panels
  • instead of a tealight or a candle you can use a battery light (as on test print photos) - if needed flip the candle cover upside down to have room for a cable

Assembling, additional informations:

  • Video shows the easiest way to assemble (bottom and top close to each other when installing bars). Installing bars to base part and then putting on the top part may be little harder
  • Bars will fit only one way (the pointy part to the inside)
  • Panels are better looking when you install them more flat side (usually the first layer, the printer bed side) to the outside
  • If panels will not hold push in top part little harder or use a file to scrap a little plastic on the bars, where top part holds, towards the base (so top part will be closer to base)
  • version 1.1 of bars will hold the top and bottom parts stronger. Normal version is easier to put it

Shapes and patterns were used on my
Viking's Bookmarks:
https://cults3d.com/en/3d-model/home/viking-s-bookmarks-set
and
Round Vikings Earrings / Talismans:
https://cults3d.com/en/3d-model/jewelry/round-vikings-earrings-talismans

More Tealight Covers:

Zodiac - FREE sample available
https://cults3d.com/en/3d-model/home/zodiac-tealight-cover

Vikings Lantern - FREE sample available
https://cults3d.com/en/3d-model/home/viking-s-candle-covers-set

The Little Prince
https://cults3d.com/en/3d-model/home/little-prince-tealight-cover

Year of the Tiger (Chinese Year 2022) - FREE sample available
https://cults3d.com/en/3d-model/home/year-of-the-tiger-tealight-covers-set

Christmass and decorative - FREE sample available
https://cults3d.com/en/3d-model/home/candle-tealight-covers-set

Geometric Shadow Makers - FREE
https://cults3d.com/en/3d-model/art/rosette-shadow-maker
https://cults3d.com/en/3d-model/home/lattice-shadow-maker

Valentine's Day - FREE
https://cults3d.com/en/3d-model/home/tealight-covers-for-valentines-day

If you will some problems with it just ask. I will try to help :)

UPDATE 20 IX 2021
Version 1.1 with beveled holes in base and top parts (will help if your first layer is squished) and with very small ridges on bars and inside base and top (lanter will hold together stronger)
New version of Knot_Frame as I notticed that the knot was not seamless

UPDATE 18 I 2024
Improved Base, Top and Bars models. It will hold even stronger now
Added Test files to check if your slicer and printer settings are right
Changed file names to shorter
Panels are slightly longer now
Fixed some minor model errors
Added new photos

3D printing settings

Prepared for 0,4mm nozzle
Printed with 0.2mm layer hight
10% infill with 3 walls (for bars and base and top) or 1-2 walls for panels
Diffuser printed in spiralize mode (vase mode)

Print with a solid filament (as on test print) for a shadow in panels shapes or with a transparent one for less hard light and more glow (as on final print)

Or print diffused version in both filaments
One color, transparent for a shape mostly, up to 0.2mm and other color for around the shape
