Seat-back Hook

IMG_3240.jpg Seat-back Hook
dd17f4a43944757bb6890568cc7a044b.png Seat-back Hook
IMG_3241.jpg Seat-back Hook
IMG_3242.jpg Seat-back Hook
bcacab00ec7546d36a788c339b275c80.png Seat-back Hook
fe9ba828576dc7a98d862792e55f9ecf.png Seat-back Hook
6460a57d9a14f8ccc5f83d09074ec6a4.png Seat-back Hook
3e88ac11c021e2546bd1694950b8176e.png Seat-back Hook
SeatHook.stl Seat-back Hook
SeatHook+10mm.stl Seat-back Hook
SeatHook+5mm.stl Seat-back Hook
SeatHook+15mm.stl Seat-back Hook
SeatHook+20mm.stl Seat-back Hook
IMG_3240.jpg Seat-back Hook
dd17f4a43944757bb6890568cc7a044b.png Seat-back Hook
IMG_3241.jpg Seat-back Hook
IMG_3242.jpg Seat-back Hook
bcacab00ec7546d36a788c339b275c80.png Seat-back Hook
fe9ba828576dc7a98d862792e55f9ecf.png Seat-back Hook
6460a57d9a14f8ccc5f83d09074ec6a4.png Seat-back Hook
3e88ac11c021e2546bd1694950b8176e.png Seat-back Hook
SeatHook.stl Seat-back Hook
SeatHook+10mm.stl Seat-back Hook
SeatHook+5mm.stl Seat-back Hook
SeatHook+15mm.stl Seat-back Hook
SeatHook+20mm.stl Seat-back Hook
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
5 files Close
  • SeatHook+10mm.stl 88.46313800000001 Γ— 95.5 Γ— 24.0 mm
  • SeatHook+15mm.stl 88.463142 Γ— 100.50000000000003 Γ— 24.0 mm
  • SeatHook+20mm.stl 88.463165 Γ— 105.49999999999997 Γ— 24.0 mm
  • SeatHook+5mm.stl 88.463142 Γ— 90.500007 Γ— 24.0 mm
  • SeatHook.stl 88.46314699999999 Γ— 85.5 Γ— 24.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1059432
Design author timskloss
timskloss

timskloss

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

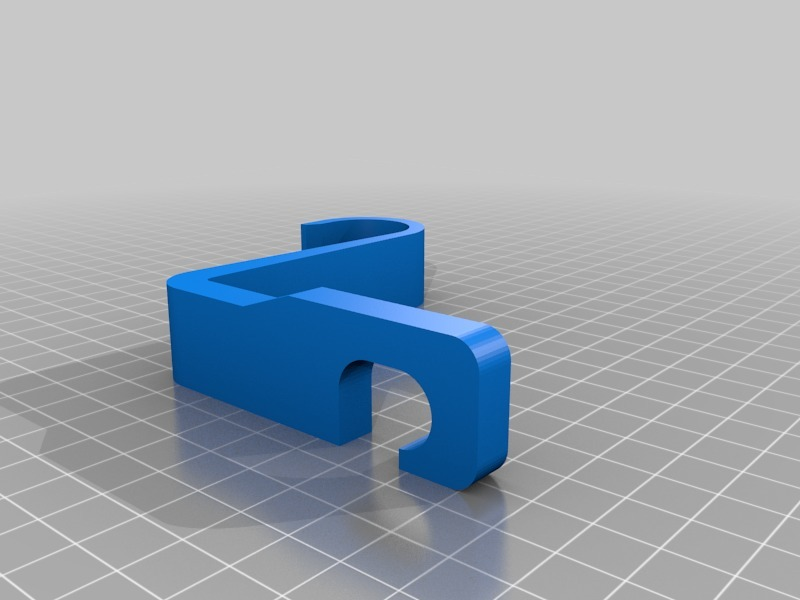

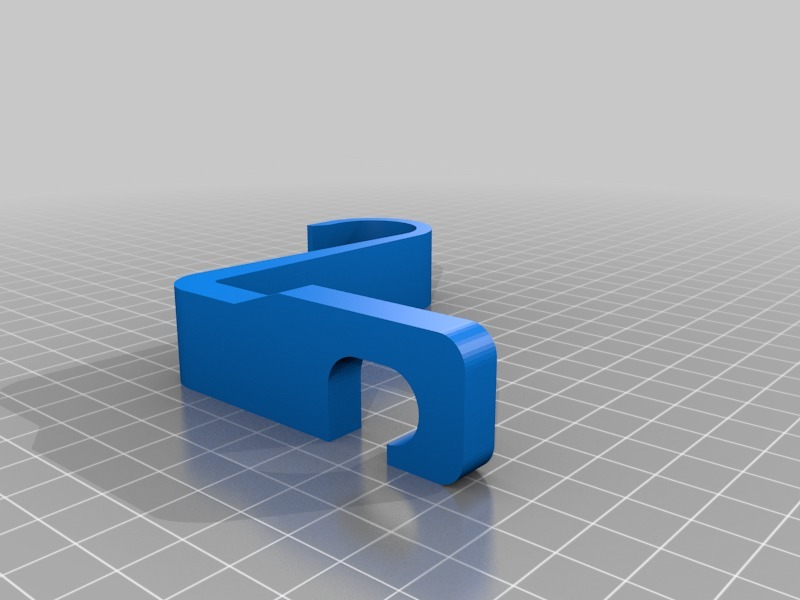

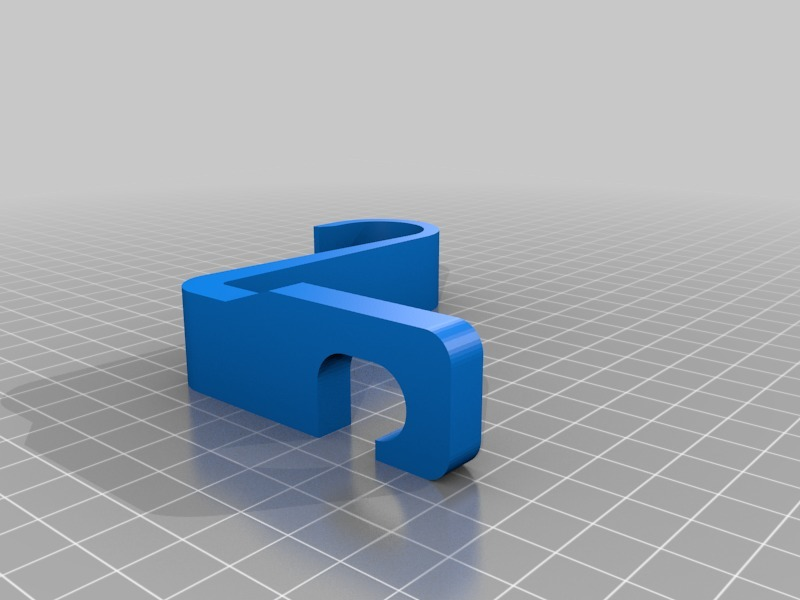

Easy to print, and quite strong. The hook on top is sized for a 13.0 mm diameter round shaft; scale your print to match the size on your seat.

When printed on its side as shown it can be very strong, especially if you set a high number of perimeters. I printed with PETG using two perimeters and the hooks were strong enough to hold my computer backpack. Next time I'll print with 3 or 4 perimeters. Also use a high infill for strength. PETG favors higher extrusion temperatures to enhance the fusion of layers.

The vehicle in the photos is a 2016 Ford F-150 supercab pickup truck. The posts for the head rests were 13 mm in diameter.

UPDATE July 2017: I added extended versions for thicker seats.
