3D model description

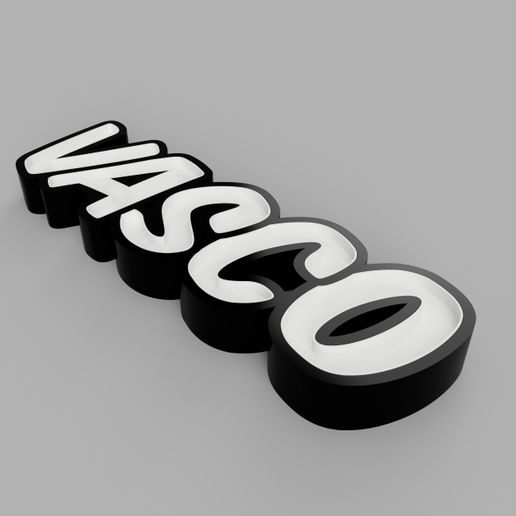

This is a free version of the led lamp, which I developed with my son's name, and which I make available for you to be able to see the format and type of files you receive in the name pack you choose for your case.

NOTE: The photos are from a diferent font letters. I made multiple prints.

If you are lucky enough to need a VASCO name, them you can use it without any problems. :)

If you need help you can send an email to, requesting a personalized name to add to the list. If you have a business selling 3D prints, the design can be done by us.

You can see here all the names in led lamps that are being created and made available: current portfolio

A modular lamp that can have integrated LED strips. You can choose a control system with a command or even via WI-FI on your mobile phone.
Print all the letters separately, so it fits well on a normal printer, and then glued with plastic glue on the identified inserts in a very simple way.

The letter covers are printed on a clear material, which is translucent and illuminates. Cover parts are not glued, they are just fitted.

Leds must be glued to the inner wall of the letters and pass between them in the existing holes.
The entire printing is prepared with printing clearances, so that there are no problems.

One letter have diferent versions, to allow different electrical connections. An existing hole on the side, behind, support for command with 3 buttons or even without a hole to be able to drill wherever you want, or even use the letters only as an ornament, without light.

Size: 14cm height (5.51 in)


If you want another personalized name with a Nameled lamp, contact by email to and indicate the name you want. The name will be quickly created to be able to print.

Can see here all names already available: Creations

Summary of Assembly Steps:
1. Print letter one by one (fit in your printer without problems)
2. Print letter covers one by one (white or translucent)
3. Glue the letters in the correct order and in the existing notch
4. Glue a led strip to the inner edge, passing through the channels (Led 5050 model).
5. Make an electrical connection according to the model you are going to use.
6. Press the covers in place (they have a tolerance)
7. Place on the table or hang
8. Enjoy the magic.

A fast video to show the final part of assembly:

To help, I leave here the indication of some parts that I use in the project:


Infill - 8%
Height - 0.3mm (nozzle 4mm) or 0,4mm (nozzle 6mm - preferred)
Opaque color for letters, white color for covers.

About the difference between Wall and Table

In the wall version all the letters are just side by side, at the same plan. So you can use it on a wall, and it looks fine. You can also put it on a table, but it's easier to fall.

in a version table, letters have a step of 8mm that glues in the back of the previous letter. This way give a 3d aspect, don't fall so easy, but is not ok to put on the wall :)

3D printing settings

Infill - 8%
Height - 0.3mm (nozzle 4mm) or 0,4mm (nozzle 6mm - preferred)
Opaque color for letters, white color for covers.

3D printer file information

  • 3D design format: ZIP Folder details Close
      • COVERS/Cover A.stl
      • COVERS/Cover C.stl
      • COVERS/Cover O.stl
      • COVERS/Cover S.stl
      • COVERS/Cover V.stl
      • IMAGES/96e176c1-059b-48c6-98e5-e23278d5a364.JPEG
      • LETTERS VERSION PLANE (wall)/A.stl
      • LETTERS VERSION PLANE (wall)/C.stl
      • LETTERS VERSION PLANE (wall)/O.stl
      • LETTERS VERSION PLANE (wall)/S.stl
      • LETTERS VERSION PLANE (wall)/V - Back Hole.stl
      • LETTERS VERSION PLANE (wall)/V - Command 3 Buttons.stl
      • LETTERS VERSION PLANE (wall)/V - Side Hole.stl
      • LETTERS VERSION PLANE (wall)/V - USB.stl
      • LETTERS VERSION PLANE (wall)/V.stl
      • LETTERS VERSION STAIRS (table)/A.stl
      • LETTERS VERSION STAIRS (table)/C.stl
      • LETTERS VERSION STAIRS (table)/O.stl
      • LETTERS VERSION STAIRS (table)/S.stl
      • LETTERS VERSION STAIRS (table)/V - Back Hole.stl
      • LETTERS VERSION STAIRS (table)/V - Command 3 Buttons.stl
      • LETTERS VERSION STAIRS (table)/V - Side Hole.stl
      • LETTERS VERSION STAIRS (table)/V - USB.stl
      • LETTERS VERSION STAIRS (table)/V.stl
      • NAMELED Wall vs Table.pdf

    Learn more about the formats

  • Last update: 2022-01-23 at 20:05
  • Publication date: 2021-02-18 at 02:51



3D Design Specialist

Send me your ideas... I'll make the printing model :)
Names, Symbols and Logos.

You can try a free version of NAMELED with a name:

Or this one:

NEW: See and share your print photos here:

See a video about nameled to understand construction:

Buy LED 5050 and complete kit components:

12V power supply:
