Apidea queen mating nuc frame

d9ebfc92da47dbaee7a918d5786dc74d_display_large.jpg Apidea queen mating nuc frame
apidea_v2_topbar.stl Apidea queen mating nuc frame
apidea_v2_sidebar.stl Apidea queen mating nuc frame
apidea_v2_topbar_NOSTUDS.stl Apidea queen mating nuc frame
apidea_v3_topbar_foundation.stl Apidea queen mating nuc frame
apidea_v2_sidebar_HOLE.stl Apidea queen mating nuc frame
apidea_v2_bottombar.stl Apidea queen mating nuc frame
d9ebfc92da47dbaee7a918d5786dc74d_display_large.jpg Apidea queen mating nuc frame
apidea_v2_topbar.stl Apidea queen mating nuc frame
apidea_v2_sidebar.stl Apidea queen mating nuc frame
apidea_v2_topbar_NOSTUDS.stl Apidea queen mating nuc frame
apidea_v3_topbar_foundation.stl Apidea queen mating nuc frame
apidea_v2_sidebar_HOLE.stl Apidea queen mating nuc frame
apidea_v2_bottombar.stl Apidea queen mating nuc frame
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
πŸ†Β BestΒ ?
License
3D design format
6 files (STL) Close
  • apidea_v2_bottombar.stl 105.760002 Γ— 24.8 Γ— 2.4 mm
  • apidea_v2_sidebar.stl 107.699996 Γ— 34.0 Γ— 7.448160000000001 mm
  • apidea_v2_sidebar_HOLE.stl 107.699996 Γ— 34.0 Γ— 2.4 mm
  • apidea_v2_topbar.stl 117.0 Γ— 24.4 Γ— 5.2 mm
  • apidea_v2_topbar_NOSTUDS.stl 117.0 Γ— 24.4 Γ— 3.3 mm
  • apidea_v3_topbar_foundation.stl 117.0 Γ— 24.4 Γ— 9.4 mm

Learn more about the formats
Publication date
Design number 58534
Design author Georgemacghay
Georgemacghay

Georgemacghay

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

This is a replica of Apidea nuc frame with some adjustments to make it printable. It might not really be cheaper to print it, but it could be convenient if you need some frames asap.

Print one top bar and two side bars and you're good to go. If you use Cura you could raise the infill on the small neck of the sidebar because this is a weak spot. Or you'd print the whole frame in 100% infill. I don't think that's necessary though.

I've used PETG because I might try to put them in the wax melter someday.

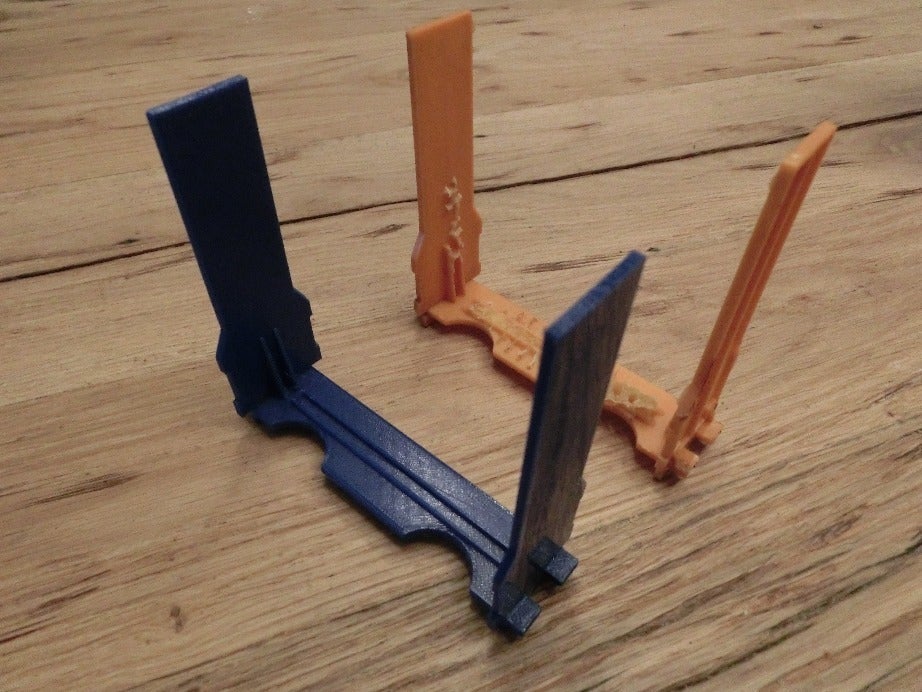

In the photo there's a printed and original frame for comparison.

There are three topbar styles.
- The one with the studs, like the original.
- One with a groove that is faster to print and easier to clean or cut out.
- One with a bit of foundation. Not yet tested if the bees like this.

There's also a sidebar alternative that fits an optional bottom bar (if one desires this).
