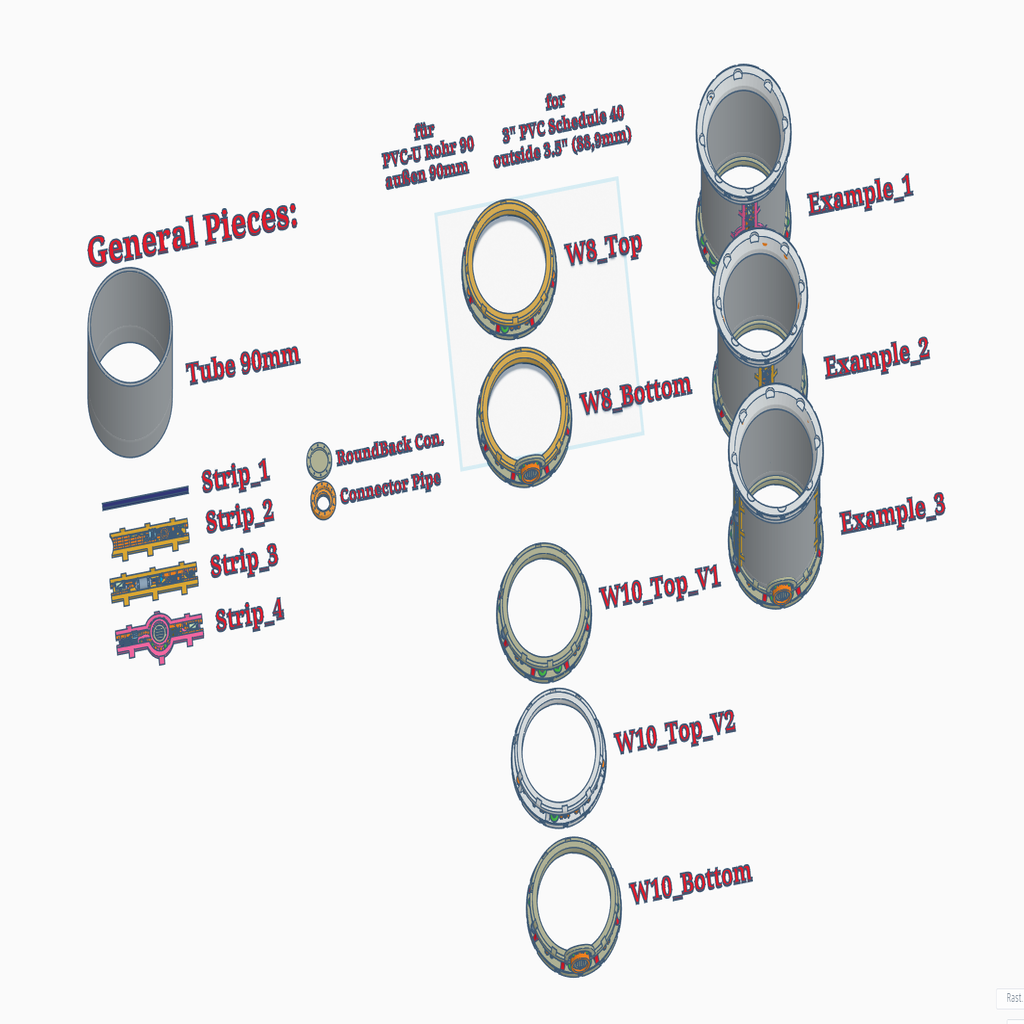

  • Overview.pdf
  • RoundedBack_Con.stl 25.99998499999998 × 25.983996999999995 × 5.4110000000000005 mm

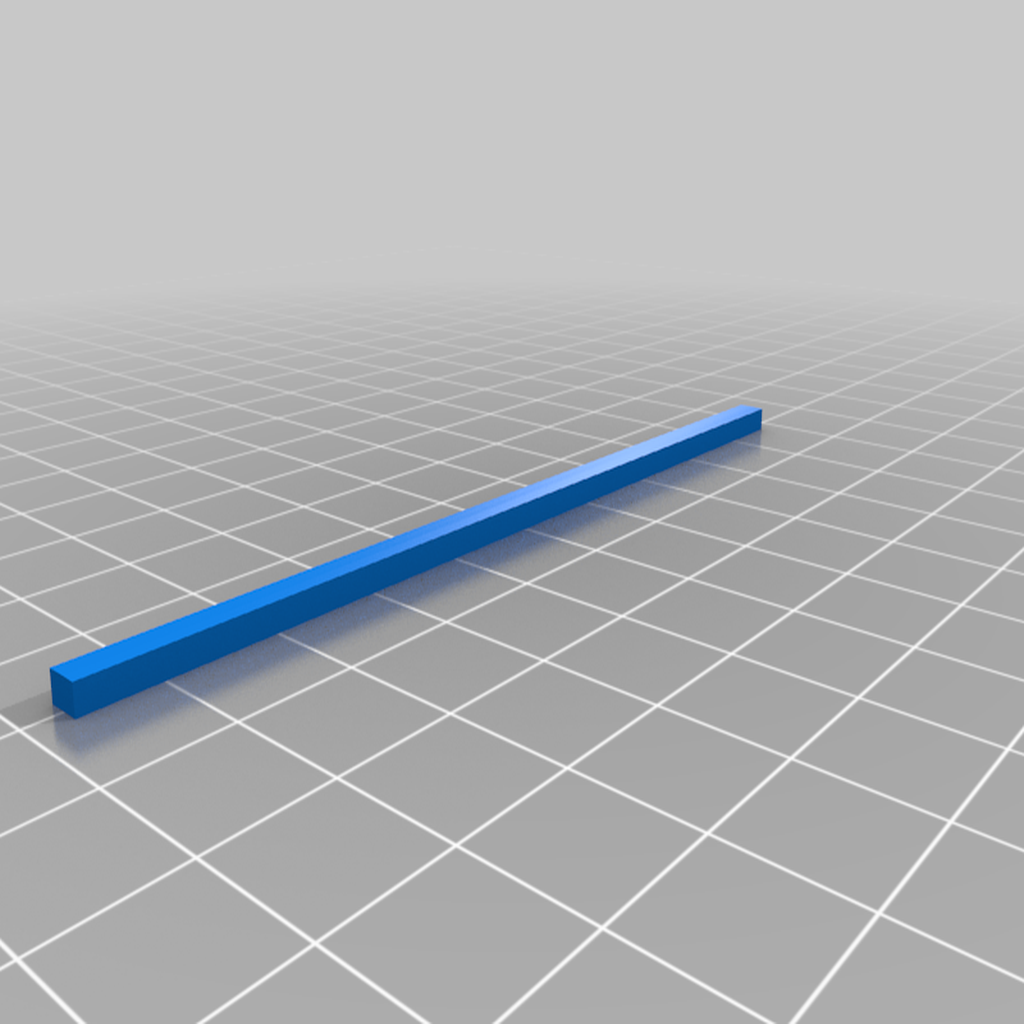

  • Strip_1.stl 92.89999399999999 × 3.0 × 2.024 mm
  • Strip_2.stl 79.58581599999997 × 23.760002999999998 × 4.0 mm
  • Strip_3.stl 92.90197799999999 × 23.759995000000004 × 6.115989999999999 mm
  • Strip_4.stl 92.90197799999999 × 39.64999399999999 × 8.106 mm
  • Tube_90mm.stl 90.0 × 89.949996 × 93.5 mm

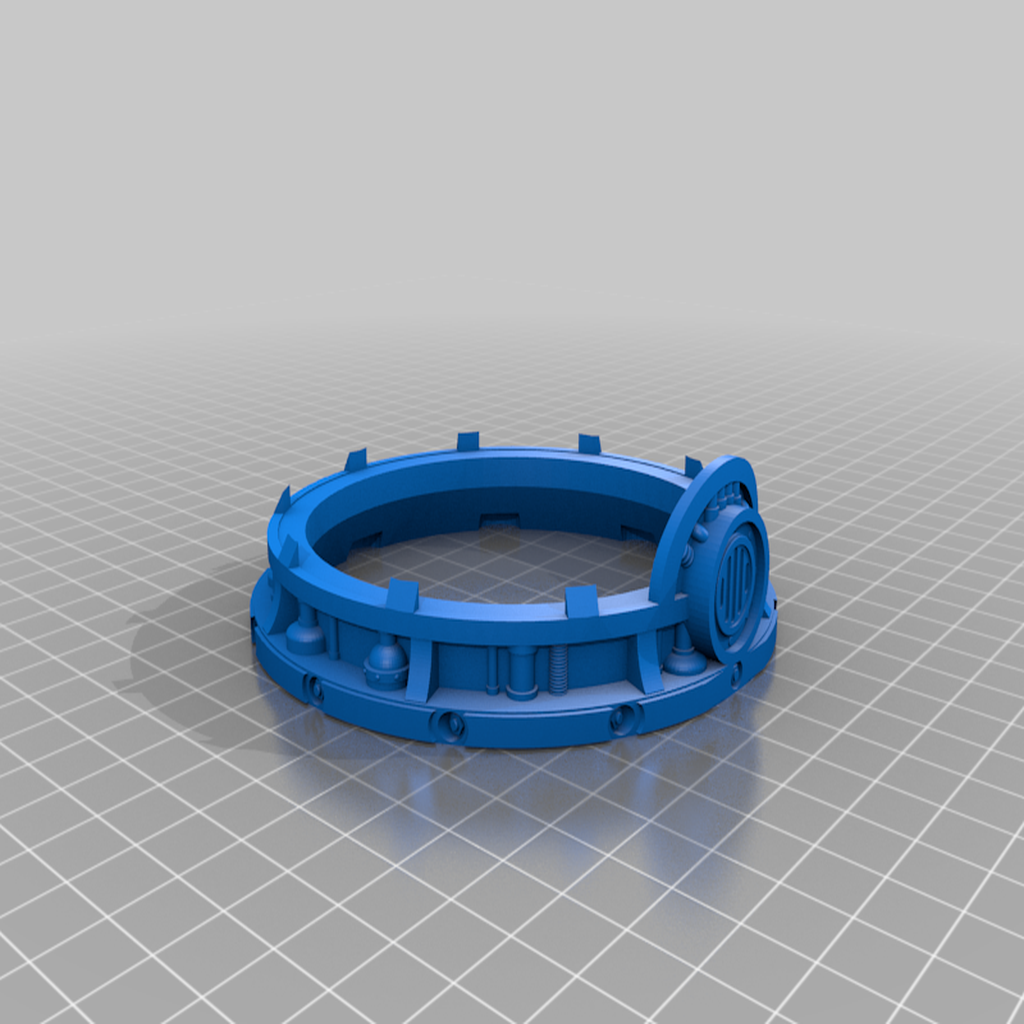

  • W10_Bottom.stl 101.370003 × 100.47000100000002 × 30.0 mm
  • W10_Top_V1.stl 101.370003 × 101.37001000000001 × 17.869749 mm
  • W10_Top_V2.stl 101.370003 × 101.36999500000002 × 17.869749 mm
  • W8_Bottom.stl 101.369995 × 101.370002 × 30.0 mm
  • W8_Top.stl 101.370003 × 101.370001 × 17.58971 mm

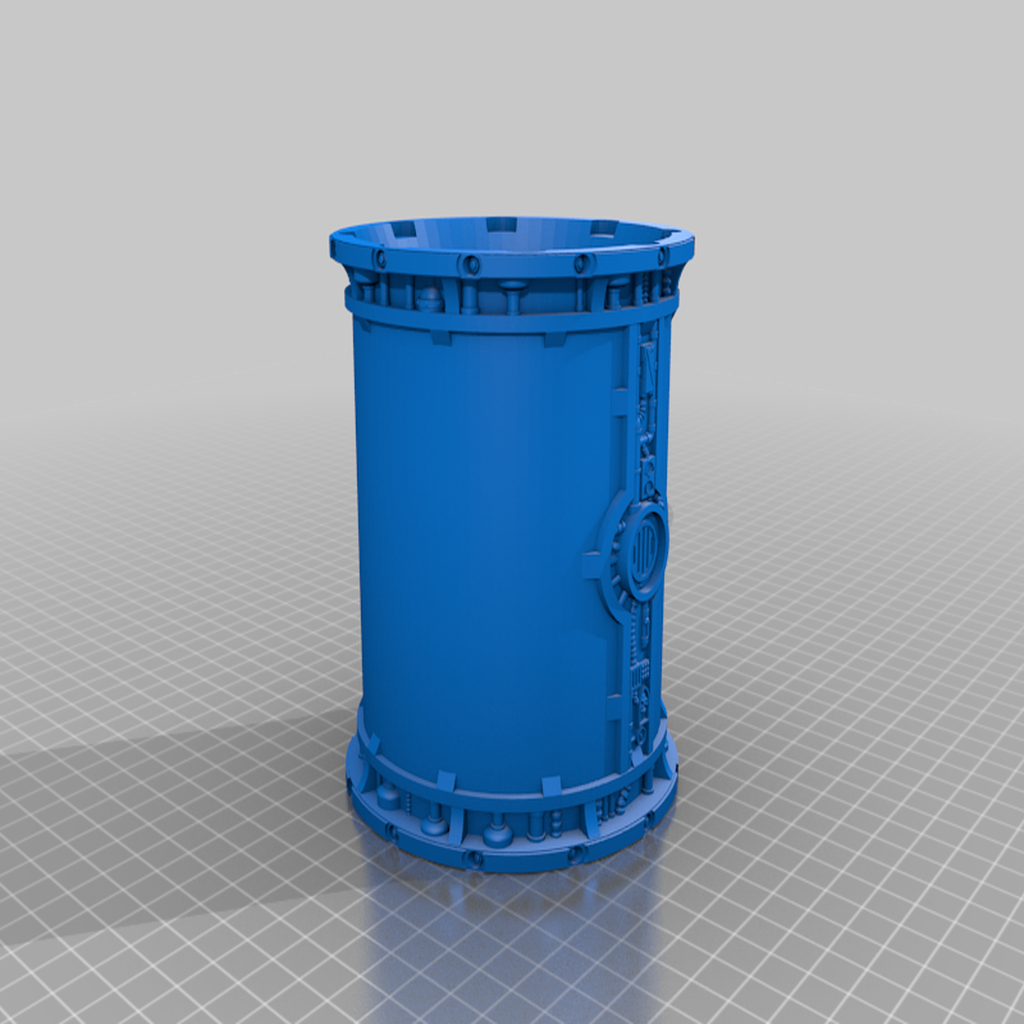

  • example_1.stl 101.37001000000004 × 101.369995 × 121.996002 mm
  • example_2.stl 101.36998 × 101.369995 × 121.996002 mm

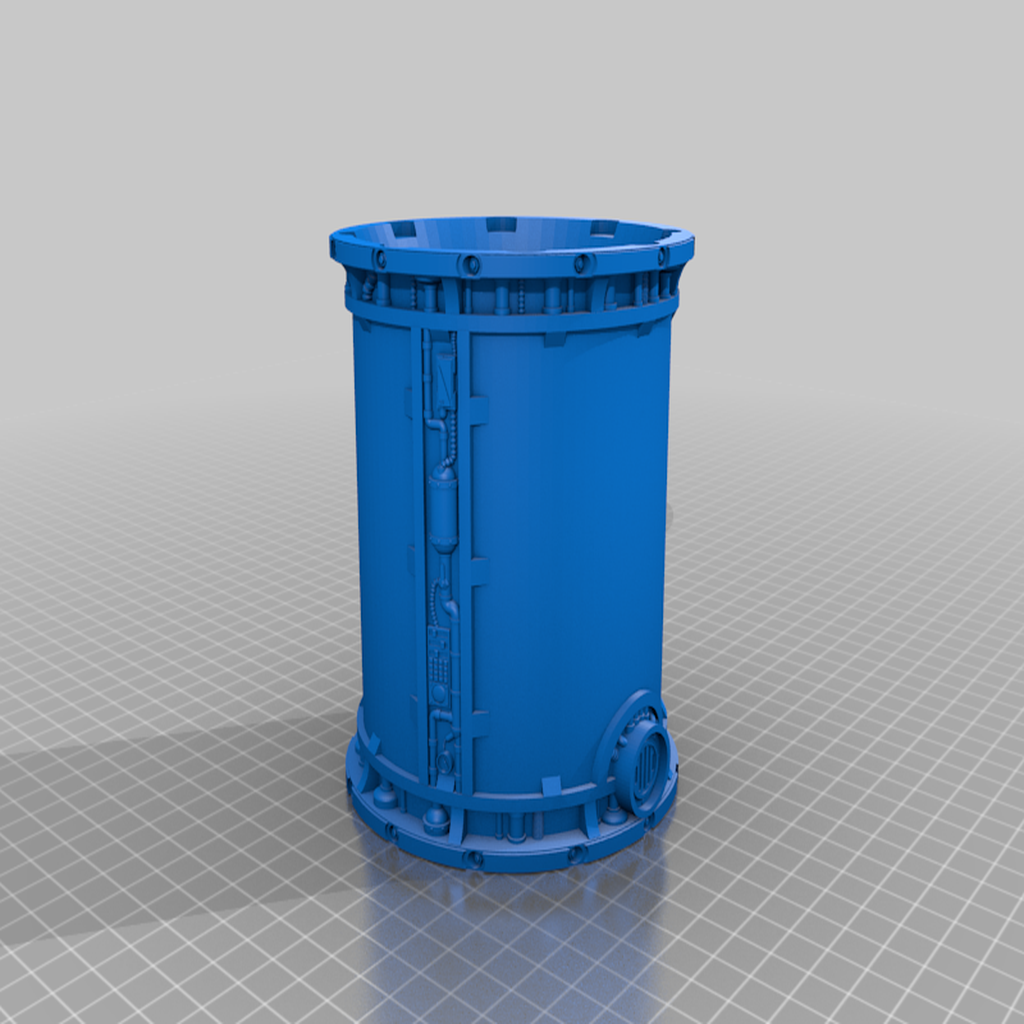

  • example_3.stl 101.37002500000003 × 101.370026 × 121.996002 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 126833
Design author SevenUnited
SevenUnited

SevenUnited

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

Become a Patron!

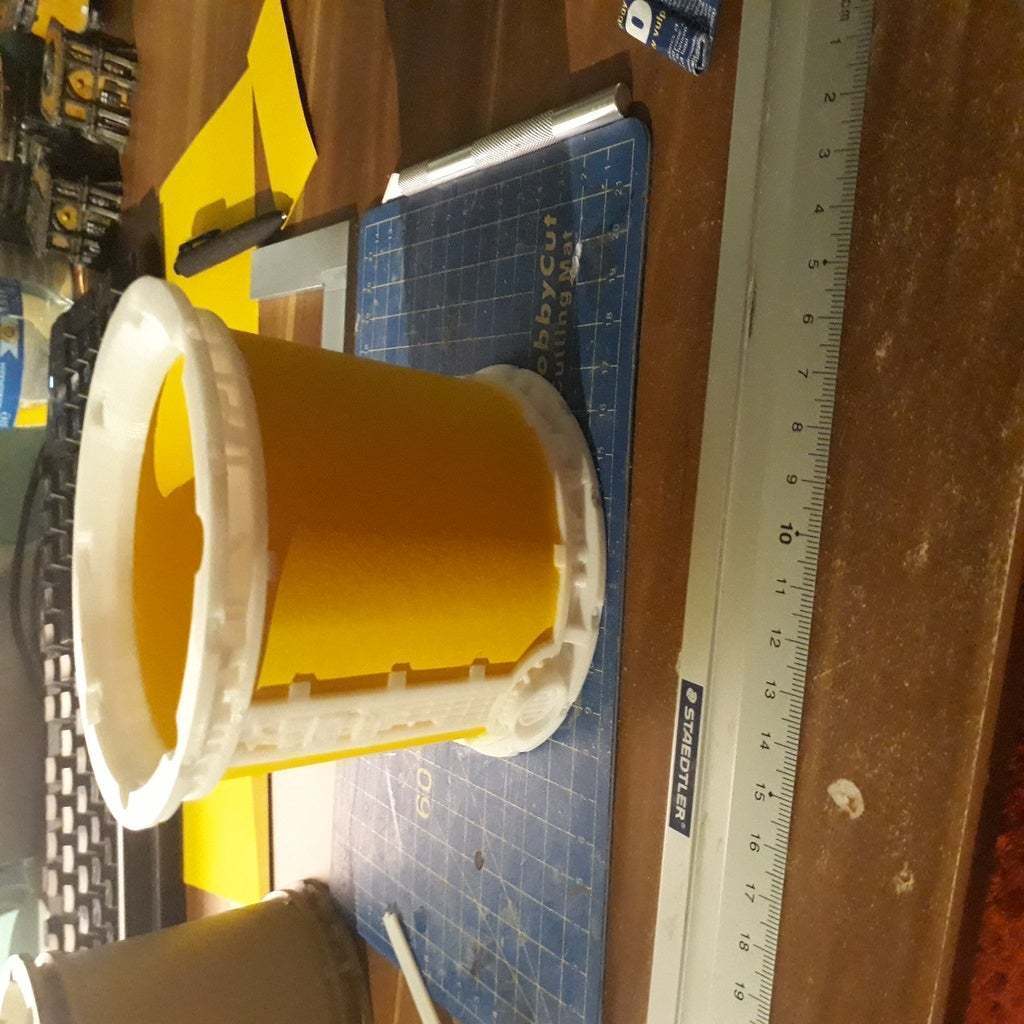

A add on for your Sector Mechanicus. It has the same size as a Ferratonic Furnace (122mm height; 100mm diameter at base)

Update 01.01.2020
-Uploaded Strip_2 again, as it seems i didn't upload the correct one when releasing the files originally. Now it fits as intended.

Instead of a PVC Tube you could use crafting paper to make the tube yourself.
1.Make a Paperstrip of 94mm by 290mm.
2.Make a mark at 280mm and glue the ends together so that it overlaps 10mm
That should give you a tube with 94mm by 90mm

It is meant to utilize a PVC-Tube as base structure.
Search for: 3" PVC-Pipe Scedule 40 (outside Diameter 3,5" or 88,9mm)
In German: PVC-U Rohr 90mm (outside Diameter 90mm)
lenght of the pipe should be 93,5 mm to create the Furnace Height of 122mm. I also added a file for the tube to print instead of using a PVC pipe.

Might add a more Fancy tube version later

Tinkercad link:
https://www.tinkercad.com/things/lCSNIcnJpwP
