3D model description

Become a Patron!


Update: 03.01.2020
Someone asked for some more pieces, here they are.

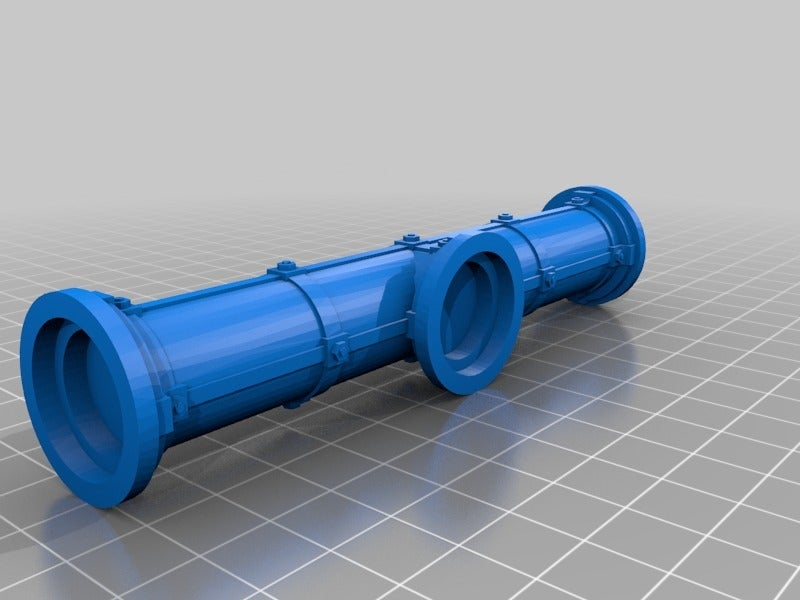

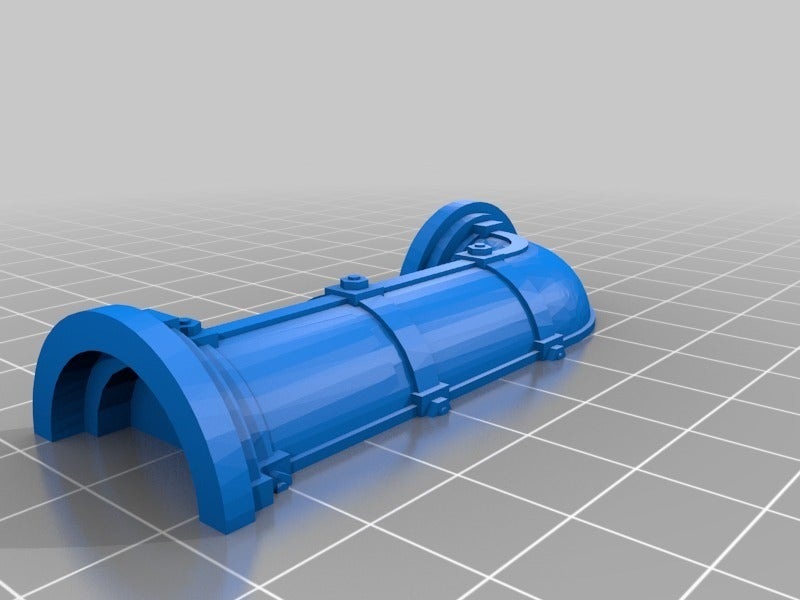

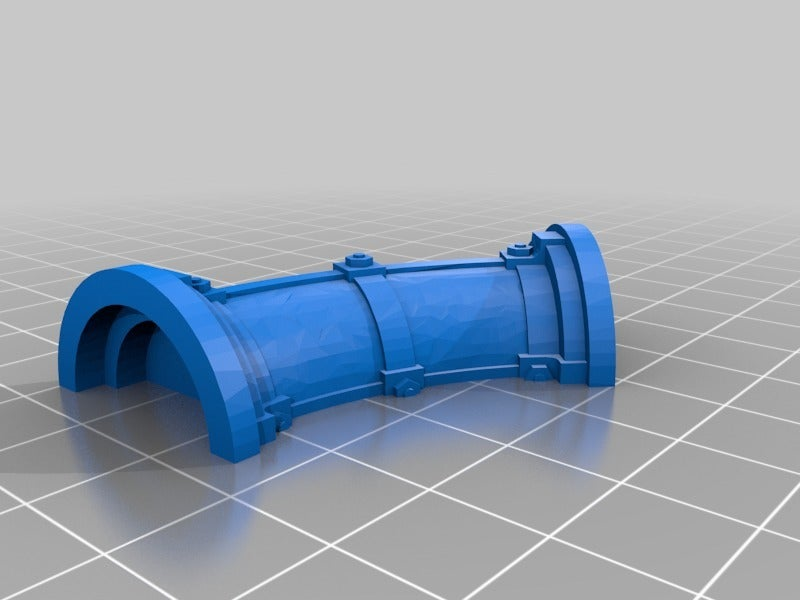

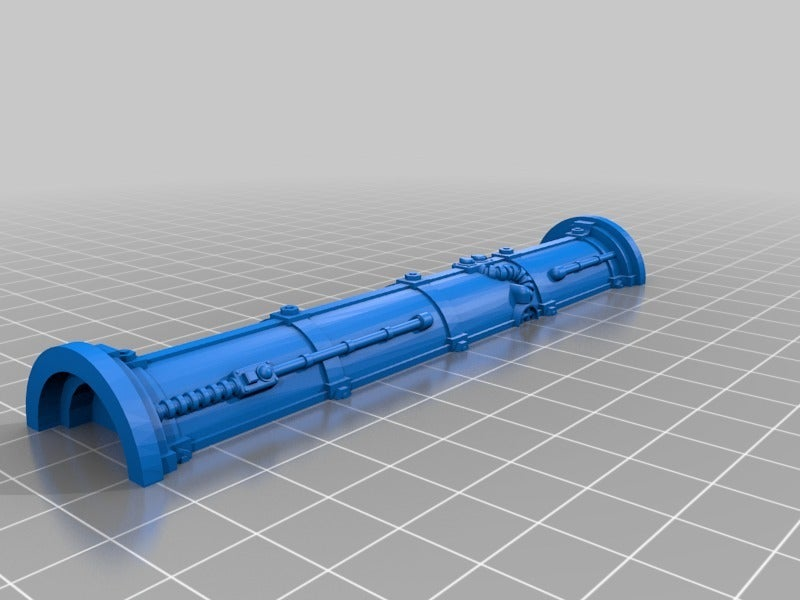

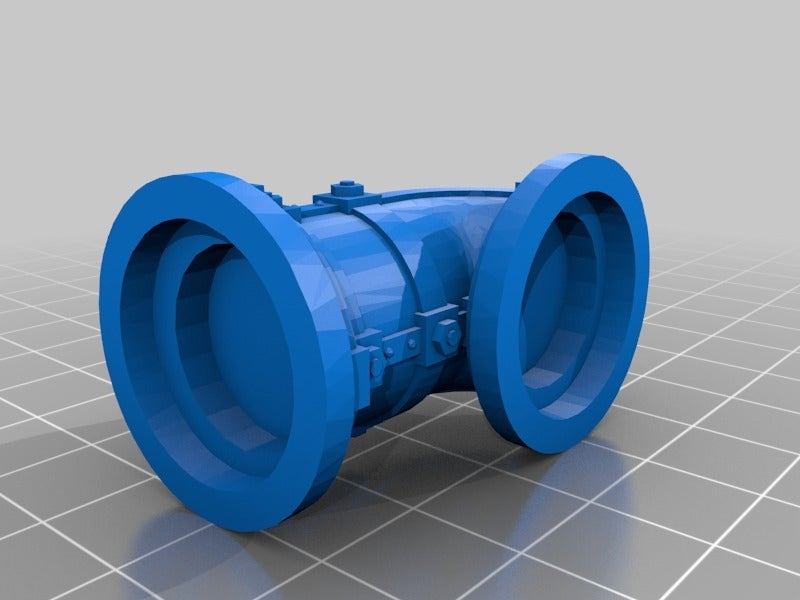

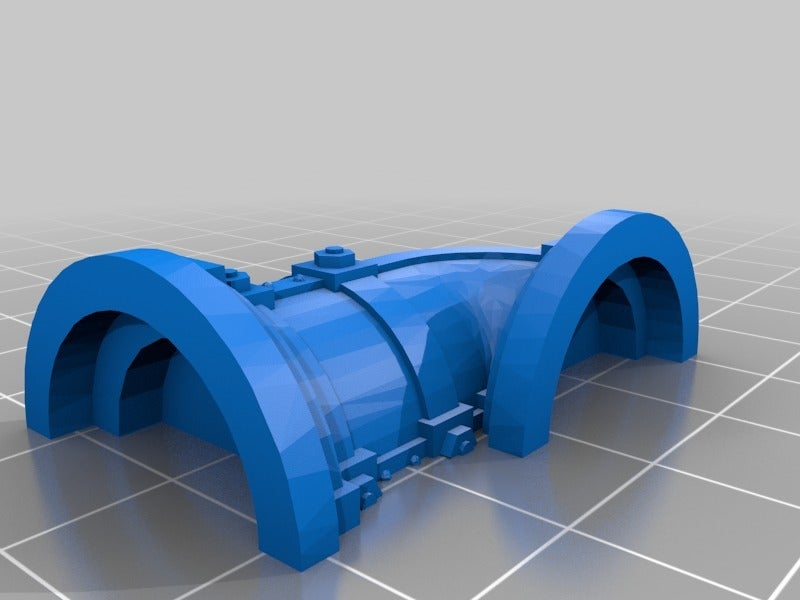

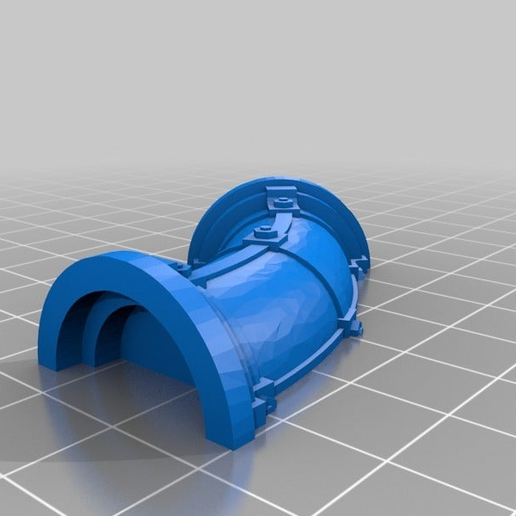

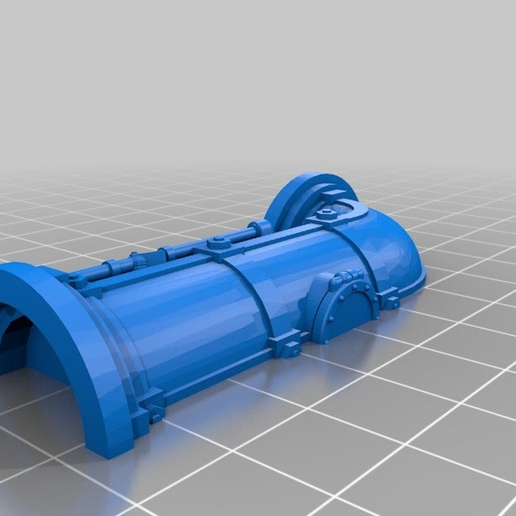

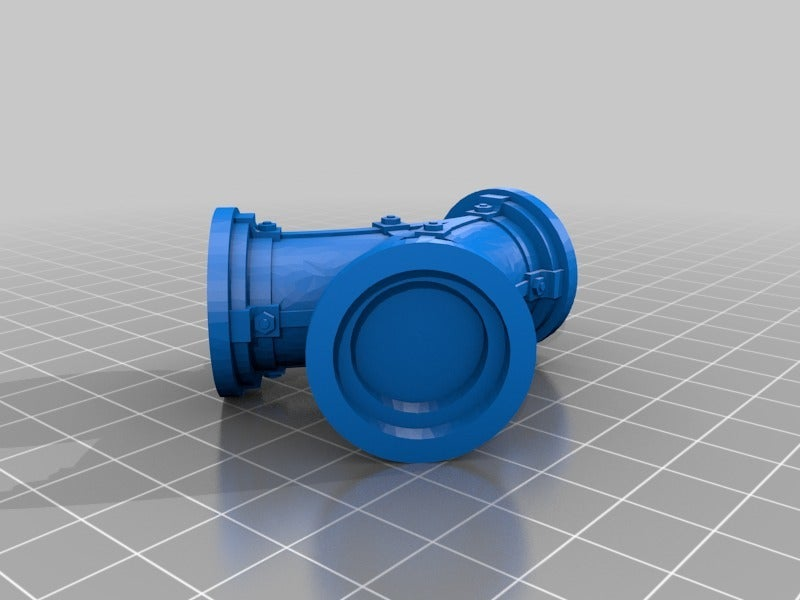

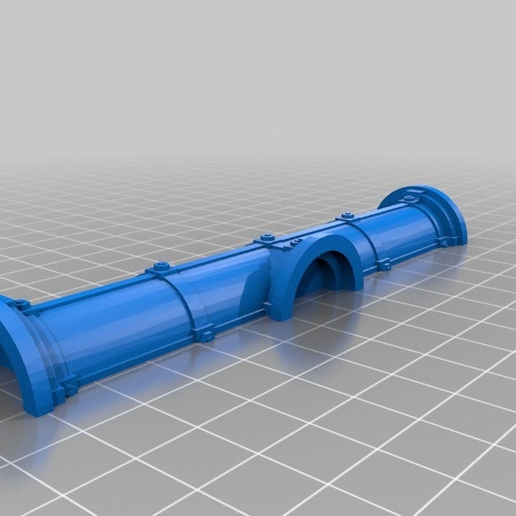

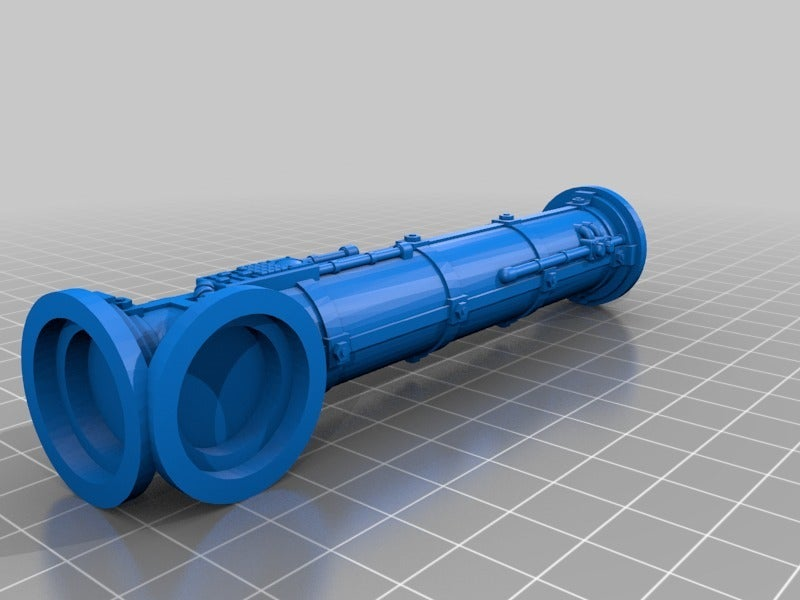

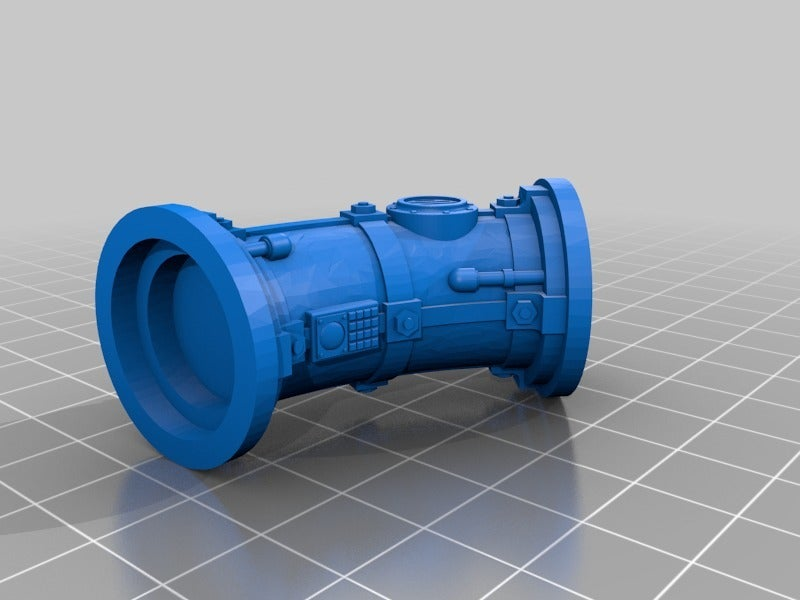

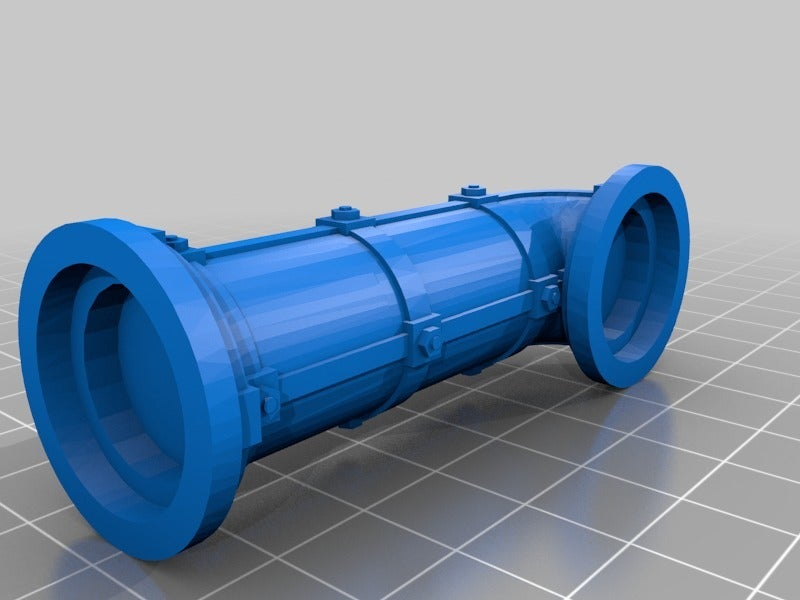

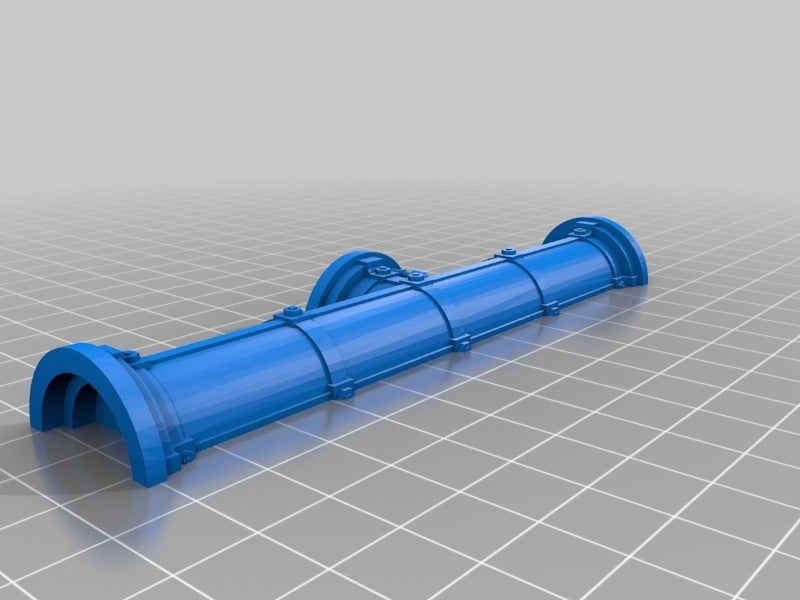

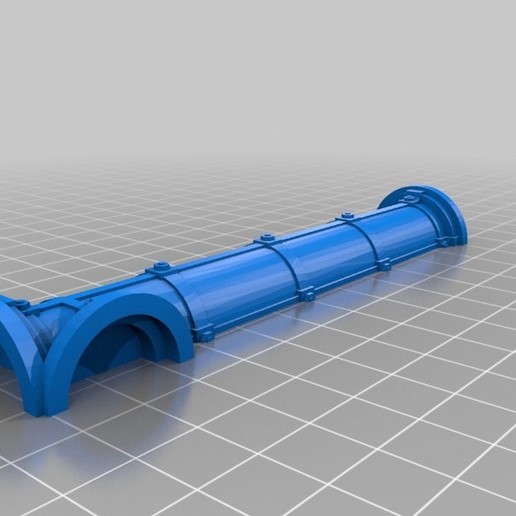

A Pipeline set compatible to the Sector Mechanicus terrain.
The connection points have a diameter of 26mm on the outside and 20mm inside.

At the end of each piece is a cut for a magnet with 16mm diameter and 3mm depth.

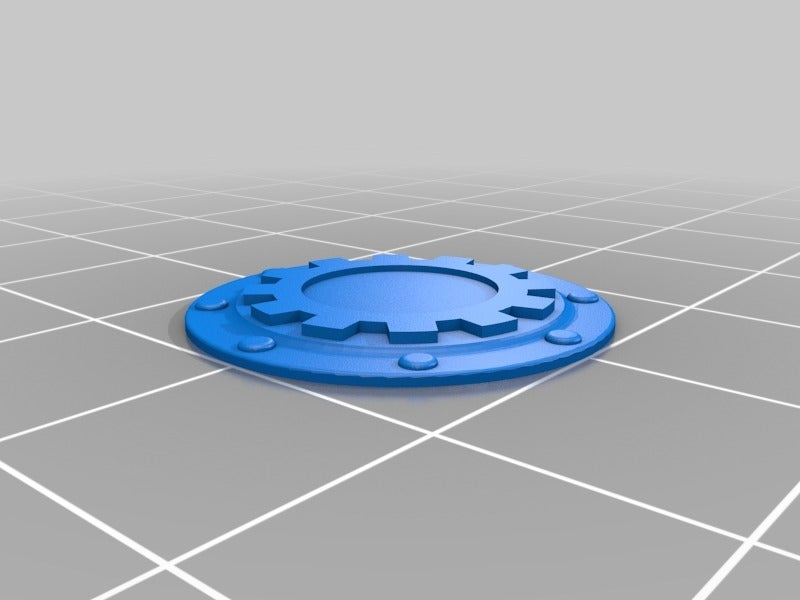

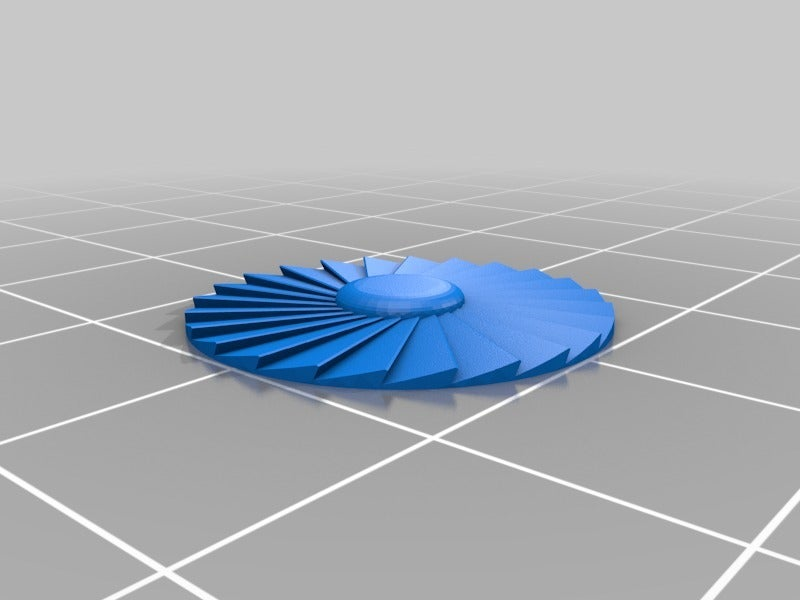

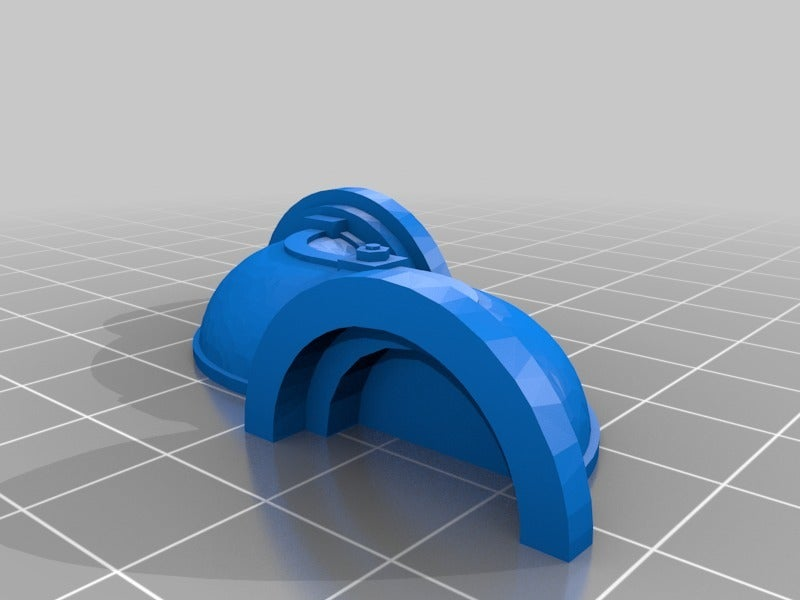

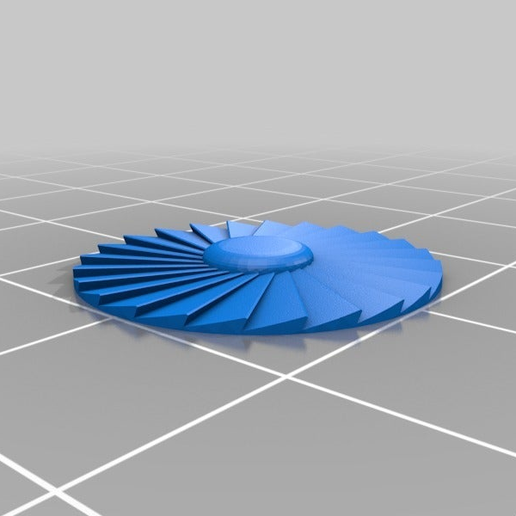

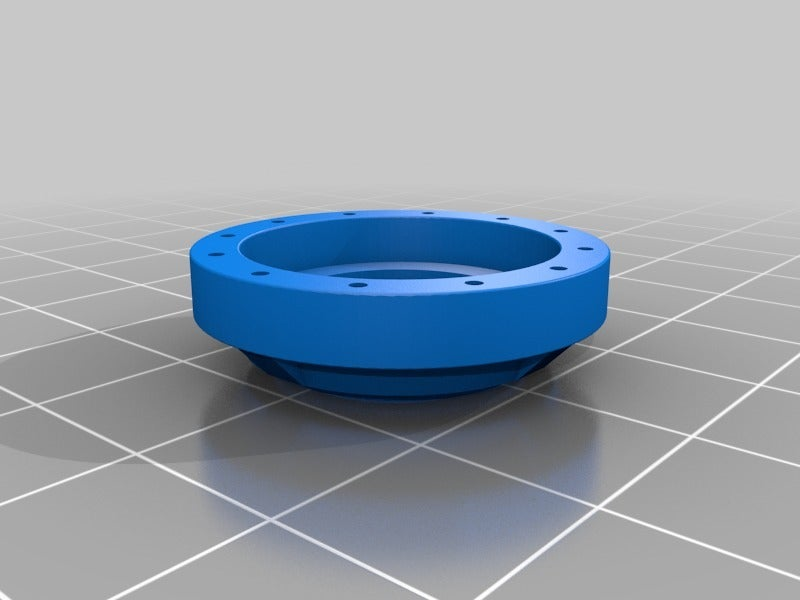

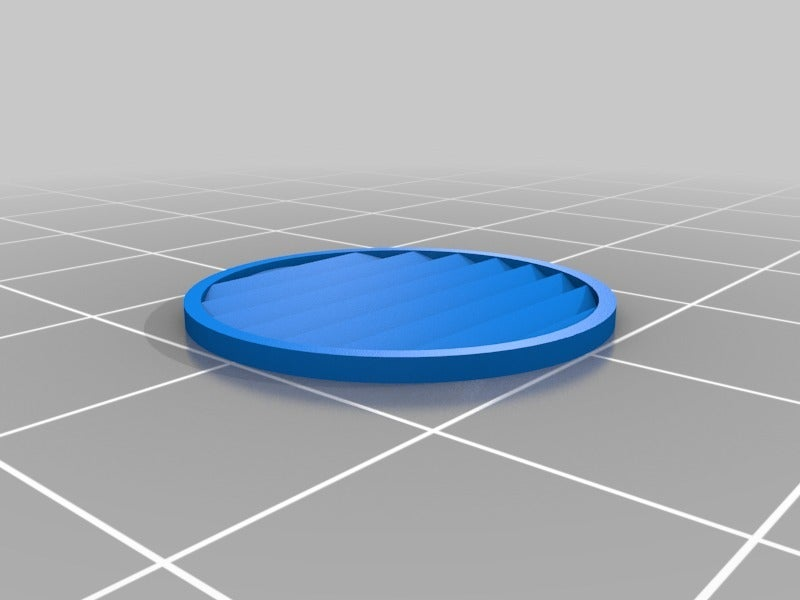

The vents fit over the hole to cover the Magnet and to make the end look nice if not connected further.

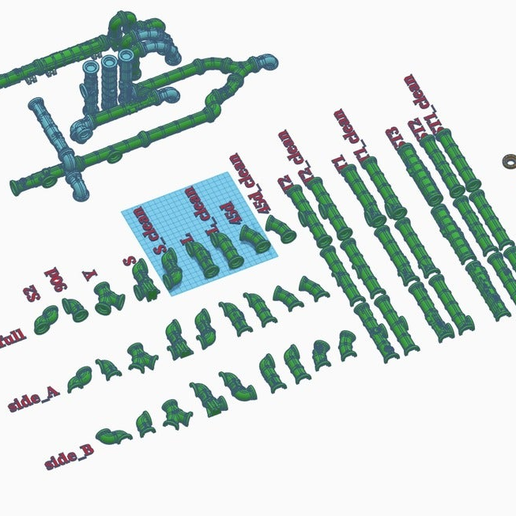

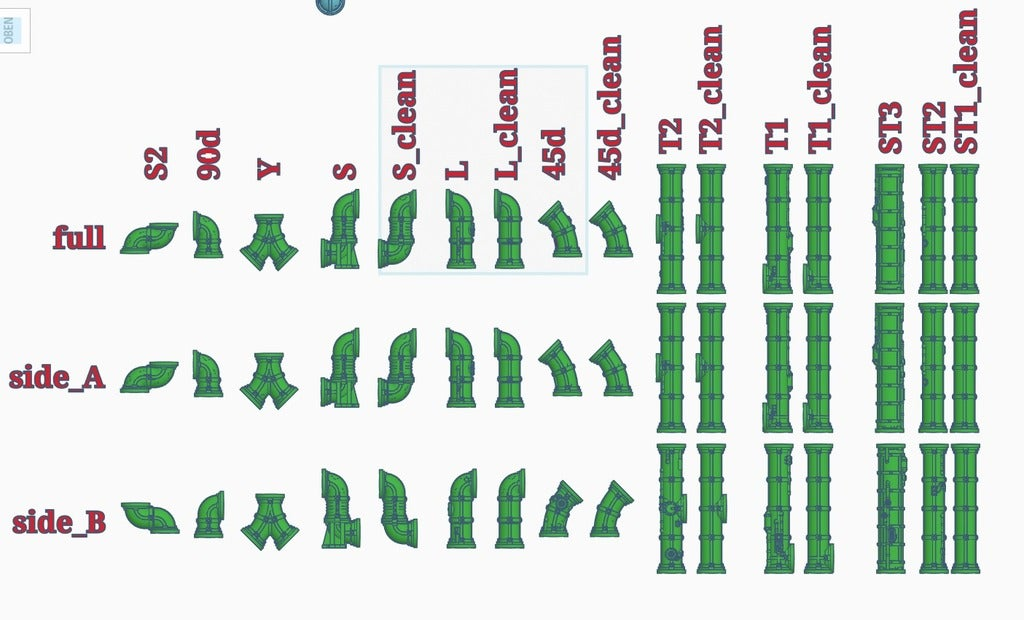

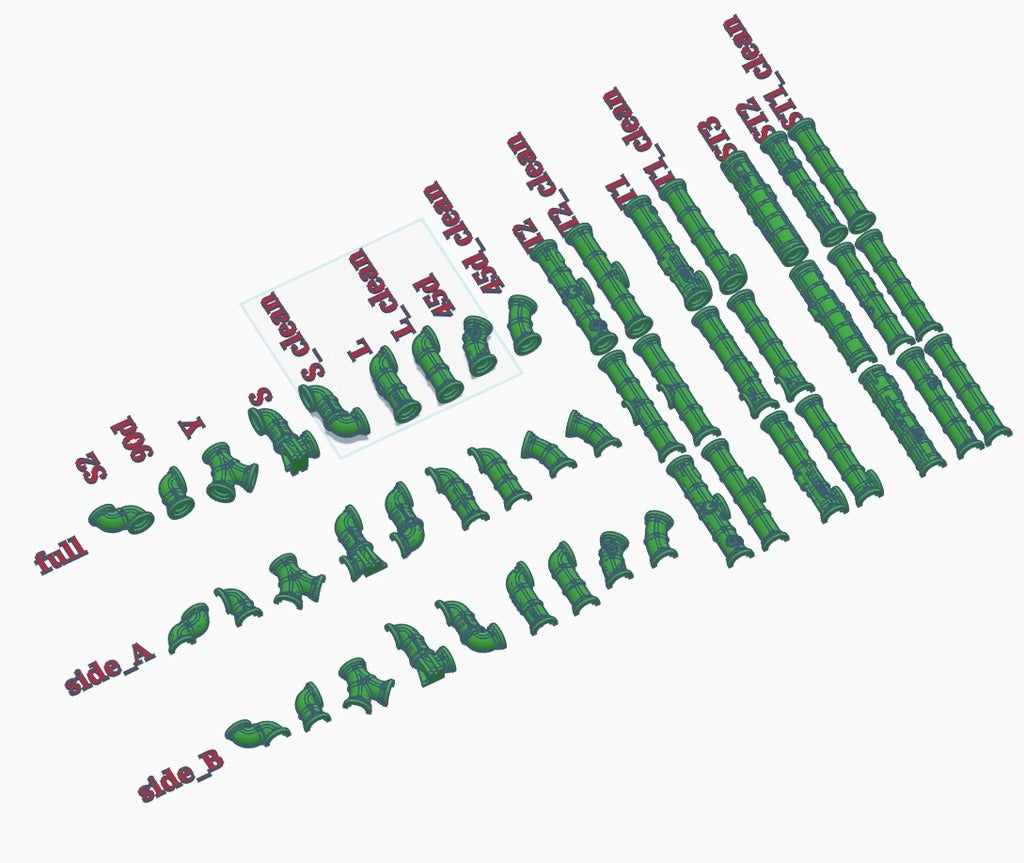

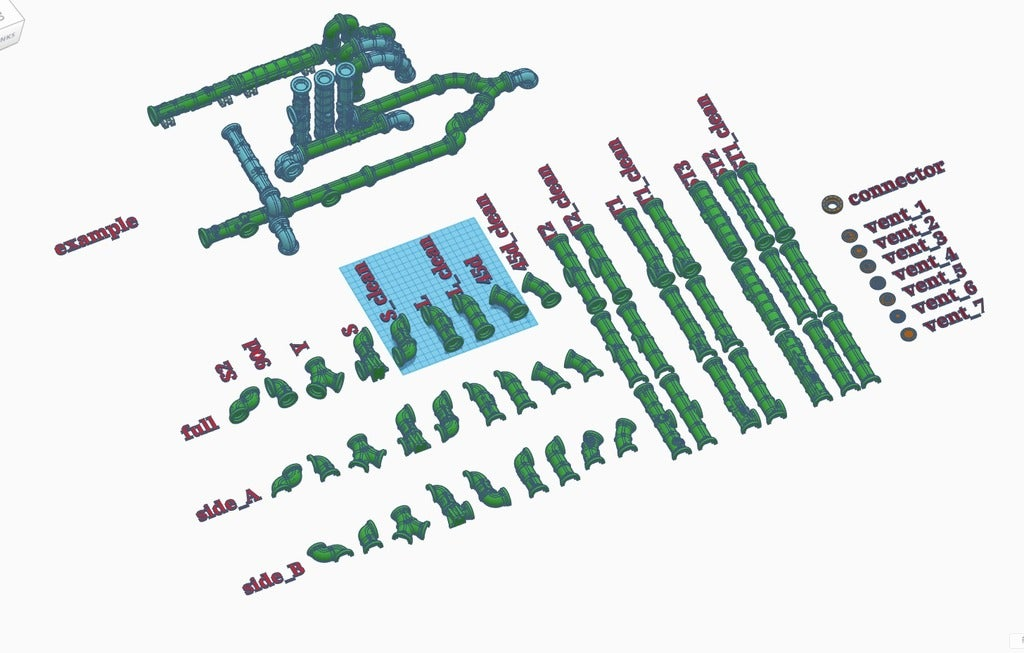

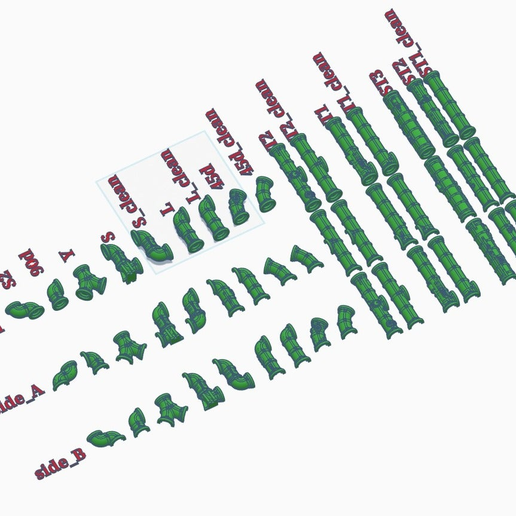

The overview picture helps finding the correct files that belong together.

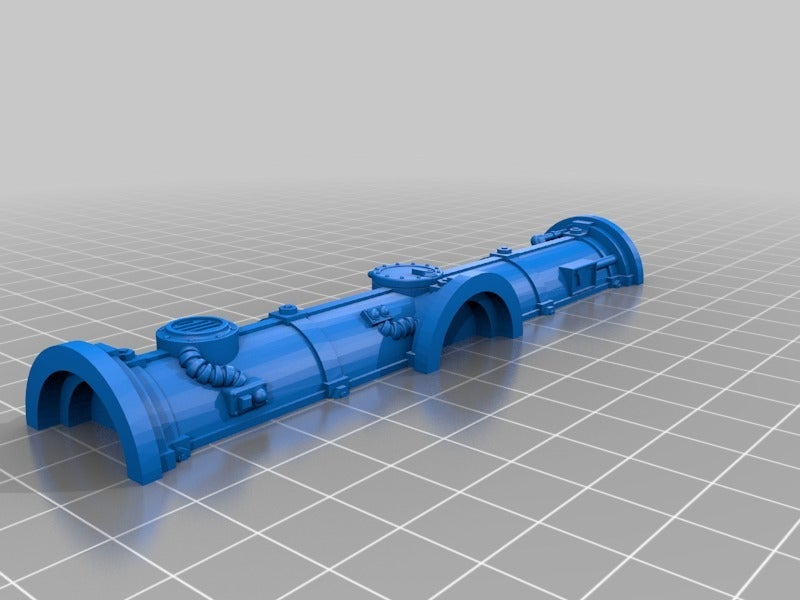

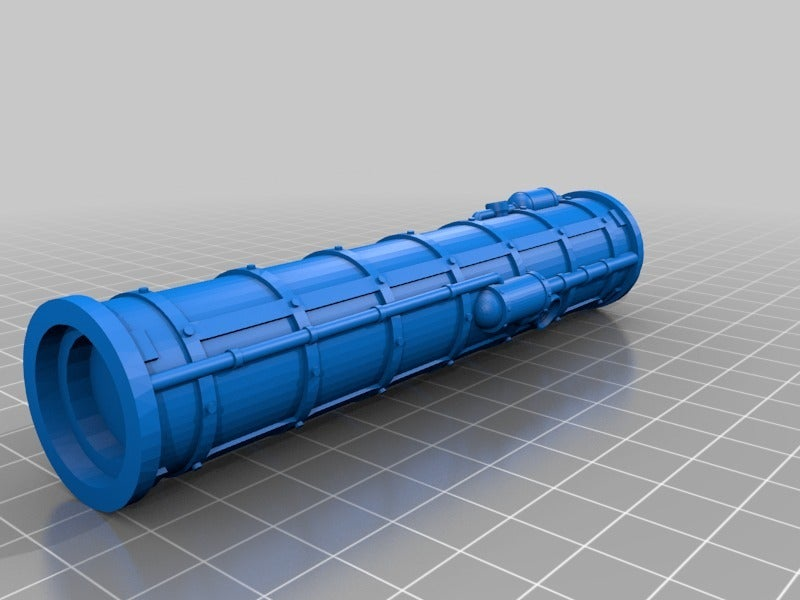

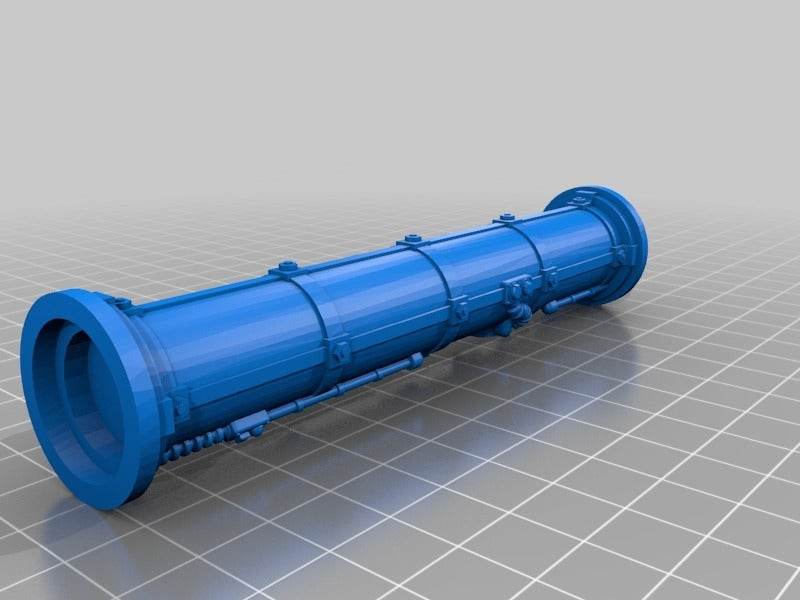

ST1, ST2, ST3, T1, T2: this parts are 122mm long which is the Sector Mechanicus walkway height.

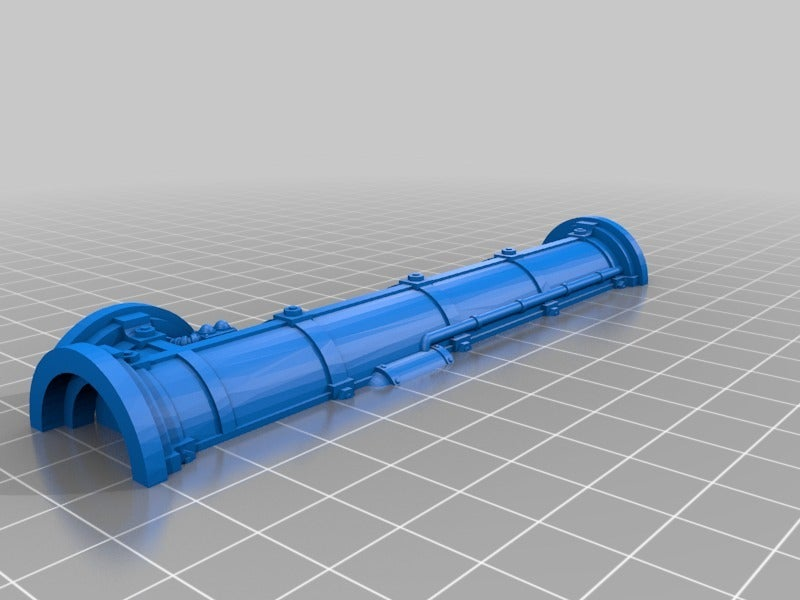

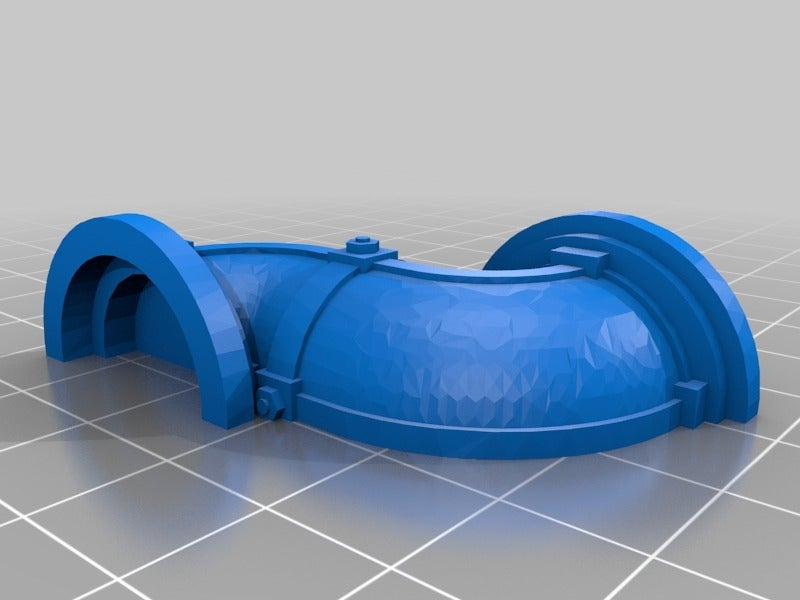

L, S: they fit the connection height of the Ferratonic furnace or other SM parts and has a connection height of 61mm

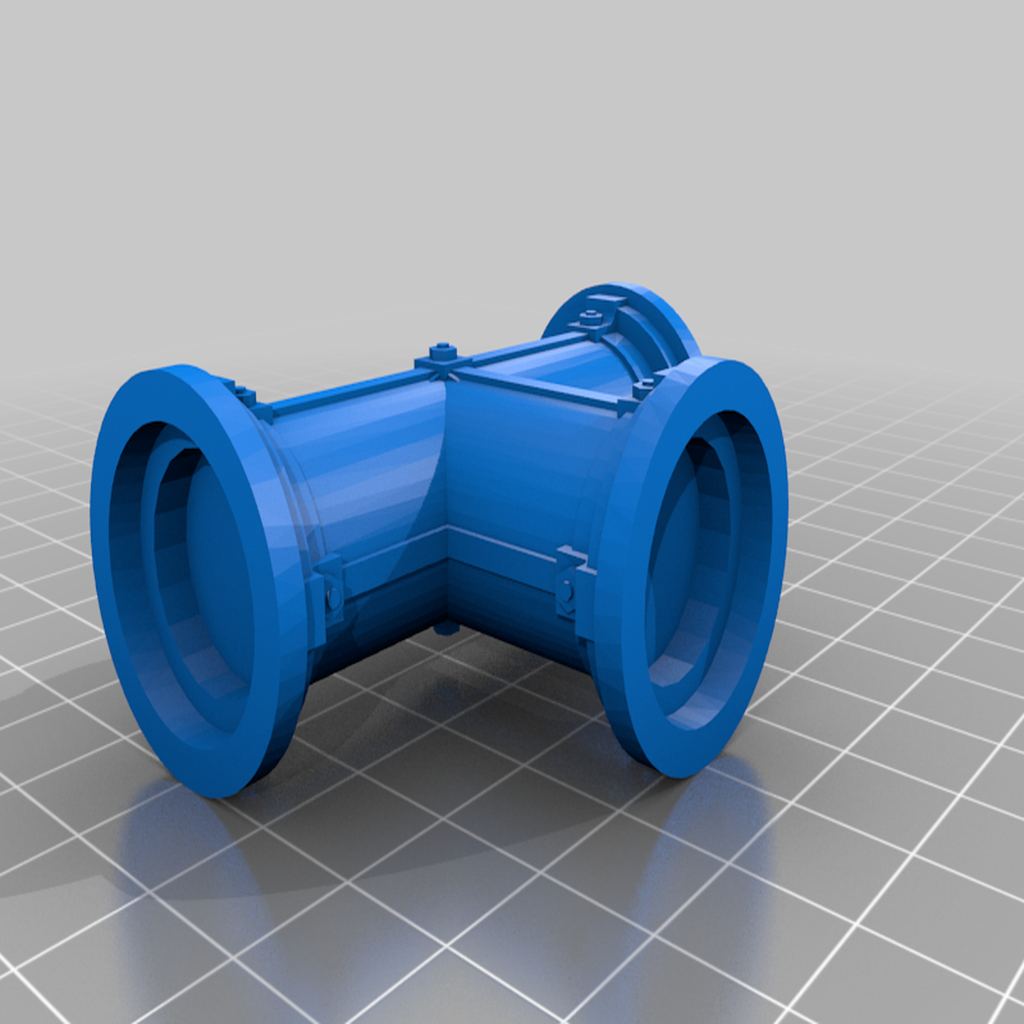

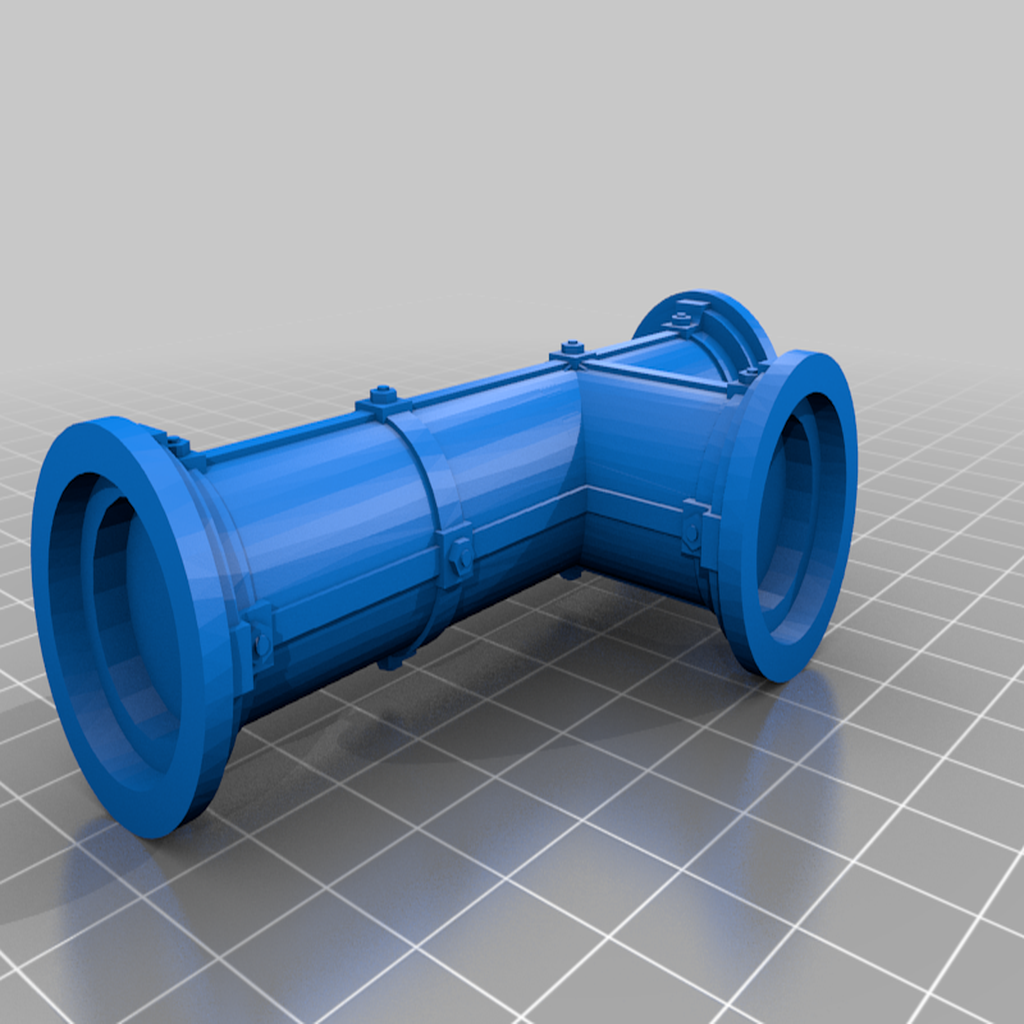

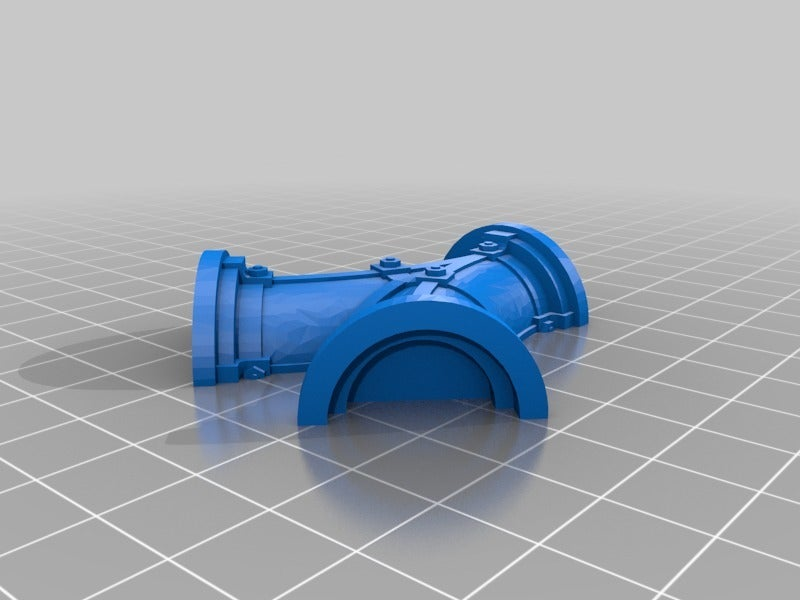

T2: the side connection is also compatible with the middle connection of the Ferratonic furnace (61mm)

Mirror the parts to get more variaty.
