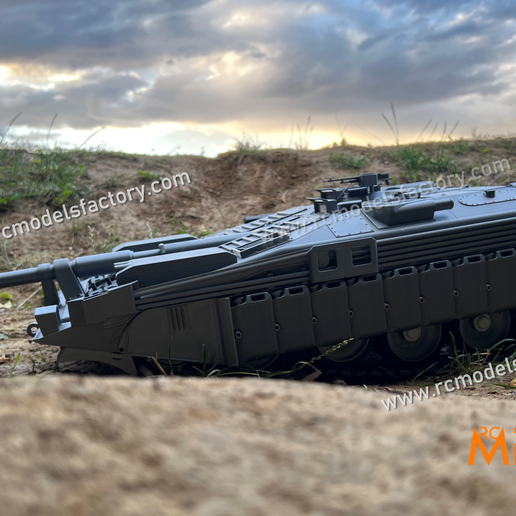

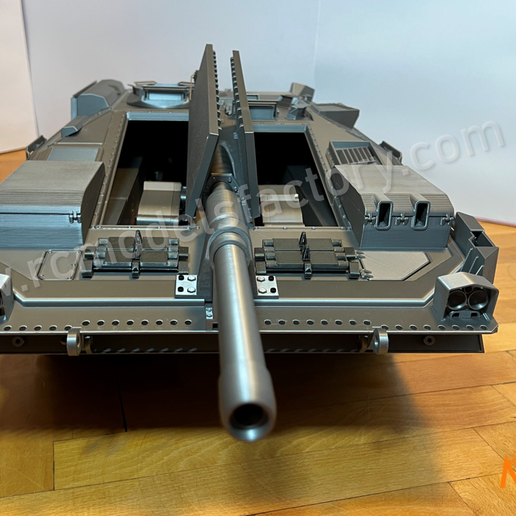

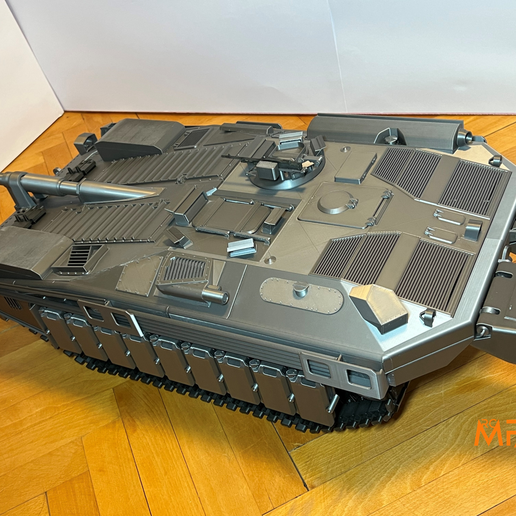

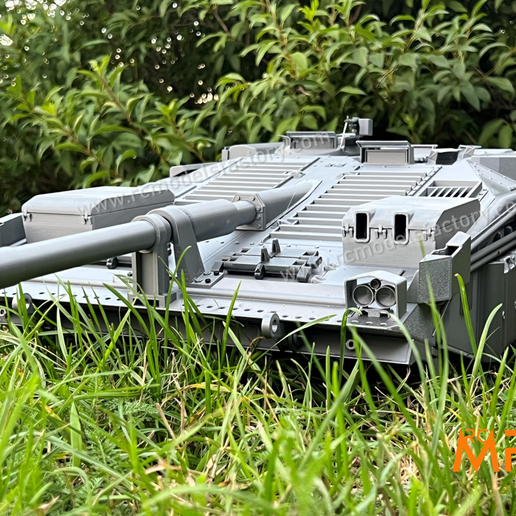

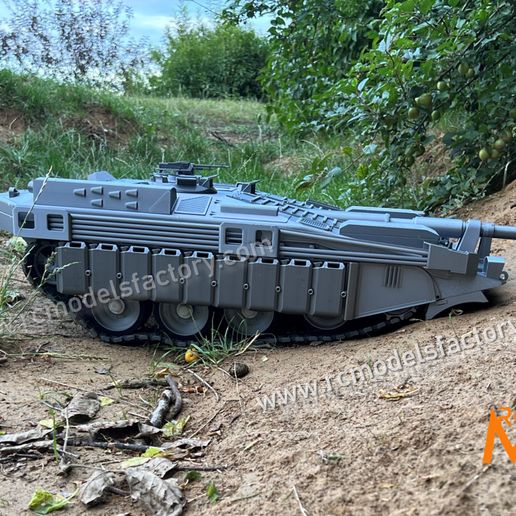

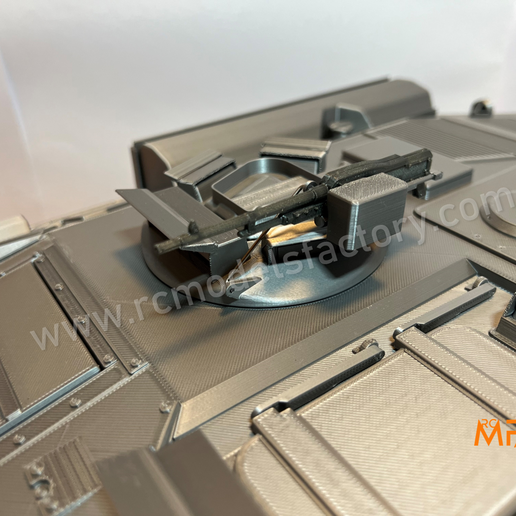

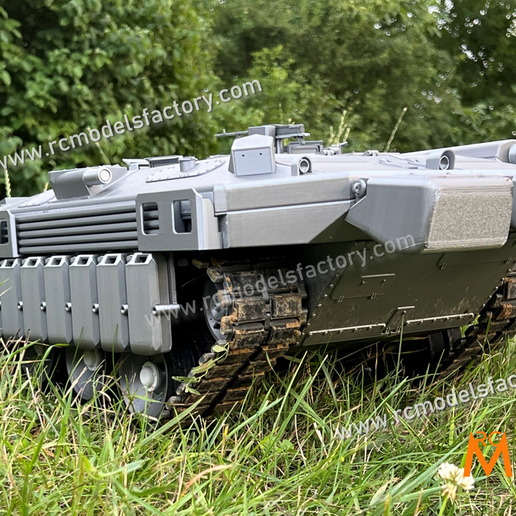

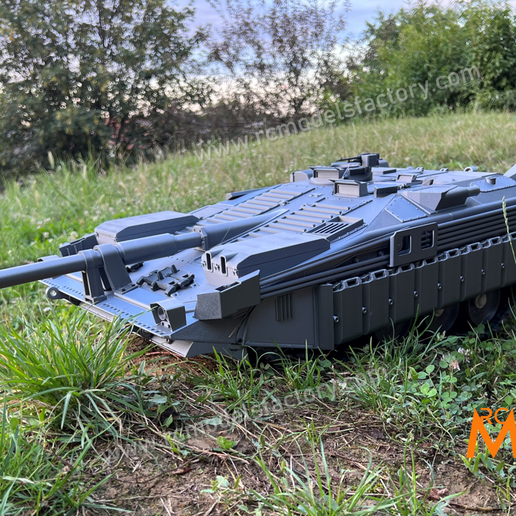

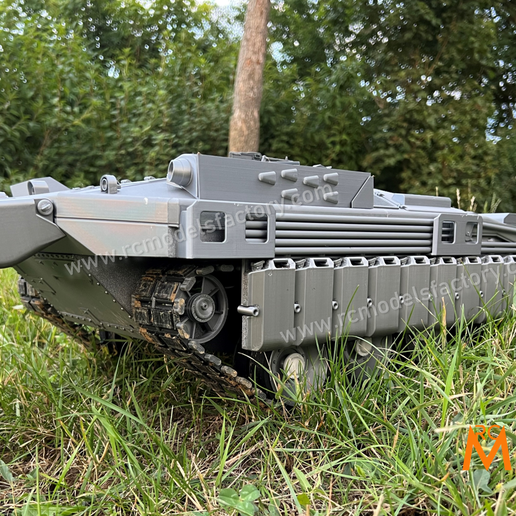

Stridsvagn 103 C (S-tank, Strv.103C) 1/16 RC tank

3D printed tank.
scale 1/16 RC tank

Tank Stridsvagn 103C, also known as S-tank, was a Swedish tank developed in the 1960s. This tank was a response to the threat posed by the Soviet Union during the Cold War. Its development and production took place between 1967 and 1971.

The uniqueness of this tank lay in its turretless design, which differed from traditional tanks of that era. Instead of moving the cannon, the gun was controlled by changing the position of the chassis. This innovative construction allowed the tank to better conceal itself on the battlefield and easily blend in with terrain irregularities.

Strv 103C had a very low profile, providing it with the advantage of surprise and better camouflage. Its armament consisted of a 105mm main gun Bofors L/62, which was highly effective against enemy armored targets.

Public building guide EN here:
https://drive.google.com/file/d/13zJtNn_1d3P6xOT62MCqIHACTArLvFz8/view?usp=sharing

Public building guide CZ here:
https://drive.google.com/file/d/1J3aoXCT6cwfDIRfq0c1YBhV2nkyu9nHM/view?usp=sharing

Video:

https://youtu.be/3qbny6W8hdU
https://youtu.be/f3L1oBhmMkU

Main characteristics of this model:

Very high details

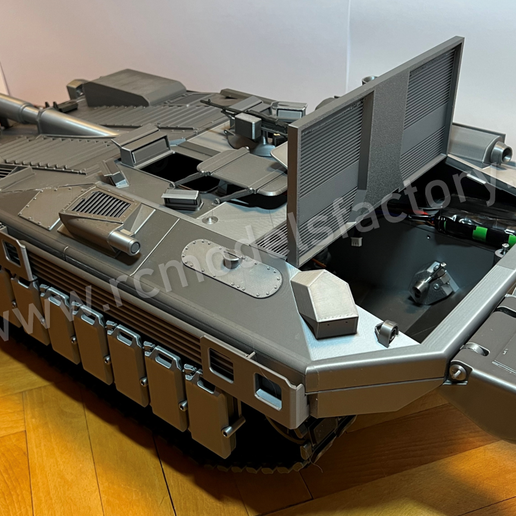

Easily removable upper hull part
Quiet and strong belt transmissions
Separate printed wheels  + "pneu" and track (etc. for flex filament)
Own unique chassis control system
Detailed English and Czech version of building guide (preview available below)
Compatible with most standard 3D printers
The model can be extended with a sound module, a smoke module
Can be used with sets supporting both OPEN TX and HENG LONG more in the building guide.

UPDATE 25.8.2023
The timing belt cutting tool has been placed in the "Model updates" folder, link is available in the building guide. With this tool, you can easily and quickly adjust the width of the belt from >6.35 mm to a width of 6 mm.

In attached building guide
Recommended materials: PETG, ABS, ASA, PLA, FLEX
Minimum bed size 180x180 mm
