RC Chevrolet 3100

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.
πŸ†Β BestΒ ?
License
3D design format
26 files (STL) Close
  • GRILL_repaired.stl 8.346001000000008 Γ— 102.13401799999997 Γ— 24.748001 mm

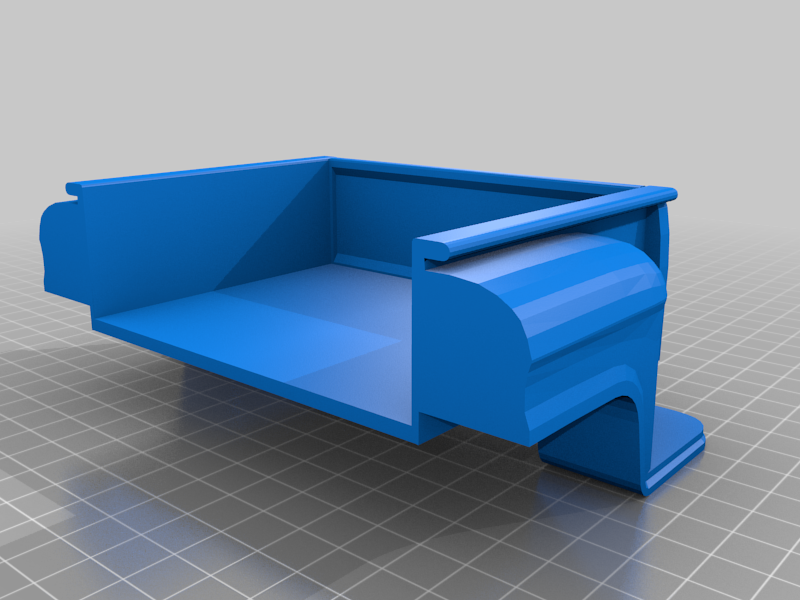

  • boot1s.stl 82.609512 Γ— 143.35112 Γ— 54.257314 mm

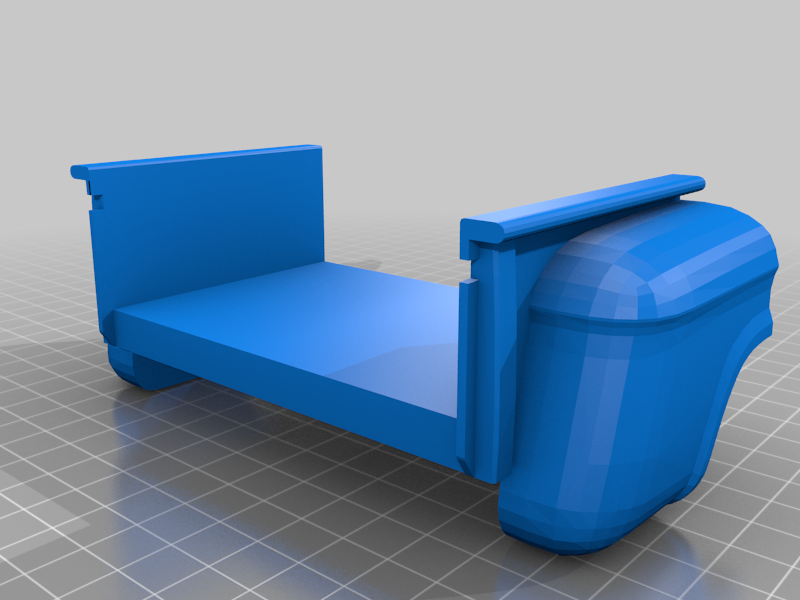

  • boot2s.stl 68.74581900000004 Γ— 143.33903499999997 Γ— 55.026663 mm

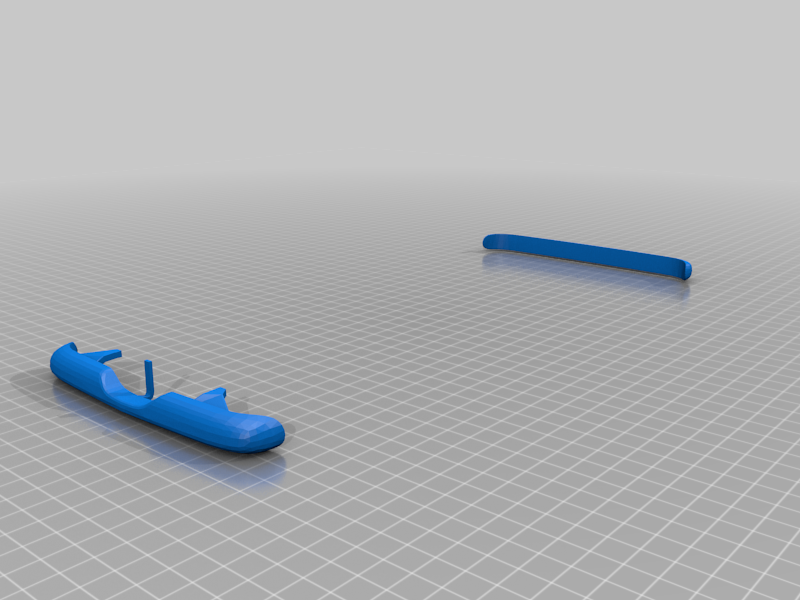

  • bumper.stl 358.520485 Γ— 148.714462 Γ— 19.187767 mm

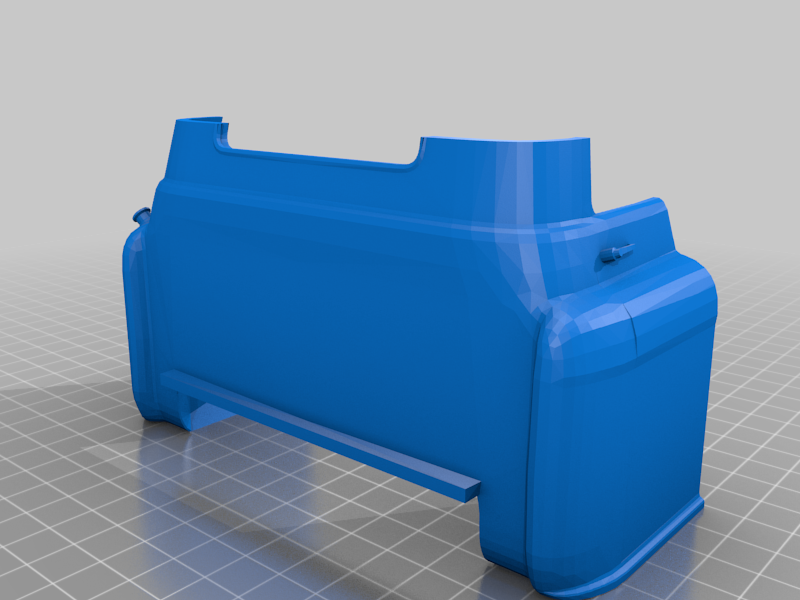

  • cabin1s.stl 58.88230900000001 Γ— 141.606964 Γ— 83.925179 mm

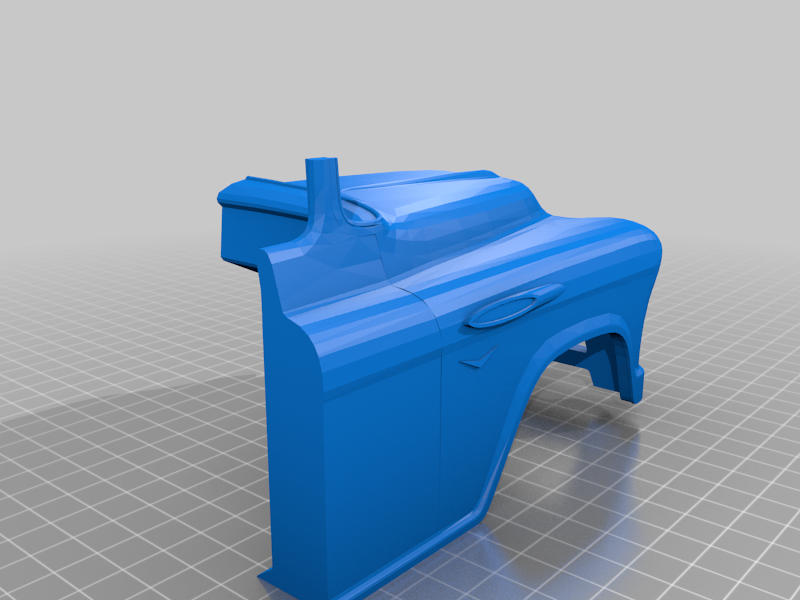

  • cabin21s.stl 145.078392 Γ— 71.77976999999998 Γ— 83.925178 mm

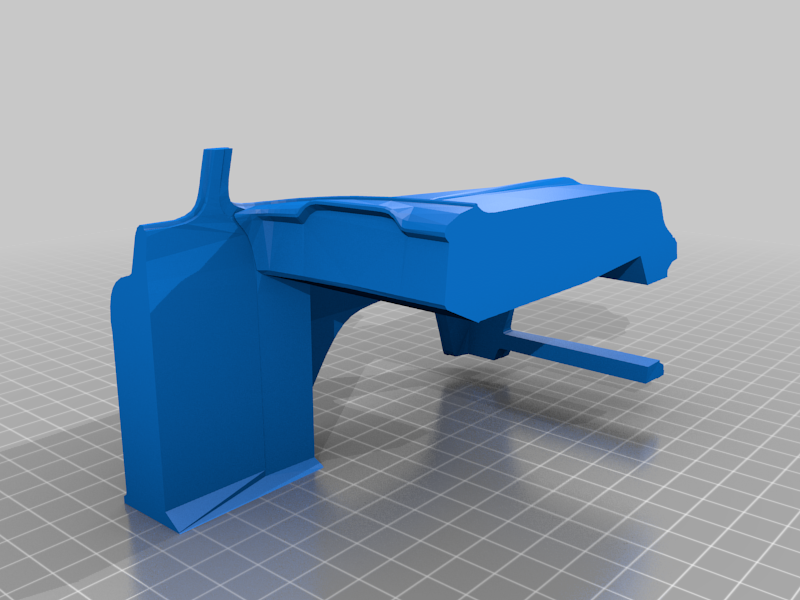

  • cabin22s.stl 145.078392 Γ— 71.46862800000002 Γ— 83.925186 mm
  • cabinall.stl 203.960708 Γ— 142.88453700000002 Γ— 110.738826 mm
  • chassis1.stl 98.082672 Γ— 120.473564 Γ— 26.413015 mm
  • chassis2.stl 64.185638 Γ— 102.940894 Γ— 13.628091 mm
  • chassis3.stl 64.188408 Γ— 110.348991 Γ— 24.852917 mm

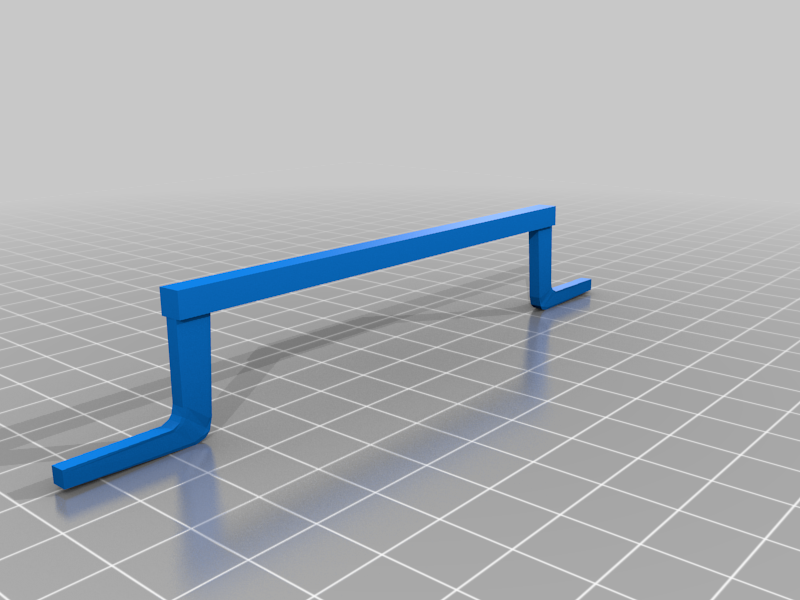

  • chassis4.stl 128.920639 Γ— 4.087021 Γ— 22.036631 mm
  • cup.stl 12.0 Γ— 11.999999 Γ— 19.0 mm
  • door_repaired.stl 3.240021000000013 Γ— 93.98402399999998 Γ— 33.925999 mm
  • front_axle_2x4_with_servo_mont.stl 110.25 Γ— 26.1 Γ— 23.5 mm
  • grill2_repaired.stl 14.186001 Γ— 106.09400500000001 Γ— 34.044000000000004 mm
  • hex.stl 5.773503 Γ— 5.773503 Γ— 15.5 mm
  • hub.stl 16.040001000000004 Γ— 22.75 Γ— 11.45 mm

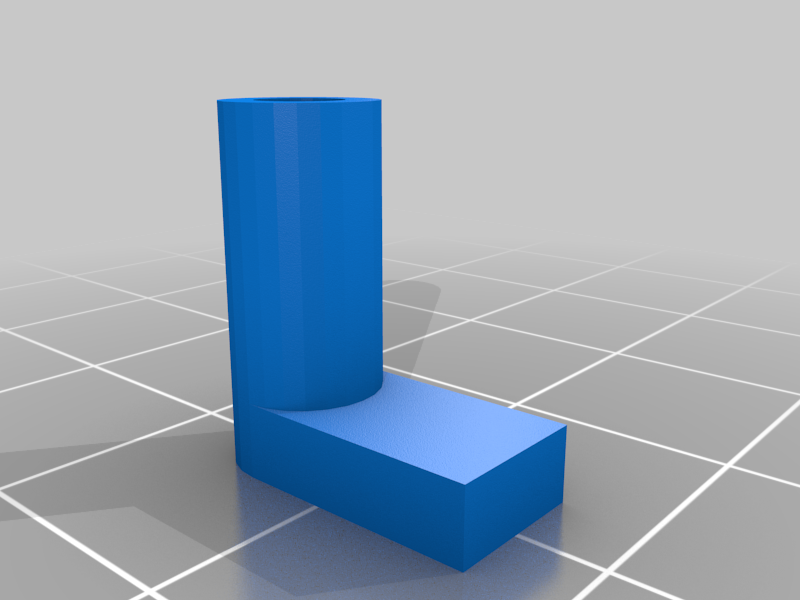

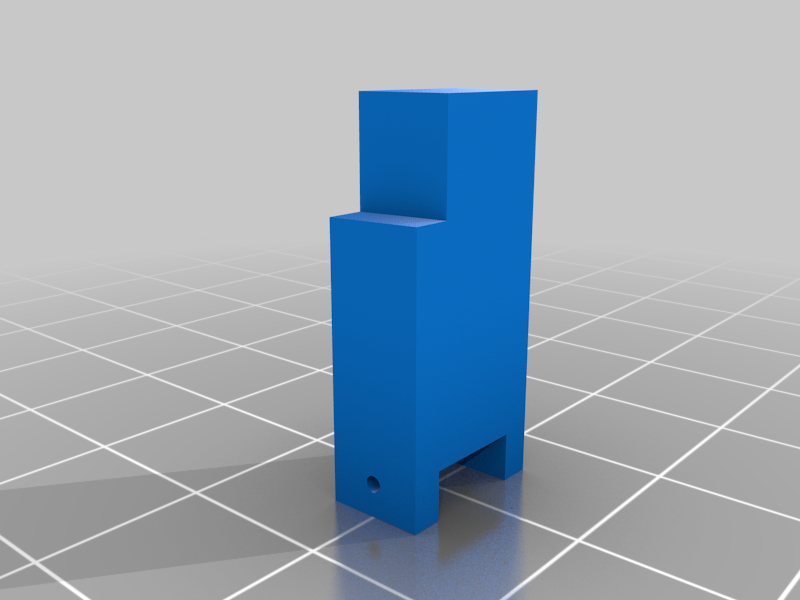

  • mount.stl 6.0 Γ— 13.0 Γ— 14.0 mm

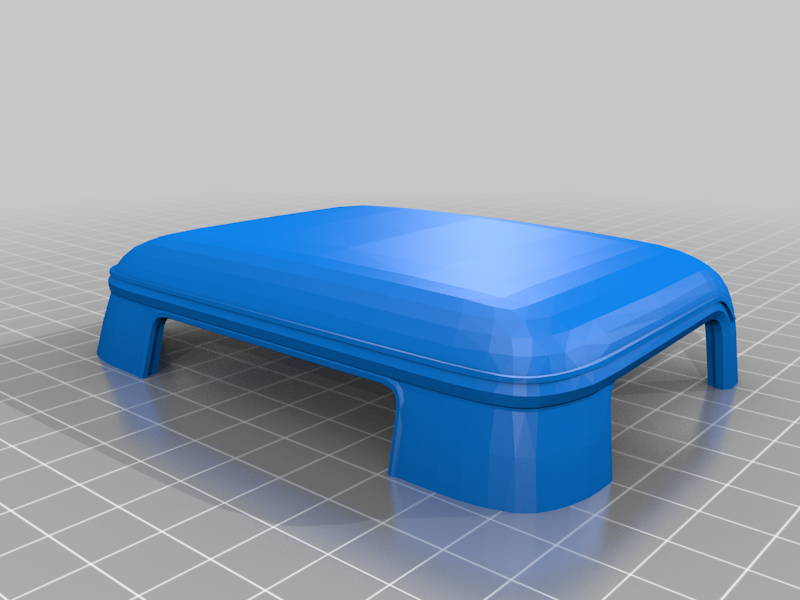

  • roofsss.stl 77.902977 Γ— 108.79066499999999 Γ— 25.782340999999995 mm

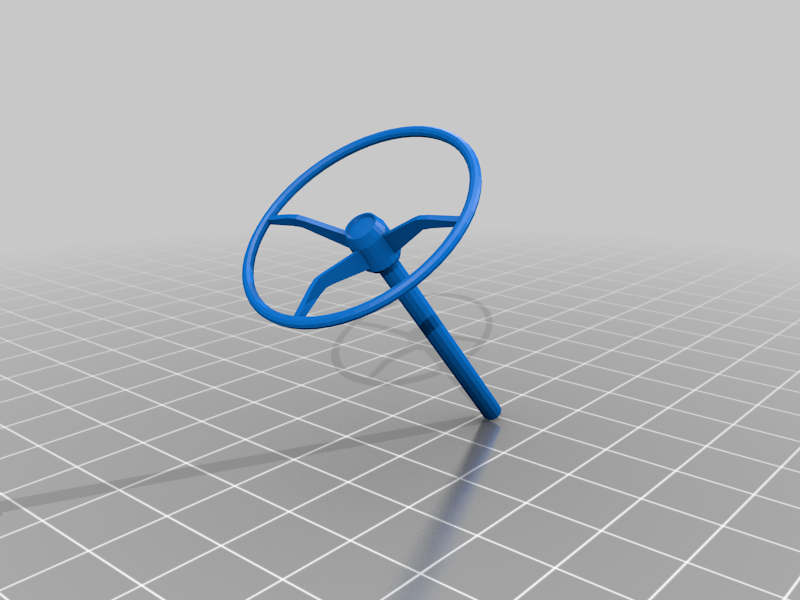

  • rul_repaired.stl 39.951003 Γ— 31.478001 Γ— 43.014004 mm

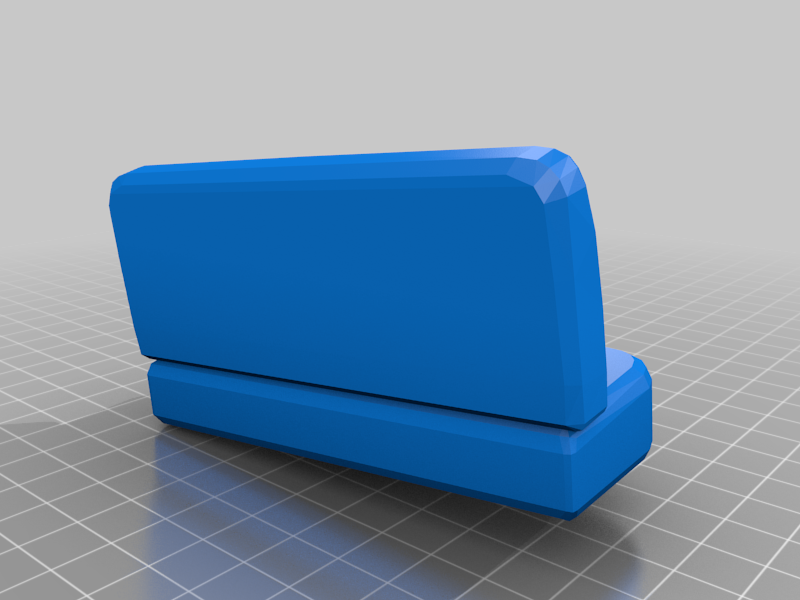

  • seat_repaired.stl 45.060001 Γ— 100.378006 Γ— 61.068005 mm
  • shaft.stl 5.633168 Γ— 6.0 Γ— 137.014412 mm
  • tyre.stl 54.786598999999995 Γ— 54.7866 Γ— 15.246001 mm
  • tyremold.stl 148.98749700000002 Γ— 72.591111 Γ— 14.630683000000001 mm
  • wheel_repaired.stl 77.26953199999843 Γ— 30.0 Γ— 30.0 mm

Learn more about the formats
Last update
Publication date
?
Published to Thingiverse on:
Design number 222899
Design author gamebox13
gamebox13

gamebox13

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

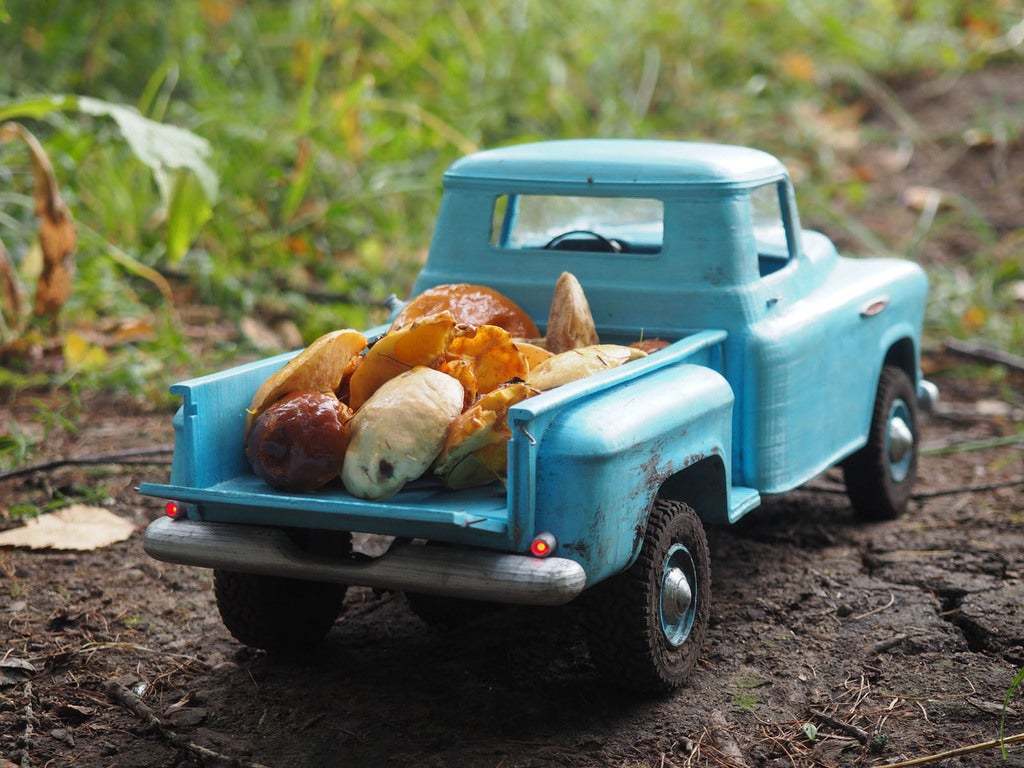

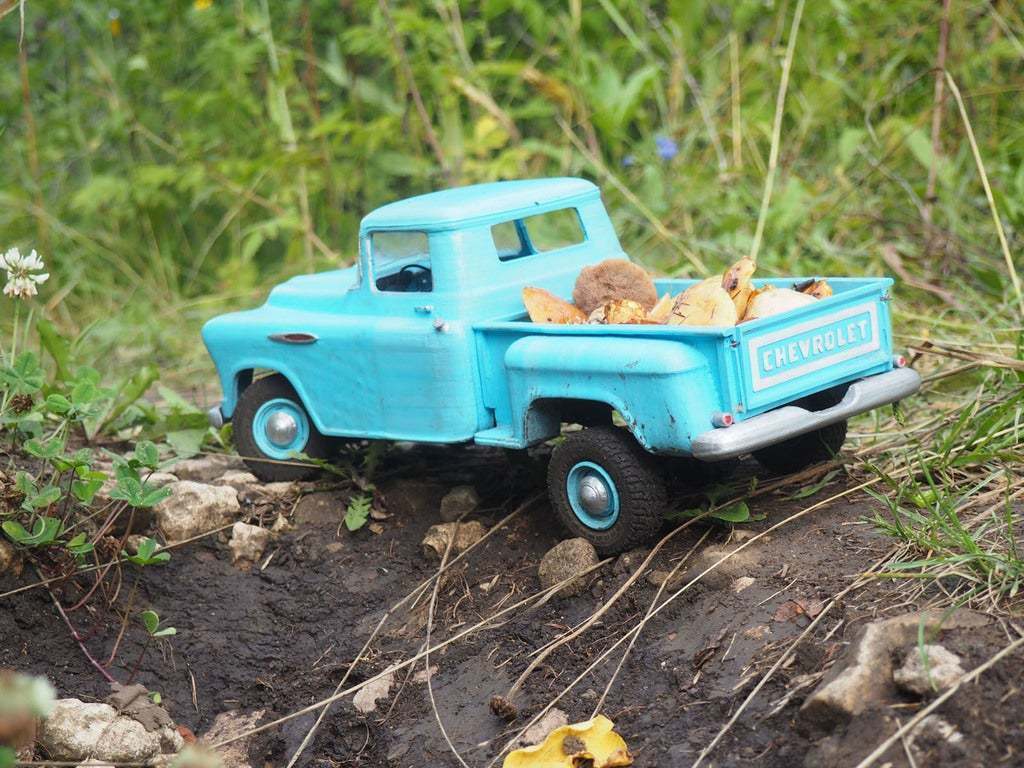

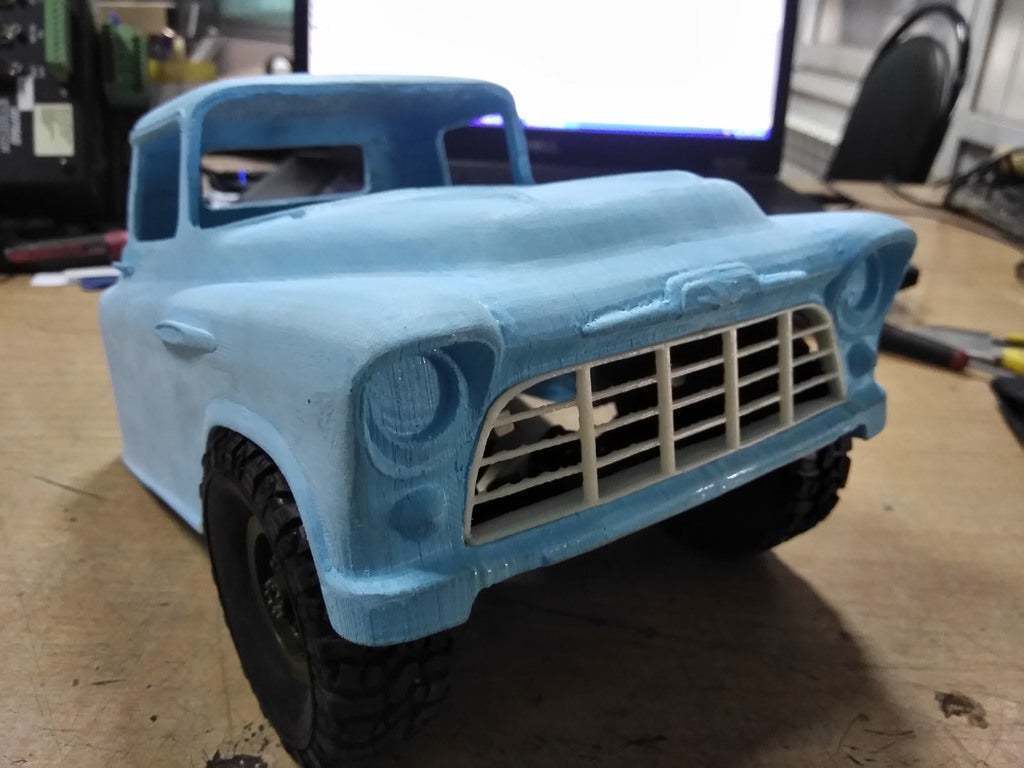

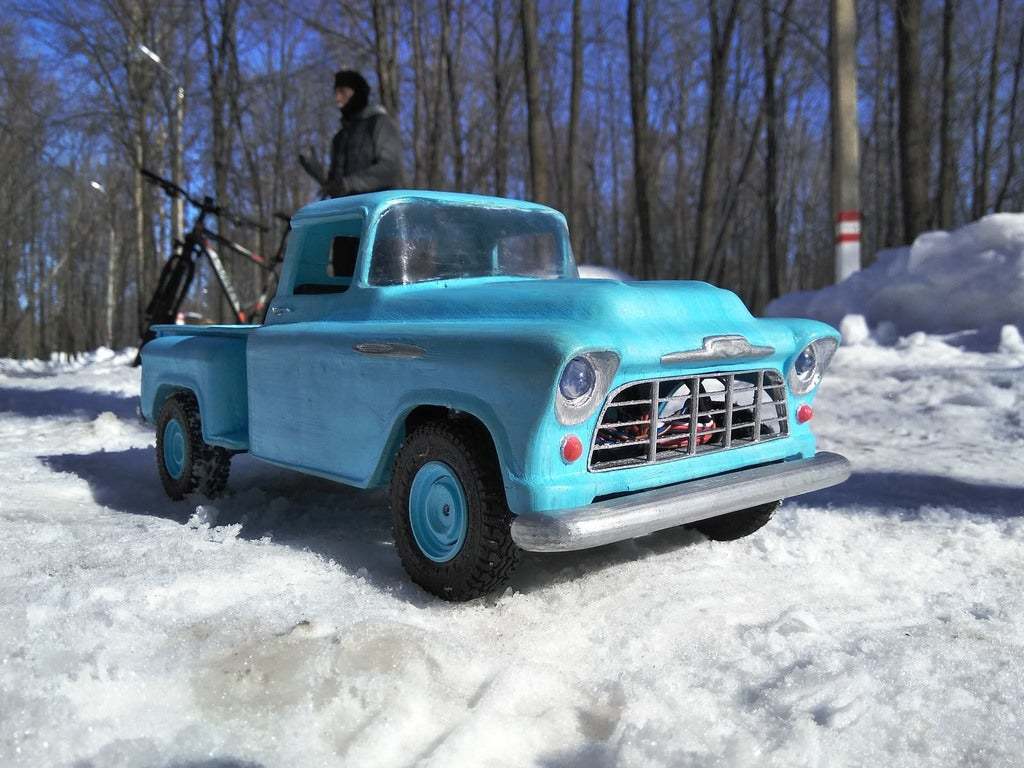

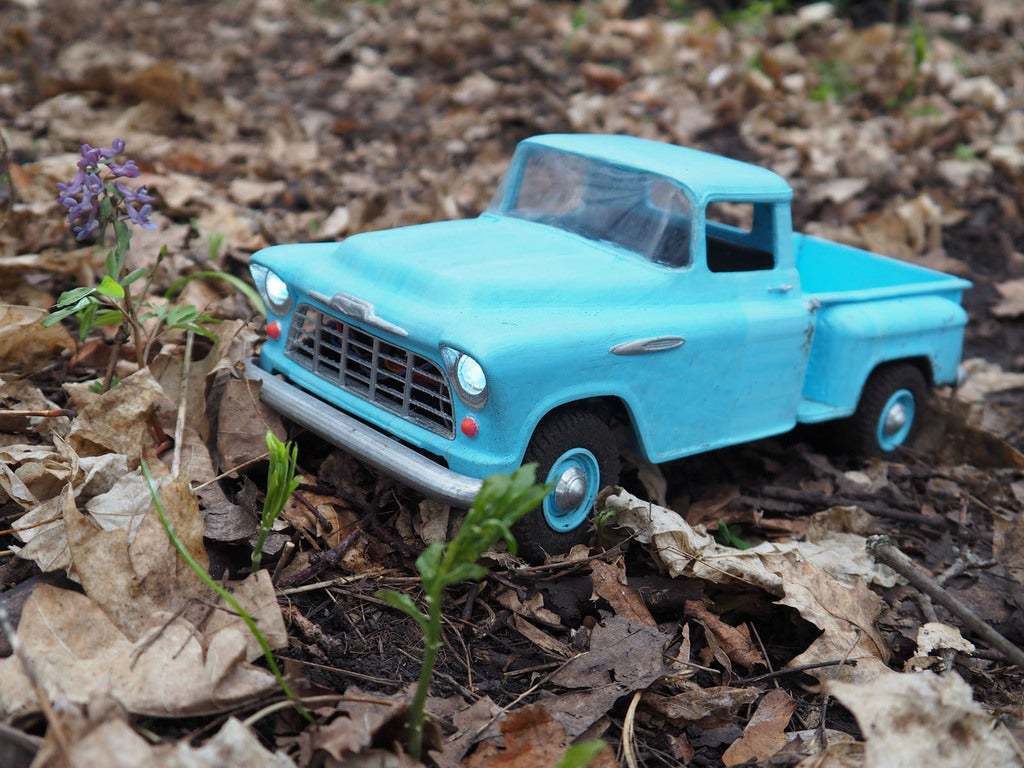

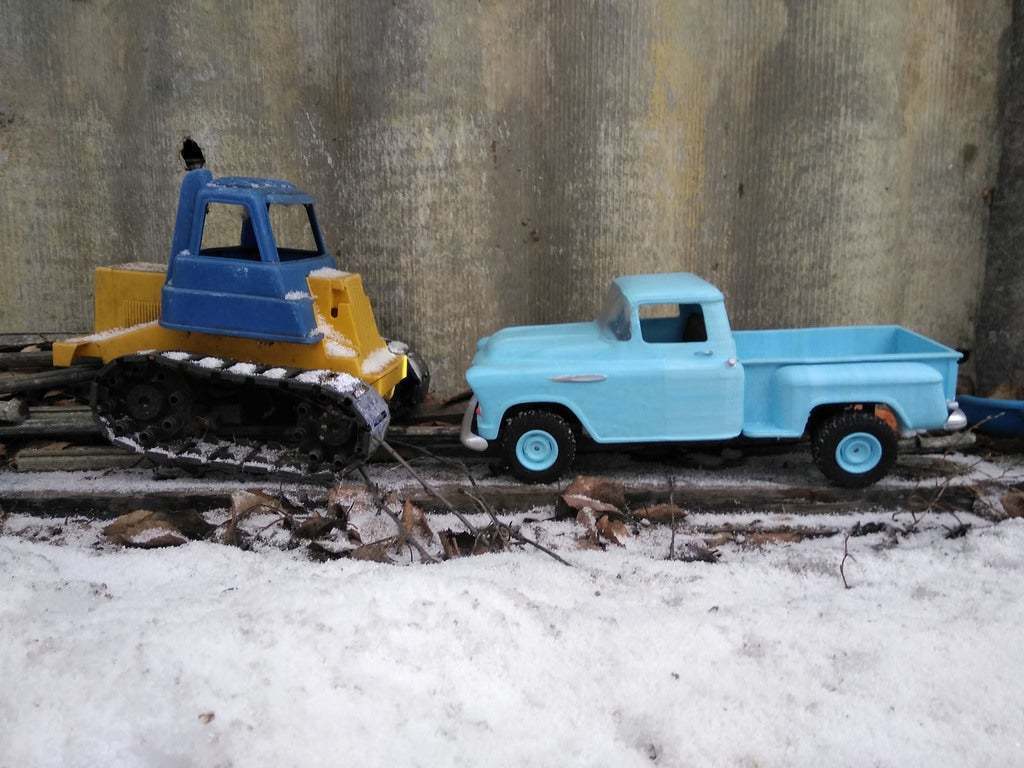

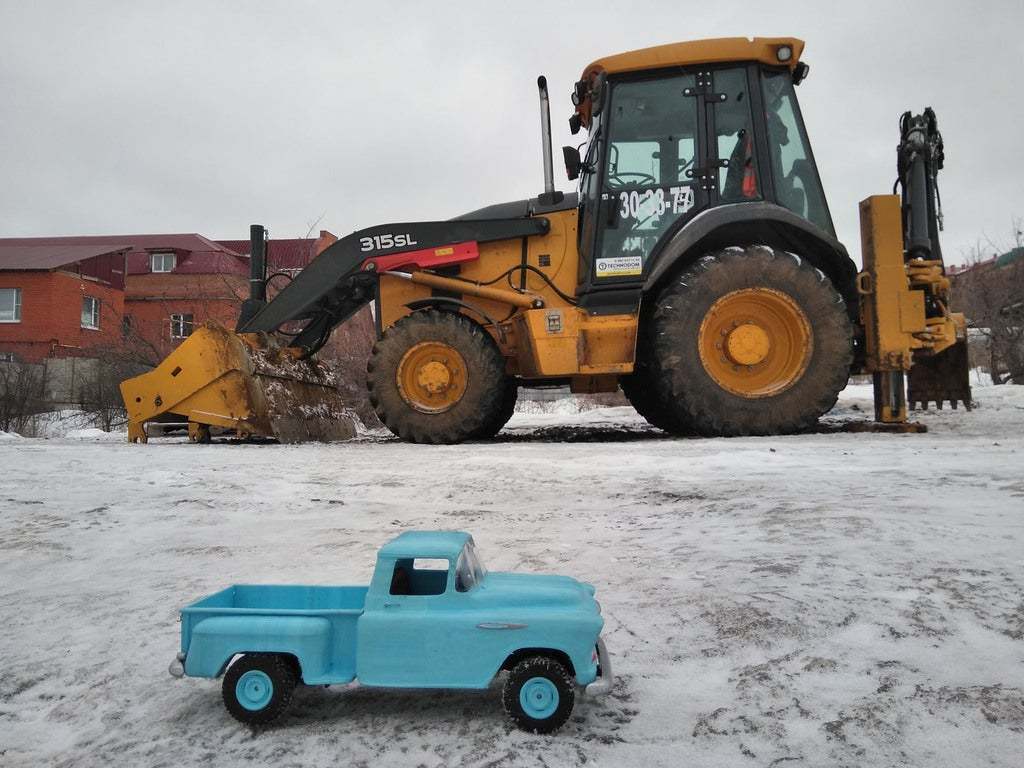

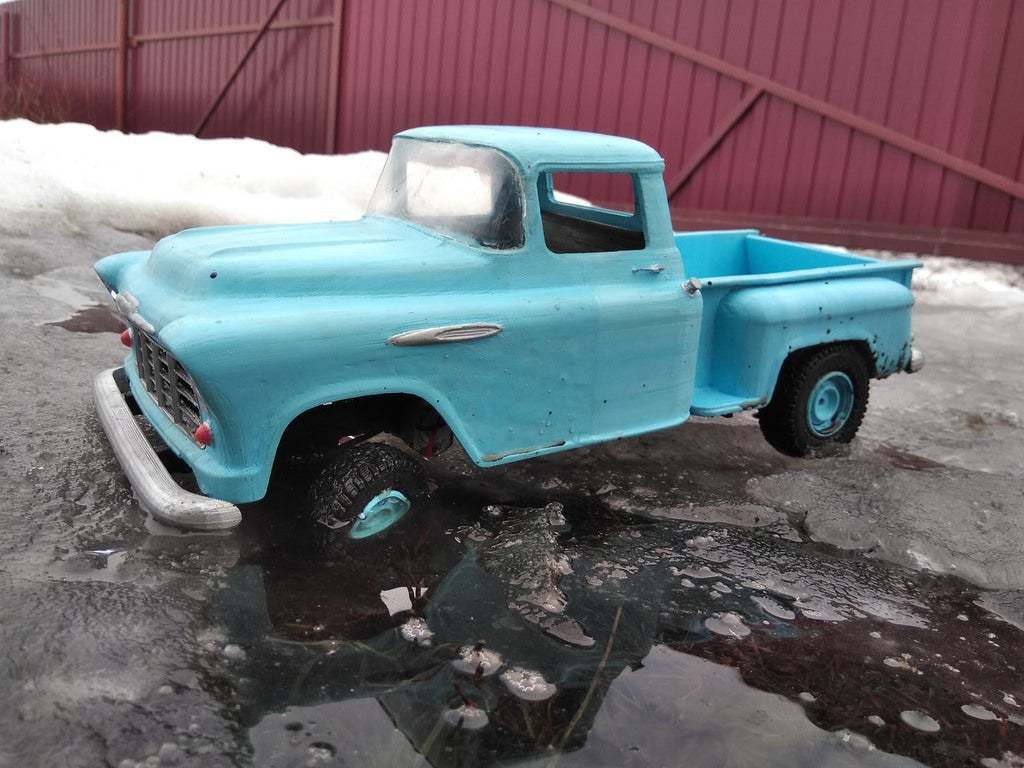

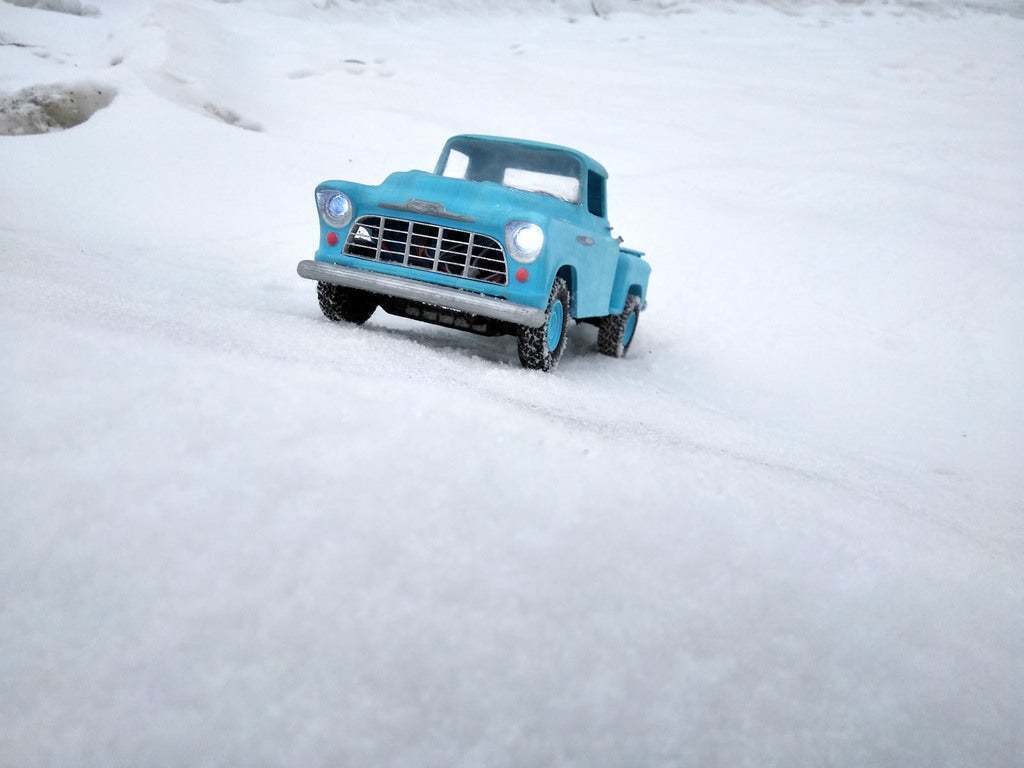

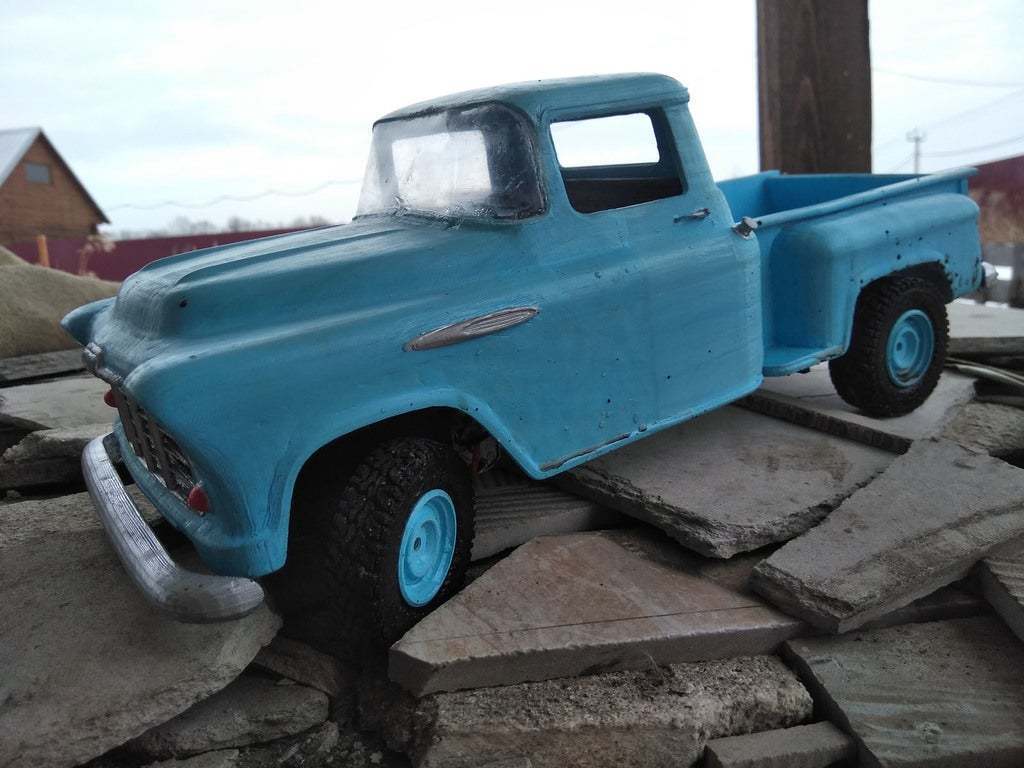

This model I got from the SpinTires Mudrunner game and edited to the 3D printing. It has 1/14 scale and RWD from JJRC Q60. Because I have a lot 4WD models, I wanted some RWD car to get more experience and difficulty on the ride.

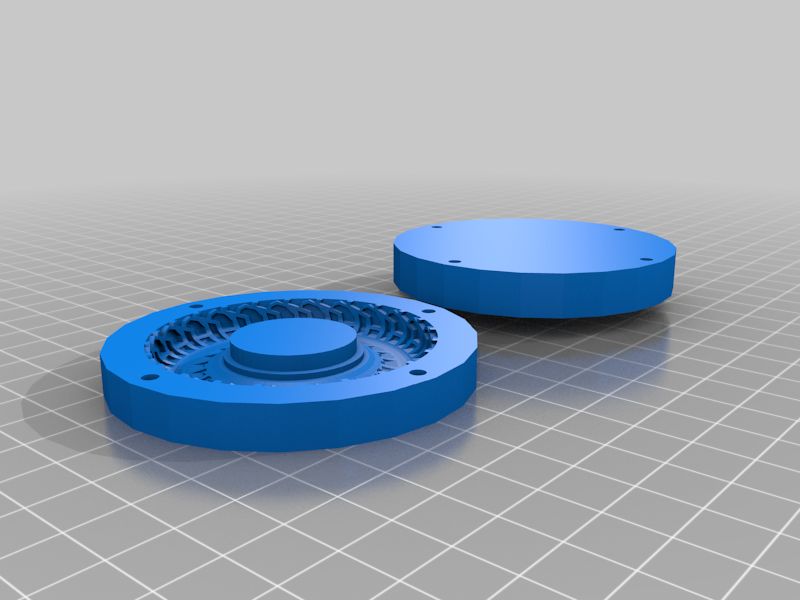

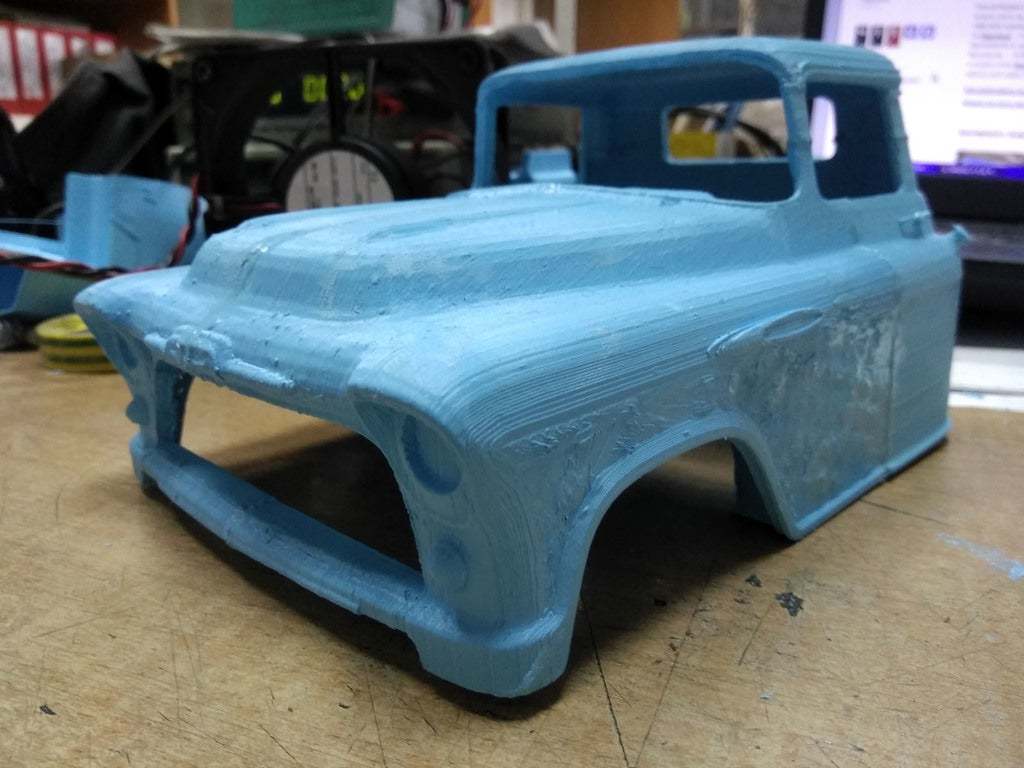

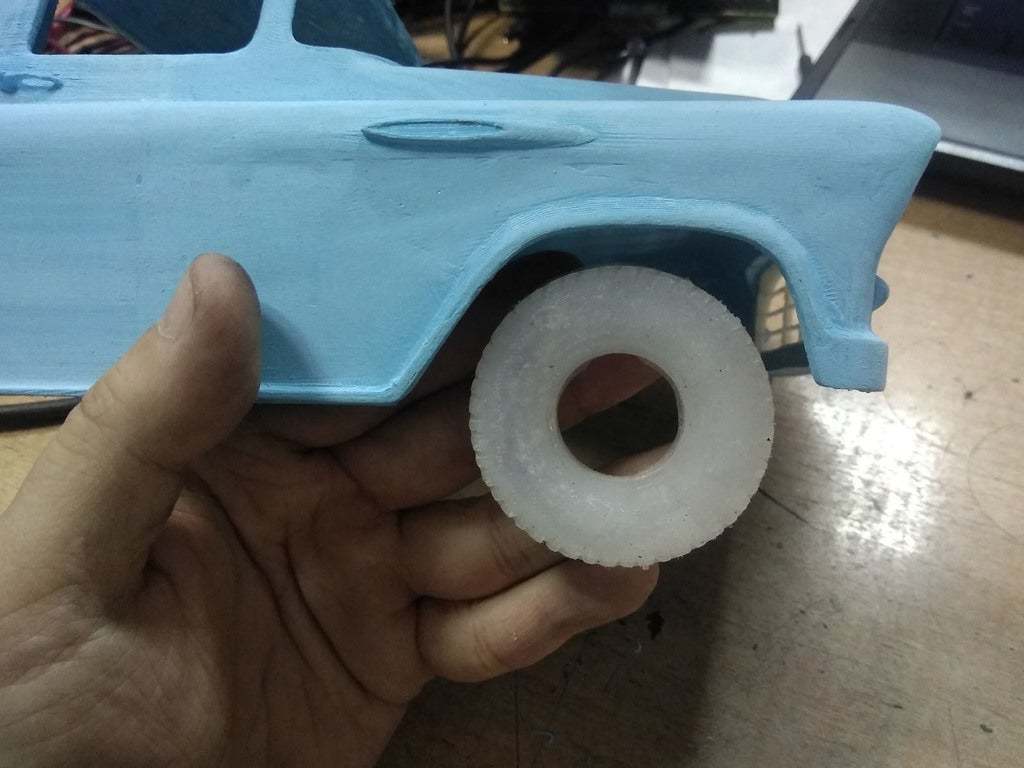

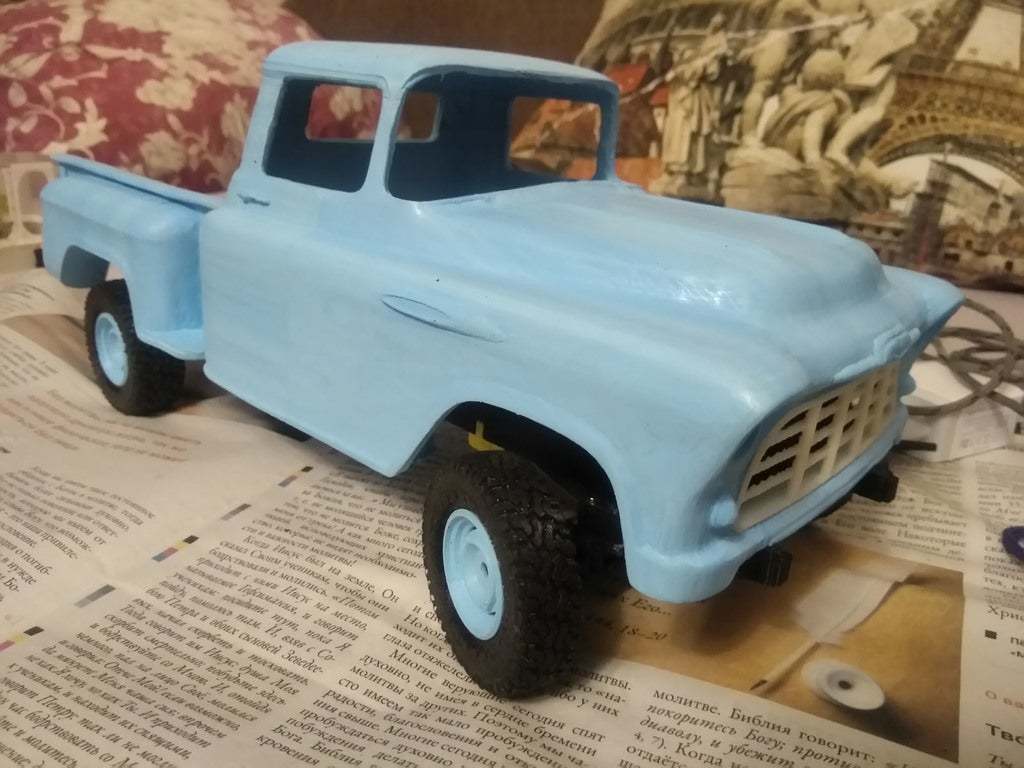

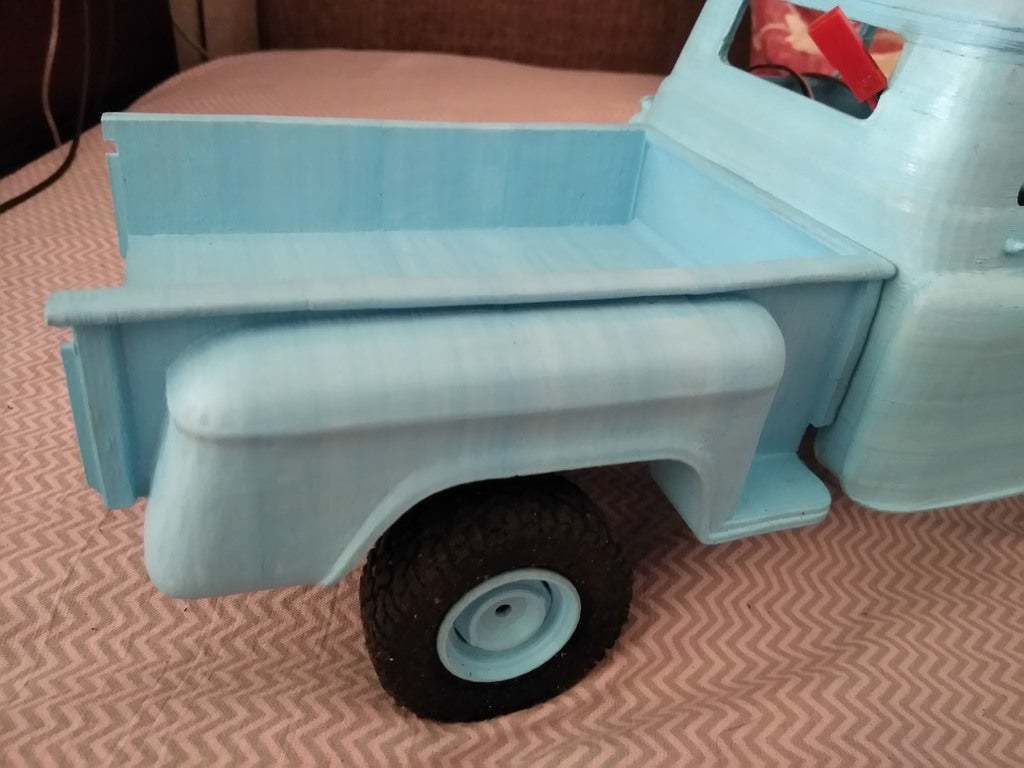

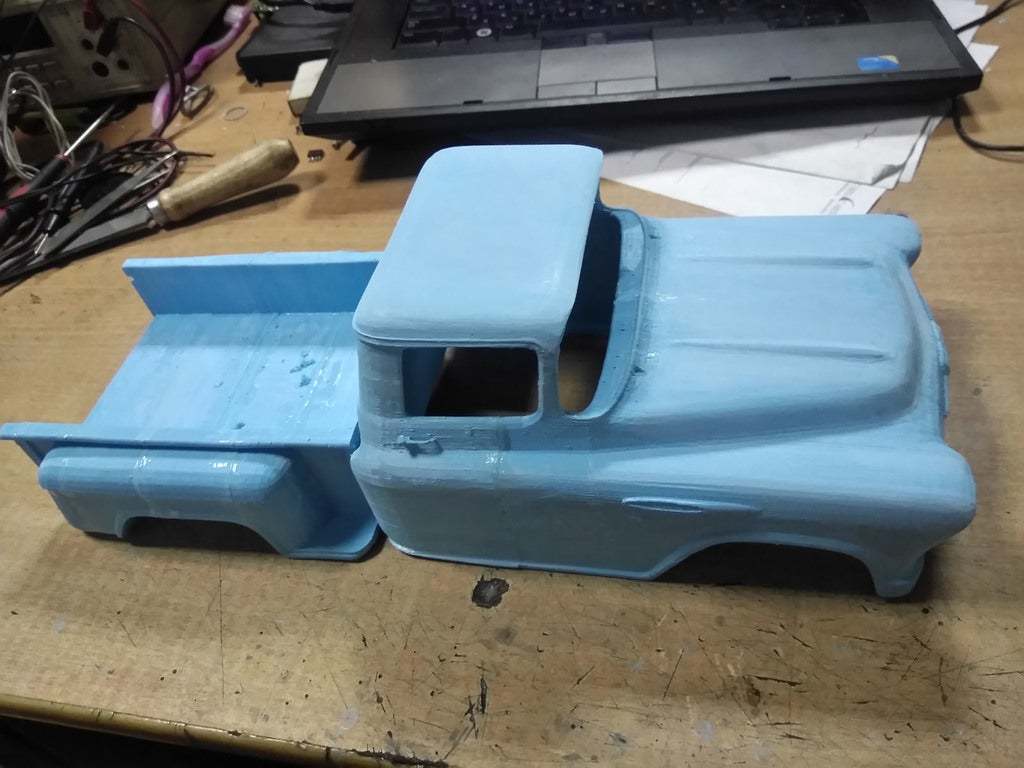

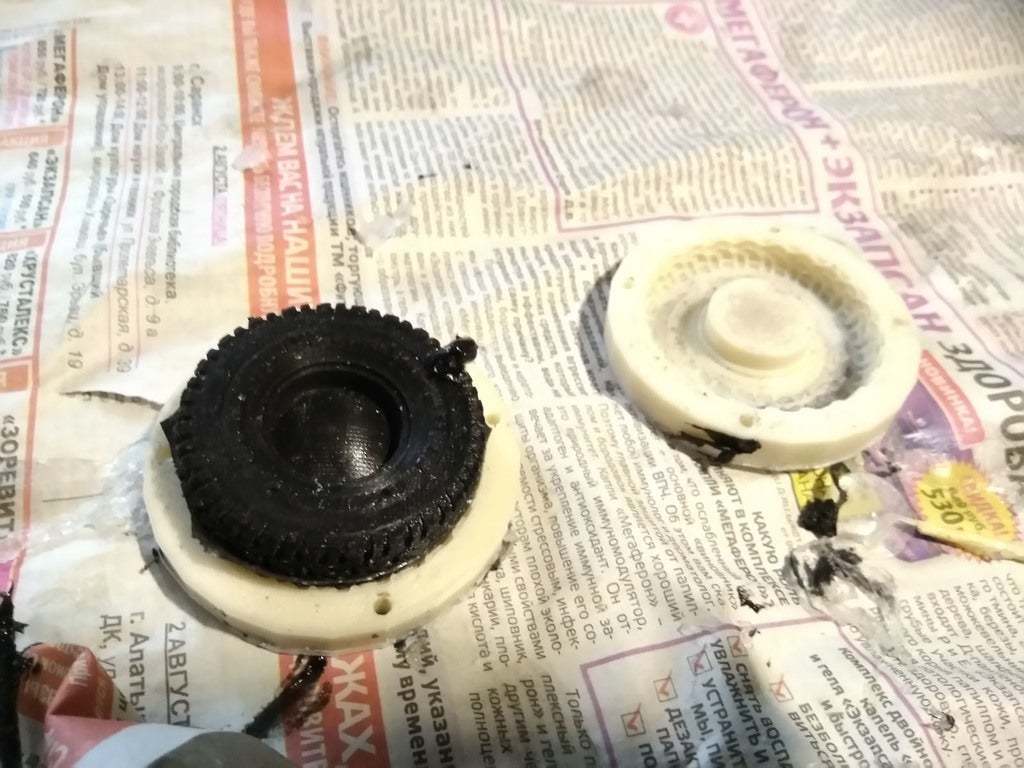

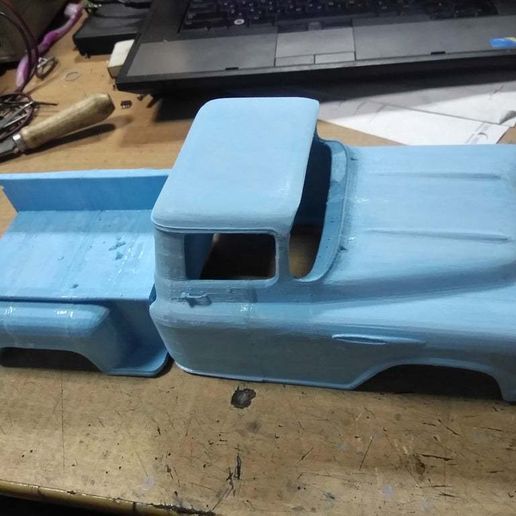

Body printed from ABS and glued together with ABS juice. I made tyres from a silicone sealant using a 3d printed mold. It came pretty soft and heavy (because solid). I have recommended using a black aquarium sealant because it is black and has not shrink like a regular colourless sealant. Also you can printed tyres from some TPU flex plastic. I made rear wheels is wider by increasing Z scale up to 120% in the slicer for tyremold and wheel parts.

You can use any 2 channel RC transmitter. I have used Flysky FS-GT3B but also tried cheaper and more functionaled DumboRC X6

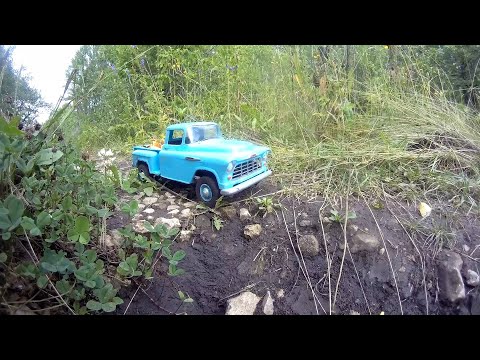

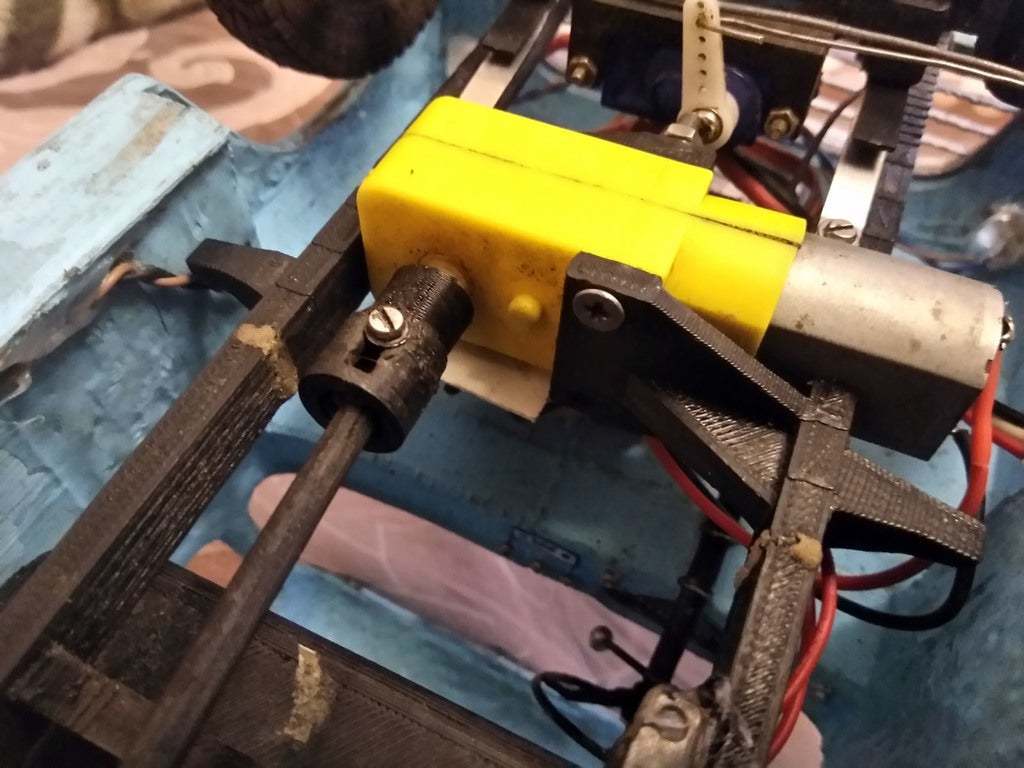

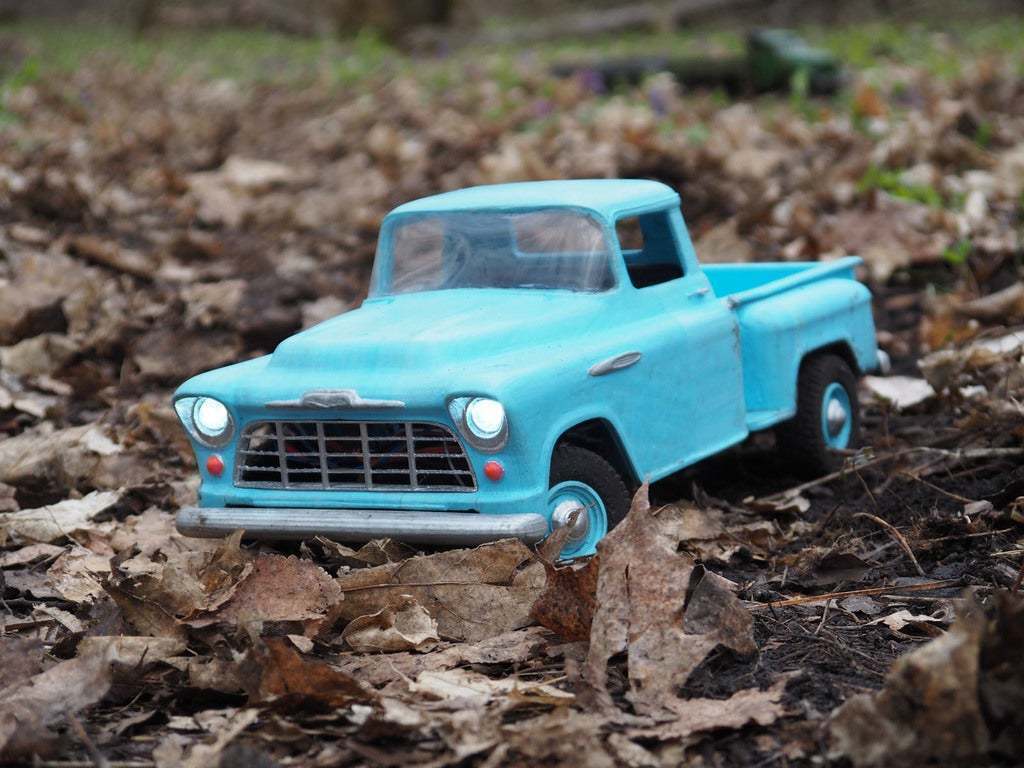

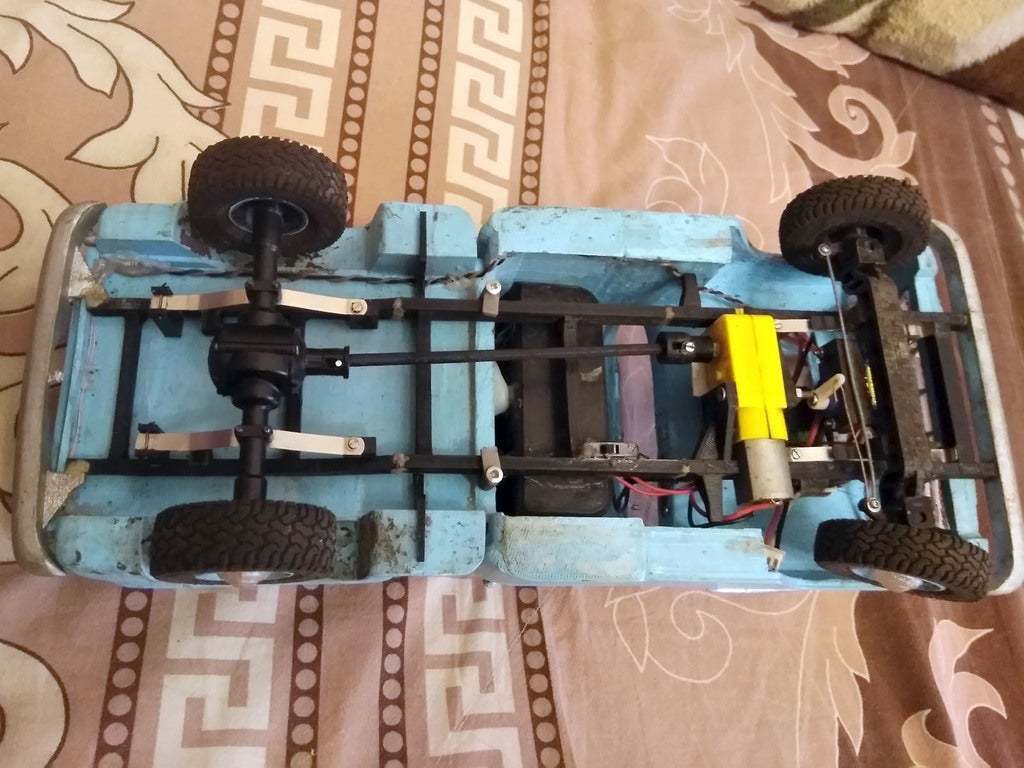

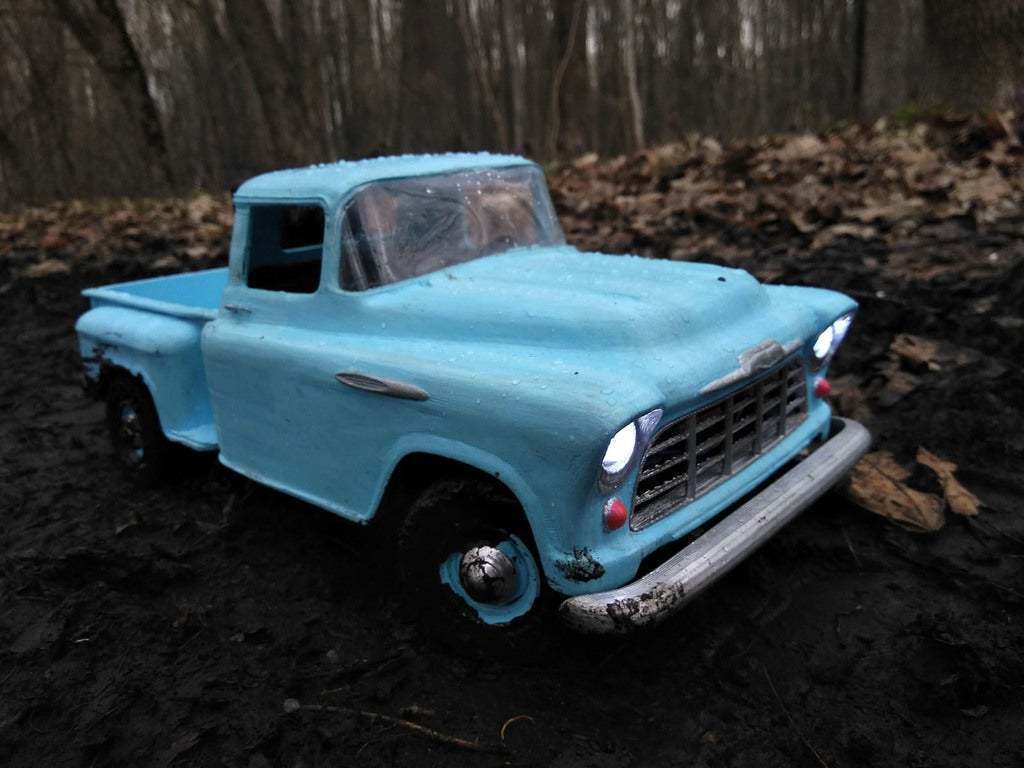

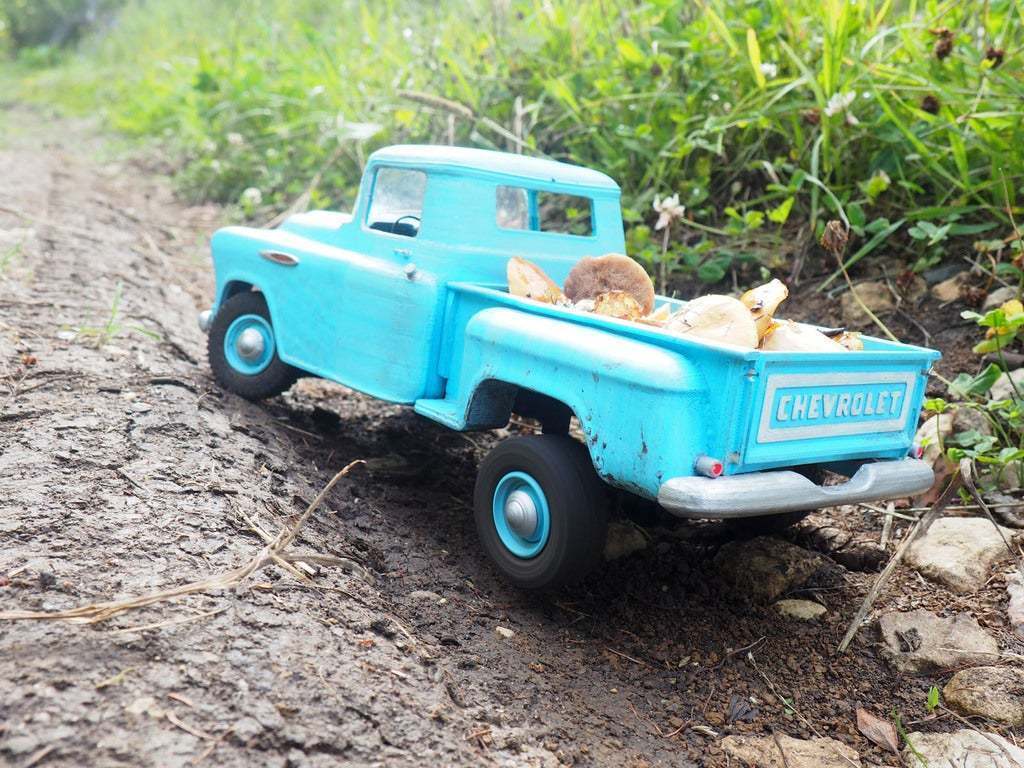

There is an old Chevy truck with rear drive and open diff. It run on the yellow TT gearbox.Original motor quickly died and replaced. Also I removed one gear step to increase speed.

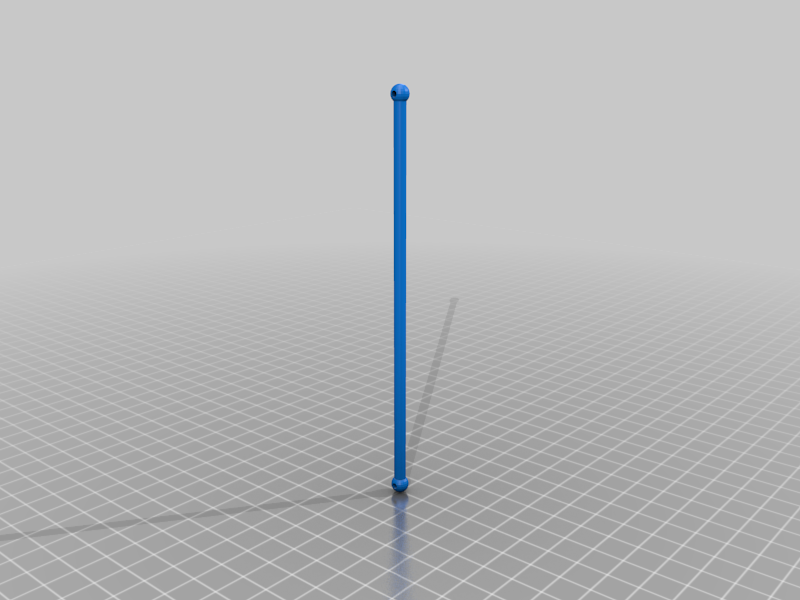

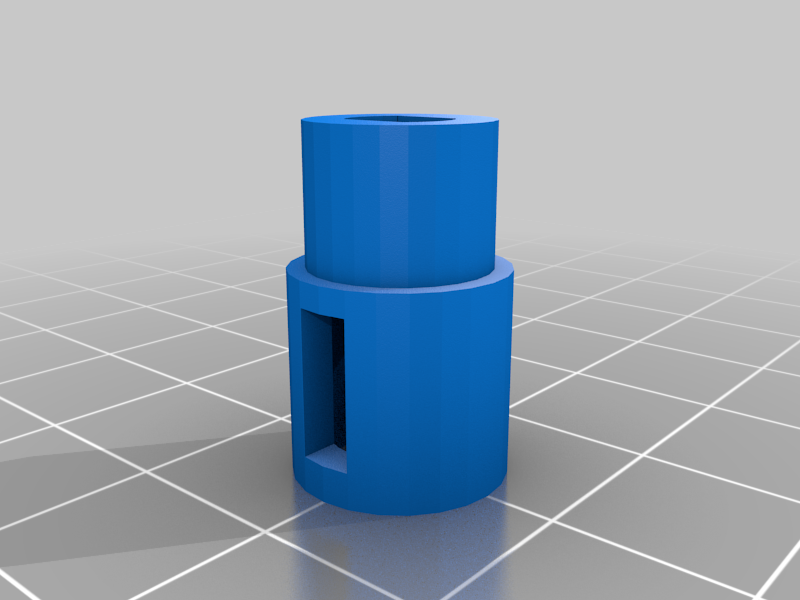

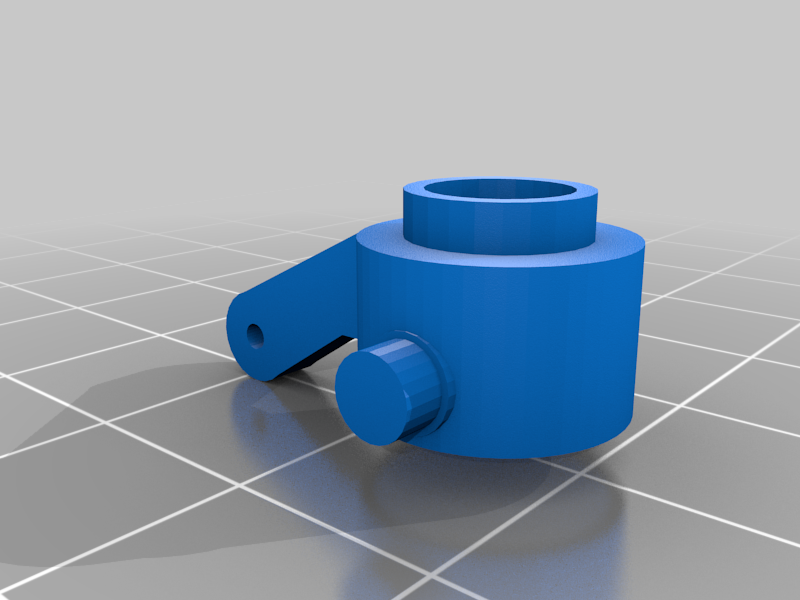

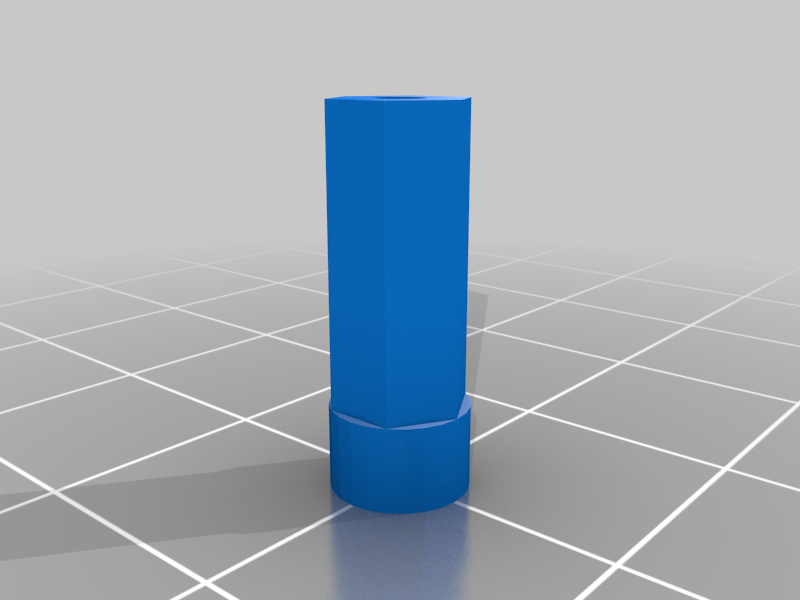

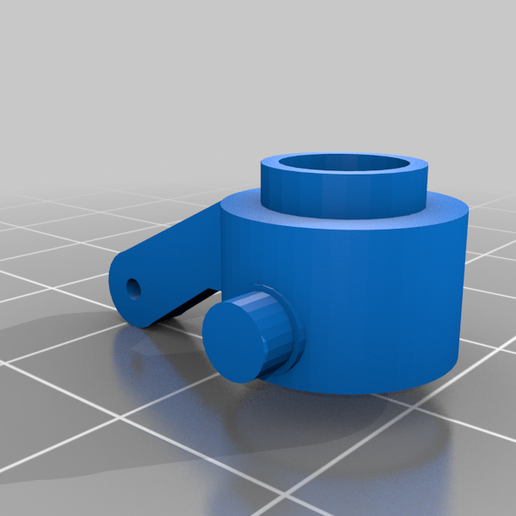

623 bearing put inside the hub and may glued carefully if it loose. Hex axle screwed through bearing with M3 screw. Cup part fixed with a screw on a gearbox shaft and a driveshaft's end mounted with M2 screw & nut inside a cup. From other end you can used a metal pin from old JJRC driveshaft or M2 screw too.

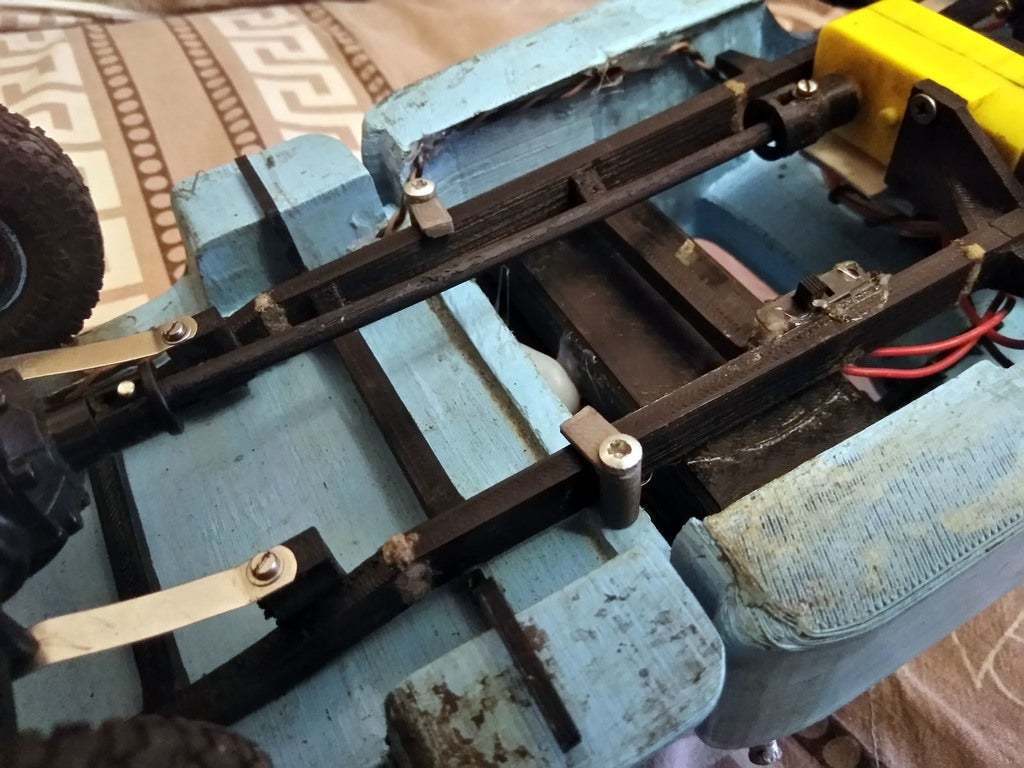

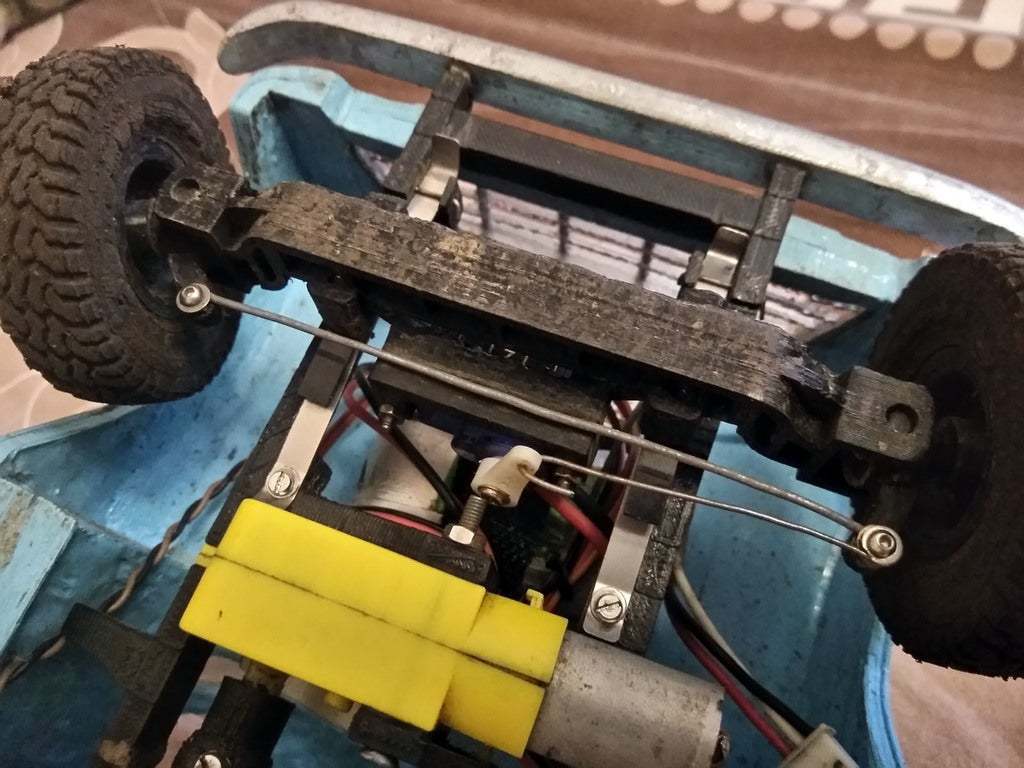

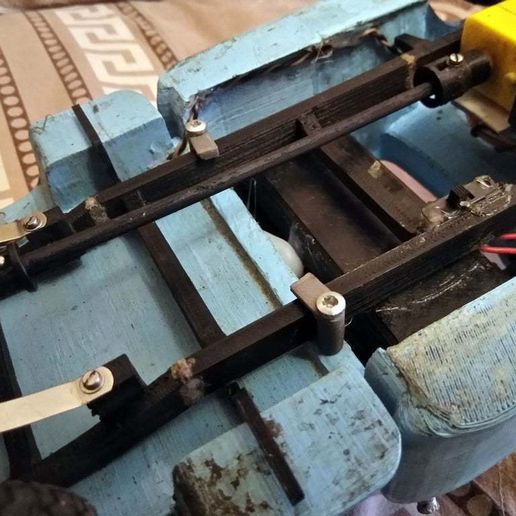

Leaf spring puts on chassis with M2 screws and folded ends hold on chassis by a piece of paper clip wire.This spring's end must be slide under wire when spring is damping.

https://www.youtube.com/watch?v=Z4qGSbimuNY
