LTZ T-40 - RC soviet tractor

Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 18.1k views
  • 94 likes
  • 706 downloads
  • 3 collections
  • 1 comment
Licence CC BY-NC
Publication date 2019-05-10 at 09:02
Design number 56519
3D design format

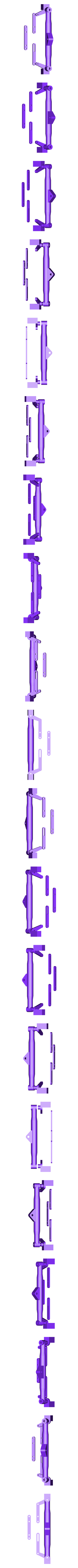

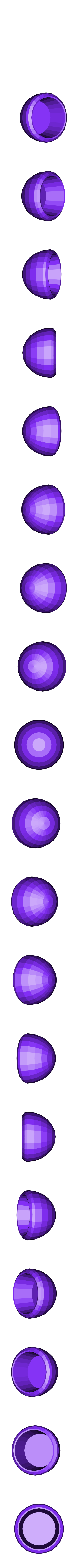

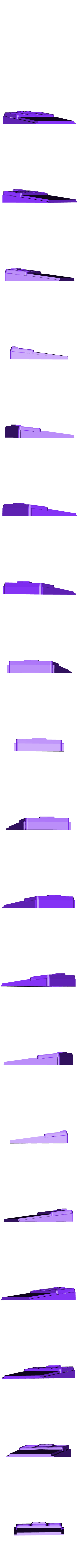

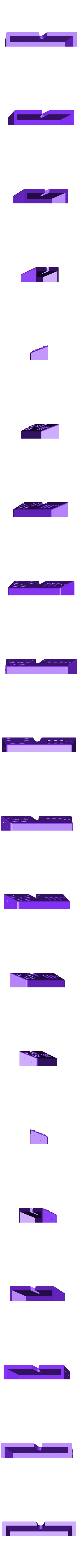

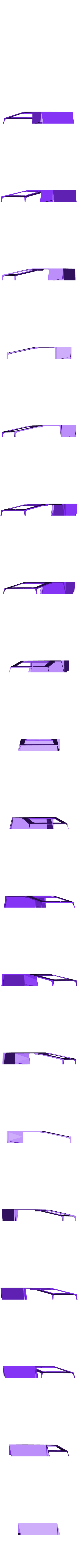

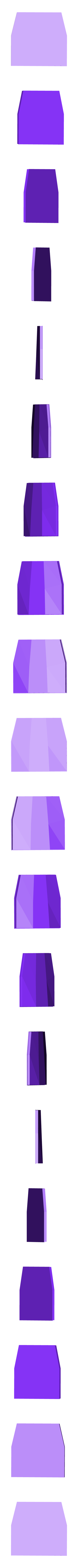

STL Folder details Close
  • back.stl
  • bak.stl
  • bonnet1.stl
  • bottom.stl
  • chassis.stl
  • dash.stl

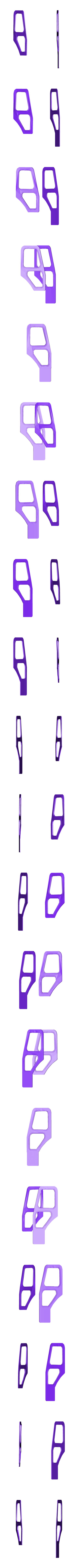

  • doors.stl

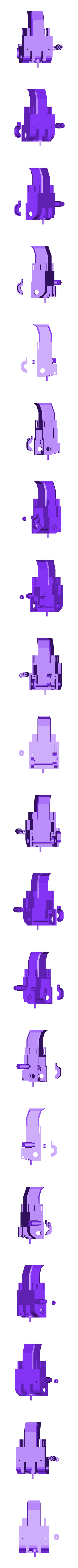

  • drive.stl
  • exhaust.stl
  • fara.stl
  • front cab.stl
  • front.stl
  • ftyre.stl

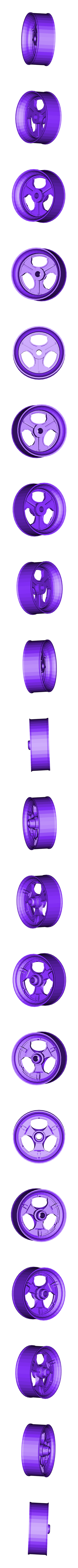

  • fwheel.stl

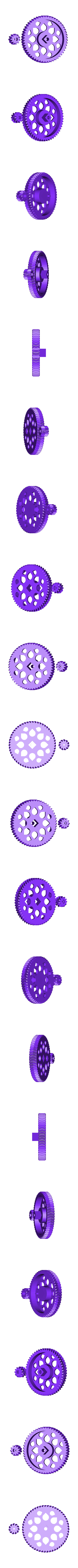

  • gear.stl
  • grill.stl
  • left right.stl
  • roof.stl

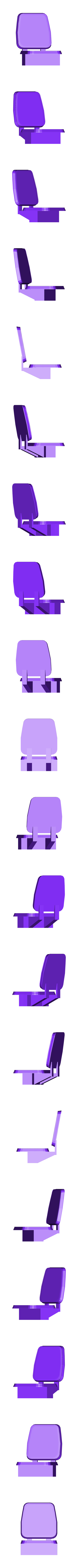

  • seat.stl

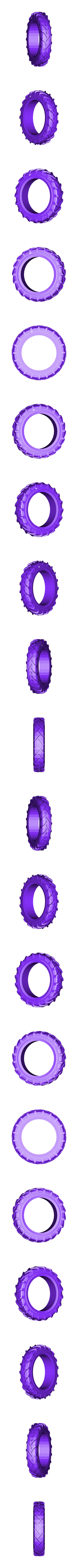

  • tyre.stl
  • wheel (repaired).stl
  • wings.stl

Learn more about the formats
gamebox13

gamebox13

3D printer file info

3D model description

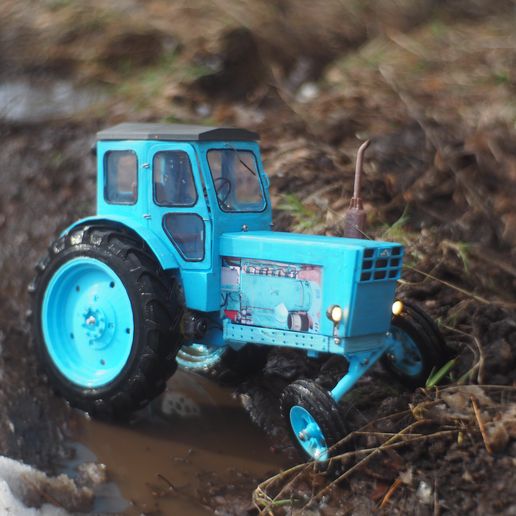

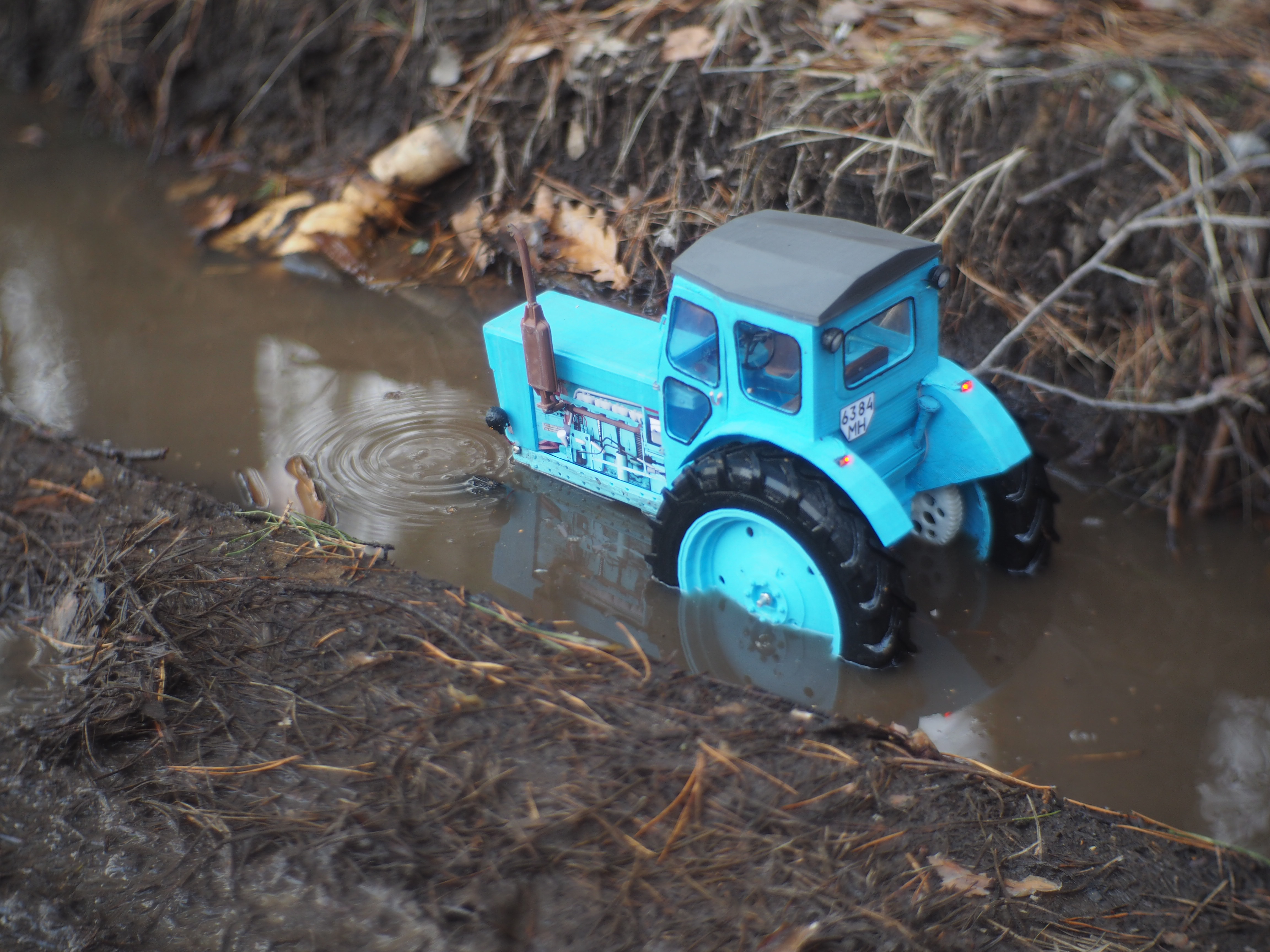

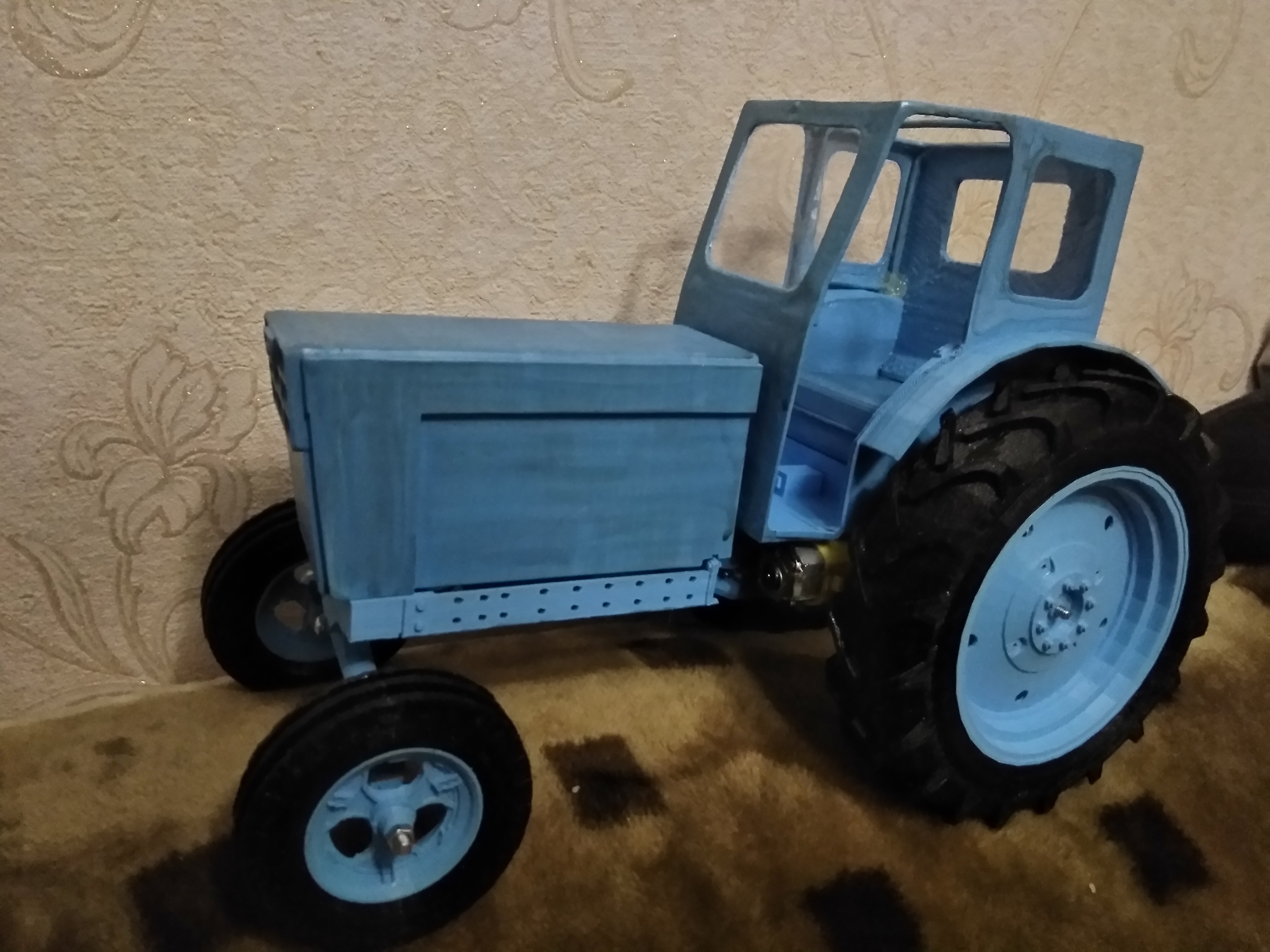

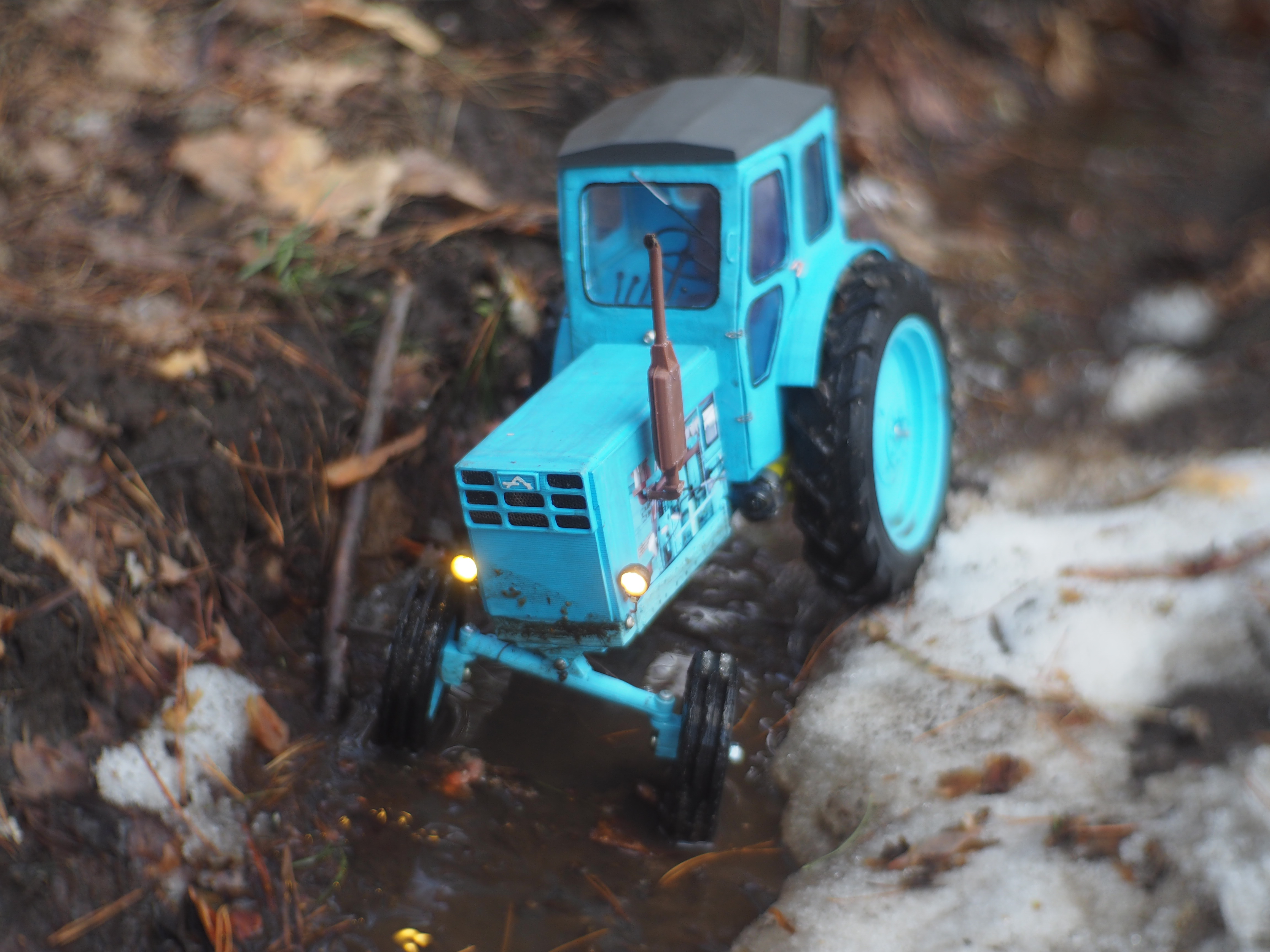

This model converted from Farming simulator 2013 mod in the SketchUp and has 1/10 scale. It run on two yellow TT motors very well.

Parts list:
* 2 x TT motor http://s.click.aliexpress.com/e/buphoBHm
* MG90 servo http://s.click.aliexpress.com/e/e7T0c12
* ESC 20A http://s.click.aliexpress.com/e/K2MYYC0
* Radio control 3 channels
* Li-pol 2S
* 2 x 608 bearing
* 2 x M4x60 screw with spacers, nuts.
* 2 x M5x40 screw with spacers, nuts.
* Some M2, M3 screws, nuts.

Video:
https://www.youtube.com/watch?v=lxkZ7ocHzAY

3D printing settings

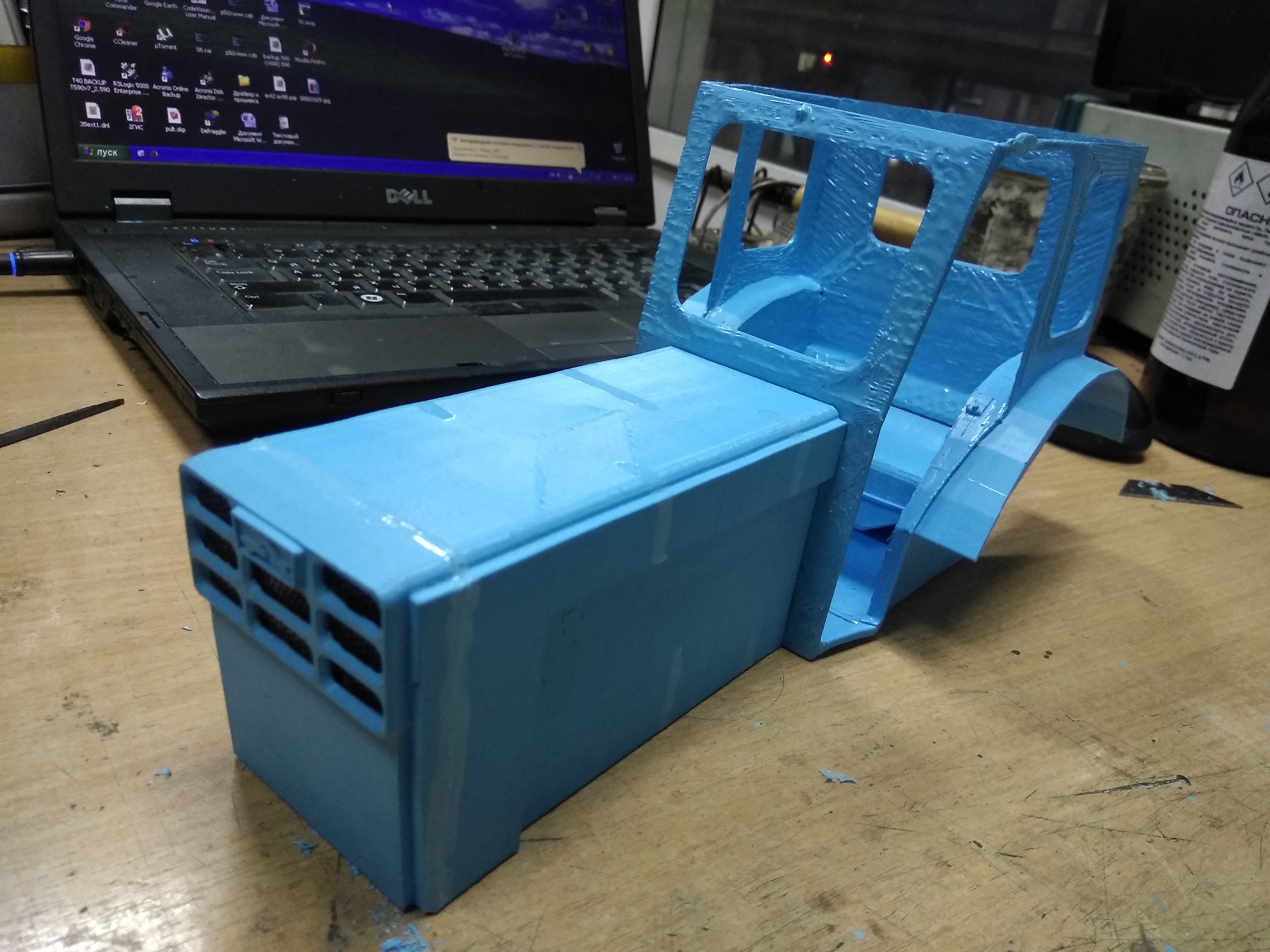

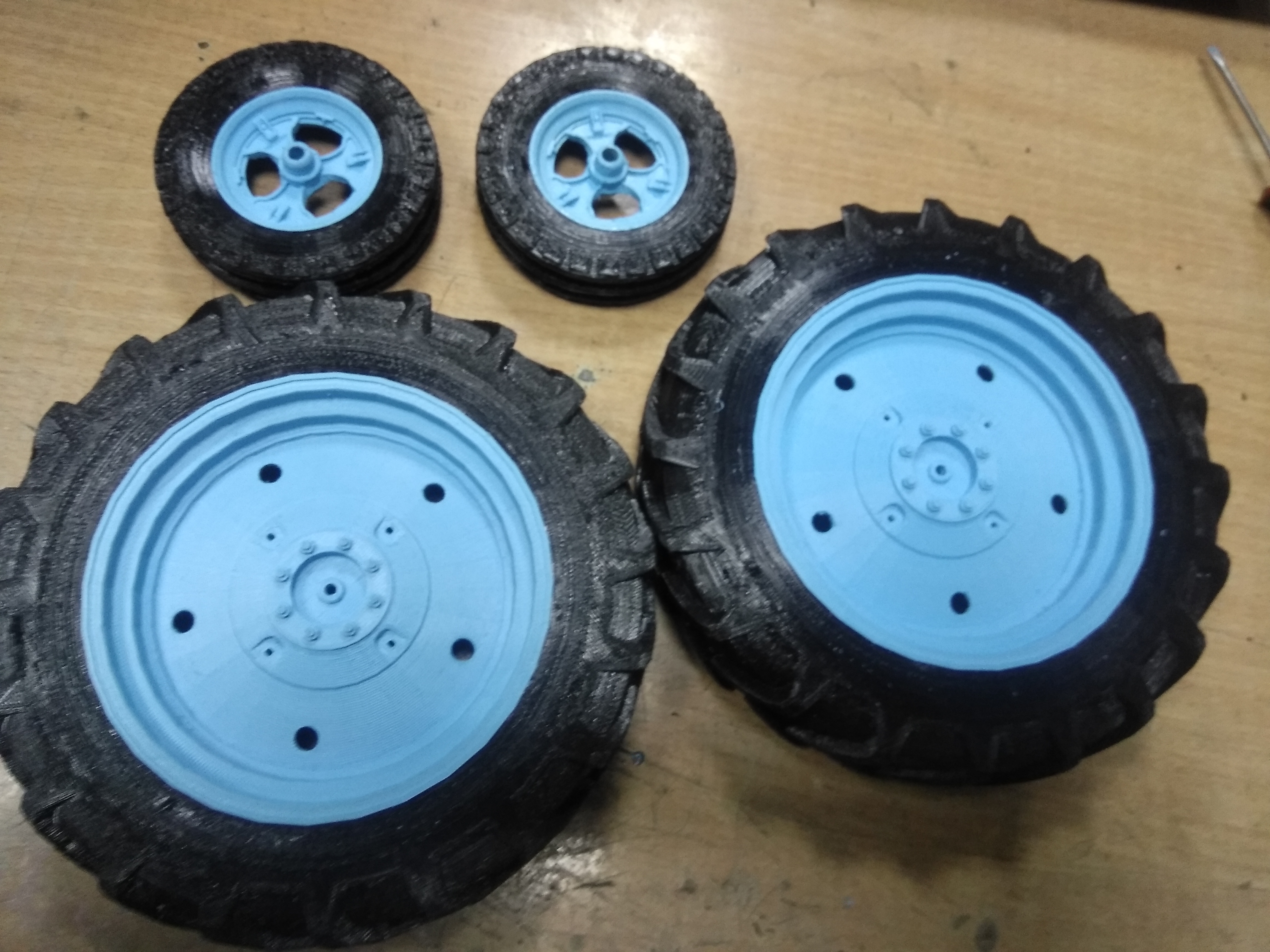

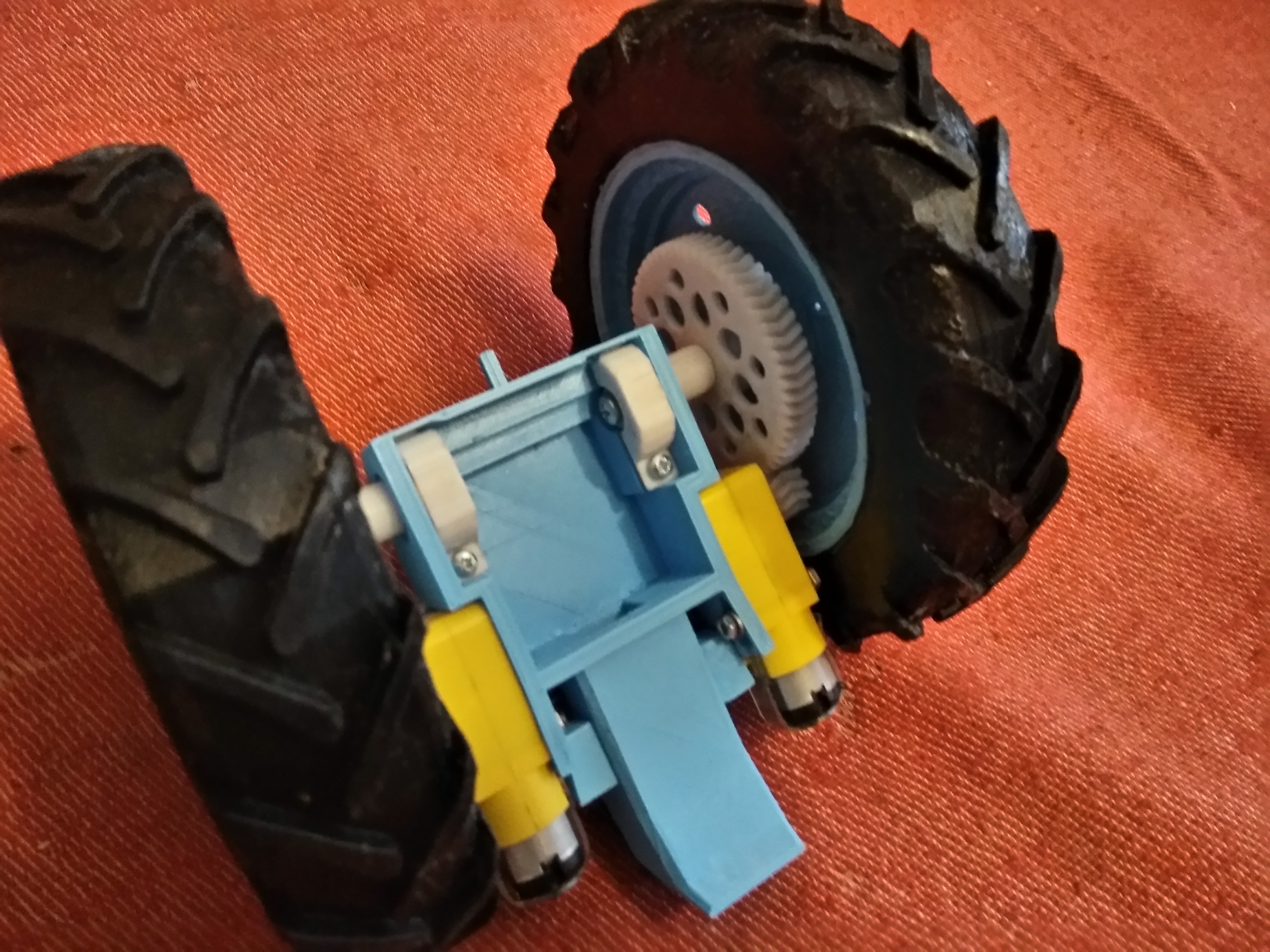

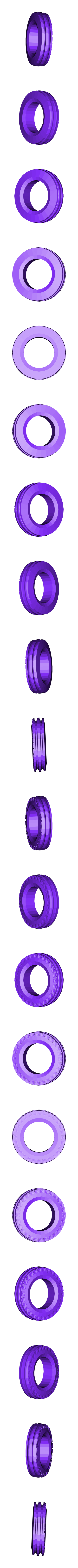

Mostly tractor printed from ABS and glued together by superglue and hotglue. Tyres I've printed from FLEX material with 2 layers wall and 8% concentrical fill. Gears and rear axles made from PETG and it mounts on the 608 bearings.
