RC BOBCAT SKID STEER ULTRA RC

Advertising
Share
Add to
Make
?
Creation quality: 4.8/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.
πŸ†Β BestΒ ?
License
3D design format
16 files (STL) Close
  • arm1.stl 255.286194 Γ— 34.0 Γ— 101.04994199999999 mm
  • arm_2.stl 255.286194 Γ— 34.0 Γ— 101.04994199999999 mm
  • arm_beam_brace.stl 25.0 Γ— 4.0 Γ— 25.0 mm
  • arm_brace_3.stl 141.86172499999998 Γ— 136.0 Γ— 156.02748300000002 mm
  • back_of_base.stl 94.262058 Γ— 203.0 Γ— 106.833695 mm
  • bottom_of_back_of_base.stl 114.57891899999998 Γ— 200.0 Γ— 87.999998 mm
  • bucket.stl 135.18219 Γ— 212.0 Γ— 85.173832 mm
  • cabin_floor.stl 160.3918 Γ— 110.0 Γ— 19.5 mm
  • front_of_base.stl 52.75732500000001 Γ— 122.0 Γ— 88.356169 mm
  • midle_base.stl 89.870124 Γ— 199.78042599999998 Γ— 89.999998 mm
  • midle_base_1.stl 109.770124 Γ— 192.0 Γ— 89.999998 mm
  • rim.stl 60.369194 Γ— 30.203094 Γ— 60.378189 mm
  • roof.stl 129.824341 Γ— 110.0 Γ— 8.0 mm
  • side_left.stl 191.794861 Γ— 3.0 Γ— 162.223144 mm
  • side_right.stl 191.794861 Γ— 3.0 Γ— 162.223144 mm
  • tire.stl 107.979694 Γ— 34.0 Γ— 107.979694 mm

Learn more about the formats
Last update
Publication date
?
Published to Thingiverse on:
Design number 72692
Design author ULTRARC
ULTRARC

ULTRARC

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

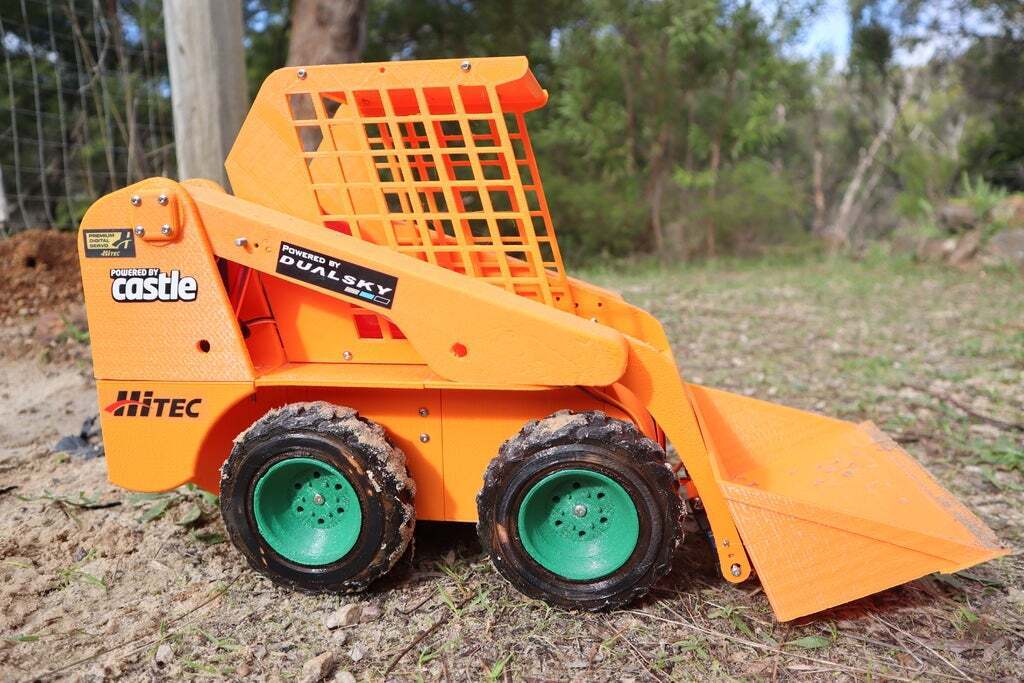

These are the files for the RC bobcat i designed!!!!!

There is a video if you want more info!!!!
https://www.youtube.com/watch?v=P_tvqk8mg5A&feature=youtu.be

i would love to have some feedback on the designs if anyone has any ideas
there is lots of information on the video so check that out, but basically there is not many options out there for rc bobcat's and i think they are the ideal digging machine, so i designed my own!!!
It is pretty awesome but not to cheap.

This has 3D printed wheels on it, but the motors use an adapter which has a 12mm hex so any rc wheels will fit. I designed the 3D printed ones because of the deep wheel insert and the weight of the bobcat is pretty heavy and needed more support for the skid steering.
you need the one with 6mm shaft

https://www.banggood.com/3mm-4mm-5mm-6mm-7mm-Hexagonal-Copper-Coupling-Coupler-for-Robot-Car-Wheel-p-1171587.html?rmmds=myorder&ID=41225&cur_warehouse=CN

This makes for a very strong drive train with no weak driveshafts and cogs

This is the bec
https://www.modelflight.com.au/castle-10a-peak-bec.html

This it the big servo i used
https://www.modelflight.com.au/hitec-hs-d845wp-monster-torque-32-bit-programmable-high-response-wide-vol.html

This is the bucket servo
https://www.banggood.com/search/spt-servo.html

This is the esc i'm going to install to give it more power!!!
https://www.modelflight.com.au/dynamite-wp-60a-fwd-rev-brushed-esc.html

and these are the motors
https://www.banggood.com/DC-12V-100rpm-Worm-Gear-Reduction-Motor-Metal-Gear-Box-High-Torque-Motor-p-1052858.html?rmmds=detail-left-hotproducts__4&cur_warehouse=CN

If anyone does make one of these i would love to see some pictures!!!!!!

THANKS FOR WATCHING ULTRA RC!!!!!
visit my channel for other awesome videos!!!
https://www.youtube.com/channel/UC1DCkhF5LrCuNeDbYBAV45w

Intro music!!!!
Rock Intro 3 by Audionautix is licensed under a Creative Commons Attribution license (https://creativecommons.org/licenses/by/4.0/)
Artist: http://audionautix.com/

and on Facebook!!!!
https://www.facebook.com/ultrarcvideos/
BY FOR NOW!!!
