RC AIR BOAT MOTOR COWLING

5ed149b395f70cf52652dc9010ceabad_display_large.jpg RC AIR BOAT MOTOR COWLING
aa9e66dbe8b68b4080b28b287c2716d7_display_large.JPG RC AIR BOAT MOTOR COWLING
7c70c3799c074b00f4ac8cd89c952a27_display_large.JPG RC AIR BOAT MOTOR COWLING
7cb0daf07d6f47f33d9e6a14f6daef7b_display_large.jpg RC AIR BOAT MOTOR COWLING
edb7c327a20b23806422393b64d4340b_display_large.jpg RC AIR BOAT MOTOR COWLING
d5458bf15c538340d198e69e953f1b08_display_large.jpg RC AIR BOAT MOTOR COWLING
3bf6b5a5c831283ecf6fab32bf24e505_display_large.jpg RC AIR BOAT MOTOR COWLING
24a2e21a48726a3dc89d5a7116634353_display_large.jpg RC AIR BOAT MOTOR COWLING
52dab3951415d0bc5a4f6afc27d3bb4f_display_large.jpg RC AIR BOAT MOTOR COWLING
air_boat_cowling.stl RC AIR BOAT MOTOR COWLING
air_boat_base.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_2.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_1.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_mount_2.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_mount_1.stl RC AIR BOAT MOTOR COWLING
5ed149b395f70cf52652dc9010ceabad_display_large.jpg RC AIR BOAT MOTOR COWLING
aa9e66dbe8b68b4080b28b287c2716d7_display_large.JPG RC AIR BOAT MOTOR COWLING
7c70c3799c074b00f4ac8cd89c952a27_display_large.JPG RC AIR BOAT MOTOR COWLING
7cb0daf07d6f47f33d9e6a14f6daef7b_display_large.jpg RC AIR BOAT MOTOR COWLING
edb7c327a20b23806422393b64d4340b_display_large.jpg RC AIR BOAT MOTOR COWLING
d5458bf15c538340d198e69e953f1b08_display_large.jpg RC AIR BOAT MOTOR COWLING
3bf6b5a5c831283ecf6fab32bf24e505_display_large.jpg RC AIR BOAT MOTOR COWLING
24a2e21a48726a3dc89d5a7116634353_display_large.jpg RC AIR BOAT MOTOR COWLING
52dab3951415d0bc5a4f6afc27d3bb4f_display_large.jpg RC AIR BOAT MOTOR COWLING
air_boat_cowling.stl RC AIR BOAT MOTOR COWLING
air_boat_base.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_2.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_1.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_mount_2.stl RC AIR BOAT MOTOR COWLING
air_boat_rudder_mount_1.stl RC AIR BOAT MOTOR COWLING
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
6 files (STL) Close
  • air_boat_base.stl 90.0 ร— 136.82306699999998 ร— 39.812363 mm
  • air_boat_cowling.stl 70.0 ร— 140.0 ร— 137.0 mm
  • air_boat_rudder_1.stl 49.19859099999999 ร— 12.768466999999994 ร— 111.826065 mm
  • air_boat_rudder_2.stl 49.19859099999999 ร— 6.881709999999998 ร— 111.826065 mm
  • air_boat_rudder_mount_1.stl 28.898436 ร— 8.0 ร— 6.909782 mm
  • air_boat_rudder_mount_2.stl 28.89841 ร— 8.0 ร— 7.092506 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 72686
Design author ULTRARC
ULTRARC

ULTRARC

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

These are the files you will need to print to make yourself your very own RC air boat.
an RC air boat is the cheapest thing you can do in the RC hobby because of the limited number of parts you need. you have no drive train with cogs or wheels that can break.
so not only are RC air boats cheap but also reliable and fun.
To build this boat you will need something that float's, i recommend getting an old boogie board. then print out the files click the cowling to the base, glue on the rudder mounts, clip and bolt on the rudders. get some wire for linking the rudders together. bolt on a brush-less motor, attach propeller. plug in an esc (speed controller) hook up a servo and radio. Then go to a body of water somewhere and test out your new fun machine.
i have found that it only turns at slow speeds, which is just like the real thing.
to have even more fun make 2 like i did so that you can race your friends, or even play chaise!!

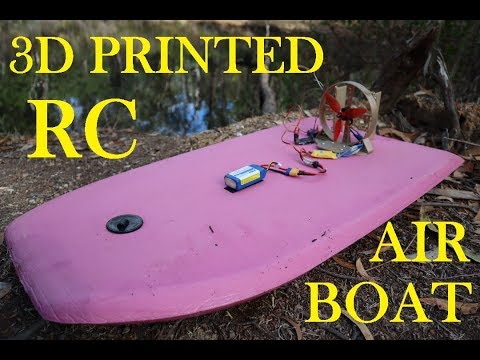

Check out the VIDEO!!!!!
https://youtu.be/dBDXKUGEW9c

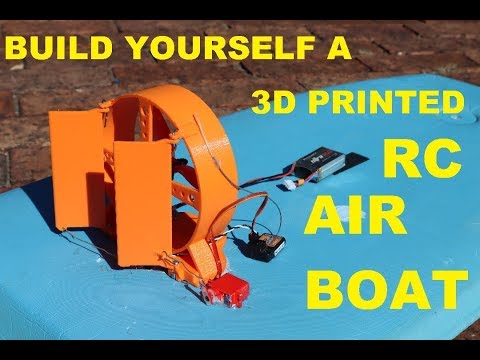

and for the build video!!!
https://youtu.be/PRwtkyOrQf8

I designed the cowling to be printed flat so that you use no support.
but this made it not very strong so i designed a base that it clips into.
you can use this cowling part in many other configurations to!
If you print 2 you could use differential thrust to steer your boat,
and then you would have twice the speed!
or you could put the cowling on a trolley and have a drift machine!!!
or instead of using a base piece put 2 cowlings back to back.!!!
this air boat is super fun and i hope you all have fun with these designs like i have!
