Pacific Coast Narrow Gauge Railroad, 33' flatcar/Gondola.

?
Creation's quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 510 views
  • 32 downloads

3D model description

UPDATE 10-05-2019:

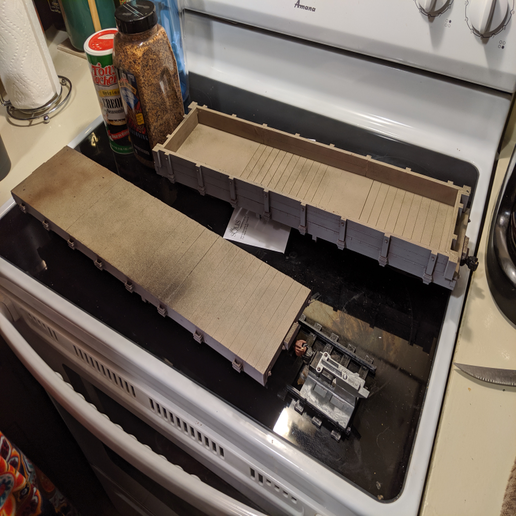

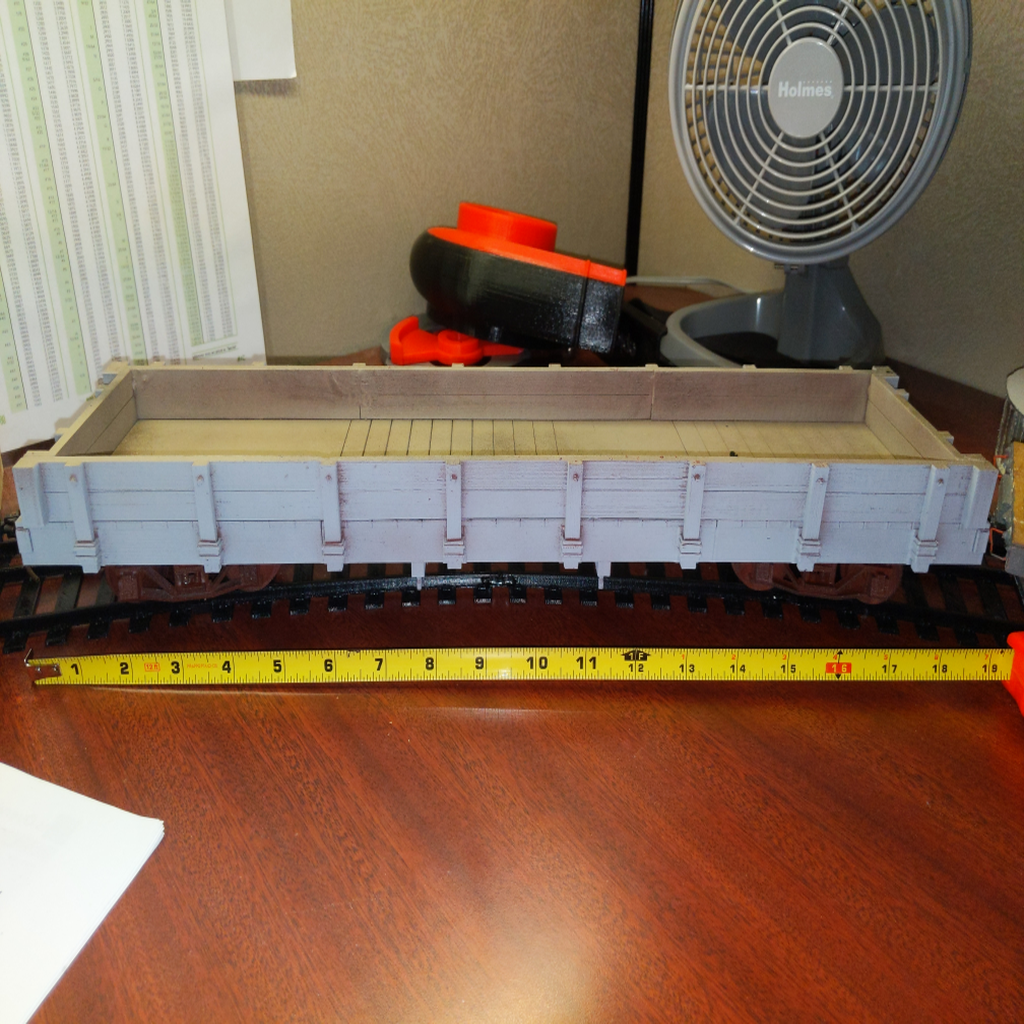

Replaced all STLs after printing two cars and discovering several issues. Should assemble much easier now and require less modification for coupler-height etc.

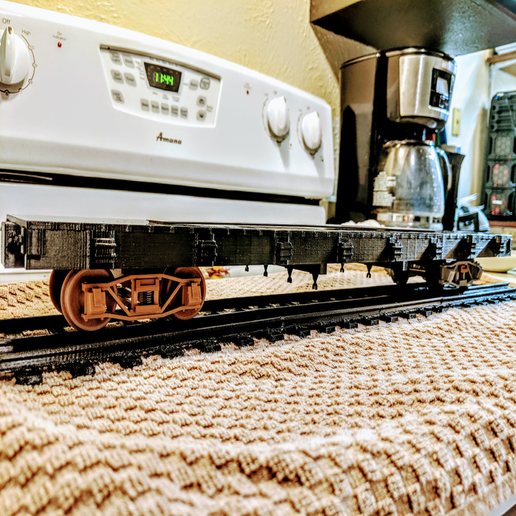

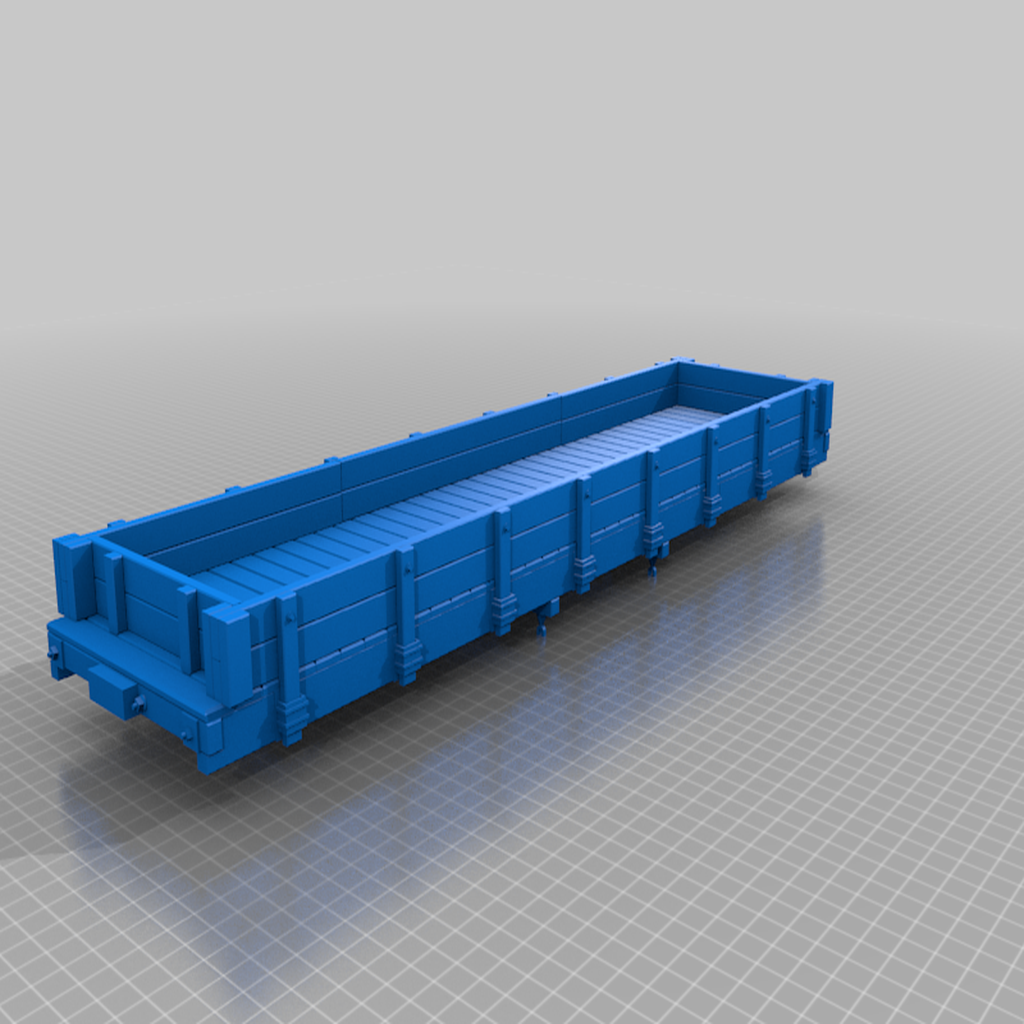

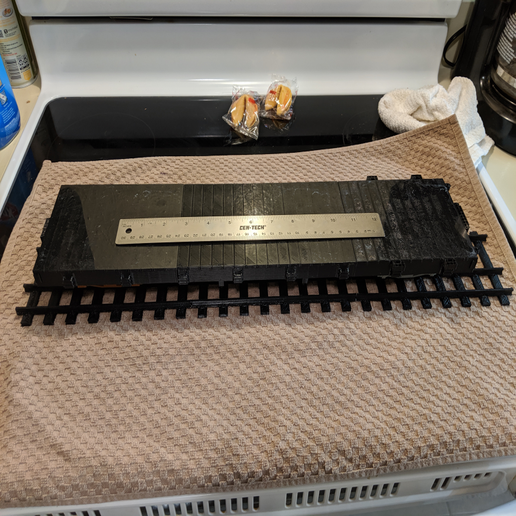

Modeled from drawings in "The Pacific Coast Railway" by Kenneth E. Wescott and Curtiss H. Johnson, this is close to Gondola #1075 . Being an Onshape document, if you care to learn the system, you can easily copy this entire model to edit in or exclude your own details. I am currently in the process of printing this car so I'm just starting to discover the issues that will need to be resolved with it... firstly that the bolsters aren't nearly low enough to allow proper operation with normal 45mm trucks! I'm still on the steep portion of the learning curve of this software so there are several things I could have done better but at this point I'm not planning to fix them on this particular model.

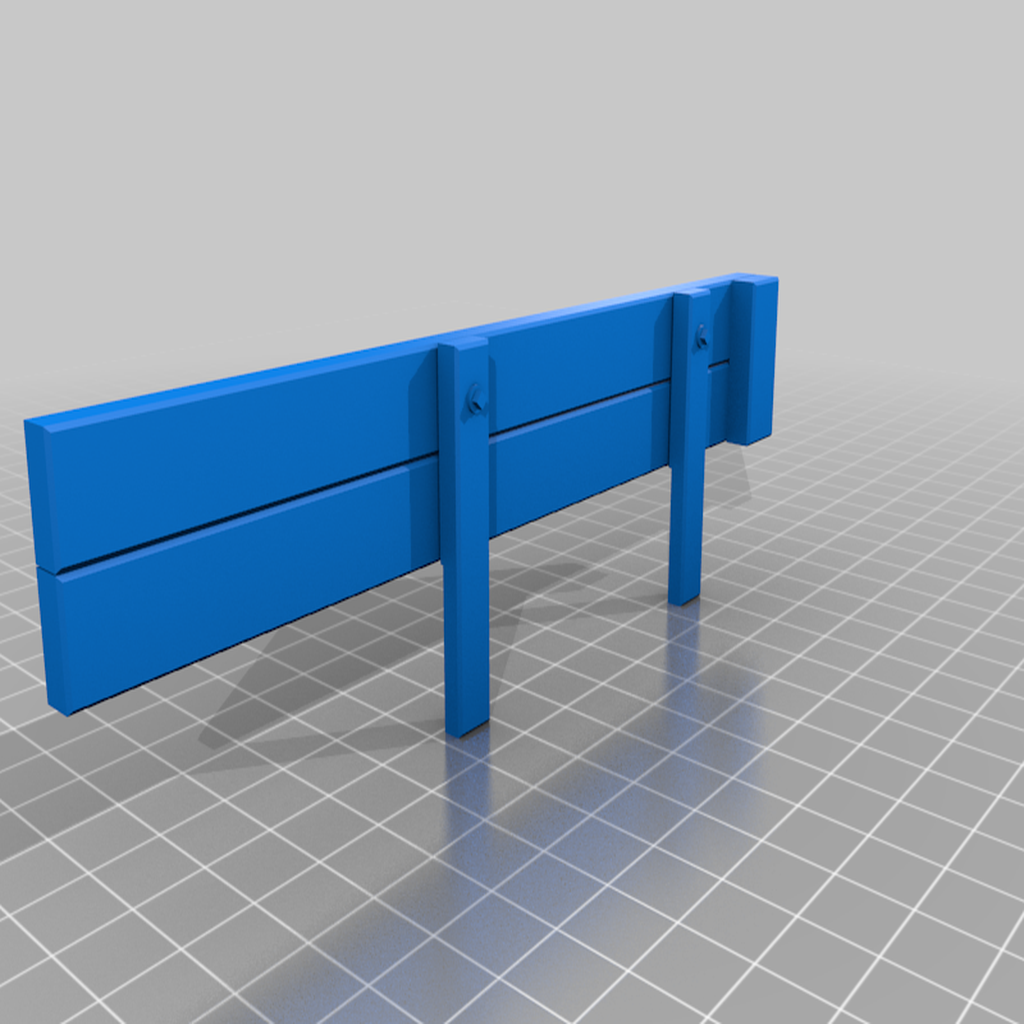

The parts are cut to fit on my Anet.

https://cad.onshape.com/documents/08115acd8f354adad95238c5/w/24e1690f3661daf54538e5dd/e/0eb8b69a08dea10f5dbc35ab

  • 3D file format: STL
  • Publication date: 2020/10/09 at 16:41

License

CC BY
