Medium Tile Set 1 -- Crawler Course custom modular tiles for 1/16 or smaller rc crawlers

This set includes 5 Medium Hex Tiles. All my hexes are designed to use 4x6mm round magnets, they just push into the holes, I have not needed to glue them in so far but it may be necessary in some instances.

These are 240mm wide at the widest point, they can be scaled to whatever size your printer is and should not cause issues.

This is the first type of Hex Tiles I created for RC crawlers, it is far more modular than the terrain set. Each hex is flat with rocks as part of the print. The nice thing about them is that you can redesign the course and attach the tiles in any order/alignment. They are also much lighter and use less filament than my 29 hex 5'x3' terrain set.

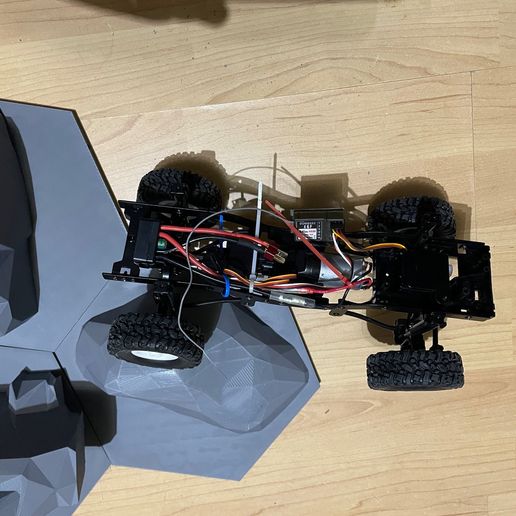

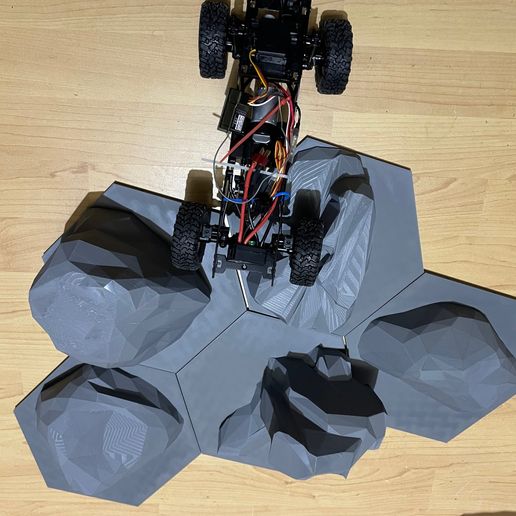

The pictures are representative of the hex tiles in this set but are not the exact tiles in the set.

5% Gyroid infill, no support needed. I print .2 with a .4 nozzle but they are not difficult prints just large in some cases.

3+ Perimeters 4 or 5 on top more is better if you plan to glue additional terrain to the tiles.

I print these in PLA.
