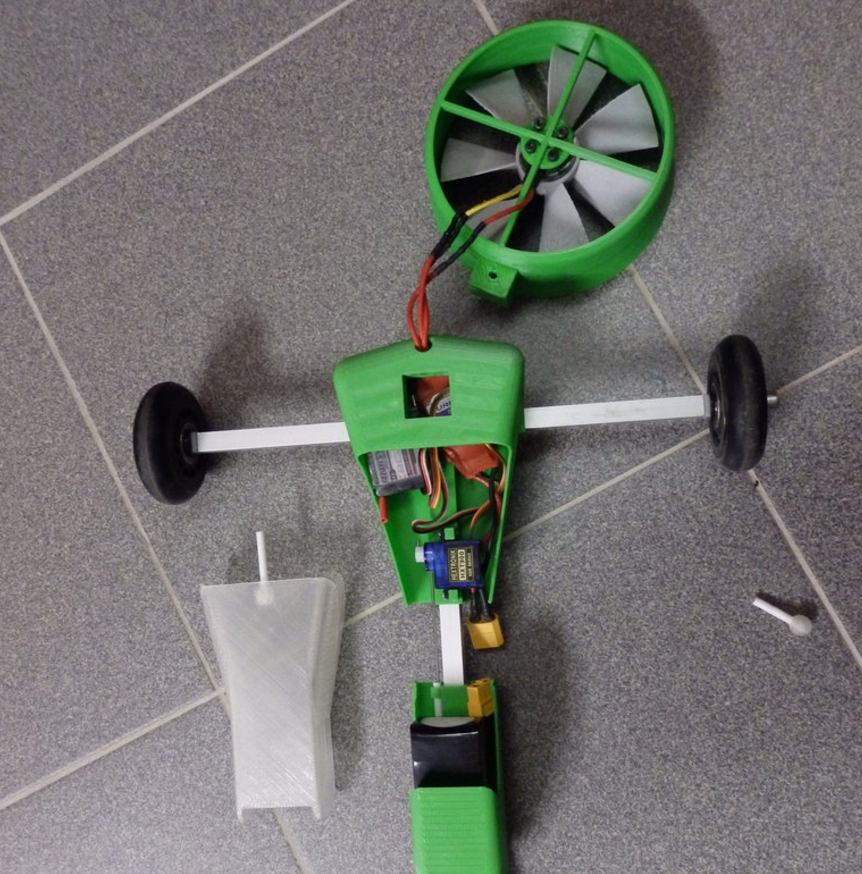

Capture_d_e_cran_2016-09-08_a__18.46.58.png Land yacht propeller / Prop with propeller
bouton_bloqueur.stl Land yacht propeller / Prop with propeller
capot.stl Land yacht propeller / Prop with propeller
corp.stl Land yacht propeller / Prop with propeller
fourche_mobile.stl Land yacht propeller / Prop with propeller
fourche_support.stl Land yacht propeller / Prop with propeller
prop.stl Land yacht propeller / Prop with propeller
rondelle_axe_arrie_re.stl Land yacht propeller / Prop with propeller
support_gopro.stl Land yacht propeller / Prop with propeller
support_moteur_a_15.stl Land yacht propeller / Prop with propeller
nez.stl Land yacht propeller / Prop with propeller
support_moteur_mod.stl Land yacht propeller / Prop with propeller
Capture_d_e_cran_2016-09-08_a__18.46.20.png Land yacht propeller / Prop with propeller
Capture_d_e_cran_2016-09-08_a__18.46.31.png Land yacht propeller / Prop with propeller
Capture_d_e_cran_2016-09-08_a__18.46.38.png Land yacht propeller / Prop with propeller
Capture_d_e_cran_2016-09-08_a__18.46.46.png Land yacht propeller / Prop with propeller
Capture_d_e_cran_2016-09-08_a__18.46.58.png Land yacht propeller / Prop with propeller
bouton_bloqueur.stl Land yacht propeller / Prop with propeller
capot.stl Land yacht propeller / Prop with propeller
corp.stl Land yacht propeller / Prop with propeller
fourche_mobile.stl Land yacht propeller / Prop with propeller
fourche_support.stl Land yacht propeller / Prop with propeller
prop.stl Land yacht propeller / Prop with propeller
rondelle_axe_arrie_re.stl Land yacht propeller / Prop with propeller
support_gopro.stl Land yacht propeller / Prop with propeller
support_moteur_a_15.stl Land yacht propeller / Prop with propeller
nez.stl Land yacht propeller / Prop with propeller
support_moteur_mod.stl Land yacht propeller / Prop with propeller
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
11 files (STL) Close
  • bouton_bloqueur.stl
  • capot.stl
  • corp.stl
  • fourche_mobile.stl
  • fourche_support.stl
  • nez.stl
  • prop.stl
  • rondelle_axe_arrie_re.stl
  • support_gopro.stl
  • support_moteur_a_15.stl
  • support_moteur_mod.stl

Learn more about the formats
Publication date
Design number 7061
Design author Boxplyer
Boxplyer

Boxplyer

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

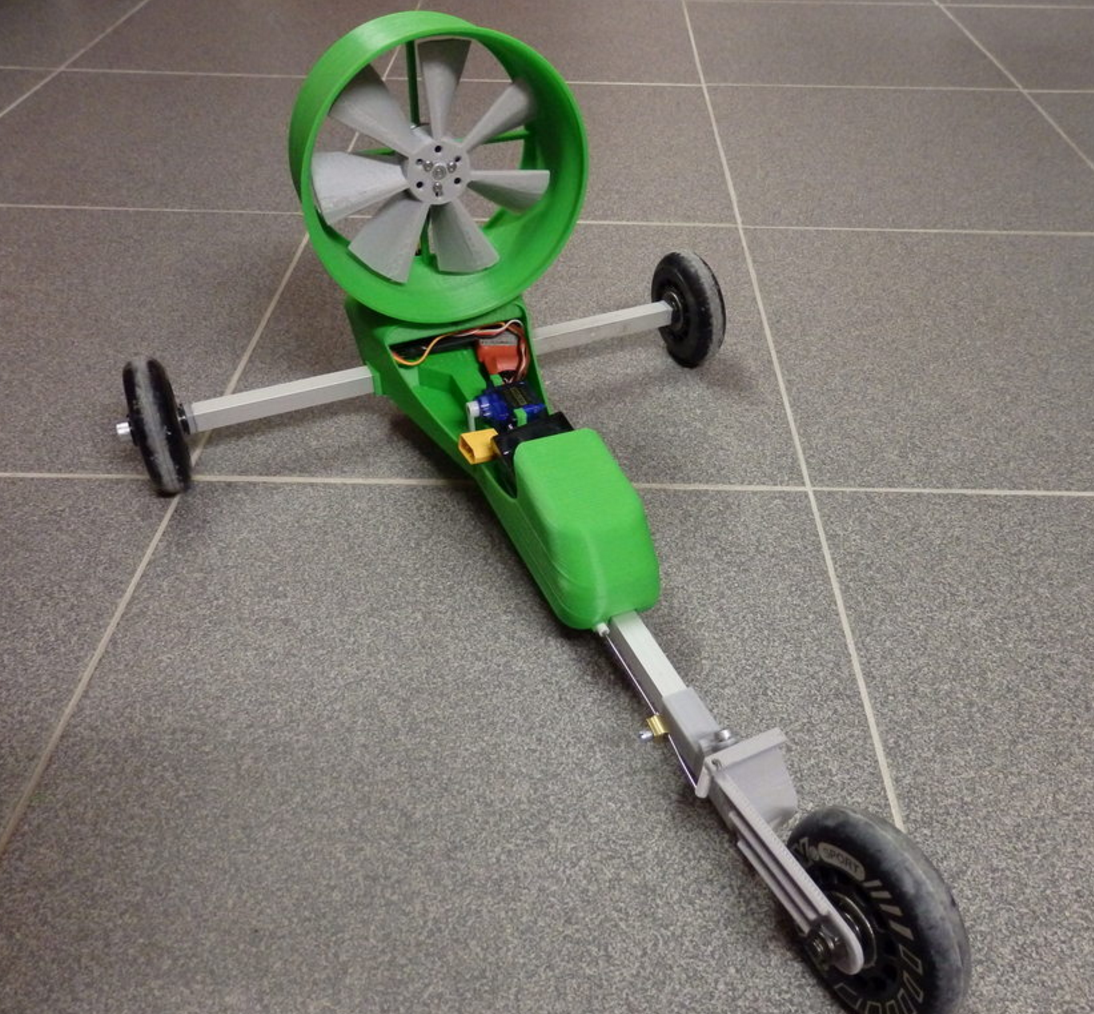

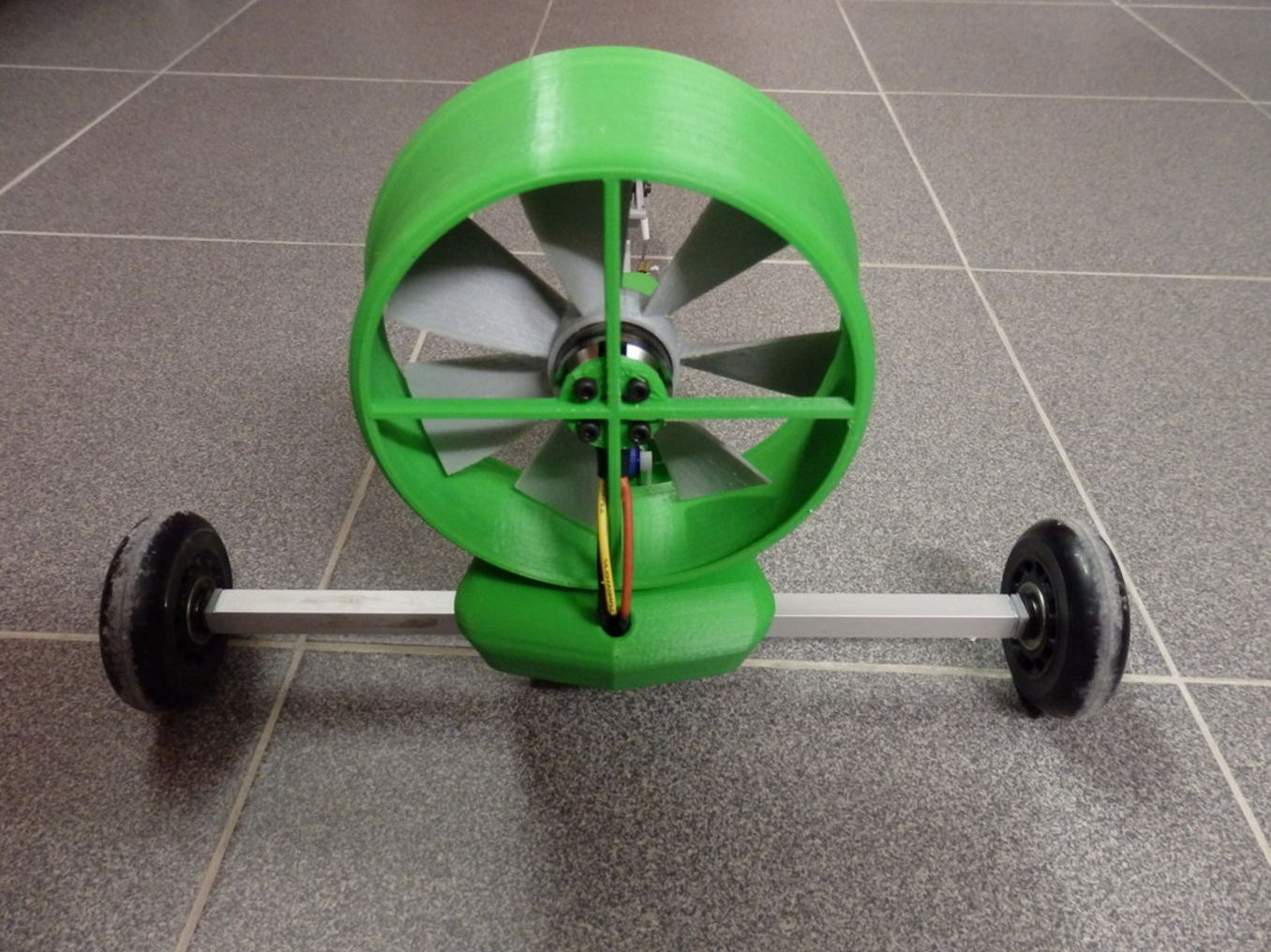

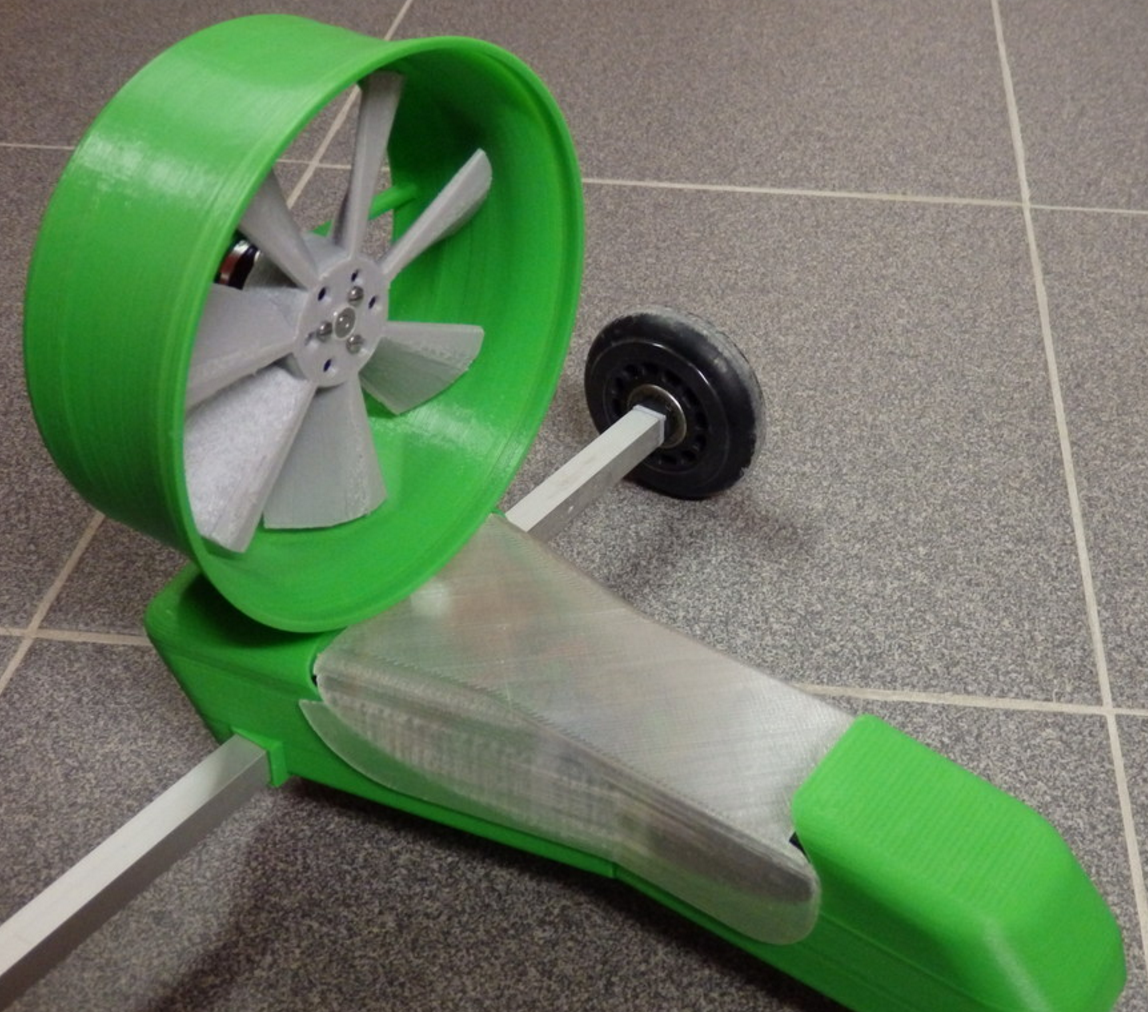

  • Land yacht propeller

Here is a vehicle between yachting and airboat

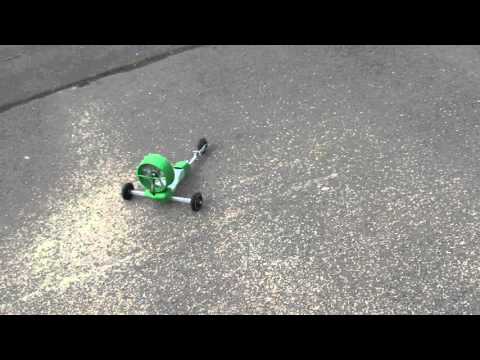

On the video you can watch the cart that sometimes jumps, is when it encounters a small stone

There are 2 engine mounts which is 15 ° inclined to master the jumps of the tank which are caused by small stones

For steering and wheel spindles you will find parts of yachting

PLA Realization

Layer thickness of 0.2mm - 1mm shell thickness

Filling 30%

Temperature 220C °

Support everywhere

The two square tubes are aluminum 10x10mm length 250 mm

The engine NTM Prop Drive Series 28-26A 1200kv (short shaft view)

https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=39314

The servo is for 9 grams here

The 3S LiPo battery 11.1V 1300mA

The wheels come from skating

The white sheath pin and serves to guide the steering linkage is 4mm

  • Sailboat propeller

Here is a vehicle between sand yachting and airboat

On the video you can see the tank jumping sometimes, it is when it meets a small stone

You will find 2 mounts, one of which is inclined 15 ° to control the jumps of the tank which are caused by small stones

For steering and wheel axles you will find parts of the sand yacht

Realization in PLA

0.2mm layer thickness - 1mm shell thickness

Filling 30%

Temperature 220C °

Support everywhere

The 2 square tubes are made of 10x10mm aluminum with a length of 250 mm

NTM Prop Drive Series motor 28-26A 1200kv (short shaft version)

https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=39314

The servo used for steering is a 9 gram available here

The lipo battery of 3S 11.1V 1300mA

The wheels come from roller

The white sheath that serves as a pin and guide for the steering linkage is 4mm

3D printing settings

https://youtu.be/ugptho_d1Fw

https://youtu.be/KkhOzILLxOA
