F-86A Sabre RC 70mm EDF V1.5

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
27 files (STL and ZIP) Close
  • Aileron_L.stl 119.84098000000002 Γ— 110.95627599999999 Γ— 100.988869 mm
  • Aileron_R.stl 117.700196 Γ— 110.410706 Γ— 100.988869 mm
  • Bits.stl 132.054291 Γ— 89.50620199999999 Γ— 60.06929 mm
  • Canopy transparent.stl 72.490097 Γ— 129.863297 Γ— 175.229935 mm
  • Canopy vac.stl 184.128189 Γ— 184.128151 Γ— 60.367676 mm
  • Canopy.stl 183.103081 Γ— 182.133438 Γ— 138.491577 mm
  • Cockpit.stl 186.579061 Γ— 186.59651300000002 Γ— 42.945038 mm
  • Drop tanks.stl 169.611877 Γ— 158.154167 Γ— 190.159973 mm
  • EDF hatches.stl 104.10243200000001 Γ— 153.449486 Γ— 129.913971 mm
  • Elevator.stl 114.87054499999999 Γ— 112.185852 Γ— 94.044205 mm
  • Rudder.stl 168.059944 Γ— 168.059891 Γ— 179.038696 mm
  • Stabilizer_L.stl 123.081699 Γ— 126.52510899999999 Γ— 148.748505 mm
  • Stabilizer_R.stl 123.08168400000001 Γ— 126.52510899999999 Γ— 148.748505 mm
  • Wing_1_L.stl 166.641548 Γ— 169.57870400000002 Γ— 197.519608 mm
  • Wing_1_R.stl 166.680477 Γ— 169.53827 Γ— 197.519608 mm
  • Wing_2_L.stl 148.34112599999997 Γ— 136.645538 Γ— 195.578613 mm
  • Wing_2_R.stl 136.64555 Γ— 148.34112599999997 Γ— 195.578613 mm
  • Wing_3_L.stl 97.78244000000001 Γ— 104.419586 Γ— 195.731506 mm
  • Wing_3_R.stl 104.41958599999998 Γ— 97.78244000000001 Γ— 195.731506 mm
  • f-86a-sabre-rc-70mm-edf-v1-5.zip
    • Canopy transparent.stl
    • Canopy vac.stl
    • Canopy.stl
    • Cockpit.stl
    • Drop tanks.stl
    • EDF hatches.stl
    • Elevator.stl
    • fuselage_1.stl
    • fuselage_2.stl
    • fuselage_3.stl
    • fuselage_4.stl
    • fuselage_5.stl
    • fuselage_6.stl
    • fuselage_7.stl
    • Rudder.stl
    • Stabilizer_L.stl
    • Stabilizer_R.stl
    • Wing_1_L.stl
    • Wing_1_R.stl
    • Wing_2_L.stl
    • Wing_2_R.stl
    • Wing_3_L.stl
    • Wing_3_R.stl
    • Aileron_L.stl
    • Aileron_R.stl
    • Bits.stl
  • fuselage_1.stl 131.378952 Γ— 131.378952 Γ— 126.866081 mm
  • fuselage_2.stl 179.062928 Γ— 179.061032 Γ— 173.141083 mm
  • fuselage_3.stl 172.577178 Γ— 172.57724000000002 Γ— 142.865479 mm
  • fuselage_4.stl 172.02636 Γ— 172.026368 Γ— 121.725586 mm
  • fuselage_5.stl 149.089874 Γ— 149.090148 Γ— 124.308517 mm
  • fuselage_6.stl 129.804534 Γ— 129.804534 Γ— 169.116211 mm
  • fuselage_7.stl 98.87738000000002 Γ— 98.877403 Γ— 167.513947 mm

Learn more about the formats
Last update
Publication date
Design number 1515306
Design author Altsi
Altsi

Altsi

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

A highly detailed and realistic model of the F-86A Sabre fighter jet.

The first prototype performed admirably even in adverse weather conditions.
The model can be constructed with or without landing gear, with the prototype using the fixed landing gear from my old Habu jet.

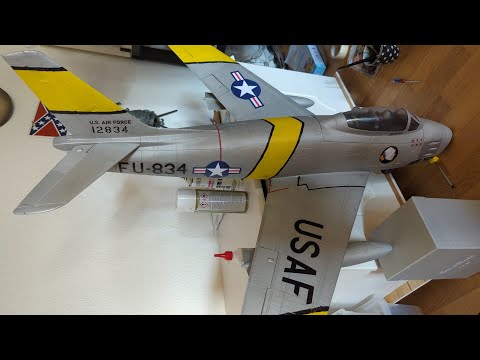

You can watch a video of it in action here:
https://www.youtube.com/watch?v=qaDg_HON49Y

The V1.5 version of the model has a better fit for a 70mm EDF, as well as redesigned elevators and ailerons.

The 3D files are watertight and compatible with all slicers for 3D printing.
While assembly instructions are not available at this time, assembly is straightforward and self-explanatory.
I will provide them at a later stage.

Some Files for printing tests are available here:
https://cults3d.com/en/3d-model/game/f-86a-sabre-rc-70mm-edf-v1-5-testfiles

If you have any questions or need assistance, please feel free to contact me.

Requirements:

A printer with a minimum size of 200x200x200mm
LW-PLA filament weighing +/- 750g

Specifications:

Wingspan: 1032mm
Length: 1035mm
Print weight: 750g LW-PLA
The center of gravity should be around 4-5 cm in front of the main gear struts

Parts List:

3-4 HS55 servos or equivalent
4S LiPo battery, 3300mAh - 4000mAh
FMS 70mm EDF with 2845 KV2750 4S Motor or equivalent
1000mm Carbon rod, 1mm diameter
500mm Carbon rod or tube, 5mm diameter
2x 500mm Pushrods 3mm diameter

Optional: Fixed landing gear (e.g., Habu SS 70mm EDF or any other suitable Habu landing gear) and an additional HS55 or equivalent servo.

Update
- No Parts needed to be mirrored
- Parts are aligned for printing
- Parts are grouped for printing

3D printing settings

Use lightweight PLA

0.4mm Nozzle
0.4mm Extrusion Width
0.25mm Layer height
Infill 2-4% (3% for most parts)
Single Outline
2 Top Layers
1 Bottom Layer

For the finest result, sand the model and apply a coat of epoxy or polyurethane primer before painting.

The two transparent cockpit parts are best printed using a resin printer or with a vacuum former.

Edit: "Canopy vac.stl" added.
