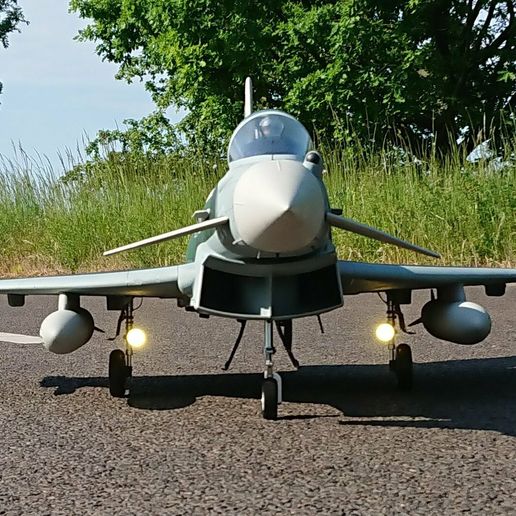

3D printed Eurofighter Typhoon Jet with equipment from MotionRC

Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
10 files (PDF and ZIP) Close
  • Cura Profil LW-PLA Two Trees Sahppire Pro SP3.zip
    • Two Trees Sahppire Pro SP3.curaprofile
  • Decals und the Ghost Tiger 2021 decals to self printing.zip
    • Druckformat 3x3 Posterdruck.pdn
  • LW-PLA_Nozzle_0,2mm 6% Infill.zip
    • Amaturen_01.stl
    • Amaturen_02.stl
    • Pilot_1m.stl
    • Sitz_li.stl
    • Sitz_re.stl
  • LW-PLA_Nozzle_0,4mm 100% Infill.zip
    • Deckel_Impeller_Verschraubung_01_li.stl
    • Deckel_Impeller_Verschraubung_01_re.stl
    • Deckel_Impeller_Verschraubung_02_li.stl
    • Deckel_Impeller_Verschraubung_02_re.stl
    • EDF_Kabelfuehrung.stl
    • Fanghaken_li.stl
    • Fanghaken_re.stl
    • Kuehler_Auslass_li.stl
    • Kuehler_Auslass_re.stl
    • Servogelenk_Verkleidung_aussen_li.stl
    • Servogelenk_Verkleidung_aussen_re.stl
    • Servogelenk_Verkleidung_innen_li.stl
    • Servogelenk_Verkleidung_innen_re.stl
    • Servo_Verkleidung_aussen_li.stl
    • Servo_Verkleidung_aussen_re.stl
    • Servo_Verkleidung_innen_li.stl
    • Servo_Verkleidung_innen_re.stl
  • LW-PLA_Nozzle_0,4mm 6_ Infill_08.zip
    • Antenne_01_li.stl
    • Antenne_01_re.stl
    • Bremsklappe.stl
    • Cannard_li.stl
    • Cannard_re.stl
    • Cockpithaube_Schnellruck_01.stl
    • Cockpithaube_Schnellruck_02.stl
    • Cockpit_01.stl
    • Cockpit_02.stl
    • Deckel_Bremsklappe.stl
    • Deckel_ohne_Bremsklappe.stl
    • Falschirmklappe.stl
    • HFW_Hilfsklappe.stl
    • Hoehenruder_li.stl
    • Hoehenruder_re.stl
    • Impellerklappe.stl
    • Infrarot_Sensor_01.stl
    • Infrarot_Sensor_02.stl
    • Lufteinlass.stl
    • old parts wihout cheatholes and old air intake/Rumpf_04.stl
    • old parts wihout cheatholes and old air intake/Rumpf_05.stl
    • old parts wihout cheatholes and old air intake/Rumpf_06.stl
    • old parts wihout cheatholes and old air intake/Rumpf_07.stl
    • old parts wihout cheatholes and old air intake/Rumpf_08.stl
    • Querruder_li.stl
    • Querruder_re.stl
    • Rumpf_01_B.stl
    • Rumpf_02.stl
    • Rumpf_03.stl
    • Rumpf_04.stl
    • Rumpf_05.stl
    • Rumpf_06.stl
    • Rumpf_07.stl
    • Rumpf_08.stl
    • Seitenleitwerk_01.stl
    • Seitenleitwerk_02.stl
    • Seitenleitwerk_03.stl
    • Seitenruder.stl
    • Seitenruder_Servohalter_Deckel.stl
    • Tragflaeche_li_01.stl
    • Tragflaeche_li_02.stl
    • Tragflaeche_li_03.stl
    • Tragflaeche_li_04.stl
    • Tragflaeche_li_05.stl
    • Tragflaeche_li_06.stl
    • Tragflaeche_li_07.stl
    • Tragflaeche_re_01.stl
    • Tragflaeche_re_02.stl
    • Tragflaeche_re_03.stl
    • Tragflaeche_re_04.stl
    • Tragflaeche_re_05.stl
    • Tragflaeche_re_06.stl
    • Tragflaeche_re_07.stl
  • PLA_Nozzle_0.2mm 100% Infill.zip
    • Antenne_01.stl
    • Antenne_02.stl
    • Antenne_03.stl
    • Antenne_04.stl
    • AOA.stl
  • PLA_Nozzle_0.4mm 10% Infill 2Walls_06.zip
    • Akku_Befestigung.stl
    • BFW_Aufnahme.stl
    • BFW_Servo_Aufnahme.stl
    • Cockpithaube_Klarglasform_01.stl
    • Cockpithaube_Klarglasform_02.stl
    • ECS_Deckel.stl
    • ECS_Wand.stl
    • FW_Female_Attachment.stl
    • HFW_Aufnahme_li.stl
    • HFW_Aufnahme_li_alternativ.stl
    • HFW_Aufnahme_re.stl
    • HFW_Aufnahme_re_alternativ.stl
    • HFW_Klappenservohalter.stl
    • Impeller_Aufnahme.stl
    • Rumpf_01.stl
    • Rumpf_01_a.stl
    • Servohalter_Cannards.stl
  • PLA_Nozzle_0.4mm 100% Infill_06.zip
    • Antenne_01.stl
    • Antenne_01_Scharnier.stl
    • Antenne_02.stl
    • Antenne_03.stl
    • Antenne_04.stl
    • AOA.stl
    • Befestigung_Abdeckungen.stl
    • BFW_Klappe.stl
    • Cannards_Lager.stl
    • Cannard_Hebel_li.stl
    • Cannard_Hebel_re.stl
    • Control_Horn.stl
    • Control_Horn_Bremsklappe.stl
    • Control_Horn_kurz.stl
    • Deckel_Verschraubung_Plaettchen.stl
    • Drehhebel_BFW.stl
    • Felge_65x20_01.stl
    • Felge_65x20_02.stl
    • Freewing_Servohalter.stl
    • Freewing_Servohalter_Deckel.stl
    • HFW_Abdeckung_li.stl
    • HFW_Abdeckung_re.stl
    • HFW_Bremsen.stl
    • HFW_Distanzstueck.stl
    • HFW_Klappe_aussen_Anlenkung.stl
    • HFW_Klappe_aussen_Anlenkung_02.stl
    • HFW_Klappe_aussen_li.stl
    • HFW_Klappe_aussen_re.stl
    • HFW_Klappe_innen_li.stl
    • HFW_Klappe_innen_re.stl
    • Klappen_Halter.stl
    • Klettbandhalter.stl
    • Scharniere.stl
    • Scheinwerfer_Halter_re.stl
    • Servokabelhalter.stl
    • Servokabelhalter_02.stl
  • Pylons Tanks.zip
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_Aussen_li_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_Aussen_li_02.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_Aussen_re_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_Aussen_re_02.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_innen_li_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_innen_li_02.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_innen_re_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Pylon_innen_re_02.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Tank_Center_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Tank_Center_02.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Tank_Mitte_li_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Tank_Mitte_li_02.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Tank_Mitte_re_01.stl
    • LW-PLA_Nozzle_0,4mm 6% Infill/Tank_Mitte_re_02.stl
    • PLA_Nozzle_0.4mm 10% Infill/FW_Female_Attachment.stl
    • PLA_Nozzle_0.4mm 10% Infill/FW_Male_Attachment.stl

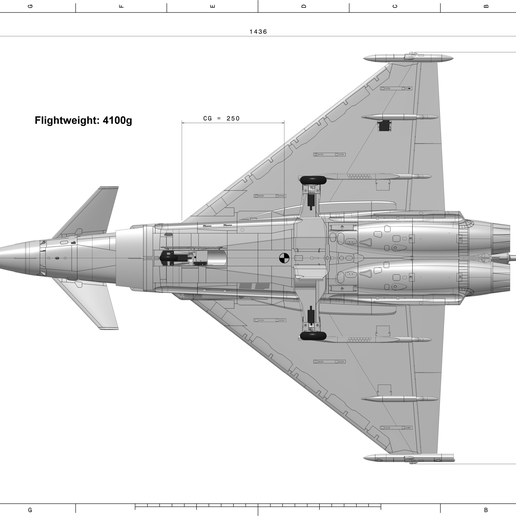

  • a little guide.pdf

Learn more about the formats
Last update
Publication date
Design number 926457
Design author dreagon29
dreagon29

dreagon29

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

https://www.youtube.com/watch?v=pvt3Igj8rYw
https://www.youtube.com/watch?v=1tC4FAdvfR0
https://www.youtube.com/watch?v=89sensIIP4E
https://www.youtube.com/watch?v=GwpOA8mnXcg
https://www.youtube.com/watch?v=p3dAPNYuO-Y
https://www.youtube.com/watch?v=n_brL9teDxo

Modelldata:
Wingspan: 1m
Material for printing: LW-PLA and PLA or PETG and carbon fiber filament

You can buy the equipment from MotionRC:
Engines: 2x 70mm impellers
ECS: 2x 80A
Servos: 10x Freewing Standard 9g class

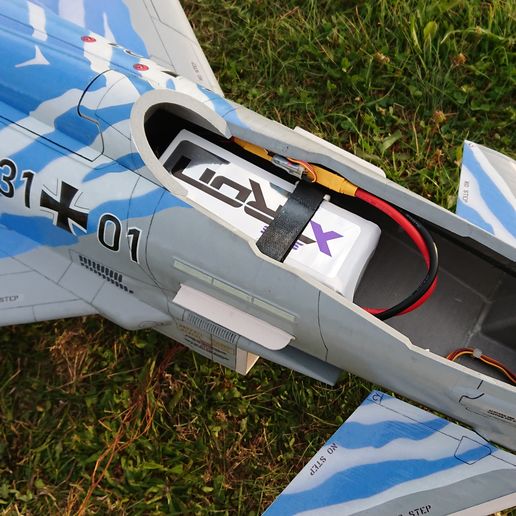

Battery: 6000 - 7000mAh
Servos for landing gear: 3x Freewing Standard 4.1mm

A detailed list is in the guide.

Decals are in size DIN A4 (borderless printing) also include.
To open the decal file use the program paint.net.
This decal file has multiple layers to see in paint.net.

Printer minimum size = 210x210x210

3D printing settings

Important flow settings for reaching the right weight:
The part Rumpf_05 must weigh approx. 151g at the end without support. Then all other parts of the fuselage can be printed with these settings.

The main wheel rims printed in carbon fiber filament.

Mainsetting LW-PLA for cura with nozzle 0.4mm and 0.2mm:

print temp: 245 °C
headbed temp: 40 °C
print flow: 53%
infill print flow: 47%
outer lines: 1
infill densitiy: 6%
print speed: 40mm/s
infill pattern: Gyroid

The parts in the folder "PLA_Nozzle_0.4mm_10% Infill" must be printed with the number of walls of 3.
All parts in the other folder printed with number of walls of 1.
