Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
4 files Close
  • SB.STL 7.8367840000000015 Γ— 9.823013999999999 Γ— 3.1985230000000002 mm

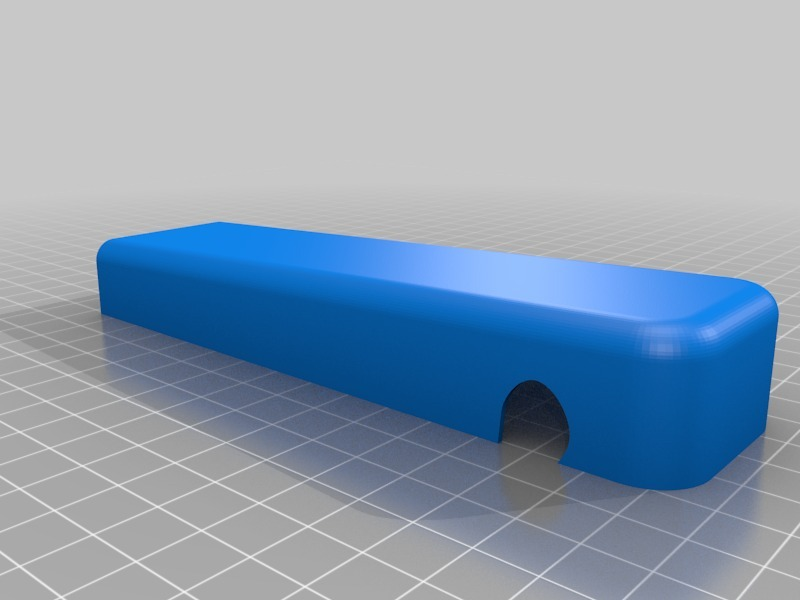

  • body.STL 42.0 Γ— 149.734695 Γ— 24.467449 mm

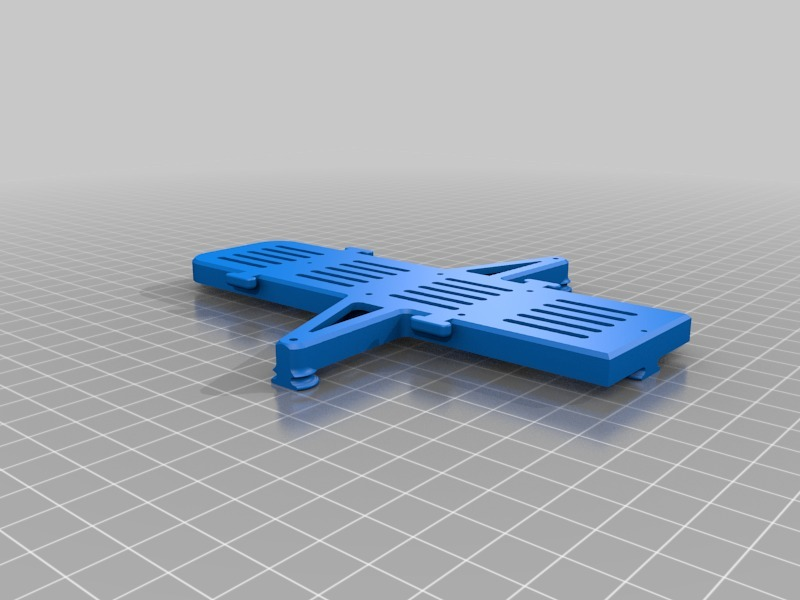

  • frame.STL 117.48992500000001 Γ— 149.734654 Γ— 10.198516999999995 mm
  • ring.STL 193.11102300000002 Γ— 7.999998 Γ— 190.491951 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1140438
Design author turbi
turbi

turbi

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

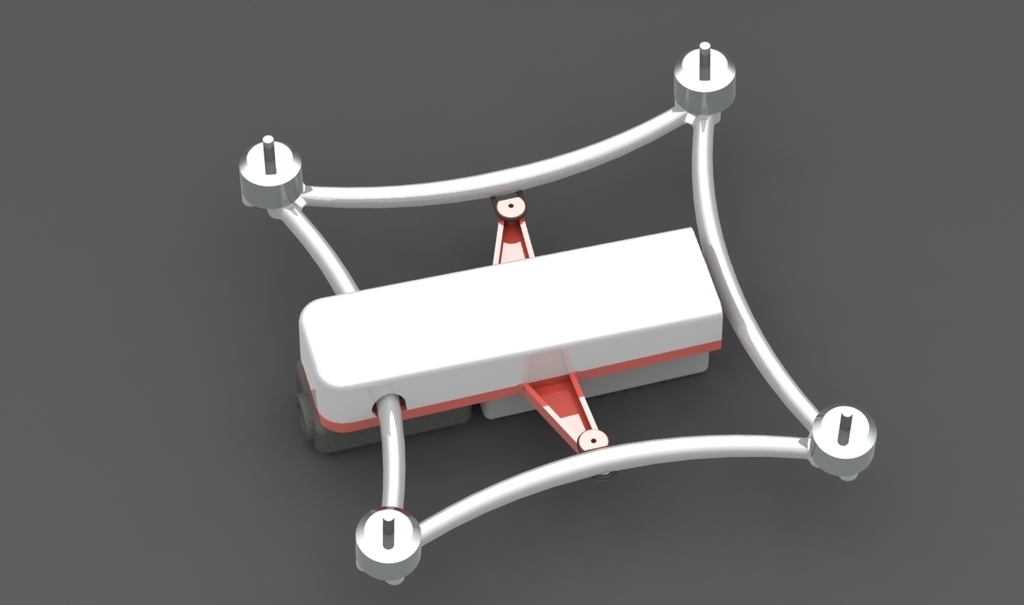

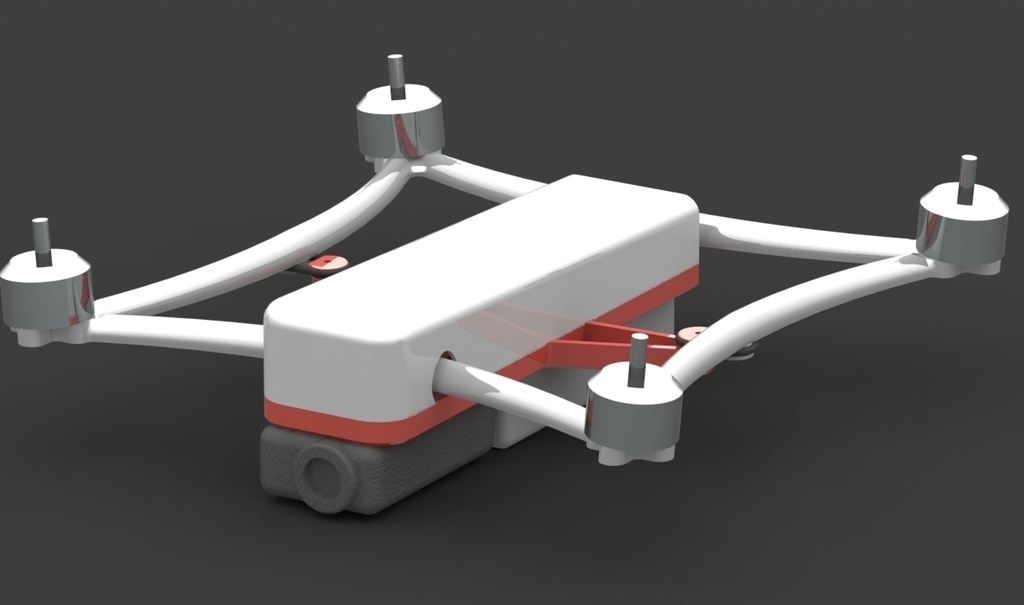

This is a micro multicopter pla printed.

It is designed to prevent the jello effect on the videos.

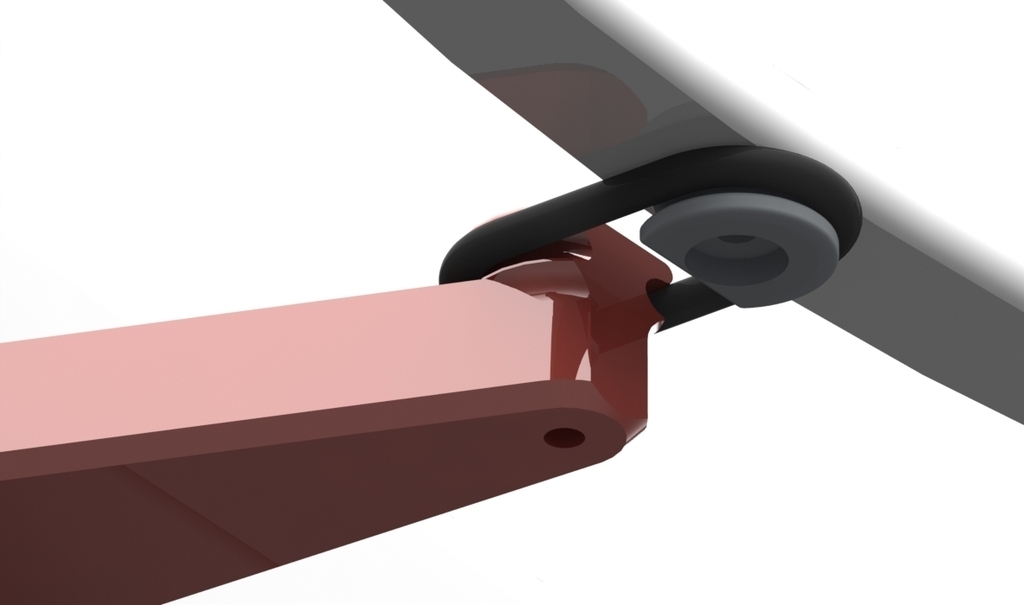

For this, all the electronic part is isolated by rubber O-rings. The results are perfect, the mobius gives a clean image.

This solution allows to isolate the sensitive parts of all the mechanical stresses of the structure .

The motors have an inverted dihedral , the aesthetic effect is interesting and yaw responsiveness is improved.

Hardware:

-Motors : 18-06 http://www.hobbyking.com/hobbyking/store/__66399__DYS_1804_2300KV_BX_Series_Set_of_Two_CW_CCW_Motors.html

-ESC : 6AMP http://www.hobbyking.com/hobbyking/store/__65984__Turnigy_Multistar_6A_V2_ESC_With_BLHeli_and_LBEC_2_3S.html

  • Naze 32

-Battery 3S 1400

-prop 5x3

A video test :

https://www.youtube.com/watch?v=ZRiuboK1w5A&feature=youtu.be

3D printing settings

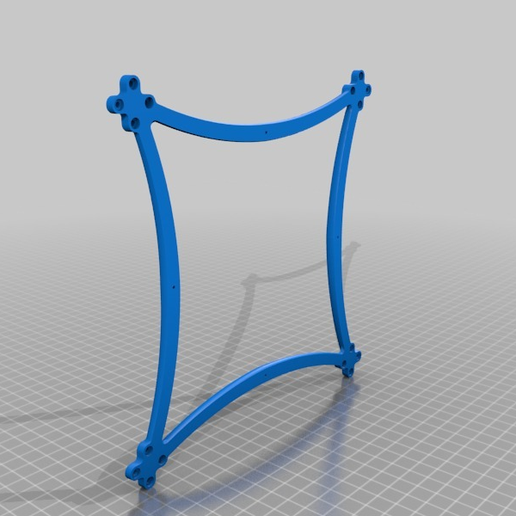

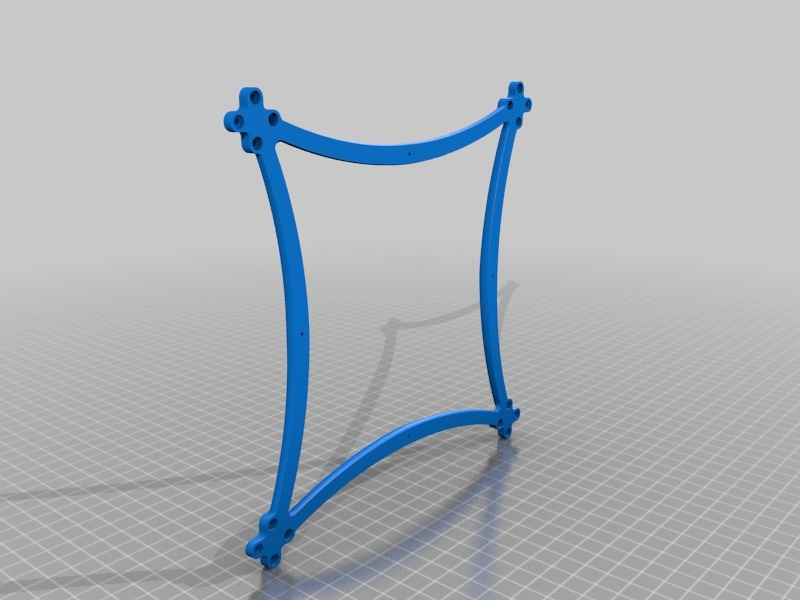

The "ring" is printed with 2mm walls 40% infill
