V1 Low Profile Pan Tilt FPV Camera Gimbal Burger System

Advertising
Download US$ 11.81+
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • STL PREMIUM 9G 6Kg or 9Kg_V2.zip
    • STL PREMIUM 6 or 9 Kg/(FREE)Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2_ SQUARE 42 X 42.STL
    • STL PREMIUM 6 or 9 Kg/(FREE)Part 6 or 9 Kg CameraMount Part 1-2 UnCuted FPV Only.STL
    • STL PREMIUM 6 or 9 Kg/(FREE)Part 6 or 9 Kg ServoMount 55 X 55.STL
    • STL PREMIUM 6 or 9 Kg/(FREE)Part 6 or 9 Kg ServoMount Link 55 X 55.STL
    • STL PREMIUM 6 or 9 Kg/(FREE)Part 6 or 9 Kg Spreader Bar Blocker UnCuted.STL
    • STL PREMIUM 6 or 9 Kg/Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2 DEMI LUNE 42 X 71.STL
    • STL PREMIUM 6 or 9 Kg/Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2 FLY CONTROLER BOARD 42 X 115.STL
    • STL PREMIUM 6 or 9 Kg/Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2 RECTANGLE 42 X 50.STL
    • STL PREMIUM 6 or 9 Kg/Collective Part 9G to 9 Kg CameraMount Adaptater 90deg FPV + GoProMount.STL
    • STL PREMIUM 6 or 9 Kg/Collective Part 9G to 9 Kg GoProMount TO GoProClip.STL
    • STL PREMIUM 6 or 9 Kg/desktop.ini
    • STL PREMIUM 6 or 9 Kg/Part 6 or 9 Kg CameraMount Part 1-2 Cuted FPV + GoProMount.STL
    • STL PREMIUM 6 or 9 Kg/Part 6 or 9 Kg CameraMount Part 1-2 Cuted FPV Only.STL
    • STL PREMIUM 6 or 9 Kg/Part 6 or 9 Kg CameraMount Part 2-2 Renforcement Bar.STL
    • STL PREMIUM 6 or 9 Kg/Part 6 or 9 Kg Spreader Bar Blocker Cuted 2X ULTRA LIGHT.STL
    • STL PREMIUM 6 or 9 Kg/Part 6 or 9 Kg Spreader Bar Blocker Cuted.STL
    • STL PREMIUM 9G/(FREE) Part 9 G Spreader Bar Blocker UnCuted.STL
    • STL PREMIUM 9G/(FREE)Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2_ SQUARE 42 X 42.STL
    • STL PREMIUM 9G/(FREE)Part 9 G CameraMount Part 1-2 UnCuted FPV Only.STL
    • STL PREMIUM 9G/(FREE)Part 9 G ServoMount Link-32.5 X 32.5.STL
    • STL PREMIUM 9G/(FREE)Part 9 G ServoMount-32.5 X 32.5.STL
    • STL PREMIUM 9G/(FREE)Part 9 G Spreader Bar Blocker UnCuted.STL
    • STL PREMIUM 9G/Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2 DEMI LUNE 42 X 71.STL
    • STL PREMIUM 9G/Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2 FLY CONTROLER BOARD 42 X 115.STL
    • STL PREMIUM 9G/Colective Part 9 G to 9 Kg BaseMount Plate_Part1-2 RECTANGLE 42 X 50.STL
    • STL PREMIUM 9G/Collective Part 9G to 9 Kg CameraMount Adaptater 90deg FPV + GoProMount.STL
    • STL PREMIUM 9G/Collective Part 9G to 9 Kg GoProMount TO GoProClip.STL
    • STL PREMIUM 9G/desktop.ini
    • STL PREMIUM 9G/Part 9 G CameraMount Part 1-2 Cuted FPV + GoProMount.STL
    • STL PREMIUM 9G/Part 9 G CameraMount Part 1-2 Cuted FPV Only.STL
    • STL PREMIUM 9G/Part 9 G CameraMount Part 2-2 Renforcement Bar.STL
    • STL PREMIUM 9G/Part 9 G Spreader Bar Blocker Cuted.STL
    • STL PREMIUM 9G/Part 9 G Spreader BarBlocker Cuted 2X ULTRA LIGHT.STL

Learn more about the formats
Publication date
Design number 2513380
Design author MyShopKit
MyShopKit

MyShopKit

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

[¯`-..-[ Diy Printed Low Profile Pan Tilt Camera Gimbal Burger System ]-..-'¯]

Summary

3 possible modes :

Pan / Tilt

Pan / Tilt / Roll

Pan / Roll

For each you've got two type of tilt :

Short or Long

Short is compact and can do 180 degrees

Long can do 270 degrees but less compact

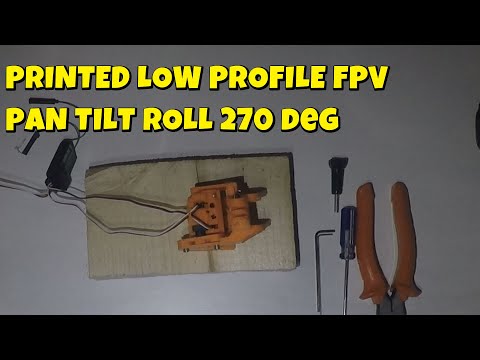

BUILD VIDEO :

https://www.youtube.com/watch?v=si3Wh3fyYgI

BUILD GUIDE :

https://docs.google.com/presentation/d/1s-cRoMrCodAB8l4SCKNU3SpsGQb5N14esyoVh01UTfM/edit?usp=sharing

TOOLS :

Hallen H2.5mm(for M3 Screws)

NEEDS :

Lock Nuts M3 ( X 10)

Screws

M3 x 8mm Hexa ( X 8) (Spreader Bar Blockers)

M3 x 10mm Hexa ( X 8) (Optional for adapter)

M3 x 20mm Hexa ( X3) (ServoMount Burger)

Servos + Spreader Bar

TAGS :

Centered / Balanced / Optimised / Modulable

Standard Parts

Strap ready

Collective parts

Burger system one part for all , Pan part = Tilt part

Ender 3 compatible

PreOriented STL Parts

Strong modulable design easy replace

Easy to print easy to assemble

Cable management included

No Glue Only M3 Screws and LockNuts

GoPro mount with or without

Reversible parts, Multiples positioning servos

Ready for FPV cams 22 x 22mm and 19 x 19mm (foxeer, runcam, ect)

Ready for Servos 9 g 17 g 25 g 6 kg 9 kg (only Premium Version)

Servos :

S0900M Surpass Hobby 9 Kg (or no name)

S0600M Surpass Hobby 6 Kg (or no name)

S0009M Surpass Hobby 9 G (or no name)

Ready for flight controller 30 x 30 (betaflight or others)

PLA or TPU ect compatible

ONLY PREMIUM :

See under because of 90 degrees adapter

With GoPro mount

More servos

Thank you for your buy :)

More Camera Mount

More Servo Spreader Bar Blockers

More Base Mount with 30x30mm holes :

Square (Free)

Rectangle

Half-moon

Fly Controler Board

Extreme Low Profile
