BEADLOCK RIM 1.9p 2.2p 3.2p ULTIMATE PACK Hexa 17 or 12

Advertising

Download US$ 11.81+

Make an offer

Add to

Make

471 views
1 like
0 downloads
0 collections
0 comments
0 makes

License	CULTS PU No AI
Usages	3D printing
3D design format	2 files (ZIP) Close RIMS PREMIUM VERSION.zip Description_En.txt Description_FR.txt desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Long Lip/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Long Lip/Rim 1.9p_Part1-3_Long Lip_Hexa12mm x 5mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Long Lip/Rim 1.9p_Part1-3_Long Lip_Hexa17mm x 5mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Long Lip/Rim 1.9p_Part1-3_Long Lip_Hexa17mm x 7mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Short Lip/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Short Lip/Rim 1.9p_Part1-3_Short Lip_Hexa12mm x 5mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Short Lip/Rim 1.9p_Part1-3_Short Lip_Hexa17mm x 5mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 1-3 Short Lip/Rim 1.9p_Part1-3_Short Lip_Hexa17mm x 7mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Long Lip/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Long Lip/Rim 1.9p_Part2-3_Long Lip_Internal Width Rims 25mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Long Lip/Rim 1.9p_Part2-3_Long Lip_Internal Width Rims 30mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Long Lip/Rim 1.9p_Part2-3_Long Lip_Internal Width Rims 35mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Long Lip/Rim 1.9p_Part2-3_Long Lip_Internal Width Rims 40mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Short Lip/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Short Lip/Rim 1.9p_Part2-3_Short Lip_Internal Width Rims 25mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Short Lip/Rim 1.9p_Part2-3_Short Lip_Internal Width Rims 30mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Short Lip/Rim 1.9p_Part2-3_Short Lip_Internal Width Rims 35mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 2-3 Short Lip/Rim 1.9p_Part2-3_Short Lip_Internal Width Rims 40mm.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.25mm/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.25mm/Rim 1.9p_Part3-3_Internal Width Rims 25mm Gap 0.25mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.25mm/Rim 1.9p_Part3-3_Internal Width Rims 30mm Gap 0.25mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.25mm/Rim 1.9p_Part3-3_Internal Width Rims 35mm Gap 0.25mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.25mm/Rim 1.9p_Part3-3_Internal Width Rims 40mm Gap 0.25mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.5mm/desktop.ini RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.5mm/Rim 1.9p_Part3-3_Internal Width Rims 25mm Gap 0.5mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.5mm/Rim 1.9p_Part3-3_Internal Width Rims 30mm Gap 0.5mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.5mm/Rim 1.9p_Part3-3_Internal Width Rims 35mm Gap 0.5mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim 1.9p_Part 3-3/Gap 0.5mm/Rim 1.9p_Part3-3_Internal Width Rims 40mm Gap 0.5mm_Internal Wedge.STL RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm/Rim Washer Reenforcement Diam4mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Long Lip/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Long Lip/Rim 2.2p_Part1-3_Long Lip_Hexa12mm x 5mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Long Lip/Rim 2.2p_Part1-3_Long Lip_Hexa17mm x 5mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Long Lip/Rim 2.2p_Part1-3_Long Lip_Hexa17mm x 7mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Short Lip/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Short Lip/Rim 2.2p_Part1-3_Short Lip_Hexa12mm x 5mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Short Lip/Rim 2.2p_Part1-3_Short Lip_Hexa17mm x 5mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 1-3 Short Lip/Rim 2.2p_Part1-3_Short Lip_Hexa17mm x 7mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Long Lip/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Long Lip/Rim 2.2p_Part2-3_Long Lip_Internal Width Rims 25mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Long Lip/Rim 2.2p_Part2-3_Long Lip_Internal Width Rims 30mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Long Lip/Rim 2.2p_Part2-3_Long Lip_Internal Width Rims 35mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Long Lip/Rim 2.2p_Part2-3_Long Lip_Internal Width Rims 40mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Short Lip/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Short Lip/Rim 2.2p_Part2-3_Short Lip_Internal Width Rims 25mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Short Lip/Rim 2.2p_Part2-3_Short Lip_Internal Width Rims 30mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Short Lip/Rim 2.2p_Part2-3_Short Lip_Internal Width Rims 35mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 2-3 Short Lip/Rim 2.2p_Part2-3_Short Lip_Internal Width Rims 40mm.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.25mm/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.25mm/Rim 2.2p_Part3-3_Internal Width Rims 25mm Gap 0.25mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.25mm/Rim 2.2p_Part3-3_Internal Width Rims 30mm Gap 0.25mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.25mm/Rim 2.2p_Part3-3_Internal Width Rims 35mm Gap 0.25mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.25mm/Rim 2.2p_Part3-3_Internal Width Rims 40mm Gap 0.25mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.5mm/desktop.ini RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.5mm/Rim 2.2p_Part3-3_Internal Width Rims 25mm Gap 0.5mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.5mm/Rim 2.2p_Part3-3_Internal Width Rims 30mm Gap 0.5mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.5mm/Rim 2.2p_Part3-3_Internal Width Rims 35mm Gap 0.5mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim 2.2p_Part 3-3/Gap 0.5mm/Rim 2.2p_Part3-3_Internal Width Rims 40mm Gap 0.5mm_Internal Wedge.STL RIM 2.2p or 56mm X Internal Width Rims 25-30-35-40mm/Rim Washer Reenforcement Diam4mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/desktop.ini RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/desktop.ini RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/Rim 3.2p_Part1-3_Hexa12mm x 5mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/Rim 3.2p_Part1-3_Hexa12mm x 5mm_Inner Rim offset 12.5mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/Rim 3.2p_Part1-3_Hexa17mm x 5mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/Rim 3.2p_Part1-3_Hexa17mm x 5mm_Inner Rim offset 12.5mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/Rim 3.2p_Part1-3_Hexa17mm x 7mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part1-3/Rim 3.2p_Part1-3_Hexa17mm x 7mm_Inner Rim offset 12.5mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part2-3/desktop.ini RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part2-3/Rim 3.2p_Part2-3_Internal Width Rims 25mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part2-3/Rim 3.2p_Part2-3_Internal Width Rims 30mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part2-3/Rim 3.2p_Part2-3_Internal Width Rims 35mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part2-3/Rim 3.2p_Part2-3_Internal Width Rims 40mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part2-3/Rim 3.2p_Part2-3_Internal Width Rims 45mm.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/desktop.ini RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.25mm/desktop.ini RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.25mm/Rim 3.2p_Part3-3_Internal Width Rims 25mm Gap 0.25mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.25mm/Rim 3.2p_Part3-3_Internal Width Rims 30mm Gap 0.25mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.25mm/Rim 3.2p_Part3-3_Internal Width Rims 35mm Gap 0.25mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.25mm/Rim 3.2p_Part3-3_Internal Width Rims 40mm Gap 0.25mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.25mm/Rim 3.2p_Part3-3_Internal Width Rims 45mm Gap 0.25mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.5mm/desktop.ini RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.5mm/Rim 3.2p_Part3-3_Internal Width Rims 25mm Gap 0.5mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.5mm/Rim 3.2p_Part3-3_Internal Width Rims 30mm Gap 0.5mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.5mm/Rim 3.2p_Part3-3_Internal Width Rims 35mm Gap 0.5mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.5mm/Rim 3.2p_Part3-3_Internal Width Rims 40mm Gap 0.5mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim 3.2p_Part3-3/Gap 0.5mm/Rim 3.2p_Part3-3_Internal Width Rims 45mm Gap 0.5mm_Internal Wedge.STL RIM 3.2p or 80mm X Internal Width Rims 25-30-35-40-45mm/Rim Washer Reenforcement Diam4mm.STL RIMS PREMIUM VERSION.zip Learn more about the formats
Publication date	November 15, 2024 02:41 (UTC)
Design number	2471431
Design author	MyShopKit

MyShopKit

14 Designs
94 Downloads
US$ 149.97 Sales
10 Followers

Contact

Issue with this design? Report a problem.

3D model description

[¯·._.·[ 3D PRINTED BEADLOCK RIM 1.9p 2.2p 3.2p ULTIMATE PACK ]·._.·´¯] [¯·..·[ Internal rim width: 25, 30, 35 , 40, 45mm ]·..·´¯]
[¯`·..·[ Hexagonal: (12mm X 5mm) / (17mmm X 5mm) / (17mm X 7mm) ]·..·´¯]

========================================================

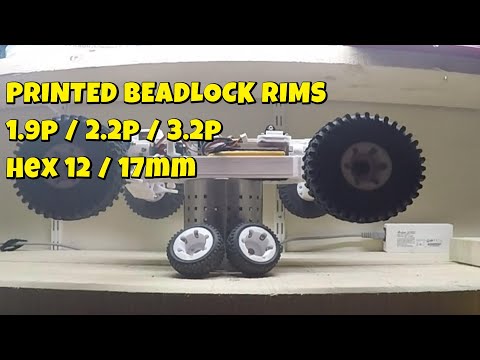

BUILDING VIDEO :

https://www.youtube.com/watch?v=aHiETTZ7C28

========================================================

DESCRIPTION QUICK:

The Rims are composed of 3 parts:
- part 1-3 Hexagonal Side (for the hexagon 12mm x 5mm, or 17mm x 7mm , or 17mm x 5mm)
- part 2-3 Outer Side (to choose the internal width of Rim / Tire)
- part 3-3 Internal Wedge (to choose the toe-in 0.5mm or 0.25mm)-> To choose the gap 0.5 mm or 0.25mm of the Internal Wedge depending on the internal width of the Tire / Rim.

RIM 1.9p or 48mm X Internal Width Rims 25-30-35-40mm
RIM 2.2p or 58mm X Internal Width Rims 25-30-35-40mm
RIM 3.2p or 80mm X Internal Width Rims 35-40-45mm

========================================================

REQUIREMENTS:

Per Rim:
- SCREW 3mm x 20mm (X6)
- WASHER 3mm x 0.5mm x 8.1mmMax (X6)
- LOCKNUT 3mm (X6)
- PLA+

========================================================

CHOICE METHOD:

STEP 1: Measure the inner diameter of your tire 48mm, 58mm or 80mm so 1.9p, 2.2p or 3.2p.

(((Go to the corresponding folder.))))

STEP 2: Measure the width of your tire this will be your internal rim width.

((((Among the parts corresponding to the previous measurements, therefore with your inner tire diameter and your inner Tire / Rim width.))))

STEP 3: Choose whether you want long or short lips -> To choose your parts 1-3, and part 2-3.

STEP 4: Choose the type of Hexagonal 12mm or 17mm and its depth 5mm or 7mm -> To choose part 1-3.
H12mm x 5mm
H17mm x 5mm
H17mm x 7mm

((((
At this stage part 1-3 will be final because you will have chosen it according to the internal diameter of your tire, the Hexagonal and the desired lips.
You will be able to fix all mixes by choosing your new internal width of Tire. so part 2-3 and the internal Wedge part 3-3.
))))

STEP 5: Choose an internal rim width, 25mm 30mm 35mm 40mm or 45mm -> To choose part 2-3

STEP 6: Is your tire thick or thin? -> gap 0.5mm or 0.25mm? (pinch)-> To choose the gap of the Internal Wedge part 3-3.

STEP 7: PRINT IT

STEP 8: ENJOY

Page translated by automatic translation. See the original version.
