Ball Joint Mad Cat Mech

Creation's quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

**EDIT: per request I have added in a new set of arm files with extra joints so that the guns and shoulders may snap to the arm without the use of glue. I previously avoided doing this because I thought the joint connector on his arm made him look like he had lobster pincers and were unsightly. So, if you don't mind the extra connectors then download the "New Joint" files for the Arm, Shoulder Rockets, and Gun and everything should pop together.

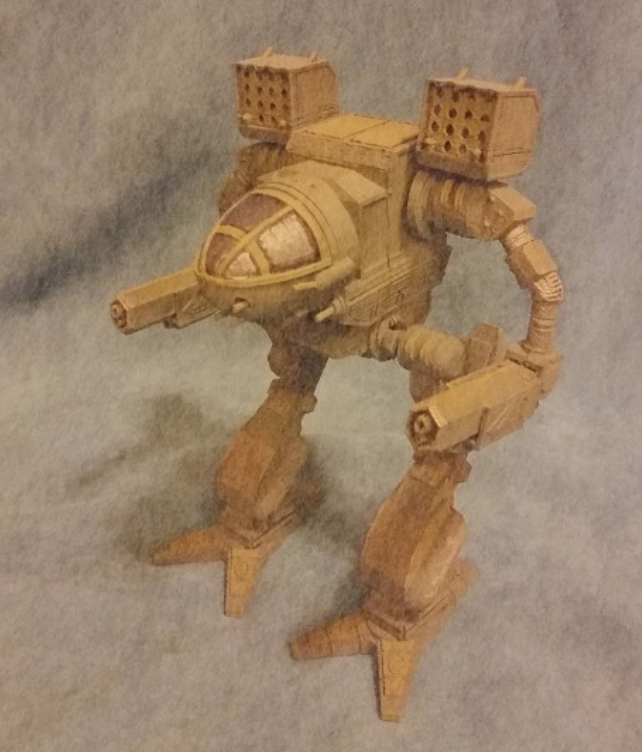

This is an updated, ball joint version of my first MadCat Mech
I used this ball join system for an action figure I designed recently and everything worked out great. The arm, gun and rockets work as Left or Right side so print 2 of each to make a complete mech. Once I have a chance to print it I will post a lot of pics. Until then, please post any makes!

As usual, feel free to make any requests for changes or additions and I will gladly see what I can do!

3D printer file information

  • 3D design format: STL Folder details Close
    • Arm.stl
    • Arm_with_New_Joint.stl
    • Ball_Joint_Mad_Cat_Mech.stl
    • Cockpit_and_Rear.stl
    • Cockpit_and_Rear_1_Piece.stl
    • Gun.stl
    • Gun_with_New_Joint.stl
    • Hip_2.0.stl
    • Left_Leg_2.0.stl
    • Mech_Exploded_View.stl
    • Right_Leg_2.0.stl
    • Shoulder_Rocket_Empty.stl
    • Shoulder_Rocket_Empty_new_Joint.stl
    • Shoulder_Rocket_Full.stl
    • Shoulder_Rocket_Full_new_Joint.stl

    Learn more about the formats

  • Publication date: 2017/12/07 at 12:56





I am an engineer by day and a part time 3D designer enthusiast by night. I mainly do table top minis, terrain, etc. but I have also done many other projects such as gun accessories and a few mech designs.

I'm flexible and easy to work with. So, if you don't like something you see then feel free to shoot me a message and I'll be happy to make any changes so that my design fit your needs :)

Issue with this design? Report a problem

Best sellers of the category Game

Add a comment

One comment

There seems to be a small issue with the cockpit frontal right side, near the gun. The gun is partially intersected with part of the exterior, which is the same shape on the other size, but smaller.
