Waveshare 7" LCD Stand - Raspberry Pi + Orange Pi Zero

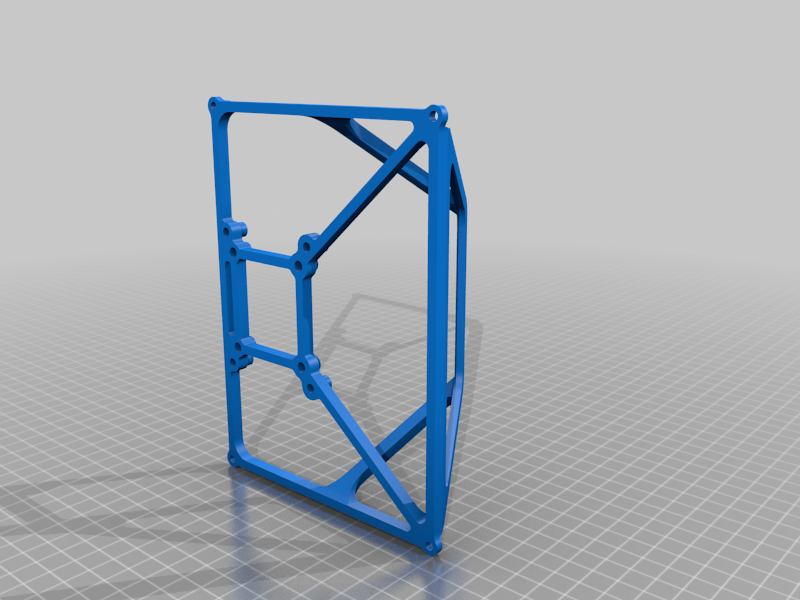

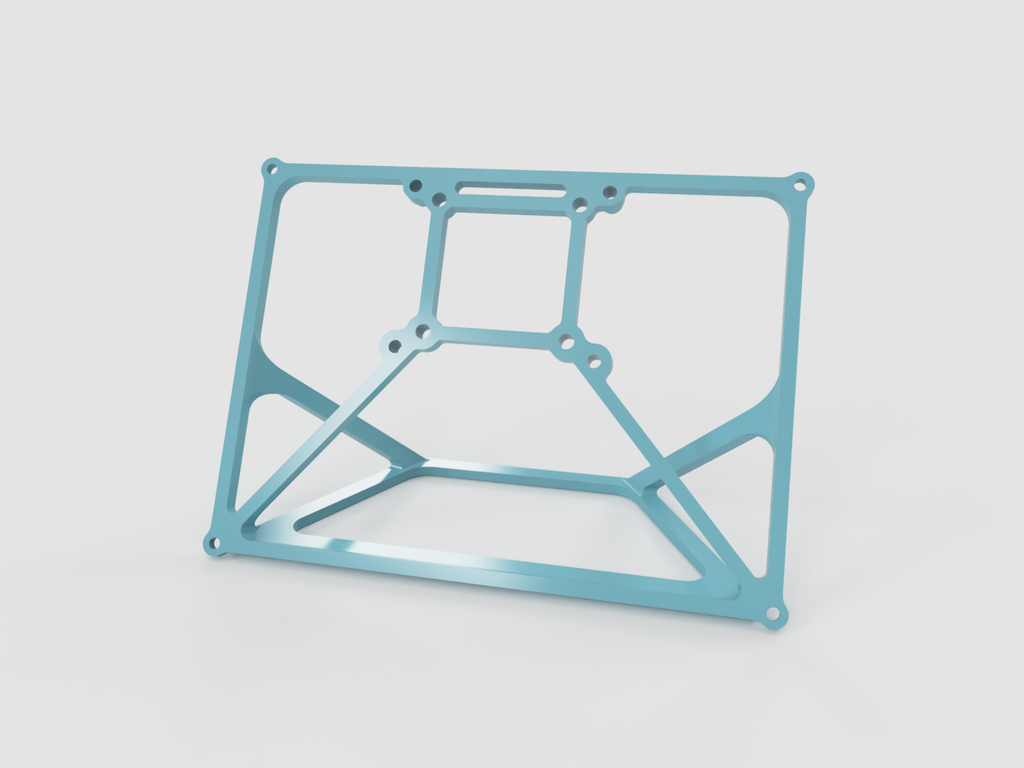

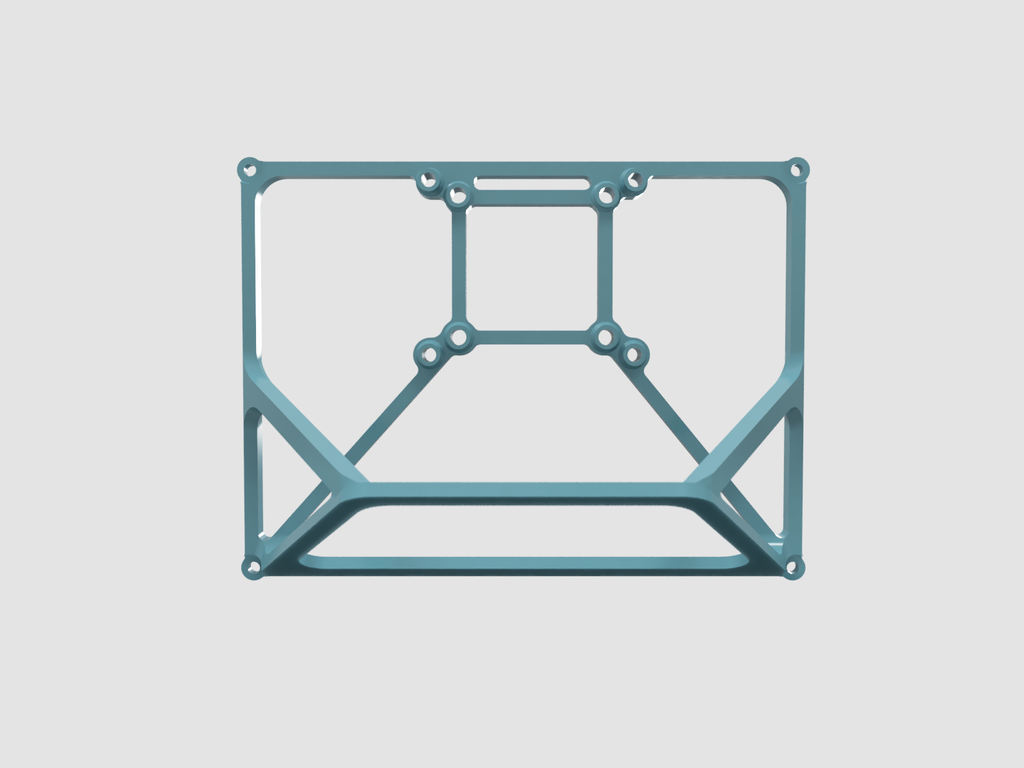

Stand designed for the generic 7" touch LCD (Waveshare copy), which allows you to mount a Raspberry Pi B+ or OrangePi Zero Plus2 on the back.

It should work with all the Raspberry B models.

The Raspberry Pi holes are sized to take an M2.5 brass insert.

The OrangePi Zero Plus2 holes are 42x40mm rectangle mounting pattern, so may be compatible with other boards. These are sized to take an M3 brass insert.

If course you can use a bolt & nut on the back if you don't have heat inserts.

The particular screen here has a 157x115mm hole pattern (It's this one here: https://www.banggood.com/7-Inch-Full-View-LCD-IPS-Touch-Screen-1024+600-800+480-HD-HDMI-Display-Monitor-for-Raspberry-Pi-p-1633584.html).

I think it's a Waveshare copy, but do check the dimensions before you print.

If you print "face down" you shouldn't need supports. It's the hoop at the back of the base that can be tricky to bridge, but worked for me.

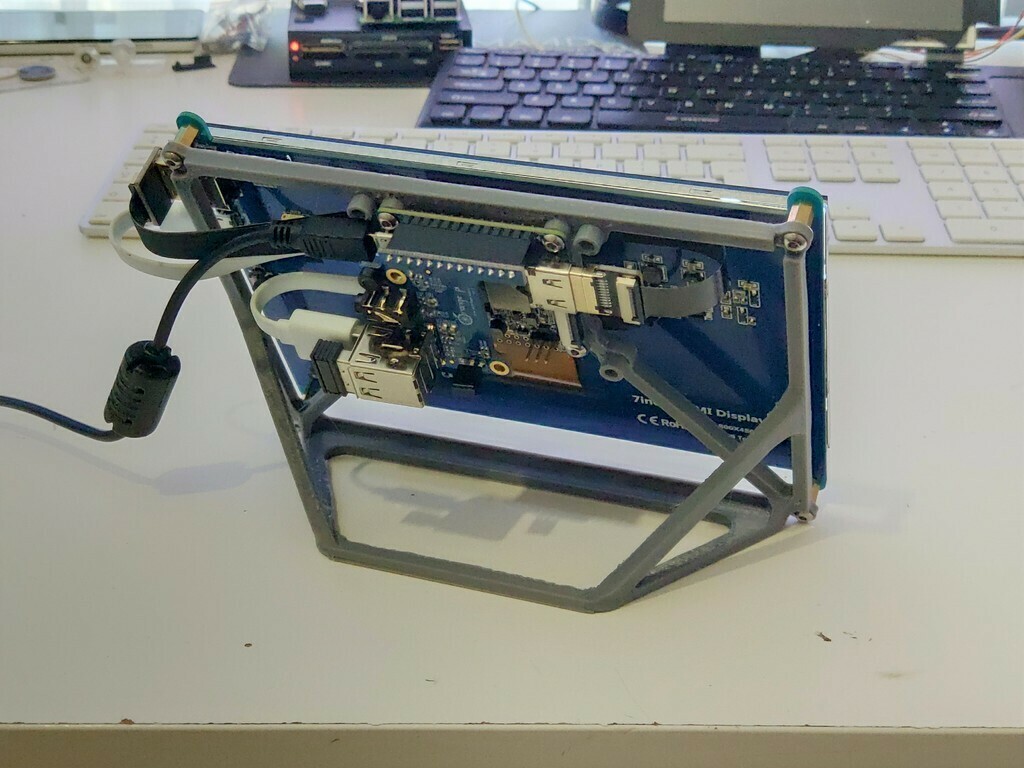

Please note the stand in the real pictures was an earlier version and has a few issues that were fixed in the final. The frame is the same, just a few more bevels and a slightly adjusted placement of the OrangePi.

If you found this useful, please donate what you think it is worth to my paypal.me. Help cover the time of design.

Thanks, Enjoy!
