3D model description

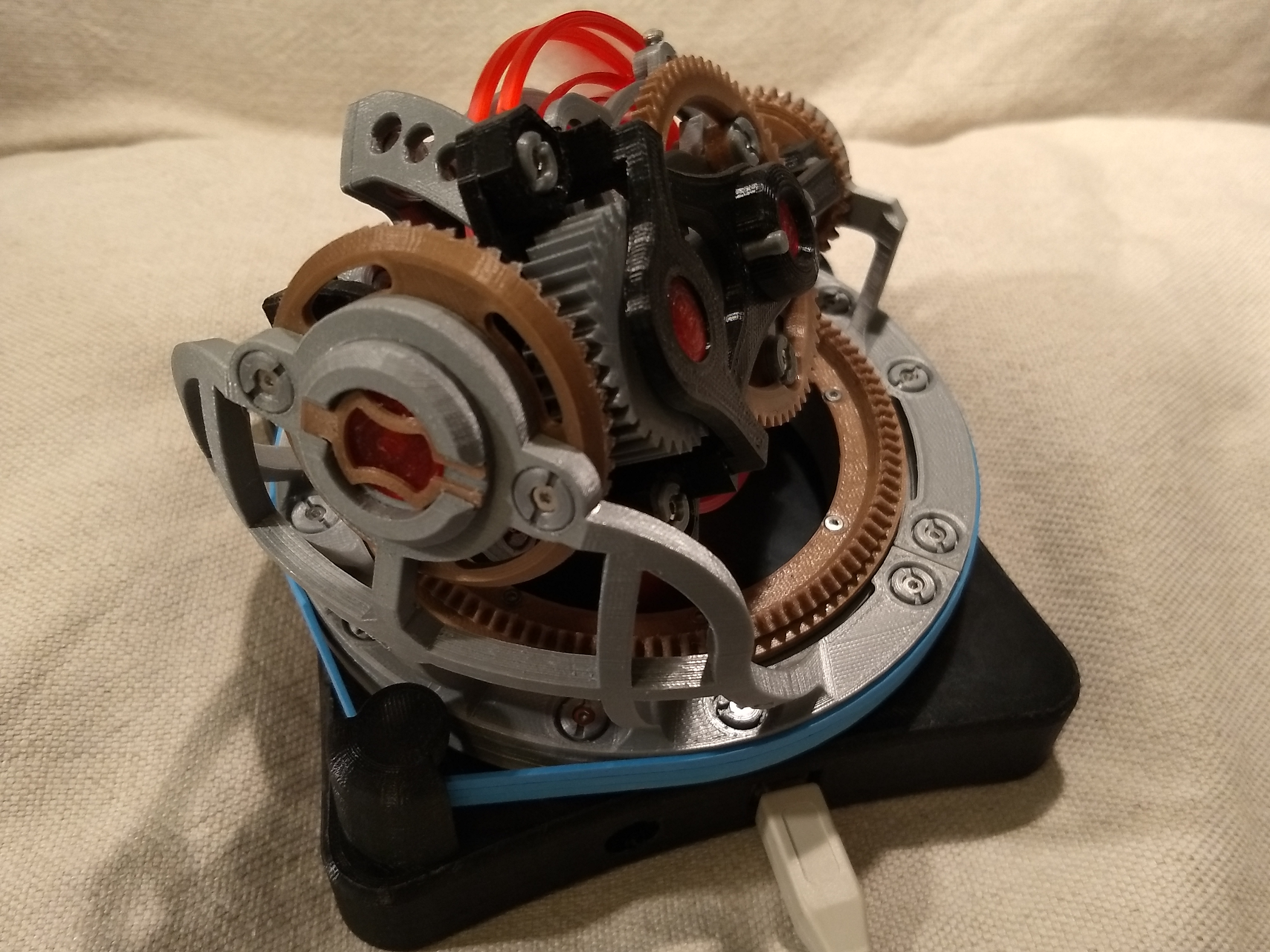

This is my second clockwork design. It took just under a month from starting the design, to posting it. I modeled it after a Cabestan Triple Axis Tourbillon, which they offer in their high-end watches, and spent many hours looking at Youtube videos of the watch.

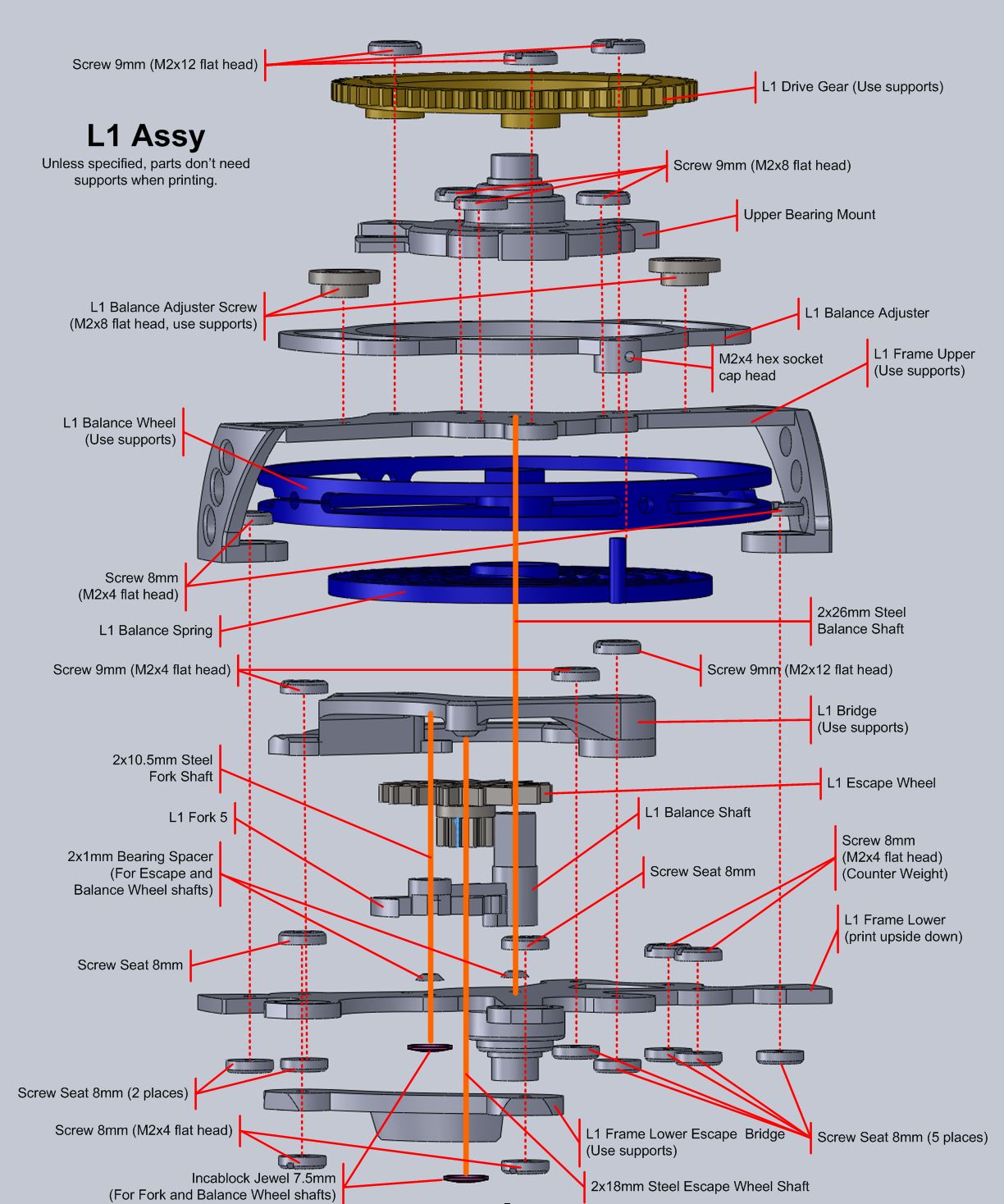

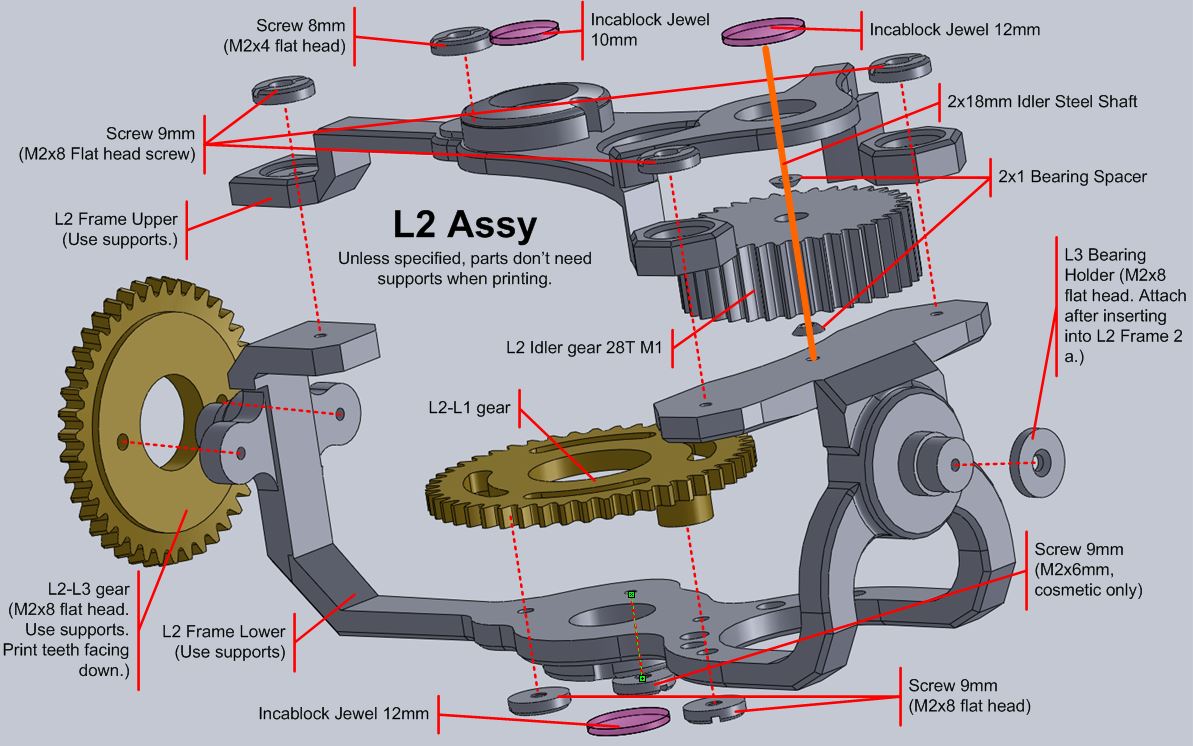

Similar to the Gyrotourbillon, I tried to make the model an accurate (scaled up) version of the original Cabestan mechanism. I printed the screws to scale, then stuck a 2mm screw in their centers to hold it together. I also included Incabloc shock absorbers by printing clear red 'jewels', and working snap rings to hold them in place.
This model is small, about 140mm in diameter. I power it with a 2 Amp USB power supply.
Here a real-time video. https://youtu.be/Imm3mrR06tc
Read the Triple Axis Tourbillon Build Notes PDF in the files for more information.
I have other tourbillon and related designs at:
https://cults3d.com/en/3d-model/gadget/tt-furious
https://cults3d.com/en/3d-model/gadget/gyrotourbillon-jaeger-lecoutre-model
https://cults3d.com/en/3d-model/gadget/triaxial-quartz-movement-upgrade
Enjoy, McMaven
3D printing settings
Printer Brand: Prusa
Printer: i3 MK3
Rafts: No
Supports: Yes
Resolution: 1.5mm
Infill: 20%
Filament: Hatchbox PLA Transparent Red, Black, Gold, Silver
