Creation quality: 4.8/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.
๐Ÿ†ย Bestย ?
License
Usages
3D design format
19 files (STL) Close

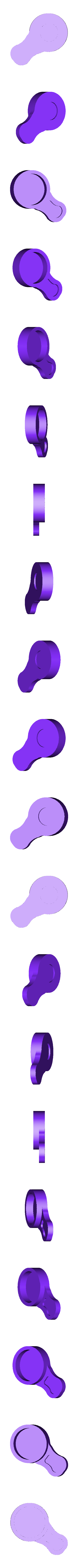

  • 2_x_Ctrl_levier_V3.stl 25.361480999999998 ร— 22.934403000000003 ร— 5.0 mm

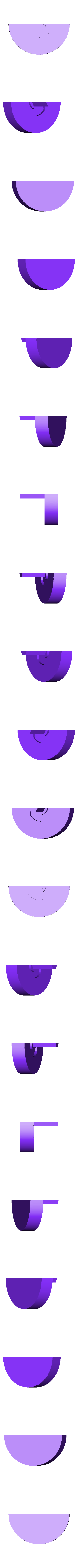

  • 8_x_Half-AxePot.stl 13.629466999999998 ร— 6.814206 ร— 8.451496 mm

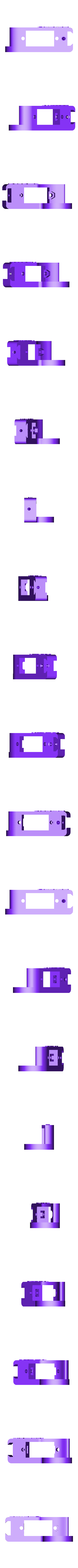

  • Avant_Bras.stl 56.038567 ร— 21.011706999999994 ร— 24.499999999999993 mm

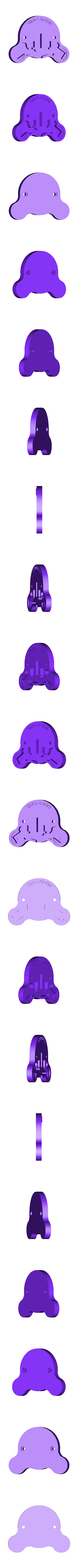

  • Base_Ctrl_V3.stl 87.52822900000001 ร— 66.46376000000004 ร— 8.905463999999995 mm

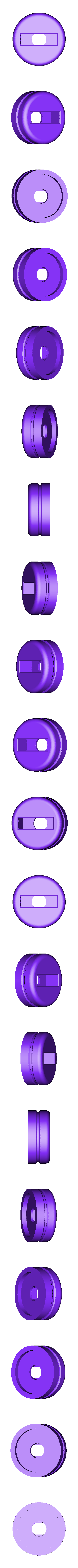

  • Base_Epaule-Rotate_V3.stl 25.0 ร— 25.000000000000007 ร— 10.352563999999997 mm
  • Base_Top_Ctrl_V3.stl 87.52840400000001 ร— 57.28071600000001 ร— 9.0 mm
  • Bras.stl 109.81302099999999 ร— 5.020372 ร— 25.000003000000007 mm

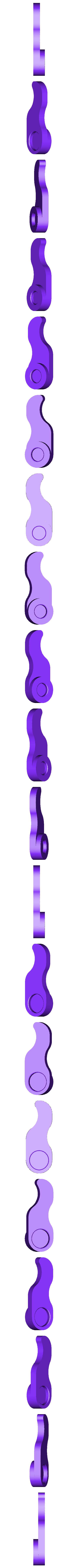

  • Ctrl_Avant_Bras.stl 8.735962000000029 ร— 55.41547299999999 ร— 20.0 mm

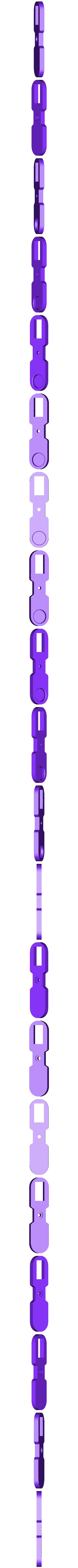

  • Ctrl_Bras.stl 5.0 ร— 80.00000399999999 ร— 20.0 mm

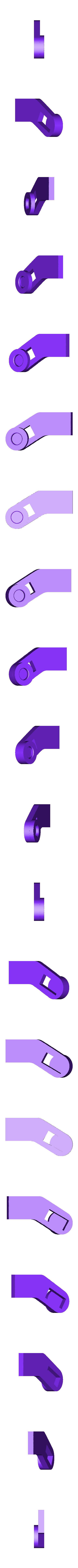

  • Ctrl_Epaule.stl 8.675629000000015 ร— 33.181388 ร— 58.496994 mm

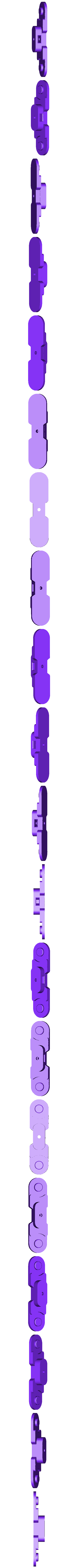

  • Ctrl_Renfort_Bras.stl 11.906860999999992 ร— 79.99974 ร— 20.175231999999994 mm

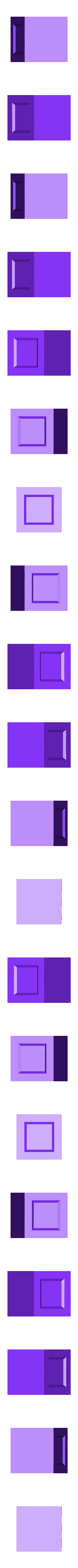

  • Cube_10mm.stl 10.0 ร— 10.0 ร— 10.0 mm

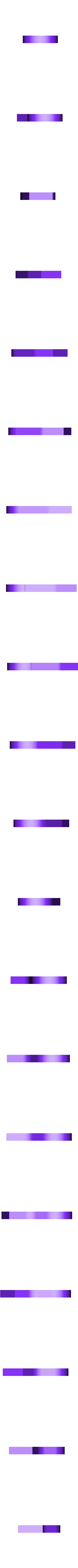

  • Epaule-Rot_V3.stl 28.983012 ร— 5.02756500000001 ร— 44.791435 mm

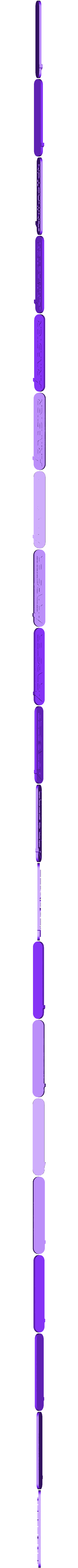

  • Logo.stl 2.4035949999999957 ร— 55.788261000000006 ร— 9.176131999999996 mm

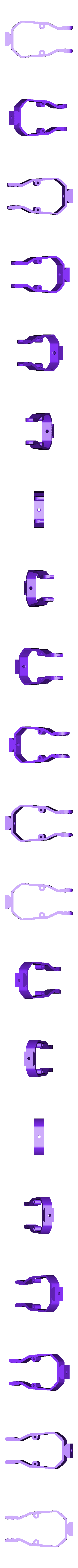

  • Pince_V4.stl 56.29283100000001 ร— 30.512456999999998 ร— 8.0 mm

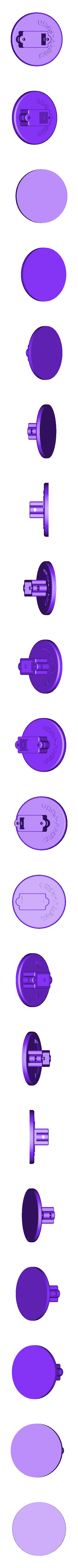

  • base.stl 59.999964 ร— 59.999962999999994 ร— 20.966125 mm

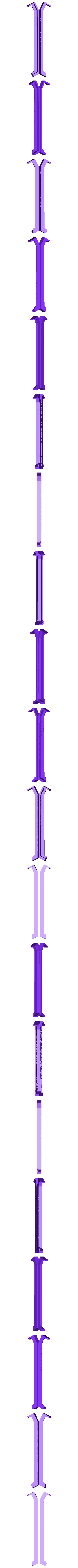

  • pente.stl 44.160049 ร— 136.53511 ร— 8.318533 mm

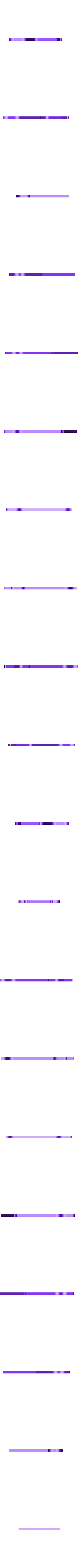

  • pente_pied.stl 30.917969 ร— 2.0 ร— 50.039706 mm

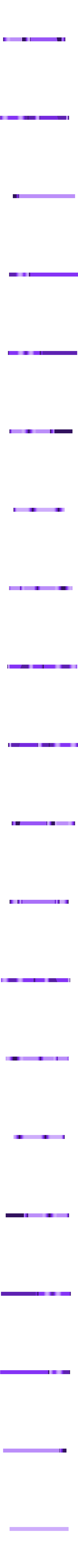

  • pente_pied1.stl 30.917969 ร— 2.0 ร— 26.842278 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 66162
Design author Obenottr3D
Obenottr3D

Obenottr3D

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

Robots, so fascinating...



This is a robot with the ability to learn a sequence, and repeat ad infinitum.

You can control it, in live mode, for a distance handling.
Or, record a sequential movements and play it as needed.

As you can see, the Serv-Arm project is in two parts:

The Armaster - controller.
The Serv-Arm - Controlled.


this project...

NB:English is not my native language ,
I did my best to avoid letting mistakes. if , however, I missed some , you would be kind to inform me in order I can correct them.

A nice contribution made by Marcel_X can be found here and here:
