The Ultimate box maker

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.6k views
  • 13 likes
  • 162 downloads

3D model description

The file include now the Panel Maker.
Check below in the Experimental area to download it.


this project...


My first try with OpenScad,

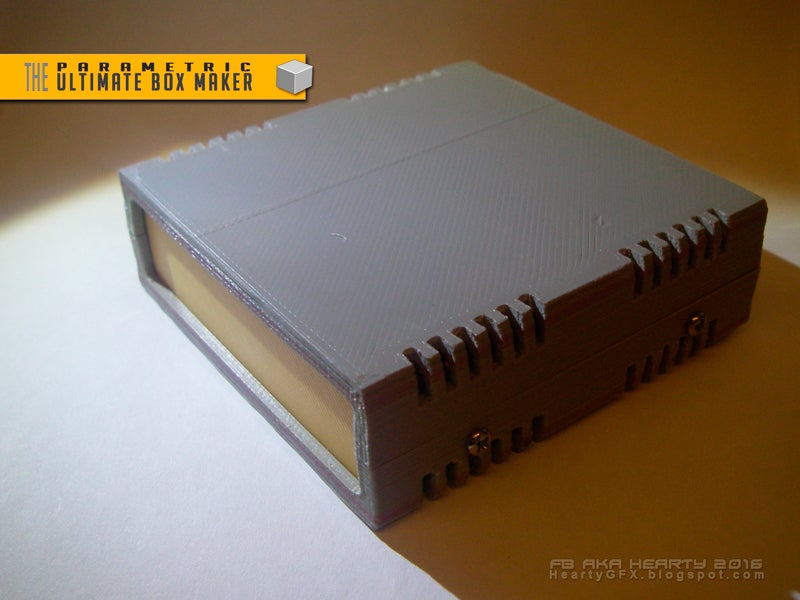

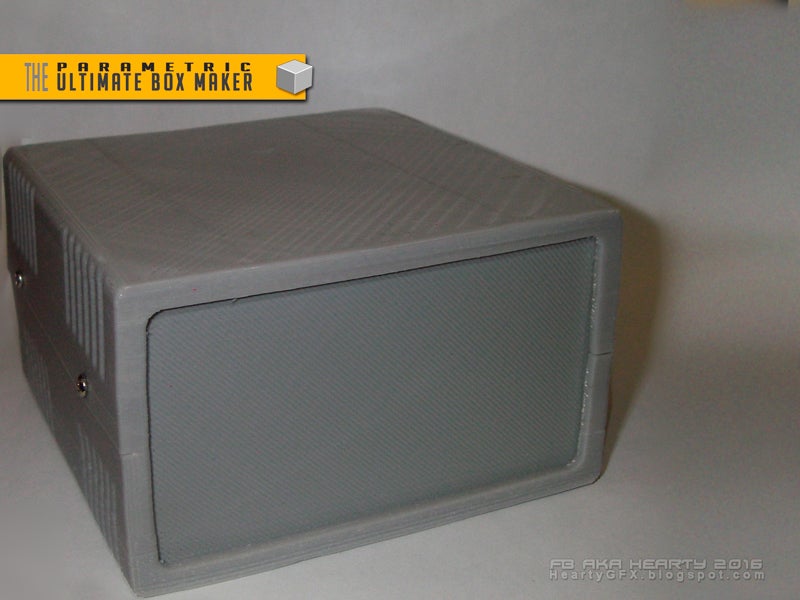

the box is fully customizable.
I hope you will enjoy with it, and will show us many boxes made with.

If you play with the Fillet value you will go from the sharp to the round sides box
If you want a chanfered box, set Resolution to 1.

To export each single piece, just set the other elements to No value.

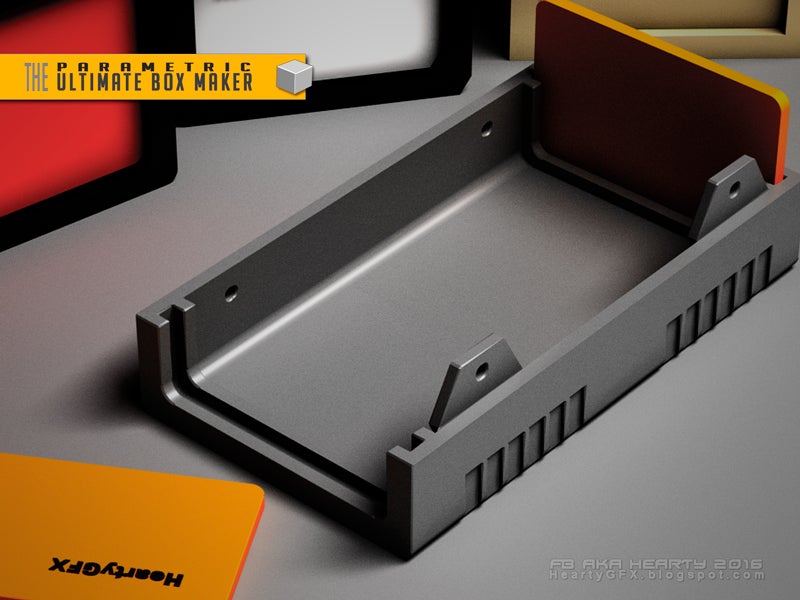

The Top and Bottom Shells are the same,
so it's not necessary to export them two times, except if you use the PCB feet option.

Check the animation below to see how to design your own box.

You can change the text shape with any font listed here .

Have fun ;)

  • Feb 12 2016 Minor bug fixed on unaligned hole when using more than 2mm thickness.
  • March 01 2016 Added the decoration/holes options. (Thanks Ettie for your contribution)
  • March 09 2016
    Added PCB feet support, fixed the shell artefact on export mode.

  • March 01 2018
    It Seems, since few month the online customizer doesn't works, some lib missing. it's not under my hands, ask to makerbot/thingiverse staff.
    THE solution is,
    downloading the newest - Development Snapshot - release of Openscad software
    and activate in the Edit>preference>features menu
    and check the "Enable customizer" option. link:
    OpenScad-Customizer

Please, read as well.
The PCB feet dimensions are all starting from the foot axis center.
it's not the circuit board size, holes center only(!)

Check below, some animated pictures showing how to use the Ultimate Box maker online.

  • 3D file format: SCAD
  • Publication date: 2019/07/30 at 17:05
