3D model description

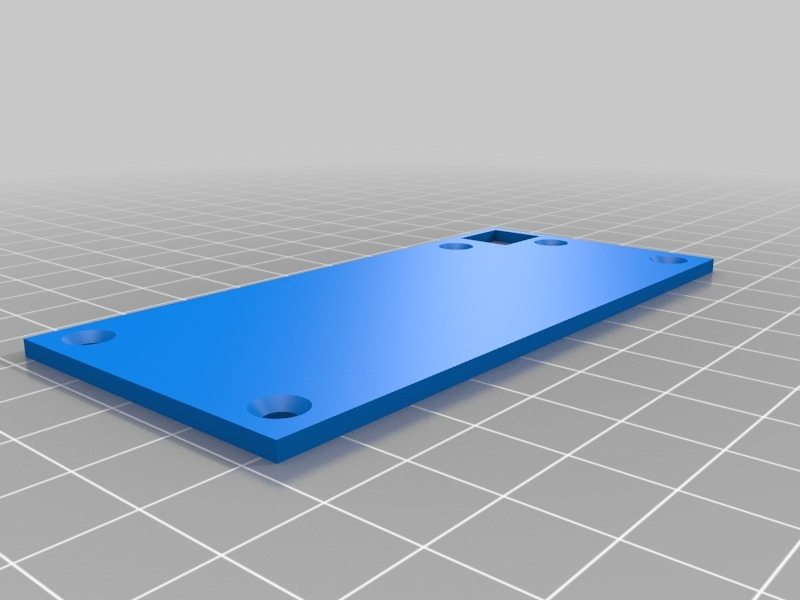

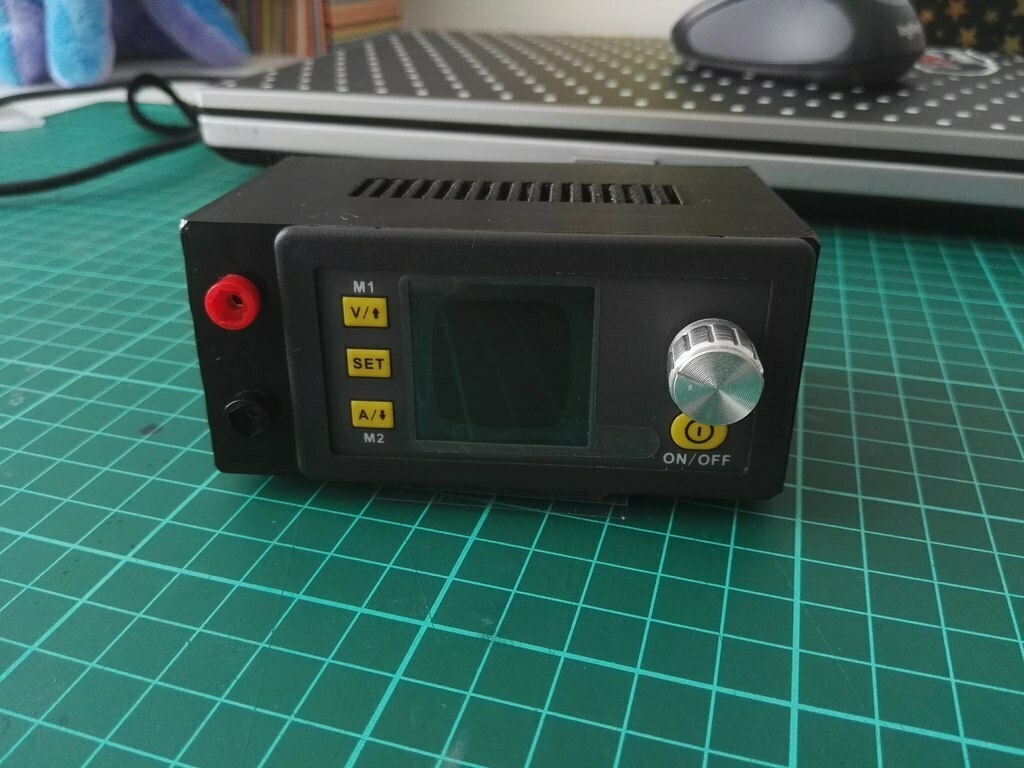

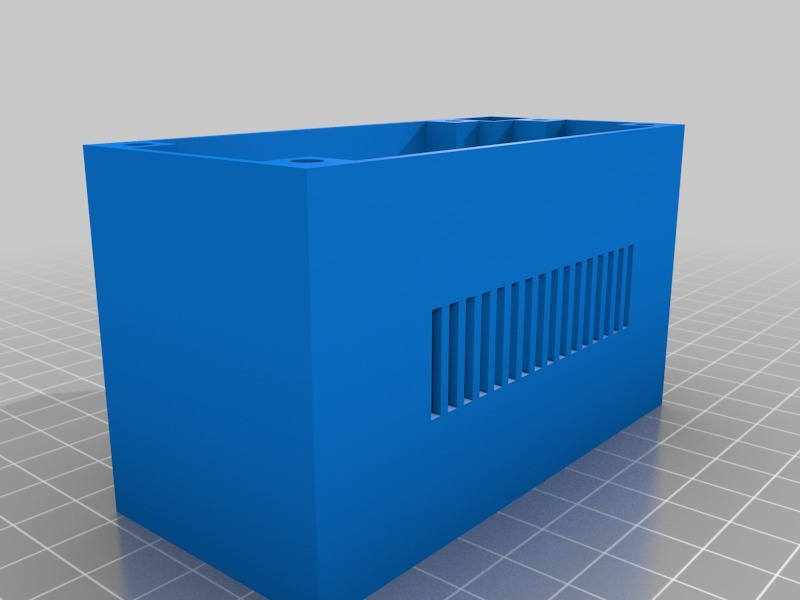

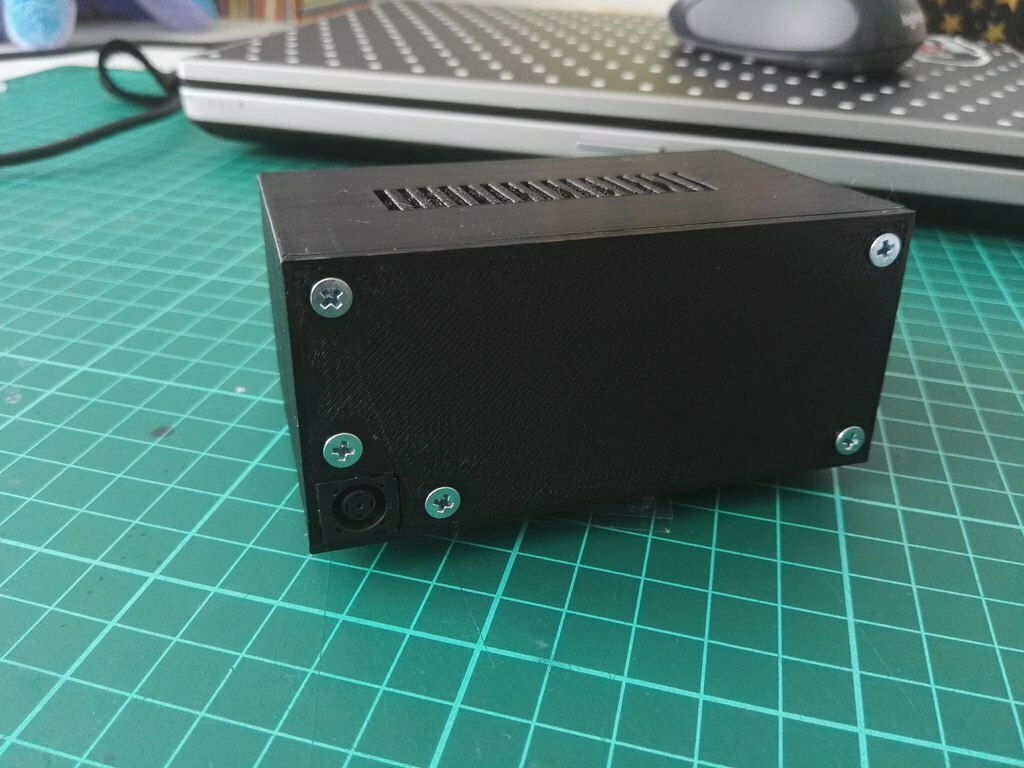

I made yet another DPS 5005 box. Tried to make it small. Uses an HP/DELL power connector. You can find it on Aliexpress for few bucks for 10pcs. The wires from the connector have to go directly to the back, flat with the bottom of conenector. The whole box is made to be printed without supports. I used brass M3 thread inserts to screw the back in place. The screws are flat (countersunk) head M3x6mm. The banana plugs used are 10A 2mm, with 5mm hole.
