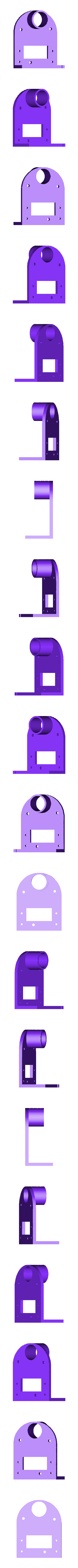

Arduino based printbot HKTR-9000

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 1 like
  • 29 downloads

3D model description

Simple educational robot for learning how to use various sensors (light, line, distance...) with Arduino UNO.

It features the CRM-Shield and a four-CNY70 board for reading a line on the floor.

3D printing settings

Main features:
- Two Pololu micro-motors with Pololu wheels
- Pololu Ball caster
- Arduino UNO with CRM-Shield (which has L298 motor driver, two LDR sensors and one LED).
- Four-CNY70 board
- This shield and CNY70 boards are very likely to be used in other printbots :)
- 9V battery that connects to Arduino's power connector
- Main body is 3D printable, based on the MiniSkybot by Obijuan (http://www.thingiverse.com/thing:7989)

Designed in the "Club de Robótica-Mecatrónica, Universidad Autónoma de Madrid" by:
- Carlos García Saura
- Lucas Polo López

This wouldn't have been posible without help from:
- Juan González Gómez (Obijuan)
- Miguel Gargallo Vázquez
- Álvaro Pérez Ortega

Videos:
Robotics introductory workshop at EPS-UAM (Madrid, Spain): http://www.youtube.com/watch?v=jGQRYJm-Wq0
