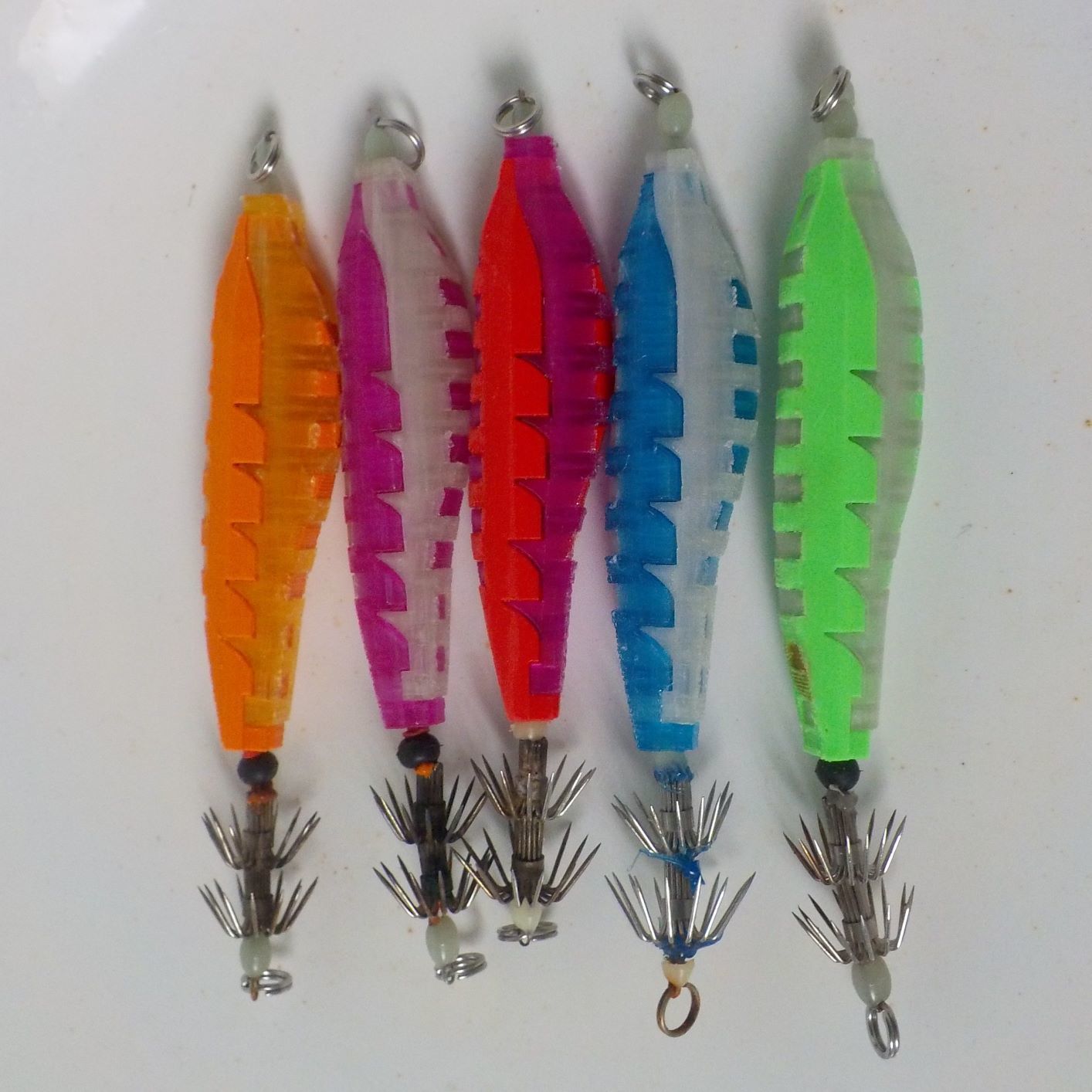

unweighted jig of about 85mm for fishing cephalopods.

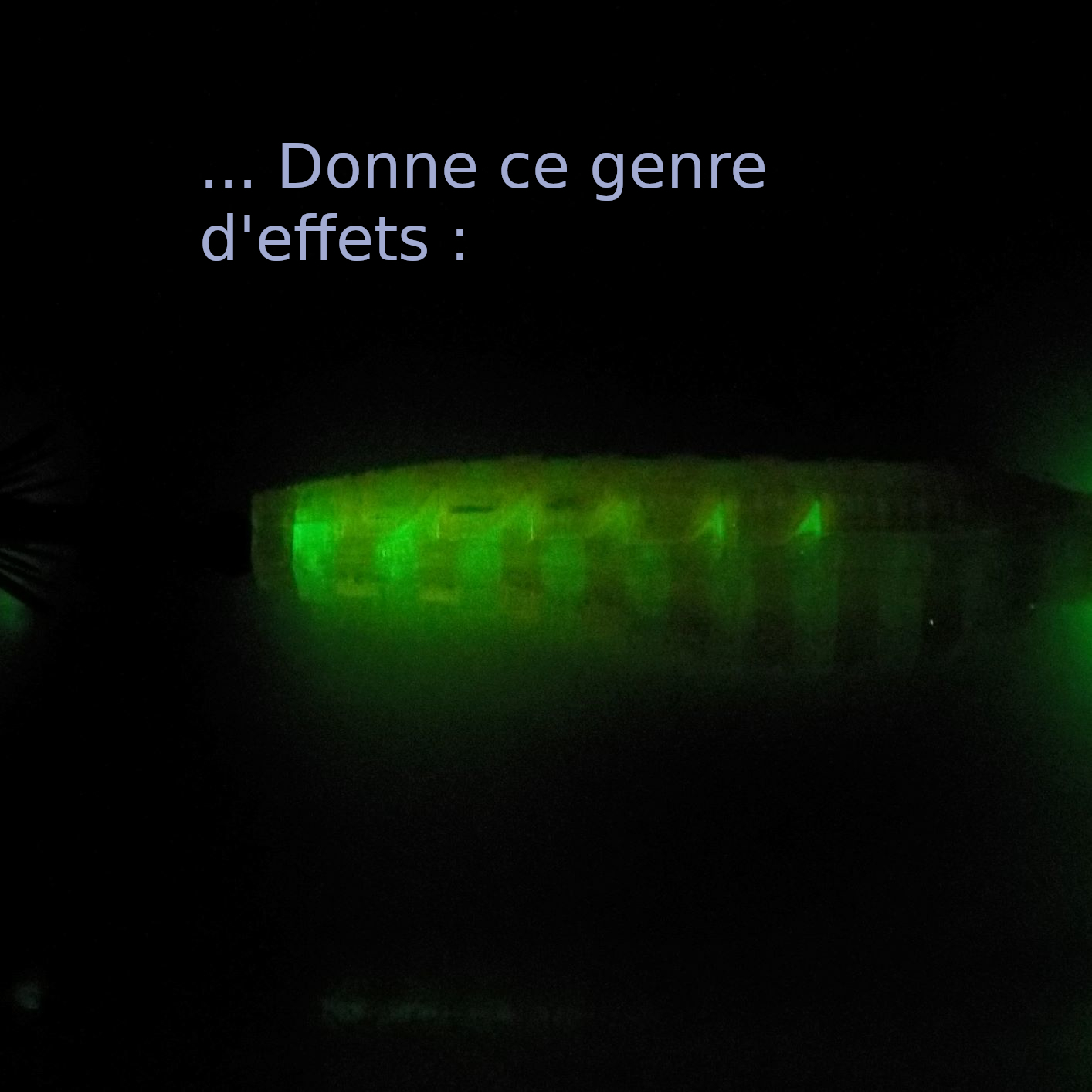

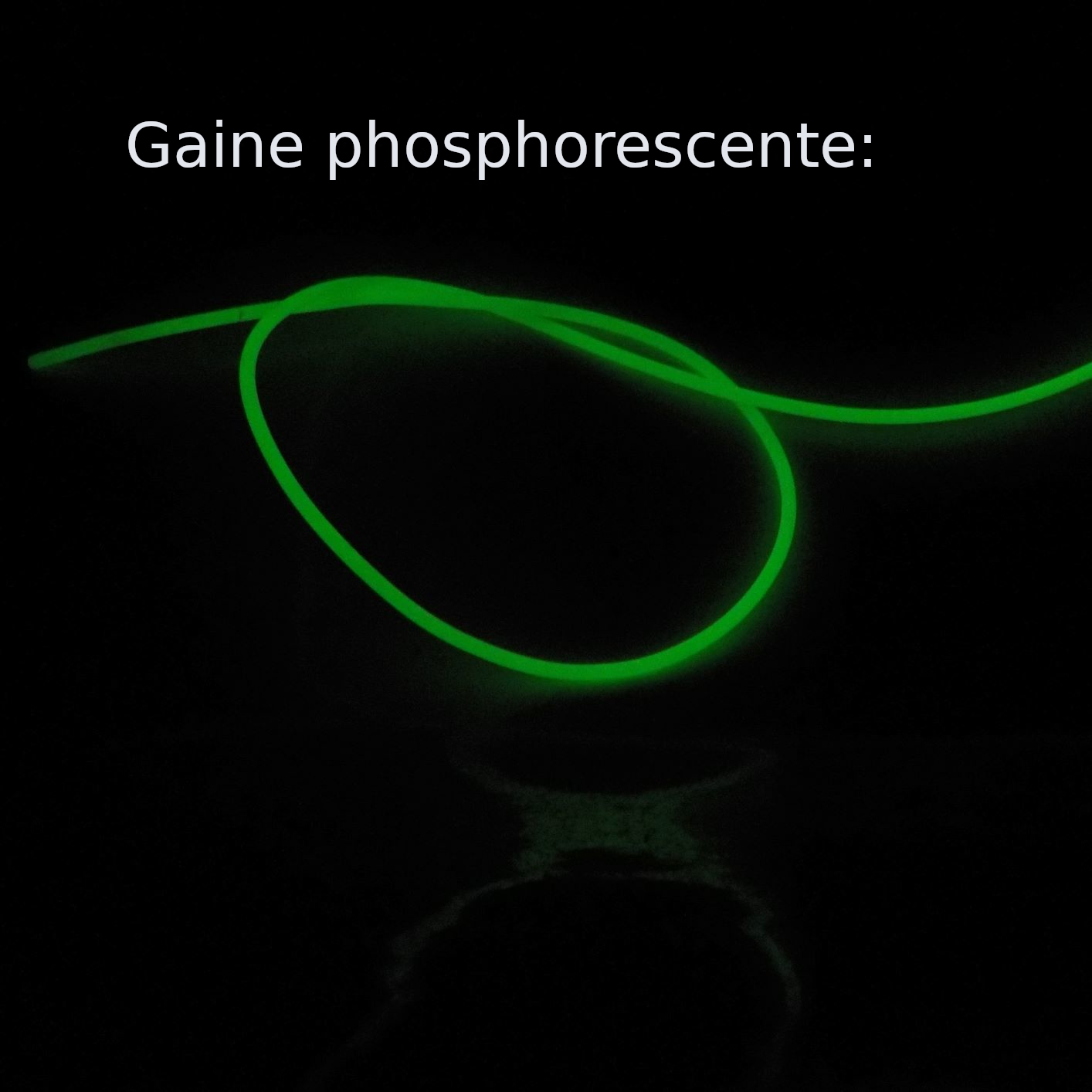

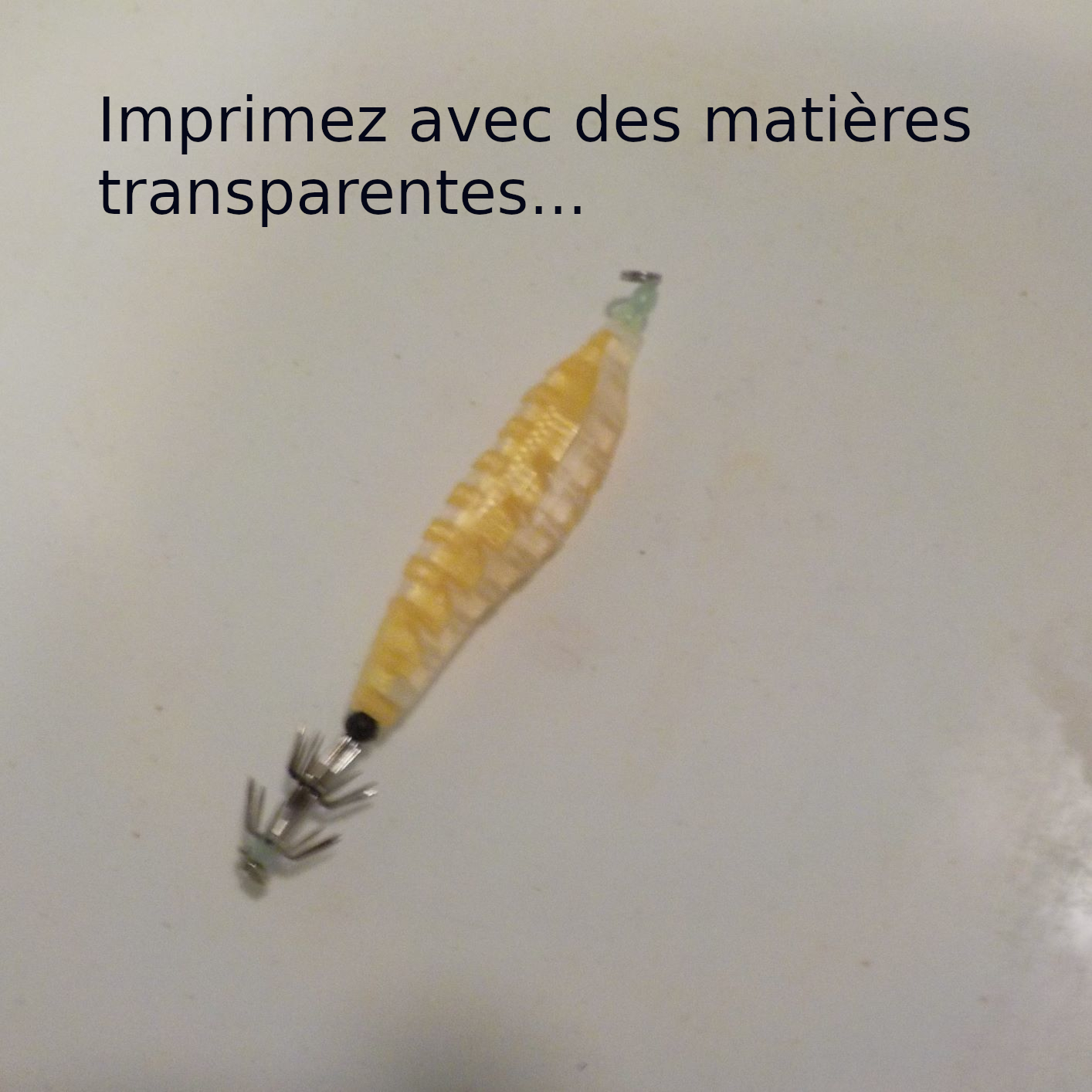

The use of transparent, fluorescent or translucent materials is recommended.

Smaller and slightly modified version compared to the original model from which it is derived (needle jig lure v2):

https://cults3d.com/en/3d-model/various/leurre-pour-turlutte-aiguille-v2

the ends are reinforced compared to a simple scaling (which gave too thin walls in some places).

small improvements for the assembly of the two parts. (dimensions slightly modified)

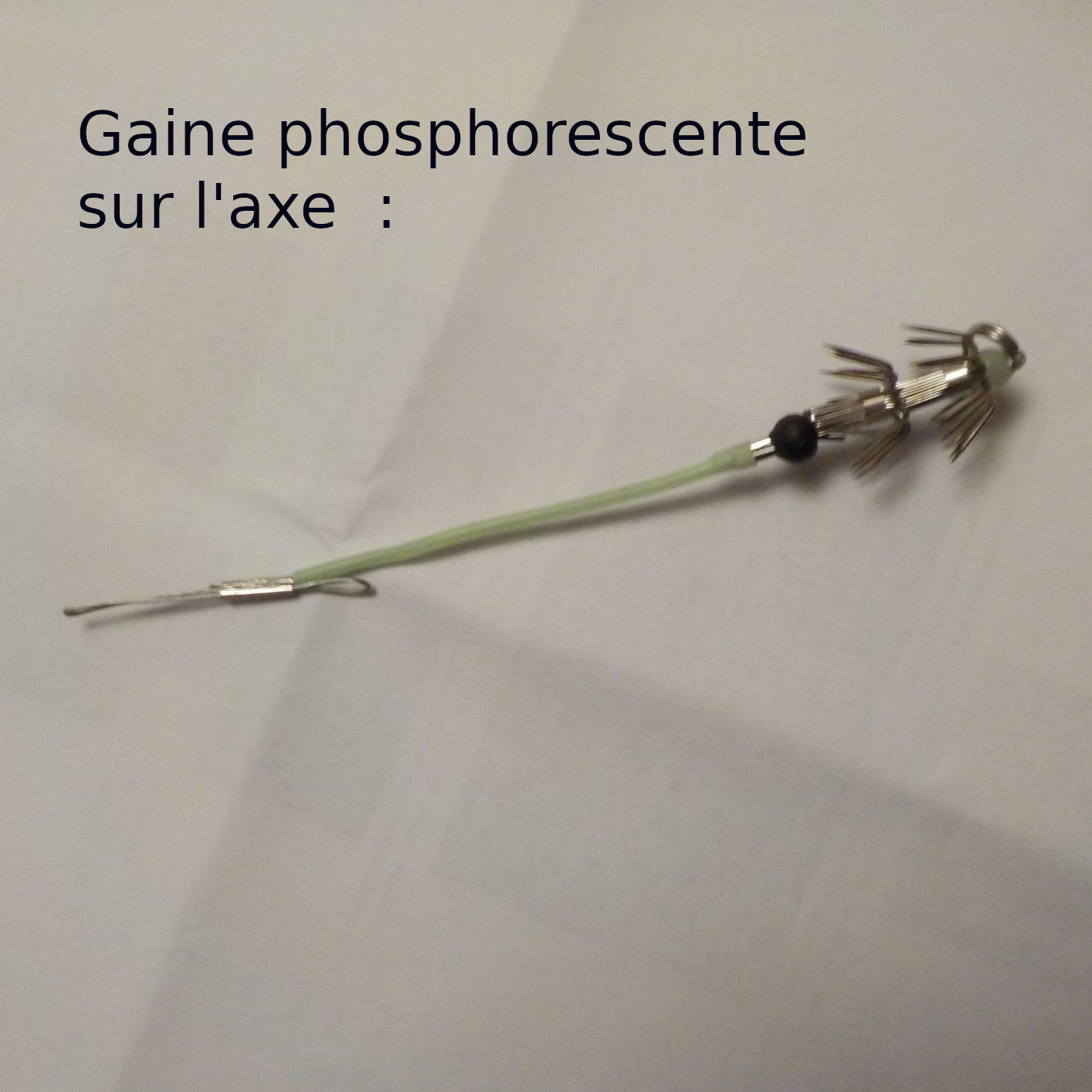

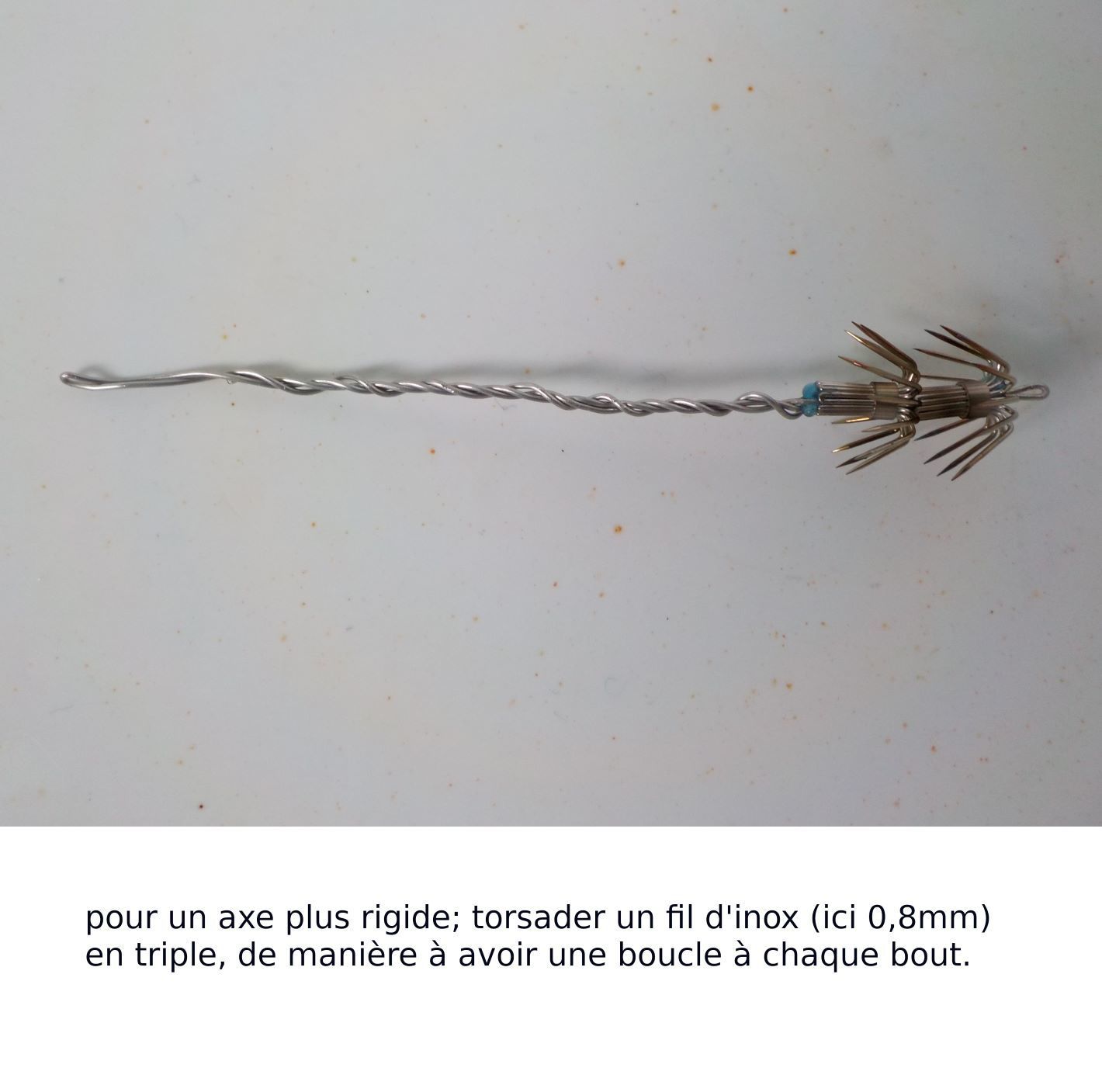

You have to tinker with the metal part; the axis and the basket of the jig. You can see how by going to see the pictures on the page dedicated to the jig v1 small model :

https://cults3d.com/en/3d-model/various/turlutte-petit-modele

3D printing settings

put the "hulls"; the outer (rounded) part downwards

media activation

with transparent materials, a 15 percent filling ratio gives a good translucent appearance.
