Tielfalder, semi-trailers for 1:10 scale models and Unimog Jesse CAD

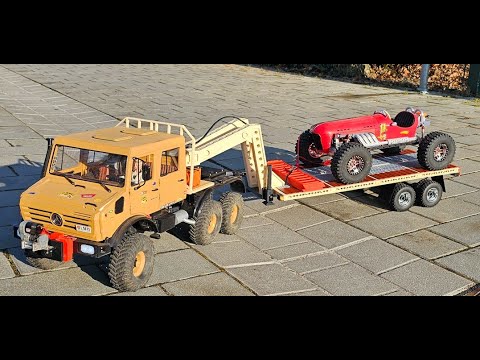

Here is my low loader semi-trailer, transporter for primarily Jesse CAD Unimogs.
But fits on all 1:10 crawler frames.

Driving video and information about the model:
https://www.youtube.com/watch?v=ZQUMdkGp8tk

Matching semi-trailer plates are available here:
Offroad:
🚚 Off Road semi-trailer plate for e.g. Jesse CAD Unimog・ STL file for 3D printing・Cults Normal: 👽 Semi-trailer plate with holder for Jesse CAD Unimog or other trucks 1:10 scale.e.g. Jesse CAD Unimog・ STL file for 3D printing・Cults
Normal:
👽 Saddle plate with bracket for Jesse CAD Unimog or other 1:10, 1:12 trucks・ STL file for 3D printing・Cults

I think the assembly is quite simple. I have spacers that you put between the axles and the leaf springs, so the bolting of the leaf springs doesn't interfere. Also in different. Depending on how high you want it to be or which tires you want to mount.

I have marked the parts in color in the CAD drawing (pictures attached). This should make the body recognizable.

If you want to make the low loader longer or shorter, you need a different frame part. This is included! The overlap must be reversed! This can be seen in the pictures and videos.

But if you have any questions, please let me know.

You will need screws in various lengths M2, M3, M4 and M4 for assembly. Lengths M2, M3, M4. There are sets on the web, just google it. You always need them. Also self-tapping M2 screws

5mm LED for the rear light and 3mm LED for the front and rear position lights. I have made different ones for the glasses. With more and less air during assembly.

The side supports are quite accurate! I pressed them in with a pipe wrench! They hold without glue. You should glue the grilles.

Depending on the printer, I have the A1 bambulab, you can print the gooseneck in one piece. In my case it was on the top, which is not so nice because of the supports. But the rest is smooth! That's why I made covers that you can stick to the top of the boom, so it's TOP all round.

Wheels and tires:
Axspeed 4pcs front rear wheel rims hubs rubber tires with foams in sets for Tamiya truck trailer tractor RC car tires - AliExpress

Wheel spacers:
4 pieces 12mm/15mm/17mm axle widen hexagon wheel adapter For 1/10 RC crawler car TRX4 RC4WD D90 D110 Axial Scx10 90046 catRC - AliExpress 15

leaf springs:
Steel Leaf Spring Suspension Rod Set for 1/14 Tamiya Tractor Truck Trailer Cargo Tow Upgrade Parts - AliExpress 26

Axles 167mm:
RC Metal Unpowered Rear Axle 120mm 140mm 167mm for 1/14 Tamiya Trailer 1/10 Car DIY Upgrade Parts - AliExpress 26
