Spherical Gimbal / Cardanic Joint

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

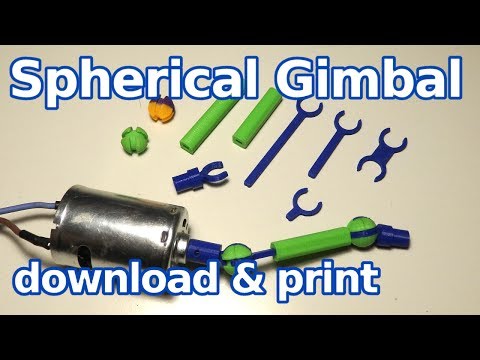

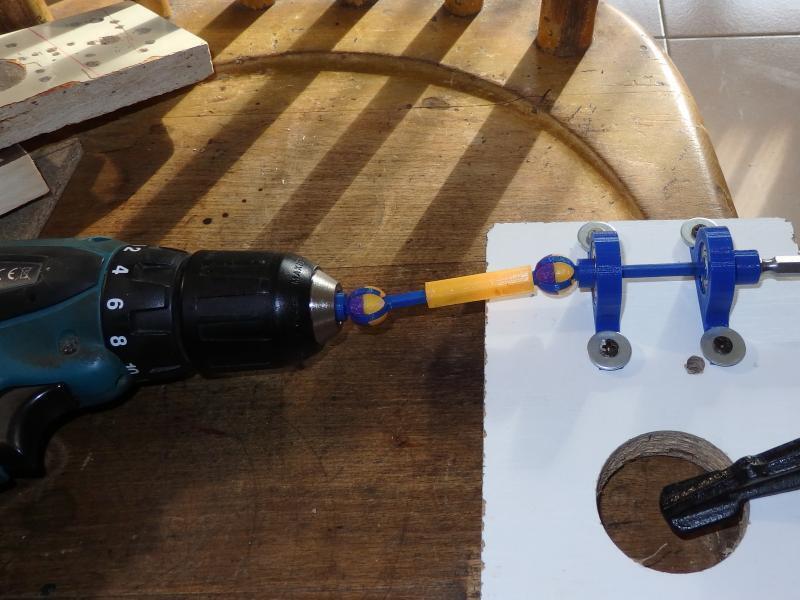

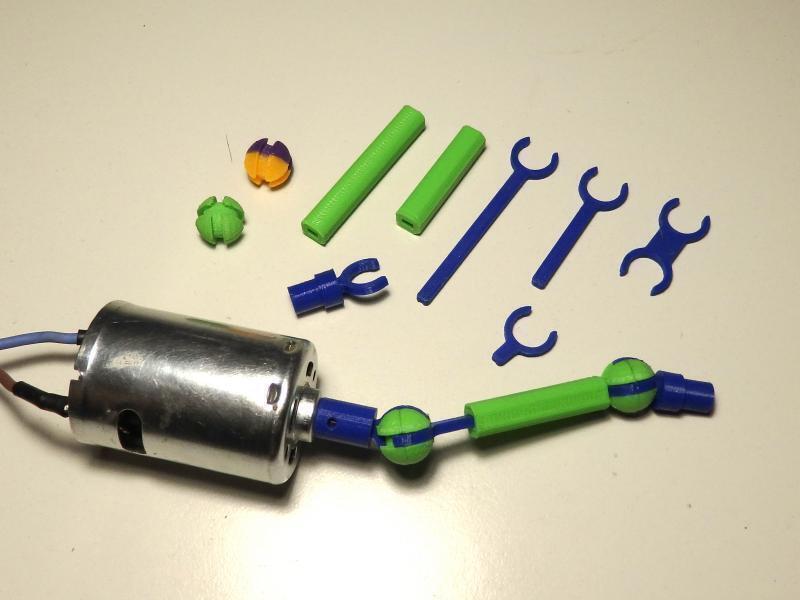

​Hi, I made this gimbal for me and all people that want play and build own rc model like car or boat or other you think. Very simple but very durable compared to what appears.​ On video below I show all pieces and made small test :)

https://youtu.be/kVqmUJpKJnQ

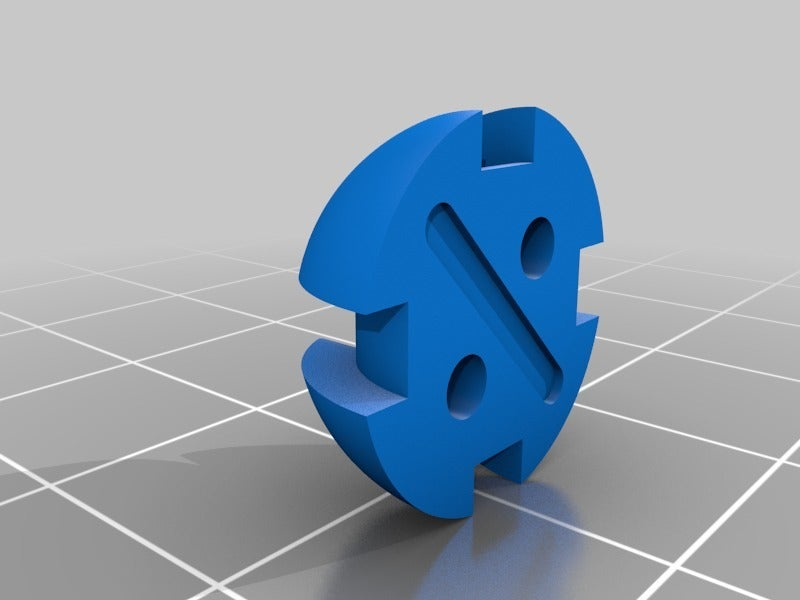

​the sphere is critical piece and I decide to divide for good and easy print. In this other old preview video I show the assembly of sphere

https://youtu.be/Lu8UlfnMbsE

​Test it and report yours experience :)

suggest print conf:
- sphere layer 0.1mm , full infill, print as you see on video
​- other pieces layer 0.1-0.2, full infill

--
Photo of printing and other things on youtube in Community-Tab, my new instagram ;)
https://www.youtube.com/user/SgaboLab/community

Blogger with some diy guide http://www.sgabolab.com/
Pinshape Shop https://pinshape.com/users/130632-sgabolab

If you think to buy from Gearbest and want support me, use my affiliate link, thanks https://www.gearbest.com/?lkid=14695439

3D printer file information

  • 3D design format: STL Folder details Close

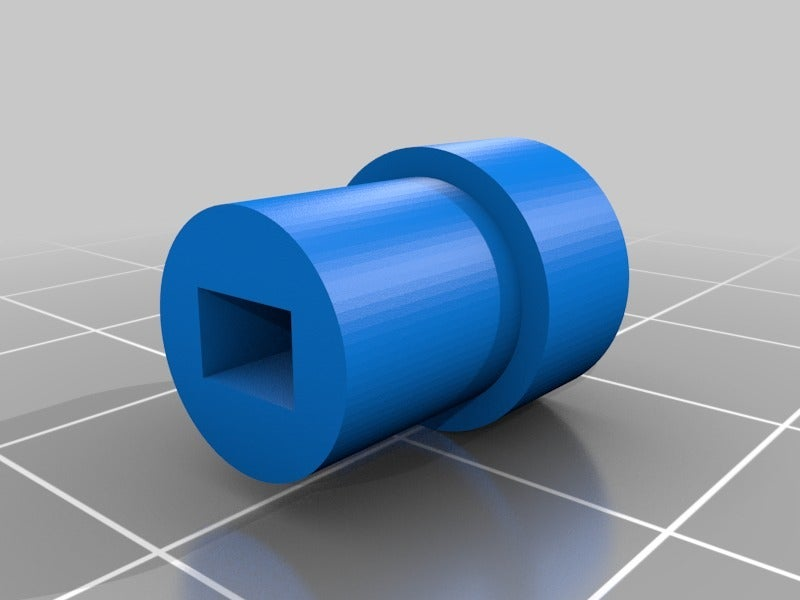

    • FermaUncini-InnestoRettangolare.stl
    • FermaUncini-M4.stl
    • FermaUncini-albero-3mm.stl

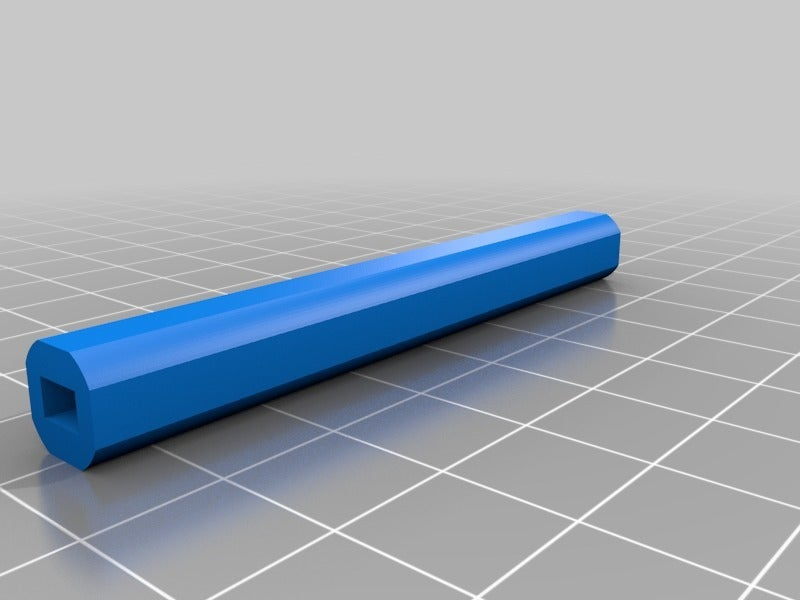

    • FermaUncini-albero-quadro-100mm.stl

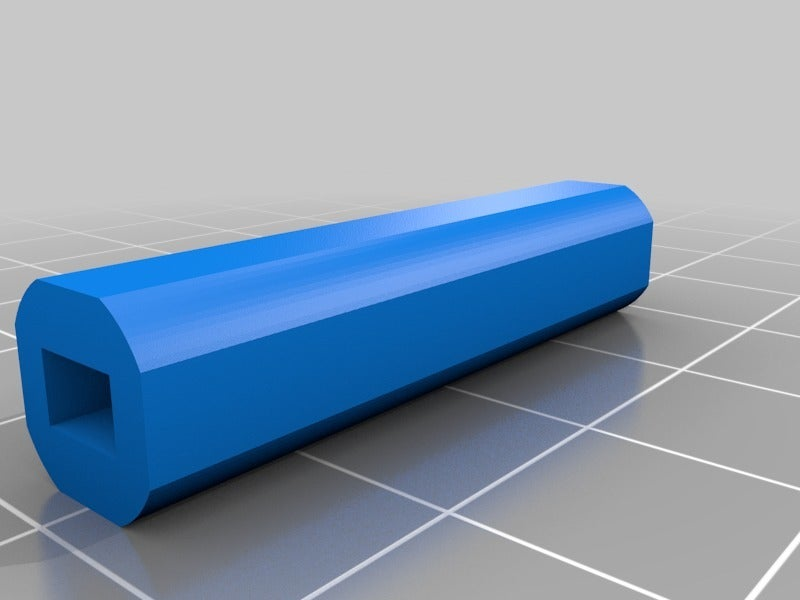

    • FermaUncini-albero-quadro-36mm.stl

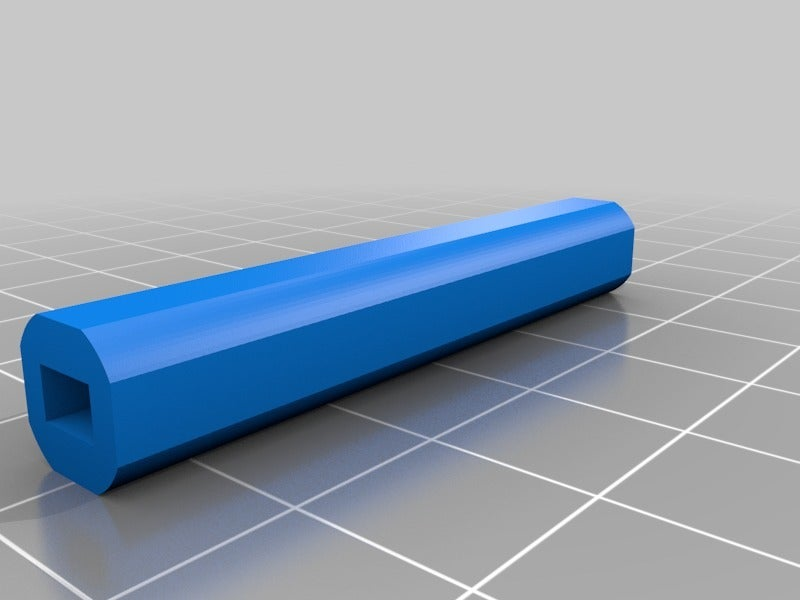

    • FermaUncini-albero-quadro-50mm.stl
    • FermaUncini-albero-quadro-70mm.stl
    • FermaUncini-esagonale-punte.stl
    • MezzaSferaGC.stl
    • Supp-Cuscinetto-x-test.stl
    • Uncino-doppio-cortospesso-8mm.stl
    • Uncino-unico-corto-6mm.stl
    • Uncino-unico-lungo-20mm.stl
    • Uncino-unico-lungo-36mm.stl
    • Uncino-unico-lungo-50mm.stl

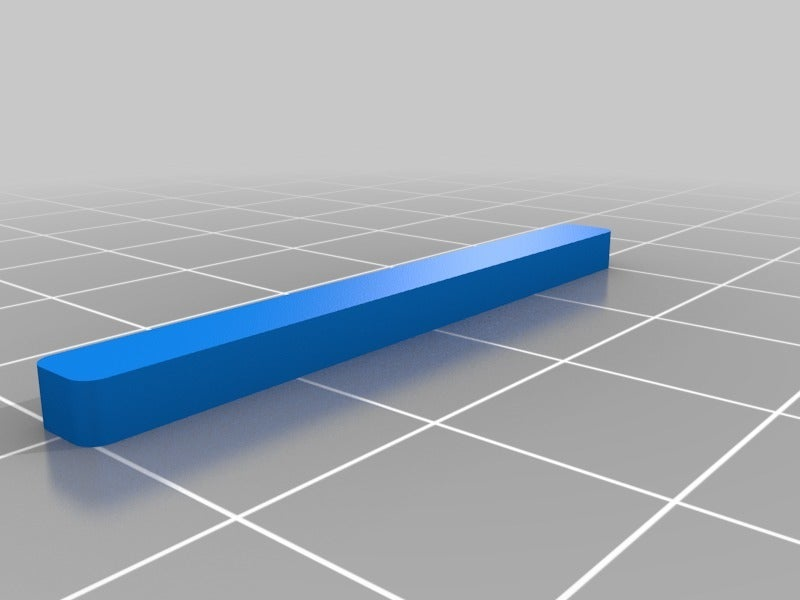

    • barra-40mm.stl

    Learn more about the formats

  • Publication date: 2020-06-21 at 20:11
    ?
    Published to Thingiverse on: 2017-06-11 at 23:06
