rc lawn mower

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
12 files (STL) Close
  • lawn mower chassis.stl 95.35000600000001 ร— 213.14799499999998 ร— 89.03099999999999 mm
  • lawn mower deck wheel print x2 (tpu).stl 5.0 ร— 15.5 ร— 15.5 mm
  • lawn mower deck.stl 161.059998 ร— 69.725998 ร— 20.75 mm
  • lawn mower hood (best if printed in tpu).stl 44.15000900000001 ร— 74.221003 ร— 55.272001 mm
  • lawn mower left front tire (tpu).stl 16.199996999999996 ร— 43.101997 ร— 42.929001 mm
  • lawn mower left rear tire (tpu).stl 30.99700899999999 ร— 47.87600699999999 ร— 47.700001 mm
  • lawn mower right front tire (tpu).stl 16.199996999999996 ร— 43.101997 ร— 42.929001 mm
  • lawn mower right rear tire (tpu).stl 30.997010000000017 ร— 47.87600699999999 ร— 47.700001 mm
  • lawn mower seat.stl 47.540009 ร— 44.41700700000001 ร— 37.646 mm
  • lawn mower spindles.stl 30.5 ร— 21.561630000000008 ร— 14.994 mm
  • lawn mower suspension mount (tpu).stl 32.5 ร— 32.5 ร— 11.5 mm
  • lawn mower swing axle.stl 50.0 ร— 9.5 ร— 8.0 mm

Learn more about the formats
Publication date
Design number 643313
Design author mikeychapple1988
mikeychapple1988

mikeychapple1988

Issue with this design? Report a problem.

3D printer file info

3D model description

radio control version of rcgangs 1/10 scale lawn mower

RC LAWNMOWER

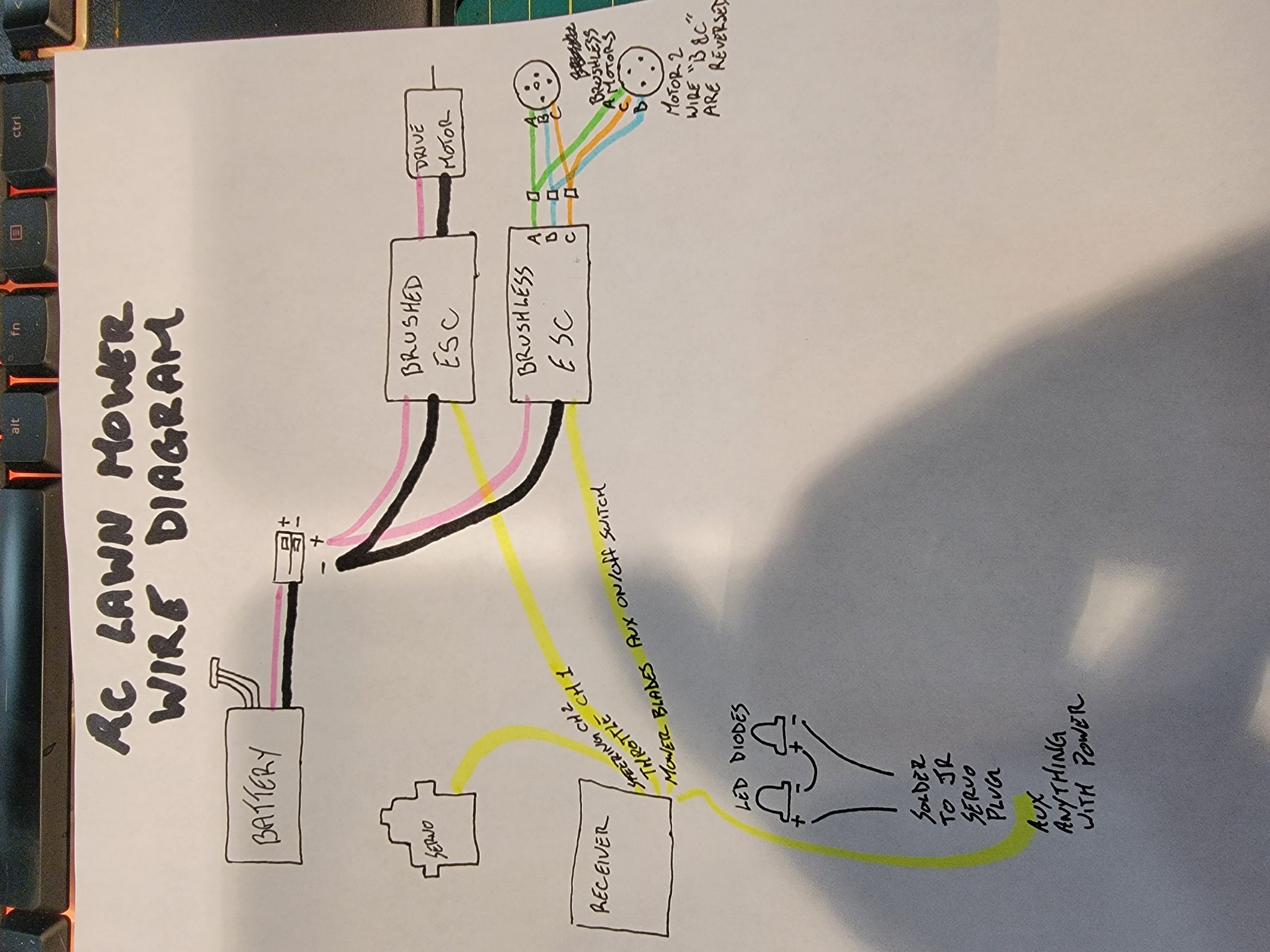

Hardware and Electronics list
6v gear drive motor https://secure.sayal.com/STORE2/View_SHOP.php?SKU=254855
9 gram servo https://www.amazon.ca/Micro-Helicopter-Airplane-Remote-Control/dp/B072V529YD
30A brushed esc https://www.parisjunctionhobbies.com/30a-micro-brushed-esc-for-winch-control-and-other.html
30A brushless esc https://www.parisjunctionhobbies.com/spedix-es30-30a-esc.html
4 channel or more radio and receiver
radio... https://www.parisjunctionhobbies.com/turbo-racing-a82-7-channel-radio-receiver-with-roc.html
receiver... https://www.parisjunctionhobbies.com/rx200-7ch-receiver-w-onboard-gyro-hp007.html
4x7x2.5 bearings (need 8 pieces) https://www.avidrc.com/product/1/bearings/578/4x7x25-Ceramic-Metal-MR74ZZC-bearings.html
Tattu 7.4v 800mah 45c lipo battery https://www.genstattu.com/tattu-800mah-7-4v-45c-2s1p-lipo-battery-pack-with-jst-syp-plug.html
1102 10,000kv or lower brushless drone motors x2 https://www.joom.com/en/products/5dd5eac728fc710101f79f47
1.7" drone propellers x2 https://www.amazon.com/ZHIPAIJI-Propeller-4-Paddle-Brushless-Quadcopter/dp/B09HKFB43H
M2x6 socket head screw x8
M2x10 socket head screw x8
M2 washer x8
M2.5x30 socket head screws x2
M2.5 washer x2
M3x10 pan head screw x2
M3x12 pan head screw x2
M3x15 socket head screw x2
M3x20 socket head screw x1
M3 nuts x8
M4x20 socket head screw x2
M4x25 socket head screw x2
M4 nylon lock nut x2
2-56 full threaded rod
2-56 threaded ball links (du-bro part number 181)
2-56 mini kwik-link(du-bro part number 228)
1/8 NICKEL PLATED SHAFT / WHEEL COLLARS x2 (du-bro part number 139)
5/32x.014 brass tube (K&S precision metals part number 1146)
5/32 NICKEL PLATED SHAFT / WHEEL COLLARS x2 (du-bro part number 140)
5mm 5v LED diode x2
JR servo conector pig tail
JST female wire pigtail x2
JST male wire pigtail x2
Traxxas teflon coated ball stud (traxxas part number 5529X)

3D printing settings

0.4mm nozzle 0.2mm layer height

petg- 50mm/sec 2.5mm retraction
tpu - 30mm/sec 0.5mm retraction
printed on a modified cr10spro with microswiss direct drive and all metal hot end
