R.Pi v2.1 Camera Case

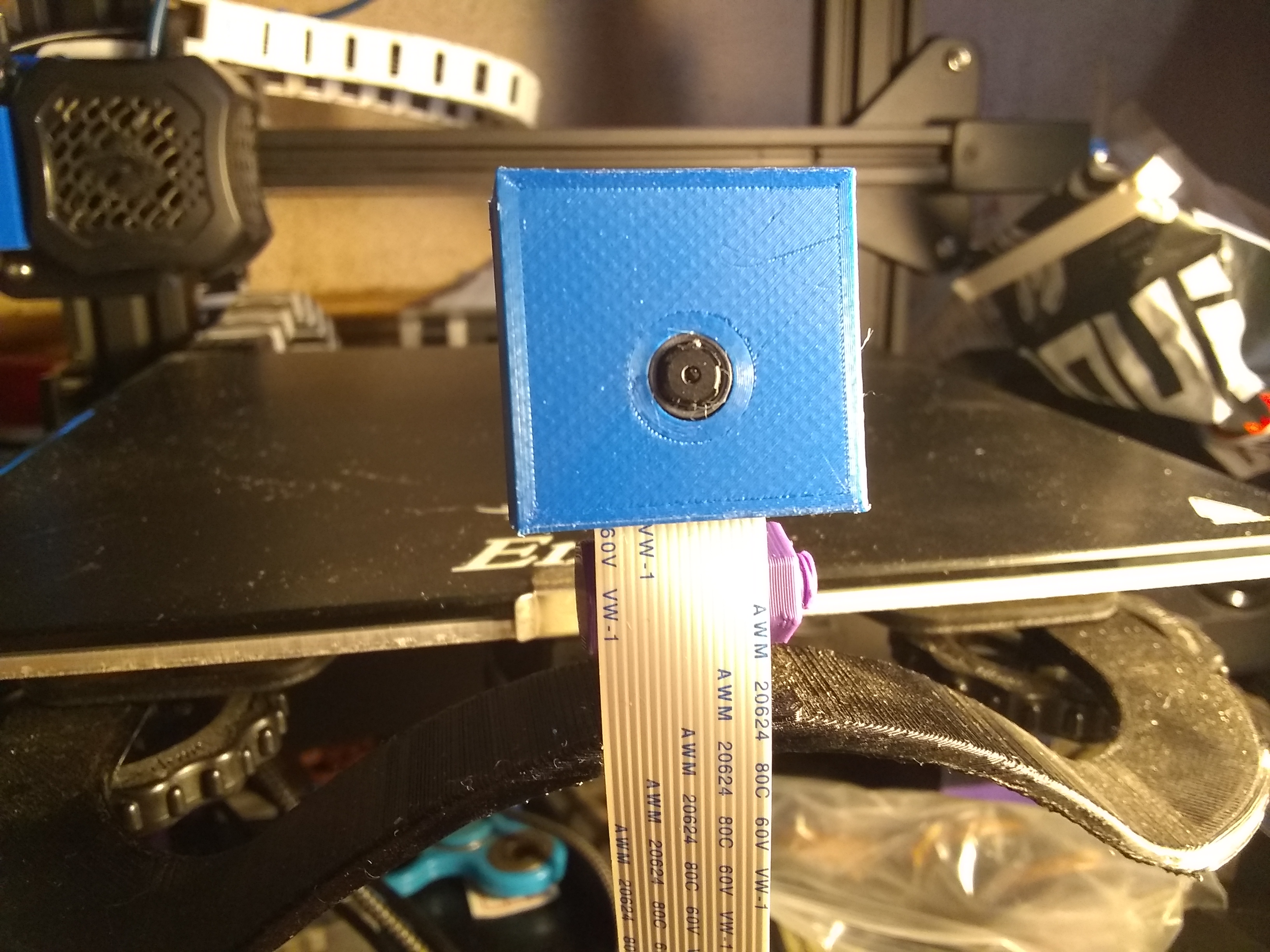

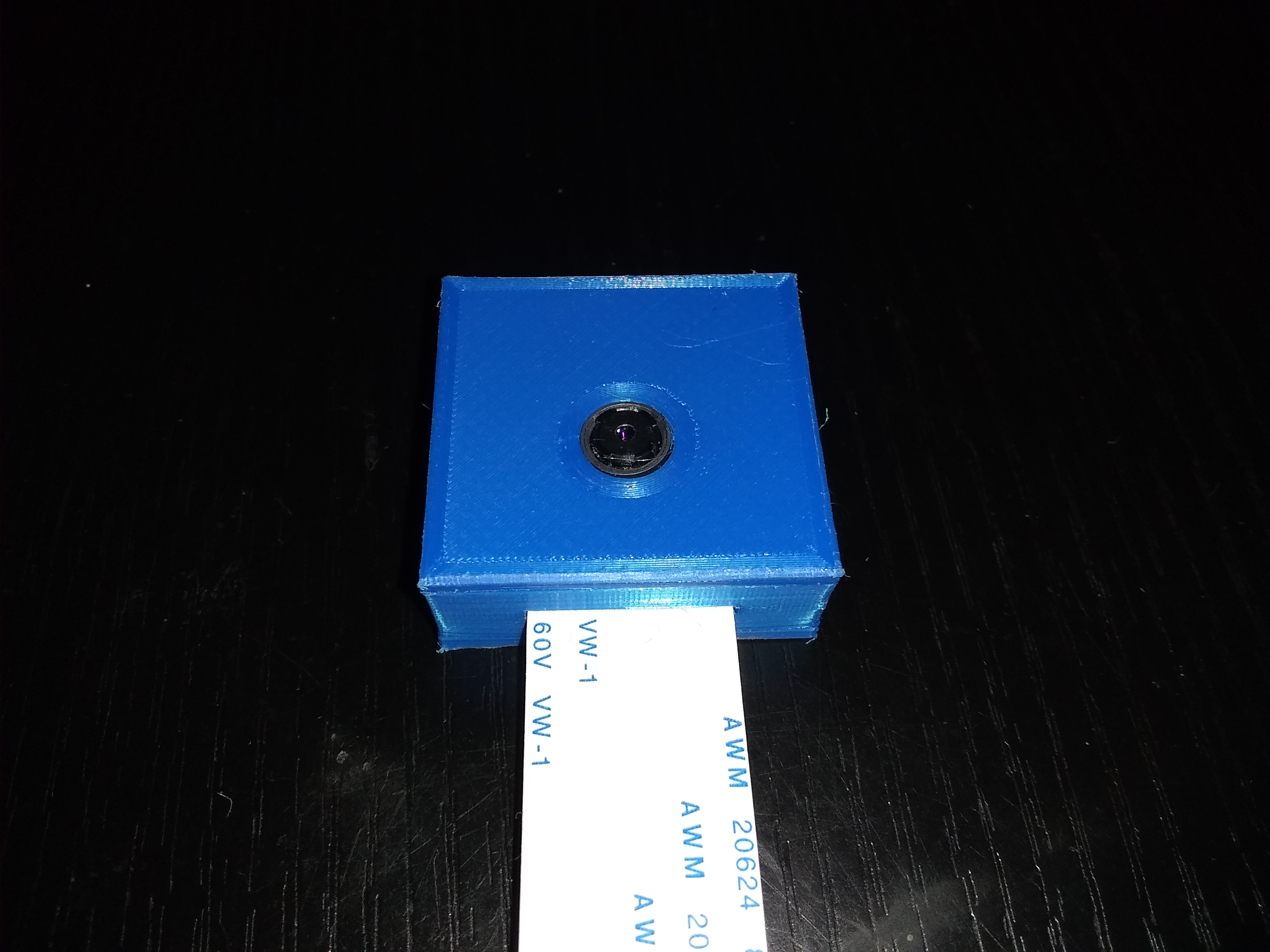

Raspberry Pi v2.1 Camera Module case.

This case was designed in mind for a little more flexibility to move your camera left to right or up and down. Most designs I've seen don't have this capability.

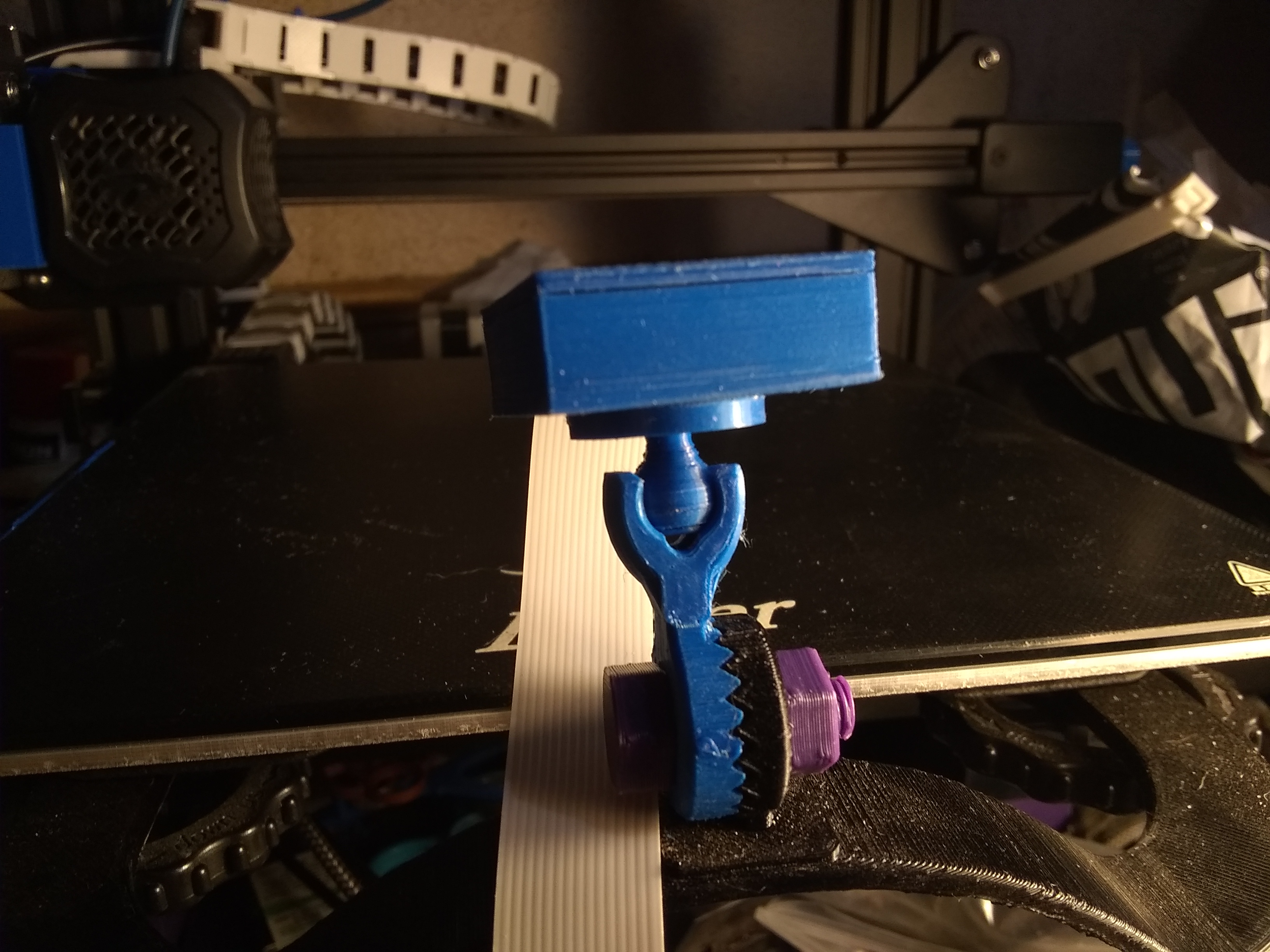

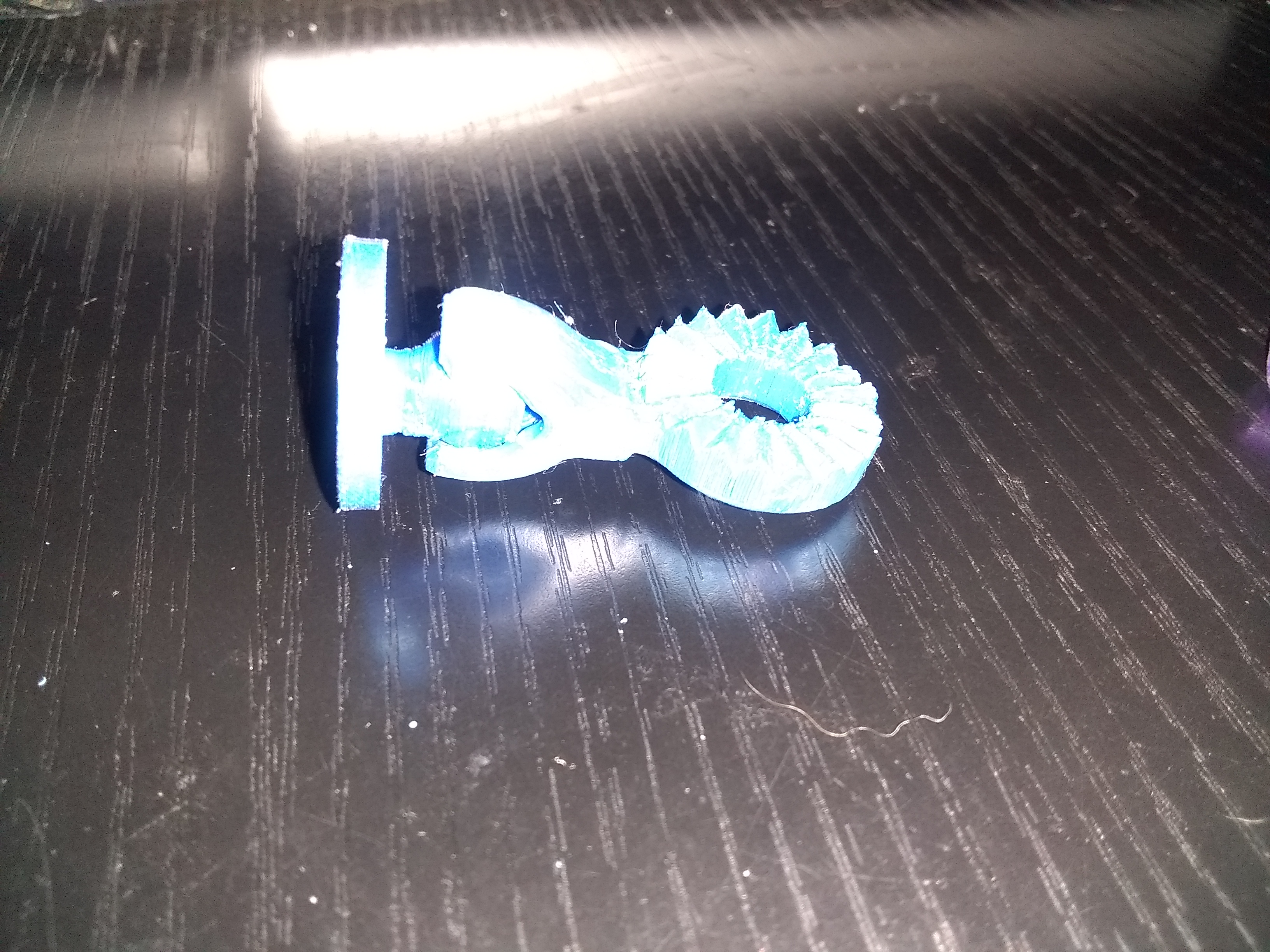

You'll want to Glue R.Pi v2.1 Module Case Mount (Back without Magnet) to either R.Pi v2.1 Module Case Back (Without Magnet) or R.Pi v2.1 Module Case Back (This file don't include a Recess), This 2 pieces glued together will allow you to connect to R.Pi v2.1 Module Case Mount (Bed).

If wanting to use with Magnets to make it easier to remove the camera case from the mount to quickly get it out of the way.

Glue 10mm x 1mm Rare earth magnets into R.Pi v.21 Module Case Back (Magnet Mount) and R.Pi v2.1 Module Case Mount (Back with Magnet), This will allow these two to stick together with a magnet and able to pull apart when needed.

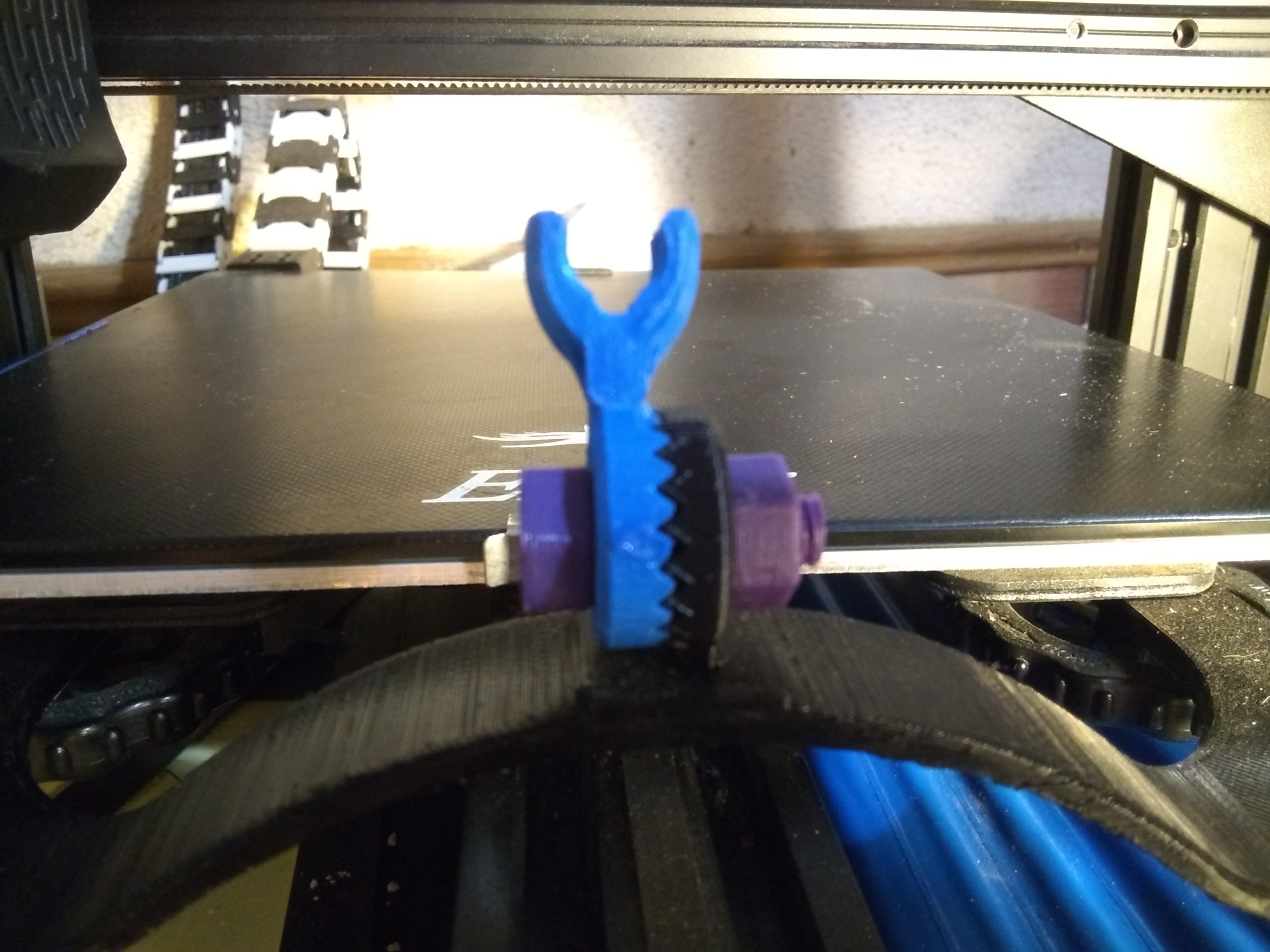

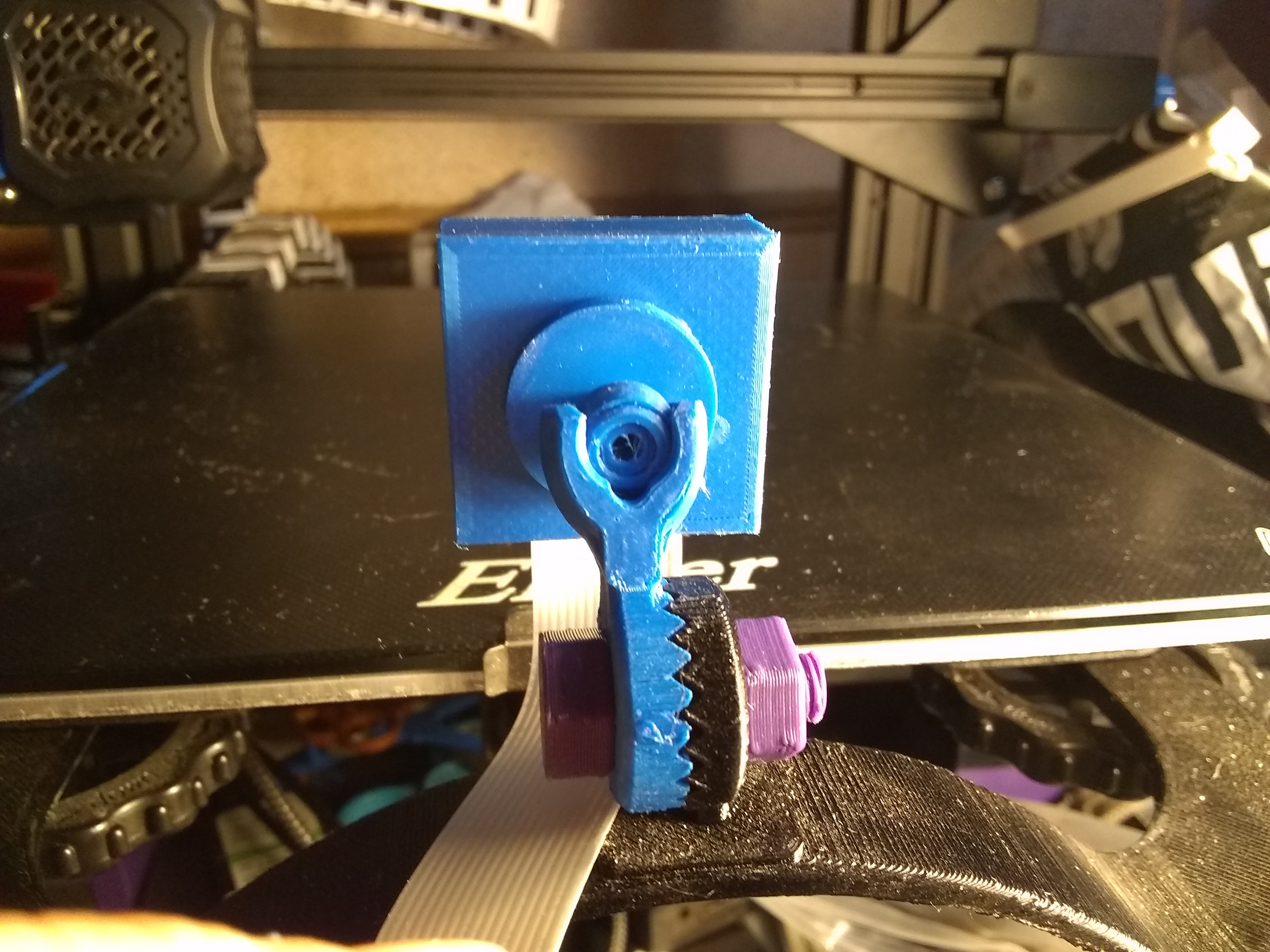

R.Pi v2.1 Module Case Mount (Bed) file will work with this bed Mount from Thingiverse (https://www.thingiverse.com/thing:3941595), You can download the Bed Mount for this and my (Add-On) will work with this bed mount.

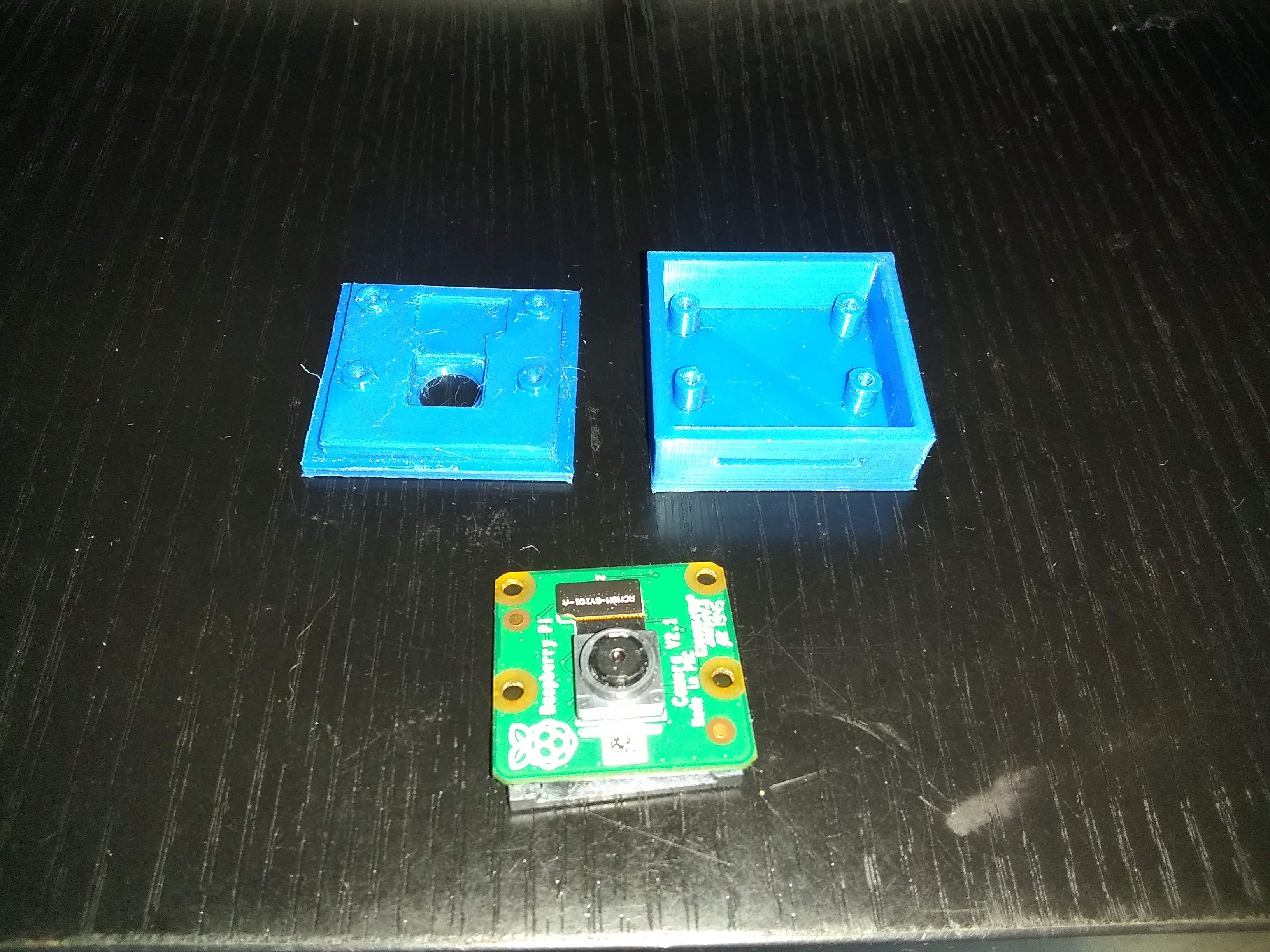

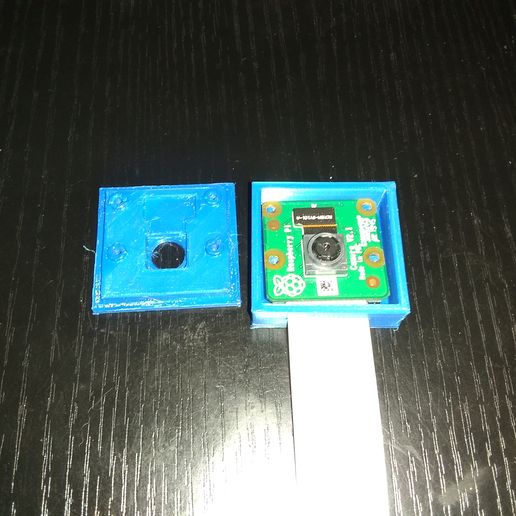

This design also includes 4 Recesses that is 1.85mm in Diameter with a very snug fit for 4 small pieces of Filament to insert in the recesses to hold camera if needed both in front and back. As snug fit as the front and back is, these won't be needed, but if I it is needed, just glue 4 6mm long filament pieces into the back, add the camera module then snap on the front, don't glue the front onto the filament or you can't get it apart in case the camera breaks

Hope this Design can be of use to those that have the Camera Module v2.1 (8MP Camera).

Nozzle: .2mm
Print Speed: 25mm/s
Print Layers: .1mm
Supports: Yes (On Bed Piece)
