Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016

protege carter embrayage catia ss initiale.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage catia.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage stl 1.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016

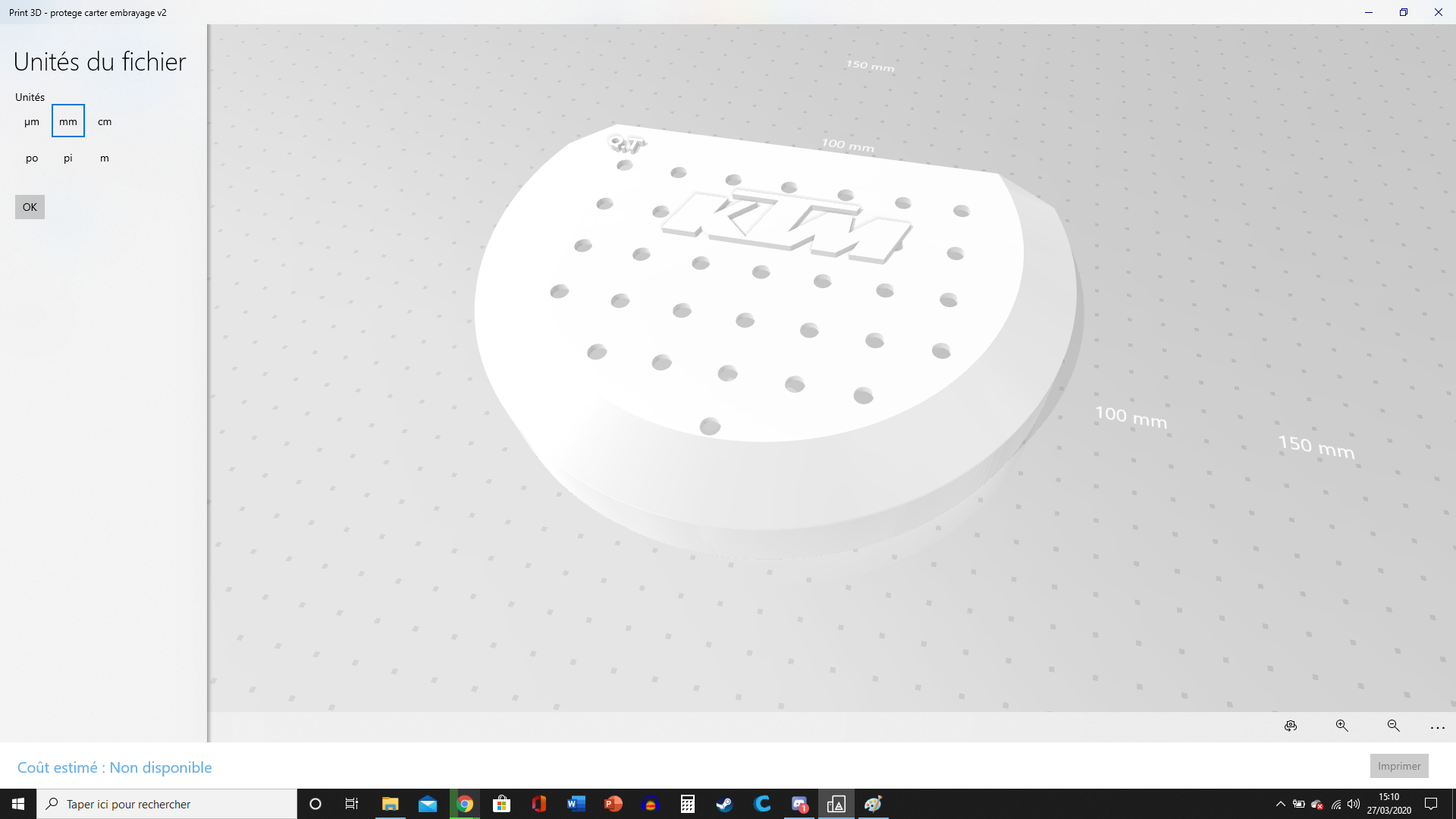

protege carter embrayage stl 2.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage photo.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
attache stl.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
attache.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage v2.stl Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage v2 sans les initiales QT.stl Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
attache.stl Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage catia ss initiale.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage catia.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage stl 1.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage stl 2.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage photo.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
attache stl.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
attache.png Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage v2.stl Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
protege carter embrayage v2 sans les initiales QT.stl Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
attache.stl Clutch cover KTM/HUSQVARNA 250/300 sx/exc/tpe 2008-2016
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (21 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
3 files (STL) Close
  • attache.stl 5.0 Γ— 19.99901 Γ— 15.999688 mm
  • protege carter embrayage v2 sans les initiales QT.stl 175.0 Γ— 121.499474 Γ— 32.0 mm
  • protege carter embrayage v2.stl 175.0 Γ— 121.490707 Γ— 32.0 mm

Learn more about the formats
Last update
Publication date
Design number 124239
Design author Qtdu12
Qtdu12

Qtdu12

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

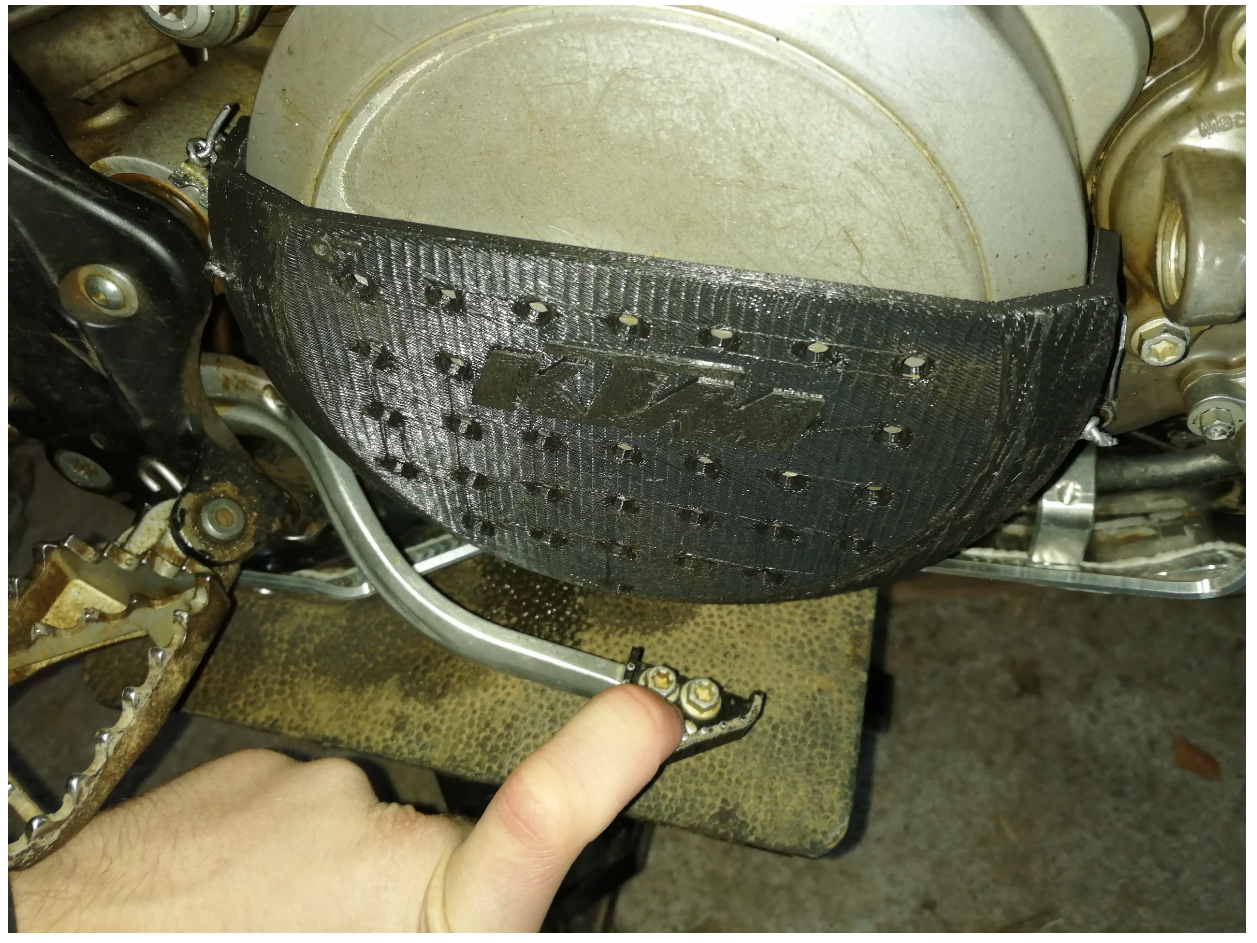

I offer you a clutch housing protector tested over 3 months, with numerous falls on rocky terrain.

It proved to be efficient and resistant, still not broken.

It resists engine temperature very well, as it doesn't exceed 110Β°C, which isn't enough to melt.

What's more, it's drilled for better heat dissipation.

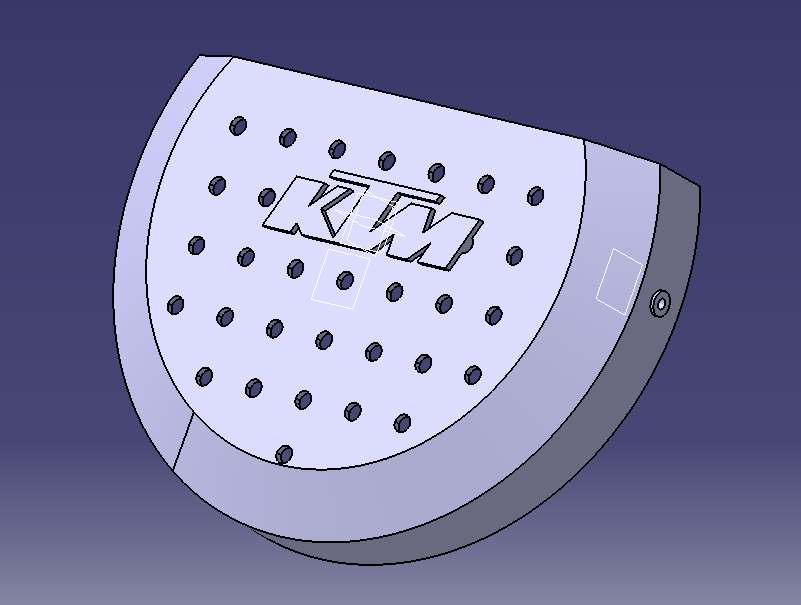

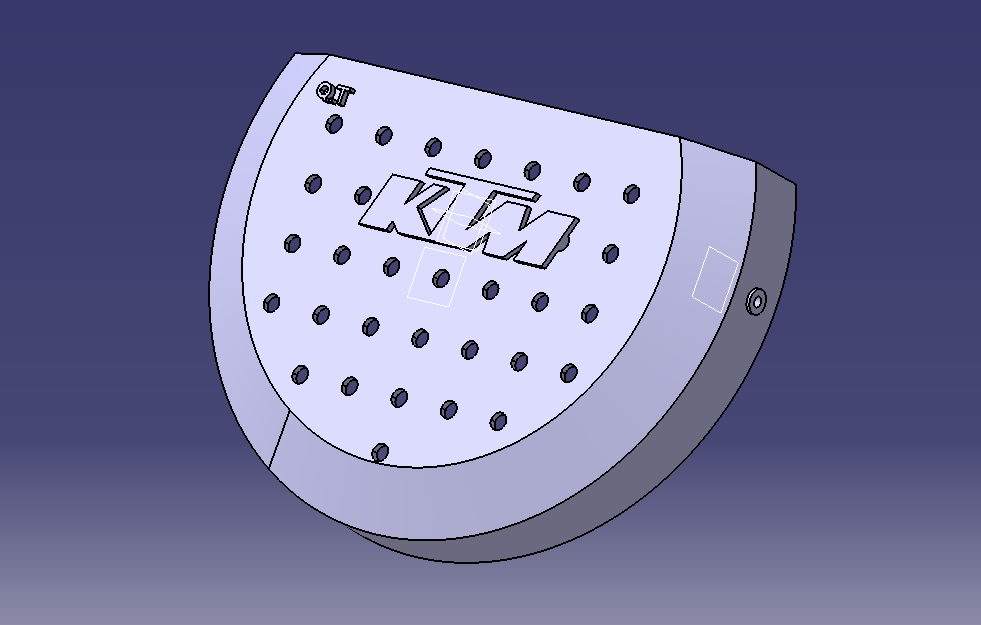

I put you a 2nd stl without the Q.T initials see photo.

Tip for use:

For the fastening part, high-temperature double-sided tape does not work.

You'll need to create 2 small metal brackets, approx. 10x20x1 mm with 2 holes.

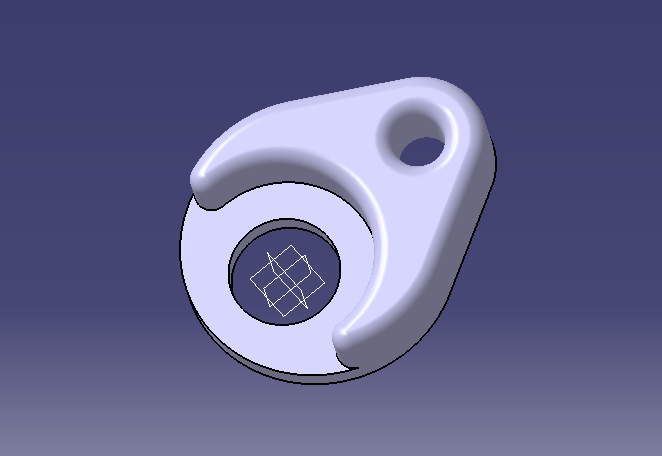

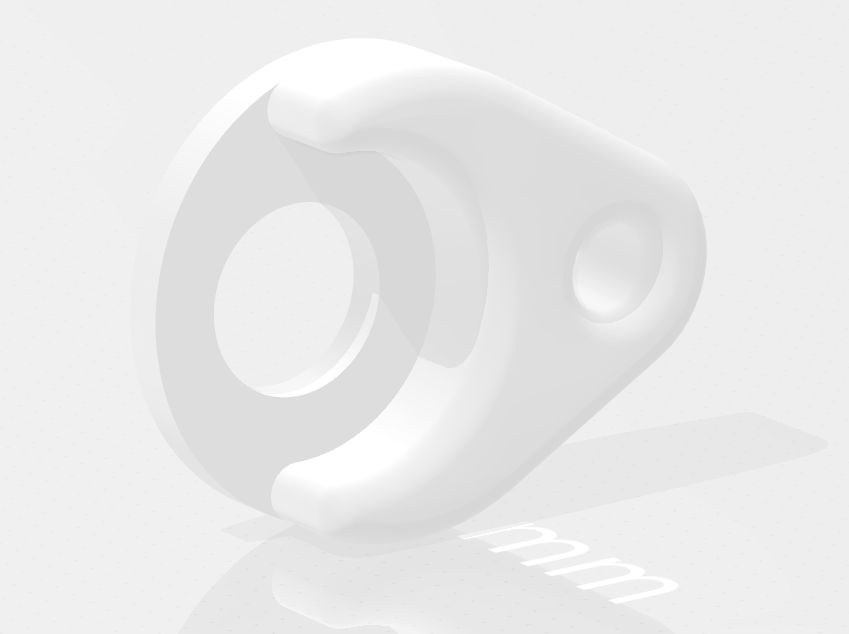

Or you can use 2 fasteners, see photos and stl (not tested).

The brackets will be screwed to the crankcase with the original screws and fixed the brackets to the crankcase guard with wire.

Do not force the wire and make sure it does not move.

If you would like to have a custom housing (pattern, etc...) or one that is compatible with other models, please contact me privately or by comment.

  • 20% by emailing me privately.

3D printing settings

  • Original parameter

  • Nozzle in 0.4

  • Pla + ESUN

  • 60% filling

  • For my part, I put the flat part against the tray to save filament, but as a result, the finish is worse.

Machine: Creality Ender 3 upgrade

Software: Cura, Catia V5R20
