MINI 3D-Printed RC CAR by El1as.F

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
24 files (STL and ZIP) Close
  • Axle(4x).stl 21.498671 × 10.989417999999993 × 10.990079999999999 mm
  • Big_gear.stl 26.3638 × 26.393126 × 23.0 mm
  • Cardan_shaft(2x).stl 23.0 × 11.999995999999996 × 12.0 mm
  • Chassis.stl 90.0341 × 162.198456 × 13.5 mm
  • Chassis_front.stl 78.994728 × 30.098663000000002 × 26.3 mm
  • Chassis_rear.stl 78.0 × 29.897411000000005 × 21.3 mm
  • Differential_gear.stl 17.459231000000003 × 10.499432 × 10.498863999999998 mm
  • Differential_part_1.stl 9.950000000000001 × 9.95 × 22.7 mm
  • Differential_part_2.stl 17.722483 × 17.798408 × 25.1 mm
  • Driveschaft(TPU).stl 11.20737 × 80.80000100000001 × 11.207368999999998 mm
  • Front_hub_left.stl 14.0 × 29.405476 × 41.0 mm
  • Front_hub_right.stl 14.0 × 29.405476 × 41.0 mm
  • Gearbox_cover.stl 54.701169 × 25.312432999999995 × 17.43 mm
  • Locked_differential.stl 17.433551 × 39.0 × 17.473664 mm
  • MINI 3D-Printed RC CAR.zip
  • Motor_gear.stl 17.599612999999998 × 17.599323 × 14.988482 mm
  • Motor_mount.stl 38.147202 × 19.000001 × 28.00738 mm
  • Rear_hub(2x).stl 13.200001 × 20.5 × 41.260000000000005 mm
  • Servomotor_arm.stl 7.0 × 4.0 × 21.000908000000003 mm
  • Steering_arm_left.stl 32.463786 × 7.0 × 5.000090999999999 mm
  • Steering_arm_right.stl 42.866969 × 9.0 × 5.0008620000000015 mm
  • Tire_left(2x).stl 20.5 × 50.417792999999996 × 51.073547 mm
  • Tire_right(2x).stl 20.5 × 50.417792999999996 × 51.073547 mm
  • wheel_rim.stl 16.5 × 30.923893000000007 × 30.702497 mm

Learn more about the formats
Publication date
Design number 558907
Design author eliasbautwas
eliasbautwas

eliasbautwas

Issue with this design? Report a problem.

3D printer file info

3D model description

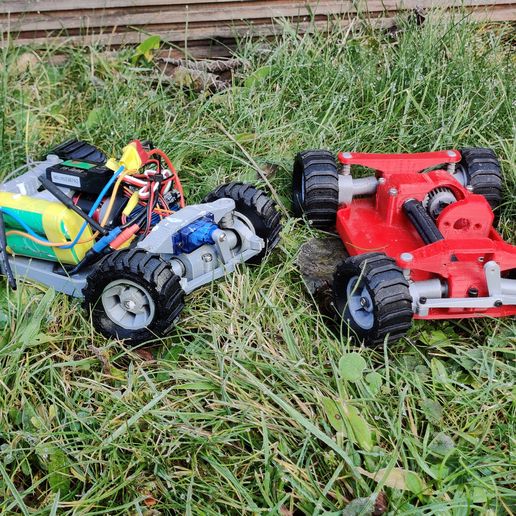

Before I started designing, I had set myself the following goals. It should be as small as possible, but still have all-wheel drive and have suspensions. Of course, it also has to consist largely of 3D-printed parts.

If you want to learn more about it, I also made a YouTube video:
https://bit.ly/3GZ1d4s
(Yes the video is in German, but I made subtitles for English and French people)

I also made a Building Video:
https://bit.ly/3mQKhFi

Needed is:
- Brushless motor 2212 920kv outrunner
- Brushless motor controller 35 amps for RC cars
- Receiver
- Battery
- 9G Micro Servo Motor
- Ball bearing 10 × 15 × 4 mm
- 4x Spring suspension 15 × 10 (diameter) mm
-Screws:
- 7x M3 15 mm (To secure the main body parts)
- 2x M3 10 mm (To secure the main body parts)
- 5x M2 5 mm (for the direction and the motor gear)
- 4x M3 20 mm (To secure the wheels)
- Some PLA and time to build it
- Rasp and sandpaper
- GREASE FOR THE GEARS AND CARDAN SHAFTS!!

Parts that I use:
https://bit.ly/3o1sv1n

If I forgot something, please let me know!

3D printing settings

You need to print the parts with a 0.3 mm nozzle and a 0.15 mm layer high.
The print orientation can be taken from the photos.

The drive shaft and the tires should be printed with TPU or a flexible Filament.

Supports. Yes
