3D printer file info

3D model description

[14.10.2023 10:00 UTC | A3: added missing gunner's hatch]

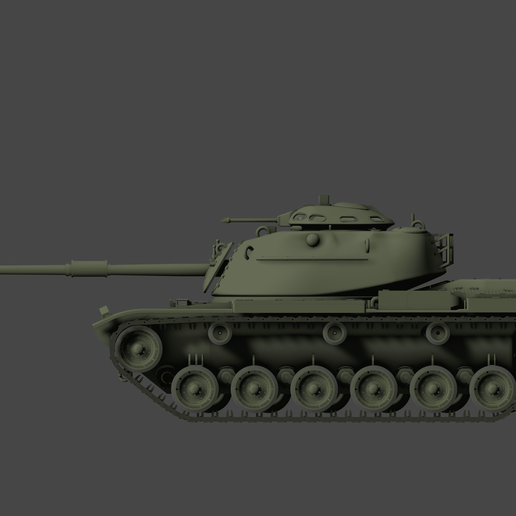

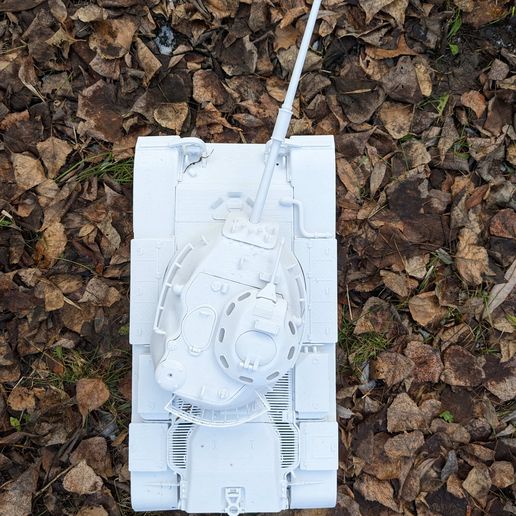

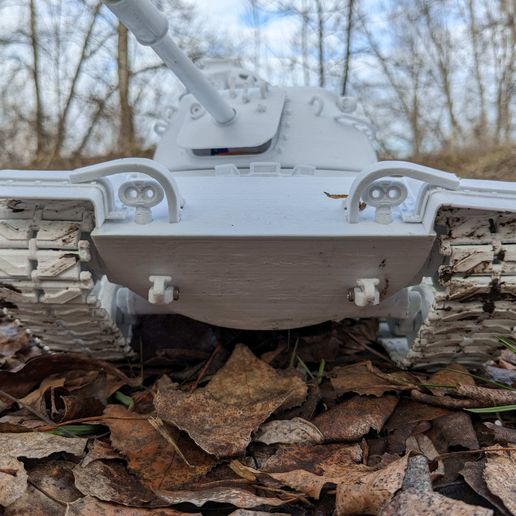

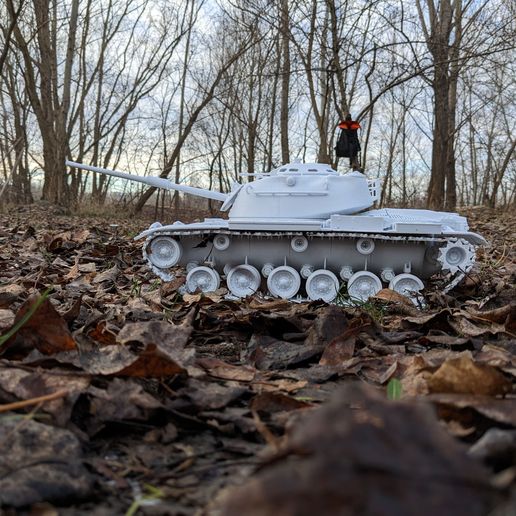

Fully functional radio controlled model of M60 / M60A3.
Can be turned into stand model by using plastic gearbox rod (check Google Drive)

Archive contains two turrets: regular one and A3 turret. Both are replaceable, so single hull can carry both.

READ BEFORE YOU BUY

Manual, electronics │Live preview | Video

Based on Heng Long TK-7.1. Does not support BB unit.
supported:
- engines \ gearboxes (plastic / metallic)
- turret rotation
- canon lifting
- smoke
- x2 40mm speakers
- fully functional suspension
- recoil & elevation on SG90 servos

Some numbers:
scale: 1/16
width: 230mm
length: 430mm
height: 180mm
weight: 2,540 g
required printer area: 180x180

Please contact us on Discord in case of any troubles

3D printing settings

PETG is preferable. Use 40-50% infill for levers (balancers)
