LA5 FN 3D print plane Soviet Fighter

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
21 files (RAR, STL, and ZIP) Close
  • 1.stl 93.47160399999999 Γ— 86.748649 Γ— 38.496702 mm
  • 10.stl 50.583299999999994 Γ— 20.048889000000003 Γ— 126.186988 mm
  • 11.stl 89.950772 Γ— 14.68713299999996 Γ— 17.999978999999996 mm
  • 12.stl 145.670514 Γ— 33.79138199999997 Γ— 197.077195 mm
  • 13.stl 179.410302 Γ— 34.193451 Γ— 158.114342 mm
  • 14.stl 57.17596400000002 Γ— 43.10017400000001 Γ— 12.290867000000002 mm
  • 15.stl 7.6053 Γ— 26.56576 Γ— 63.048699000000006 mm
  • 16.stl 39.60244799999998 Γ— 27.530654999999996 Γ— 11.723264000000002 mm
  • 2.stl 65.54190000000003 Γ— 75.577553 Γ— 21.671784 mm
  • 3.stl 97.09414699999999 Γ— 111.009705 Γ— 138.956188 mm
  • 4.stl 104.77000100000001 Γ— 72.356003 Γ— 188.432011 mm
  • 5.stl 138.00433399999997 Γ— 38.168396 Γ— 195.93359999999998 mm
  • 6.stl 20.984696000000014 Γ— 11.050598 Γ— 8.314346 mm
  • 7.stl 35.214522999999986 Γ— 8.347762999999993 Γ— 115.712635 mm
  • 8.stl 75.731293 Γ— 7.478053999999993 Γ— 125.12469499999999 mm
  • 9.stl 40.74278399999999 Γ— 21.915481 Γ— 6.49999600000001 mm
  • LA5-2021.zip
    • cap_akk.stl
    • el_1.factory
    • el_1.stl
    • el_2.factory
    • el_2.stl
    • K1.factory
    • K1.stl
    • K2.factory
    • K2.stl
    • K3.factory
    • K3.stl
    • K4.factory
    • K4.stl
    • K5.factory
    • K5.stl
    • motofr_1.stl
    • motofr_2.stl
    • stab1.factory
    • stab1.stl
    • stab2.factory
    • stab2.stl
    • stab_2.stl
    • stab_all.stl
    • w1.factory
    • w1.stl
    • w1a.stl
    • w2.factory
    • w2.stl
    • w3.factory
    • w3.stl
    • W_cap.stl
  • factory_V2.rar
  • spineer1.stl 42.909662 Γ— 42.909666 Γ— 34.060325000000006 mm
  • spineer2.stl 45.021792000000005 Γ— 45.019383 Γ— 9.846123 mm
  • spineer3_prop_8x6x3_3.stl 9.149597 Γ— 20.0 Γ— 77.549305 mm

Learn more about the formats
Last update
Publication date
Design number 101556
Design author be711
be711

be711

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

21.09.2020

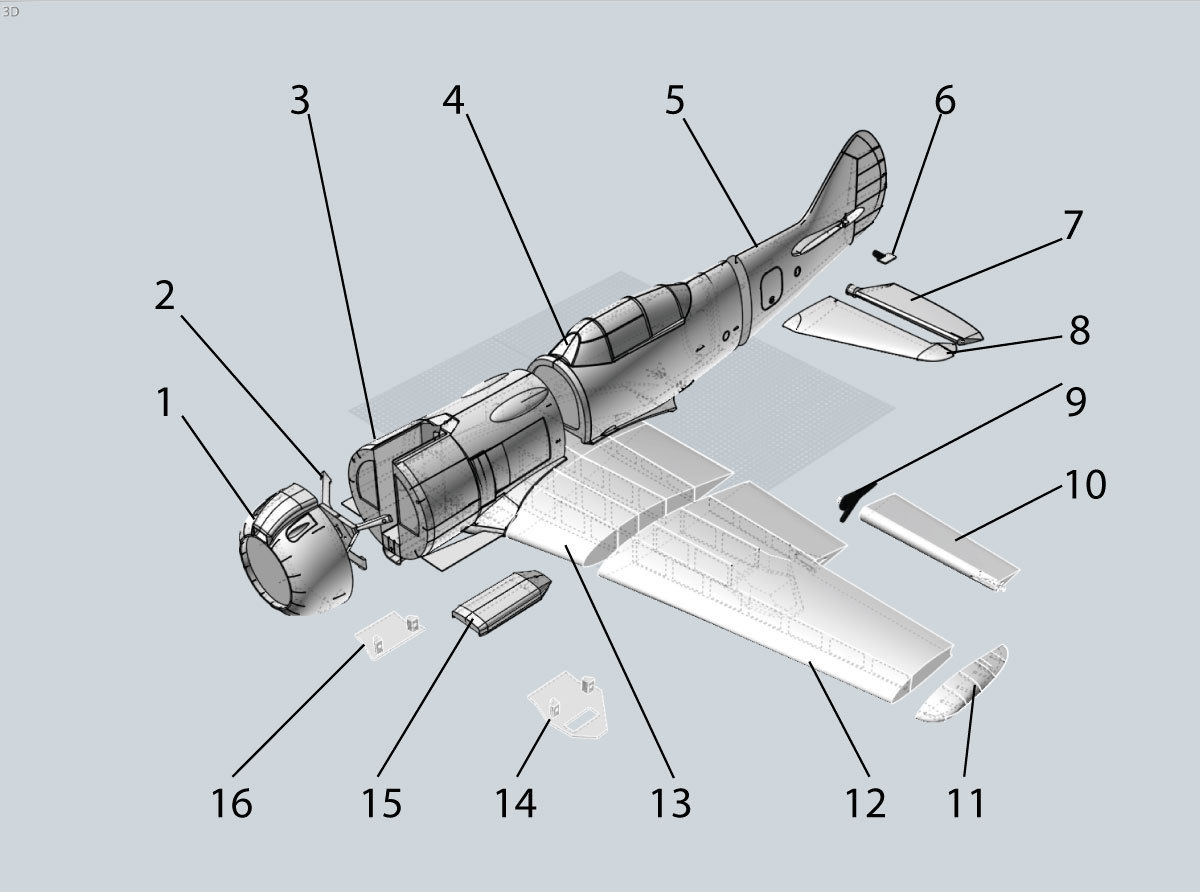

Many changes in the model, all files are replaced with a new version. added new assembly diagram.
spineer1-3 and 2.stl need to be printed from PETG because PLA may not withstand the heat of the motor.
Parts 1 and 3 need to be printed in 2 perimeters, then the front part will be stronger and heavier and CG 1/3 of the root chord of the wing.

https://youtu.be/hpw_Z_ep84U

18,02,2020
Added configuration files for S3D,
added gain to part of wing 10

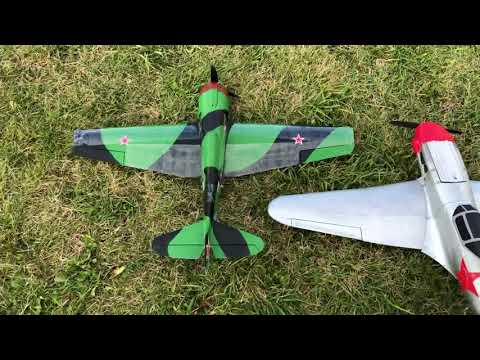

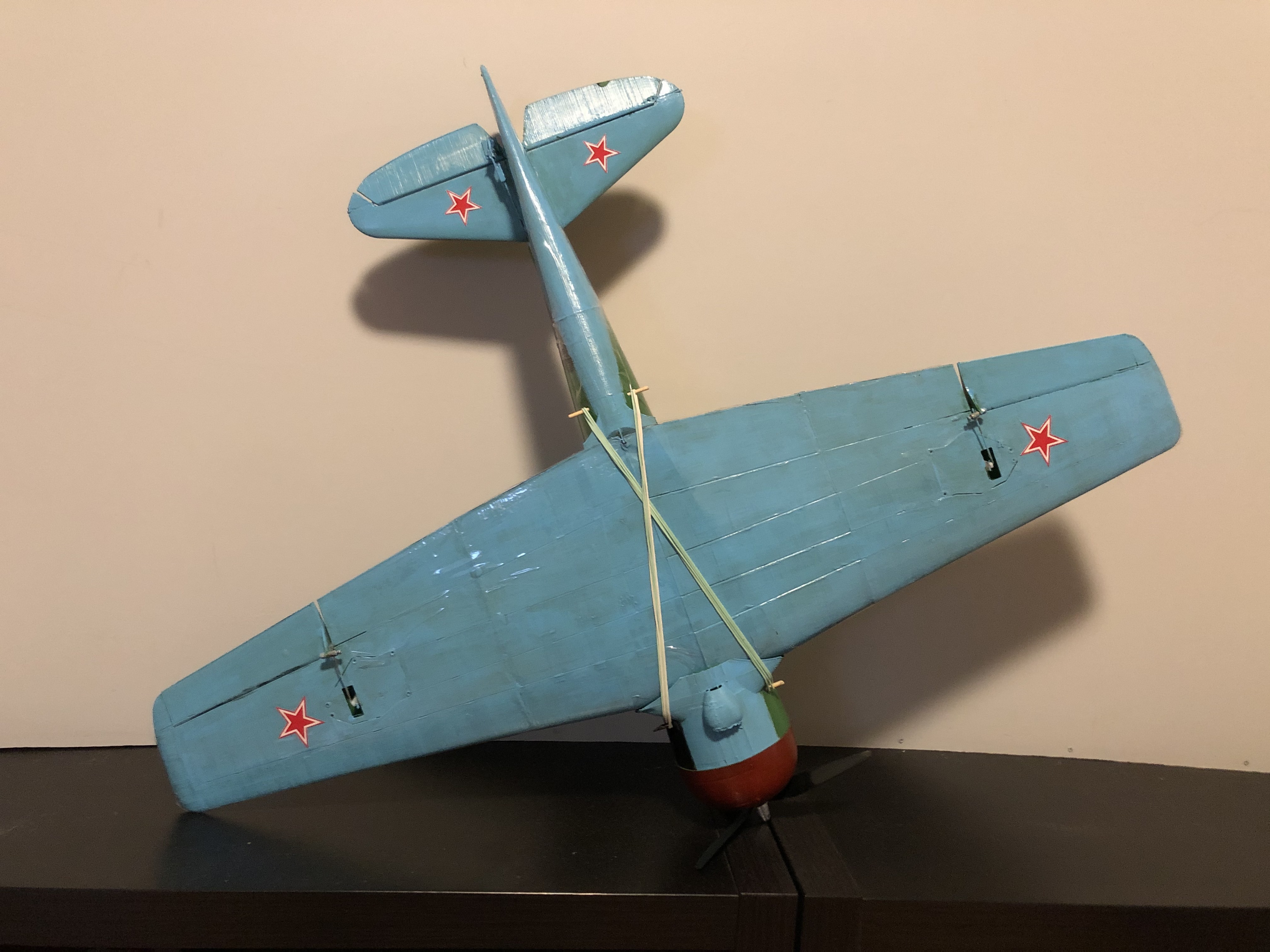

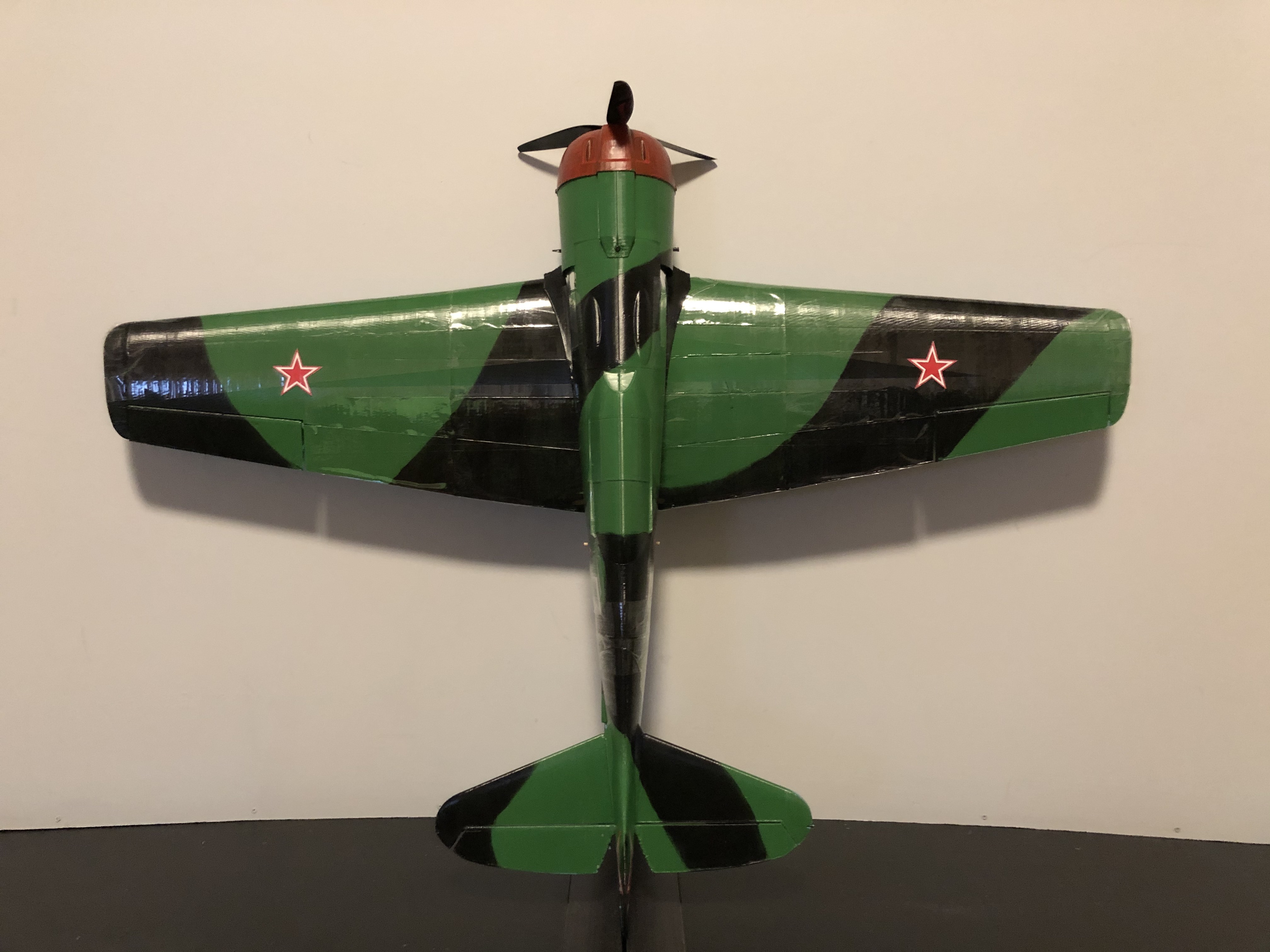

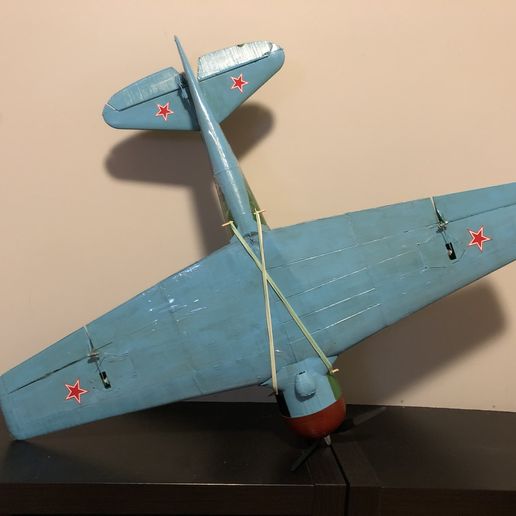

Hi guys! I have already designed, printed and crashed planes from PLA and PETG many times. Every unsuccessful landing ends in failure. I have to print for many hours. My EXTRA300 model without glue turned out to be very technological for replacing broken parts, but breakdowns still happen often. I decided to make the plane smaller and lighter. A 1:15 scale allows you to make planes with a flight weight of less than 400 grams. My first model on this scale is the LA5 FN.

La-5 is a Soviet single-engine fighter created under the leadership of S. A. Lavochkin in 1942. The aircraft was a single-seat monoplane with a solid wood structure with retractable landing gear and a closed cockpit.

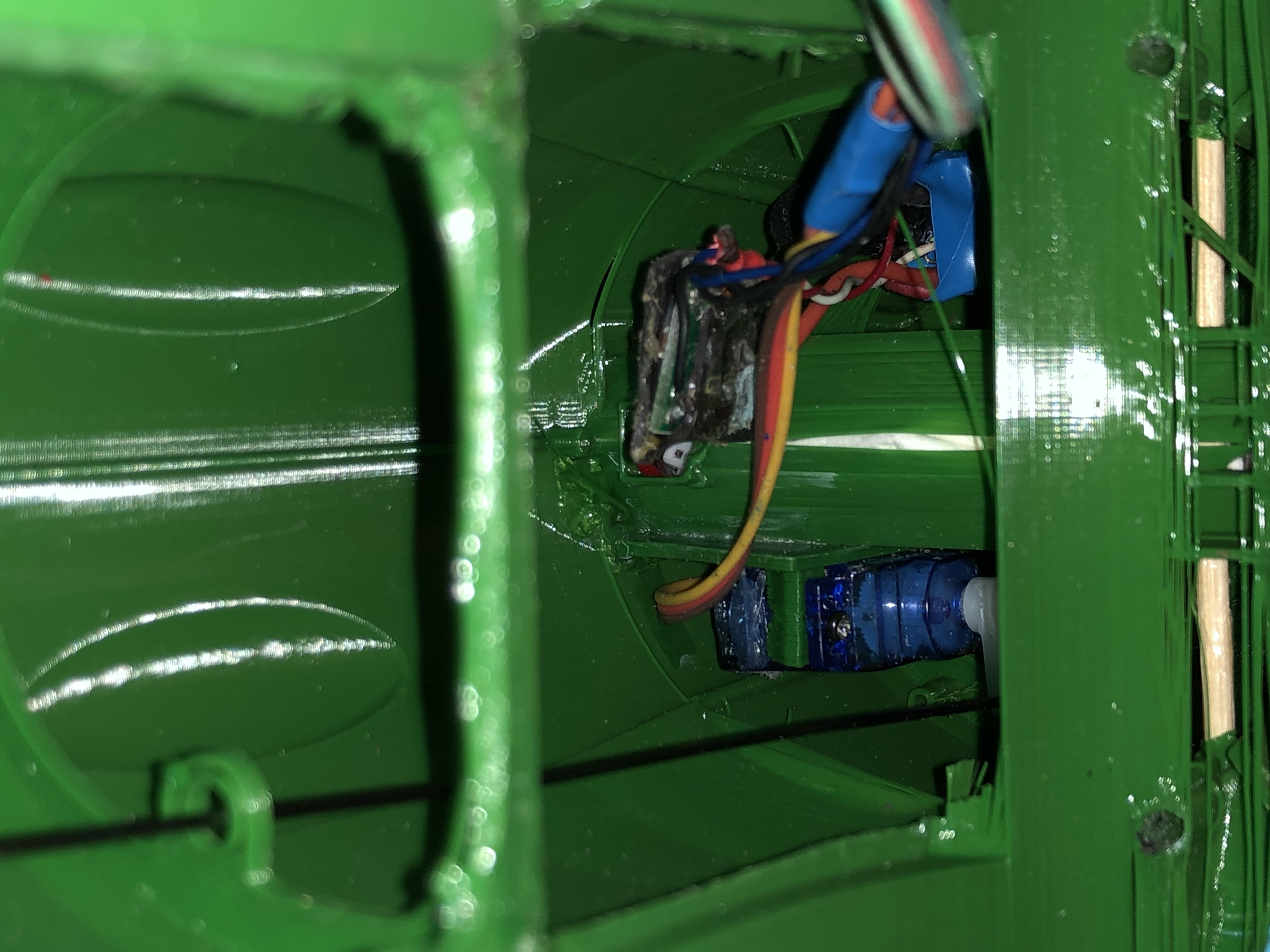

I used the motor 2205-2300kv, ESC 20A, 2x servo 5g -9g bat 3S - 460mah

forum for questions here https://www.rcgroups.com/forums/showthread.php?3459819-LA5-FN-650mm-210g-%281-15%29

3D printing settings

All parts are printed with a 0.4mm nozzle. One perimeter vase mode. Only the engine mount is printed in 2 perimeters and with a filling of 50%. It is better to start printing 2 covers and end without a cover. After printing 3 and 4, cuts must be made with a hot knife to accommodate the electronics and battery. For ailerons and elevators, I used an axis with a diameter of 1.2 mm. Part 1, 2,3 and 15 must be fixed with 1.5x8mm screws
