Daft Punk helmet - Guy

Advertising
Share
Add to
Make
?
Creation quality: 4.5/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
73 files (3MF, OBJ, and SVG) Close
  • D - Back.obj 210.878678 × 155.88582200000002 × 134.656456 mm
  • D - Backpack.obj 304.110824 × 304.11082500000003 × 110.016784 mm
  • D - Ear cone.obj 20.840370000000007 × 63.155891 × 63.419573 mm
  • D - Ear.obj 27.697181999999998 × 97.919808 × 72.34168600000001 mm
  • D - Front split chin.obj 211.932006 × 170.238121 × 107.79303 mm
  • D - Front split top.obj 211.93245 × 129.783356 × 110.419907 mm
  • D - Front.obj 211.93245 × 273.174965 × 200.062935 mm
  • D - Side plug (RCA female connector).obj 9.586762000000007 × 9.639965000000004 × 9.586754 mm
  • D - Side.obj 32.96470699999999 × 150.91279600000001 × 115.89245199999999 mm
  • D - Solid color.3mf
  • D - Solid ear.obj 39.492065999999994 × 147.752613 × 111.406002 mm
  • D - Solid main.obj 211.789208 × 276.150291 × 299.29396099999997 mm
  • D - Solid.obj 252.643586 × 276.150291 × 299.29396099999997 mm
  • D - Visor perforated leds.obj 205.536866 × 246.814033 × 186.187298 mm
  • D - Visor perforated.obj 205.536866 × 246.814033 × 186.18508500000002 mm
  • D - Visor vaccum forming template.obj 235.356552 × 305.212616 × 208.406589 mm
  • D - Visor.obj 205.536866 × 246.814033 × 186.187298 mm
  • D - Wire plate with wires.obj 184.232986 × 100.53652399999999 × 89.51300499999999 mm
  • D - Wire plate.obj 184.232986 × 99.34455299999999 × 88.243428 mm
  • D - glove plates Guy.obj 180.36575299999998 × 189.623078 × 26.224766000000002 mm
  • HAA - Back.obj 206.369004 × 151.441967 × 129.850185 mm
  • HAA - Ear cover.obj
  • HAA - Ear.obj
  • HAA - Front NO Led Rig fittings split chin.obj 211.932006 × 170.238121 × 107.79303 mm
  • HAA - Front NO Led Rig fittings split chin.obj
  • HAA - Front NO Led Rig fittings split top.obj 211.93245 × 129.783356 × 110.419907 mm
  • HAA - Front split chin.obj 211.932006 × 170.238121 × 107.79303 mm
  • HAA - Front split top.obj 211.93245 × 129.783356 × 110.419907 mm
  • HAA - Front+back NO Led Rig Fittings.obj 211.93245 × 273.174965 × 286.142944 mm
  • HAA - Front+back.obj 211.93245 × 273.174965 × 286.142944 mm
  • HAA - Front.obj
  • HAA - Side plug (RCA female connector).obj
  • HAA - Side.obj
  • HAA - Solid color.3mf
  • HAA - Solid ear.obj 39.395782 × 147.750523 × 111.233292 mm
  • HAA - Solid main.obj 211.789719 × 276.15058899999997 × 294.410477 mm
  • HAA - Solid.obj 252.559173 × 276.15058899999997 × 294.410477 mm
  • HAA - Visor perforated.obj 205.536866 × 246.814033 × 186.18508500000002 mm
  • HAA - Visor vaccum forming template.obj 235.356552 × 305.212616 × 208.406589 mm
  • HAA - Visor.obj
  • HAA - Wire plate with wires.obj 184.232986 × 112.036135 × 92.261314 mm
  • HAA - Wire plate.obj 184.232986 × 110.930361 × 90.967834 mm
  • HAA - glove plates.obj
  • LR - 5mm round leds.obj 99.625725 × 8.535933999999997 × 6.001548999999997 mm
  • LR - 5mm square leds.obj 53.207405 × 7.001163999999996 × 2.7071530000000052 mm
  • LR - Cutouts.svg
  • LR - Ear heartbeat 3mm led.obj 31.40932500000001 × 5.013749000000001 × 42.49047 mm
  • LR - Ear heartbeat cover.obj 7.2086340000000035 × 43.215182999999996 × 43.308203 mm
  • LR - Ear heartbeat led template.obj 9.919394999999994 × 69.62615600000001 × 69.890266 mm
  • LR - Holding clips.obj 75.249737 × 10.021629000000004 × 30.522392 mm
  • LR - Matrix display (print on its side).obj 120.631996 × 251.452515 × 185.562401 mm
  • LR - Rainbow box EQ Aelxplusleds compatible.obj 56.357437 × 218.695313 × 155.99731699999998 mm
  • LR - Rainbow box EQ NO internal led holes.obj 45.845802 × 218.737198 × 155.99731699999998 mm
  • LR - Rainbow box EQ.obj 45.845802 × 218.737198 × 155.99731699999998 mm
  • LR - Rainbow colors diffusers.obj 1.004517 × 188.205257 × 168.84976899999998 mm
  • RAM - Back plate.obj
  • RAM - Chin vents.obj
  • RAM - Ear.obj
  • RAM - Main split back A.obj
  • RAM - Main split back B.obj
  • RAM - Main split front chin.obj 205.266906 × 181.729454 × 106.196724 mm
  • RAM - Main split front top.obj 207.189208 × 154.79538399999998 × 88.181227 mm
  • RAM - Main split front.obj
  • RAM - Main.obj
  • RAM - Pendant.obj
  • RAM - Side.obj
  • RAM - Solid ear.obj
  • RAM - Solid main.obj
  • RAM - Solid.obj
  • RAM - Visor perforated.obj 189.926406 × 272.591599 × 143.268036 mm
  • RAM - Visor vaccum forming template.obj 217.2117 × 326.60749799999996 × 163.667138 mm
  • RAM - Visor.obj
  • RAM - glove plates.obj

Learn more about the formats
Last update
Publication date
Design number 291002
Design author brunoosti
brunoosti

brunoosti

Certified account
Issue with this design? Report a problem.

Template info

3D model description

>> Links for Guy Discovery, HAA or RAM only <<

Led Rig (LR) parts fit the same for Discovery and HAA helmets.

Led rig (HAA only) was designed to be a customizable see through 'visor' / mockup display, and can also be used as a template for the electronics. Contact me if you need custom parts for your led rig project.

You can try to print the matrix display on its side with support blockers for the led holes.

Overall tolerances are tight. Better sanding off some material than having a gap. Led holes have a 0.2mm clearance, even so, test fit scaling before printing a bunch of leds.

Disposable clip system to protect main parts: if the clip breaks you simply print another one. You can also glue / screw (M3x3 inserts) everything in place.

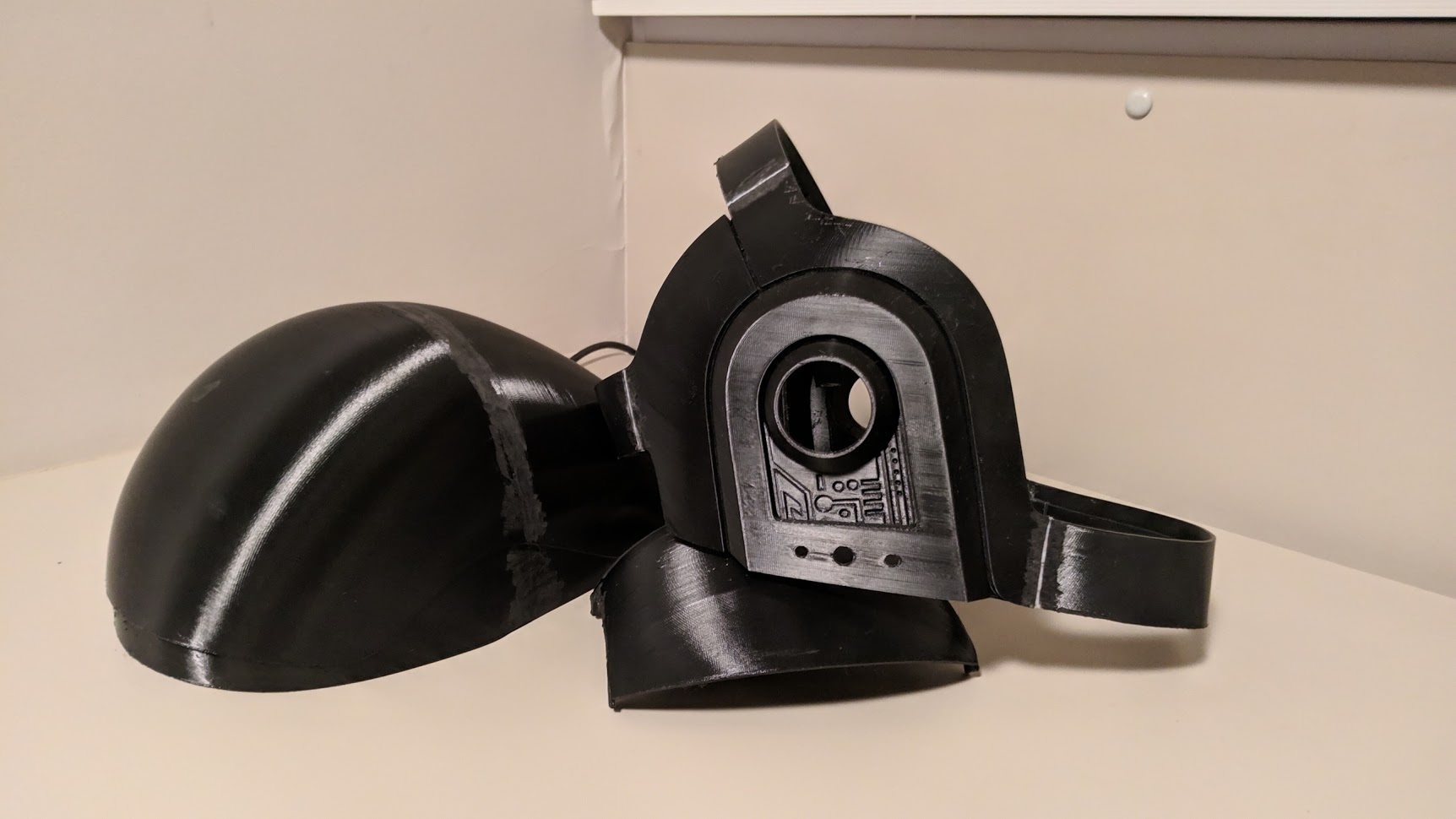

The helmets were modeled over reference images, keeping symmetry and the "feel" from the originals, with spare space to fit the led assembly in the HAA model. Size wise they are close to the real ones, with a head opening of about 170mm in "diameter" from ear to ear. Should fit most heads. Note that rescaling HAA parts will also affect the LEDs assembly / spacing.

You'll have access to split parts for the helmets, glove plates, the pendant, visor vacuum forming templates, plus cutouts outlines for HAA's led rig.

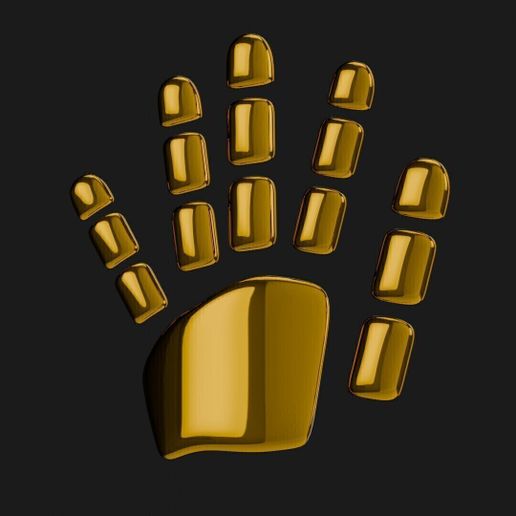

Glove plate pieces are numbered to identify each finger position.

If you have a taller 3D printer, you can rotate some pieces (like the visor, using supports instead of placing it over a flat surface) to take advantage of printer resolution and avoid too much support material.
Especially the glove plates, you should print them in a vertical orientation, with anchoring sports at the base, to take advantage of layer resolution. Place the fingers next to each other to avoid stringing and not get them knocked off.

The visor forming template has a thicker shell to help hold its shape and make rejoining the parts easy in case you need to split fit for your printer. You'll probably want to fill it with plaster so as it's not crushed when vaccum forming. The model is already scaled down 0.5mm to ensure the part will fit after forming.

Hope you have fun with the project! : )
