Customizable Optical Rail Mount for Makerbeam 1010

MakerbeamMountWithRodClamp.jpg Customizable Optical Rail Mount for Makerbeam 1010
c861a5f4ed9d8388fb6bbc74761c7cd6.png Customizable Optical Rail Mount for Makerbeam 1010
MakerBeamMountWithRodClamp.stl Customizable Optical Rail Mount for Makerbeam 1010
MakerbeamMountWithRodClamp.jpg Customizable Optical Rail Mount for Makerbeam 1010
c861a5f4ed9d8388fb6bbc74761c7cd6.png Customizable Optical Rail Mount for Makerbeam 1010
MakerBeamMountWithRodClamp.stl Customizable Optical Rail Mount for Makerbeam 1010
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
2 files Close
  • MakerBeamMountWithRodClamp.scad
  • MakerBeamMountWithRodClamp.stl 32.360001 ร— 19.36 ร— 13.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 865437
Design author ccox
ccox

ccox

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

This is a modification of http://www.thingiverse.com/thing:30491

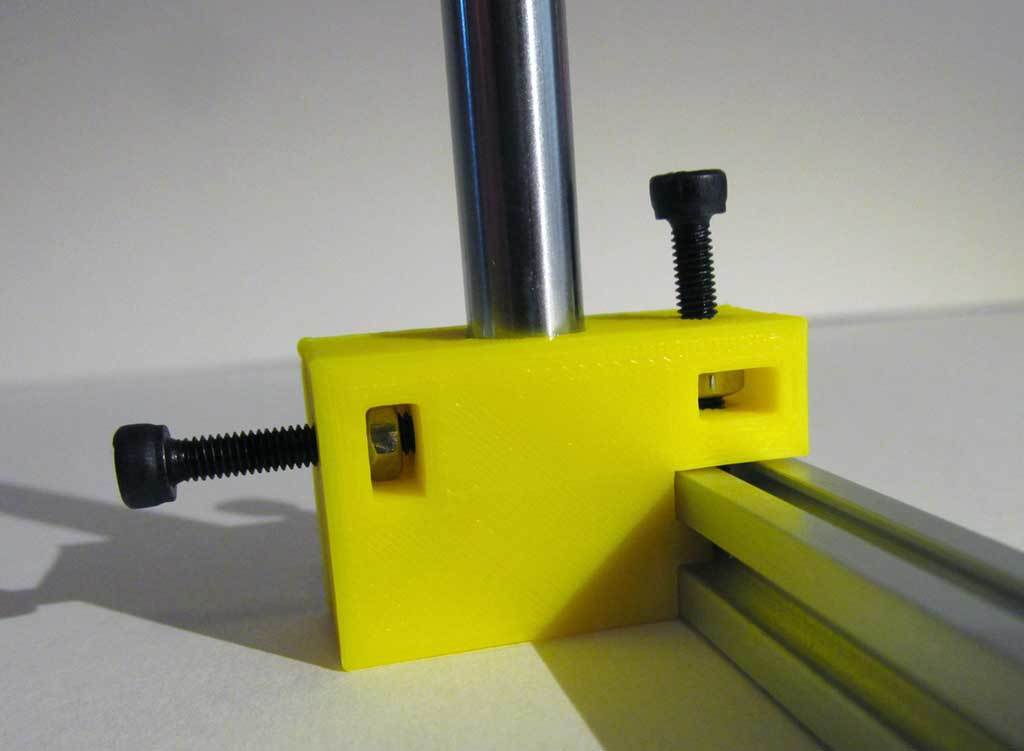

I added a bolt to hold the rod in place, fixed the nut orientation, and made it customizable.

The included STL is for 10mm Makerbeam, 8mm smooth rod, and M3 nuts and bolts.

This is part of a system of prints that turns Makerbeam into an optical rail. An optical rail is a long, straight, sturdy rail onto which optical components such as light sources and lenses can be bolted down and easily shifted along the length of the rail.

Commercial optical rail sells for $250+/m. Makerbeam only costs $12/m for the fancy black anodized stuff. You get the idea.

This component is inspired by the Open-source optics project, whose goal is to radically reduce the cost of scientific optical hardware, by the Michigan Tech's Open Sustainability Technology Research Group.

UPDATE: now slightly smaller, using measured sizes (and some leeway) for the nuts to reduce slot size. And tighter on the post/rod. Nuts are now optional (can use nut in rail slot).
