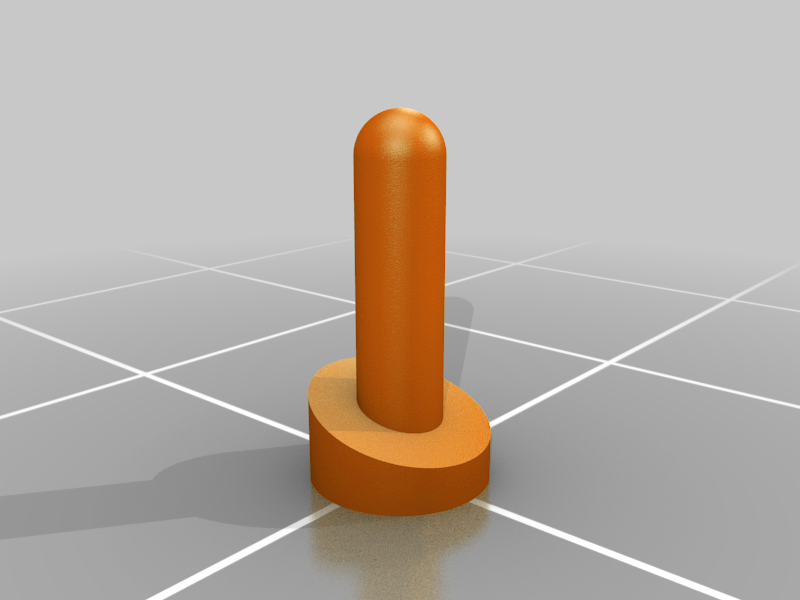

  • body rivet.stl 4.0 Γ— 4.0 Γ— 7.9794239999999945 mm

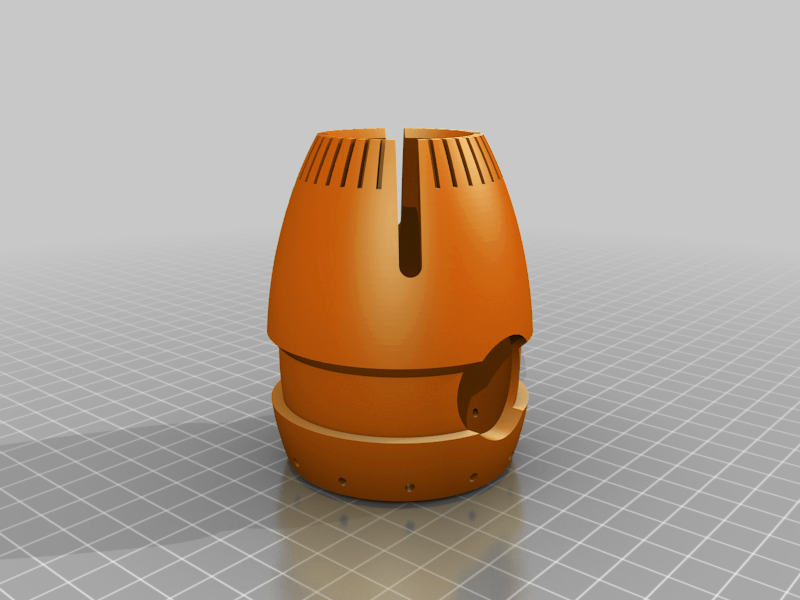

  • body.stl 67.19140999999999 Γ— 66.576759 Γ— 83.0 mm
  • fins.stl 71.723258 Γ— 71.723258 Γ— 65.5 mm

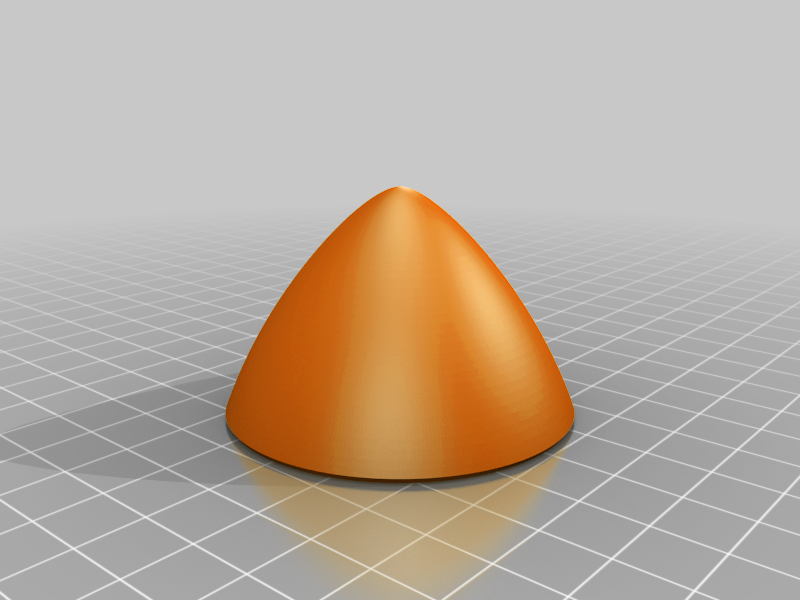

  • nose.stl 57.639992 Γ— 57.640374 Γ— 37.0 mm

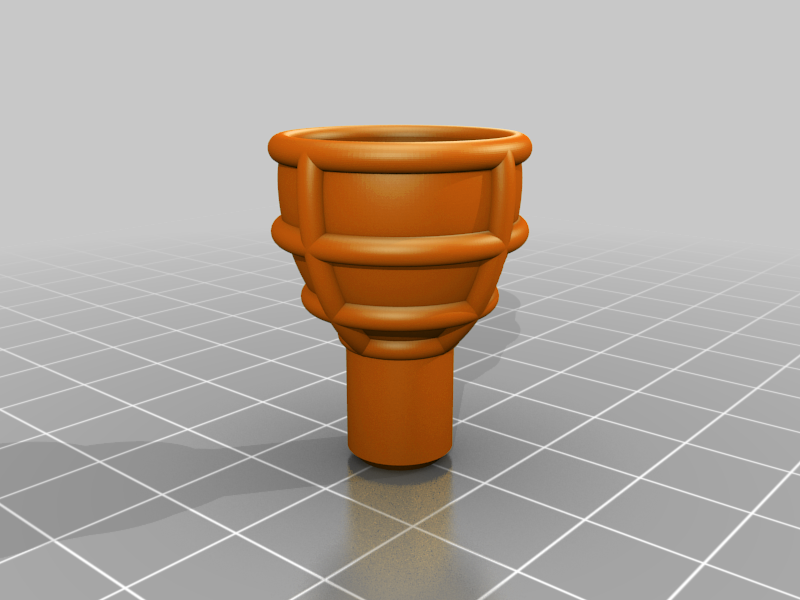

  • nozzle.stl 23.696382 Γ— 23.696382 Γ— 29.998634 mm

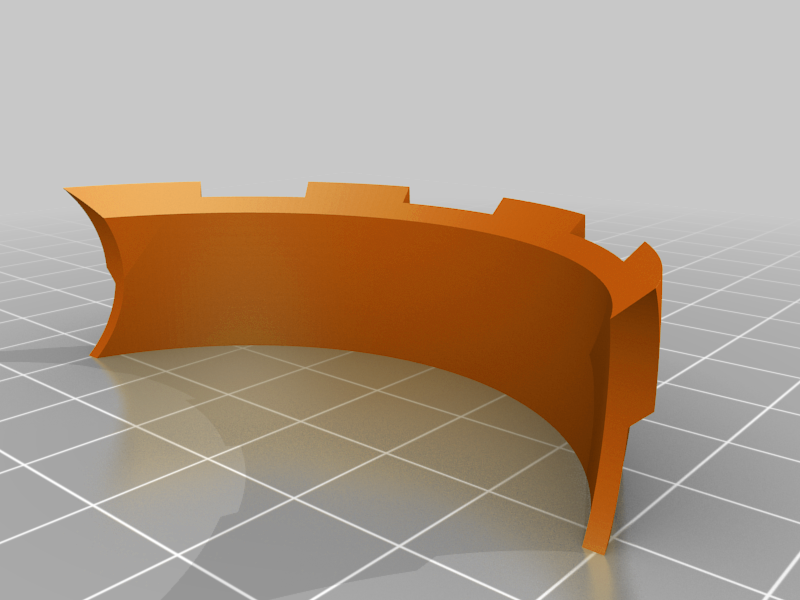

  • side panel.stl 24.592414999999995 Γ— 64.629326 Γ— 17.678002000000006 mm

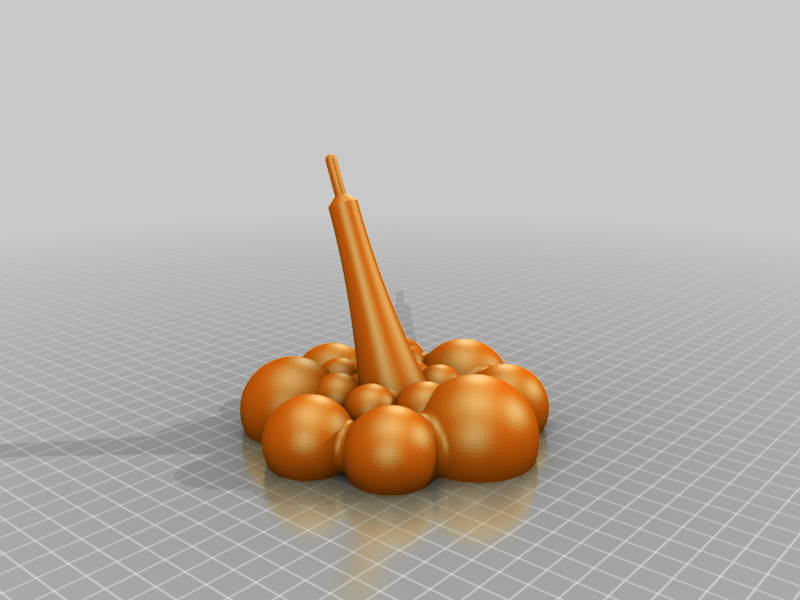

  • smoke.stl 123.552311 Γ— 121.953094 Γ— 108.387245 mm

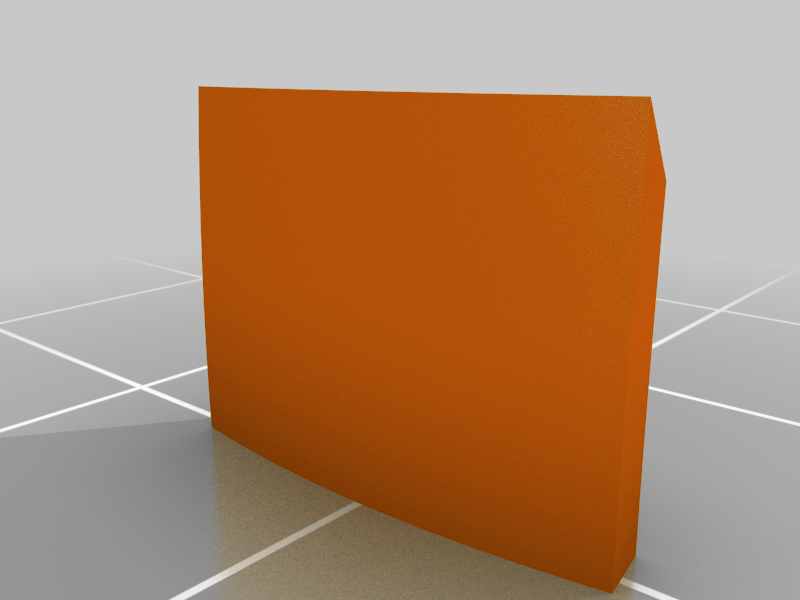

  • tile bottom.stl 2.117669000000001 Γ— 11.740192 Γ— 8.839005 mm

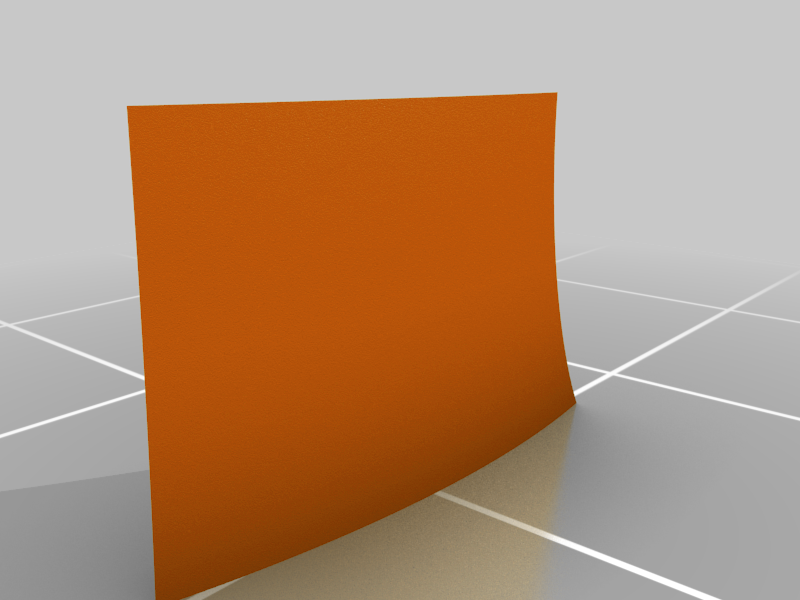

  • tile left.stl 13.885369 Γ— 2.8460919999999987 Γ— 8.838995999999995 mm

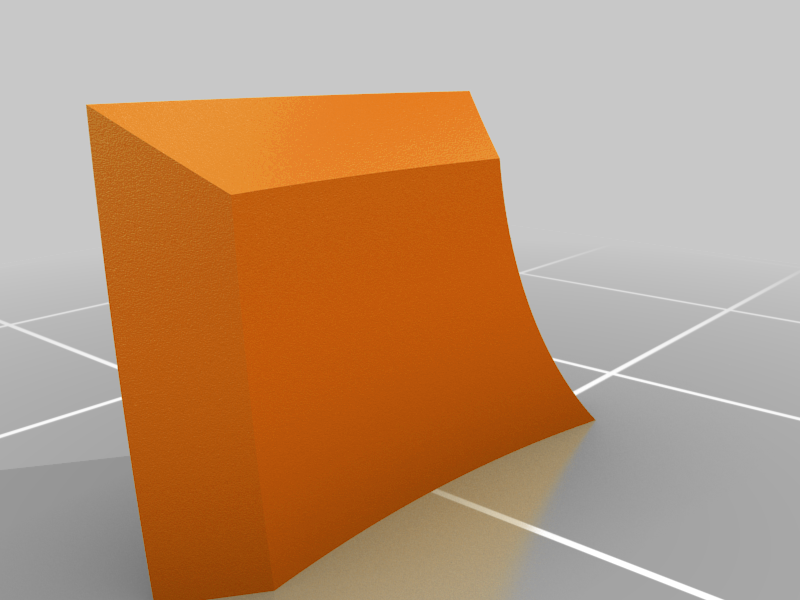

  • tile right.stl 13.844716000000002 Γ— 2.9485460000000003 Γ— 8.838995999999995 mm

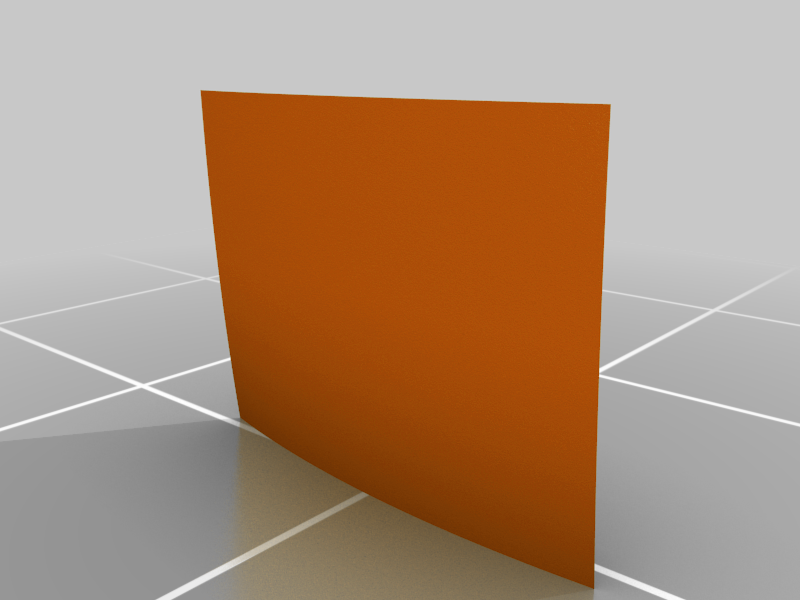

  • tile top.stl 2.846100999999999 Γ— 11.687458999999999 Γ— 8.838995999999995 mm

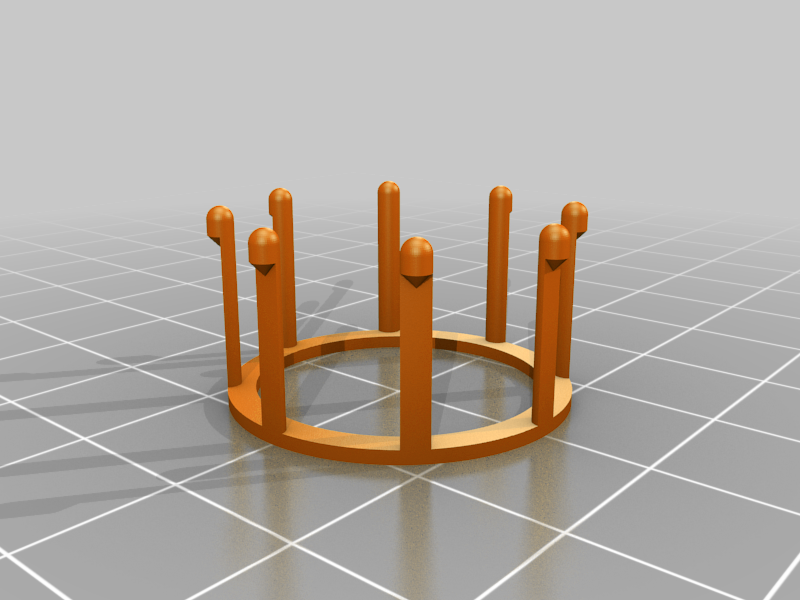

  • window rivets.stl 26.898049 Γ— 26.899024 Γ— 14.0 mm

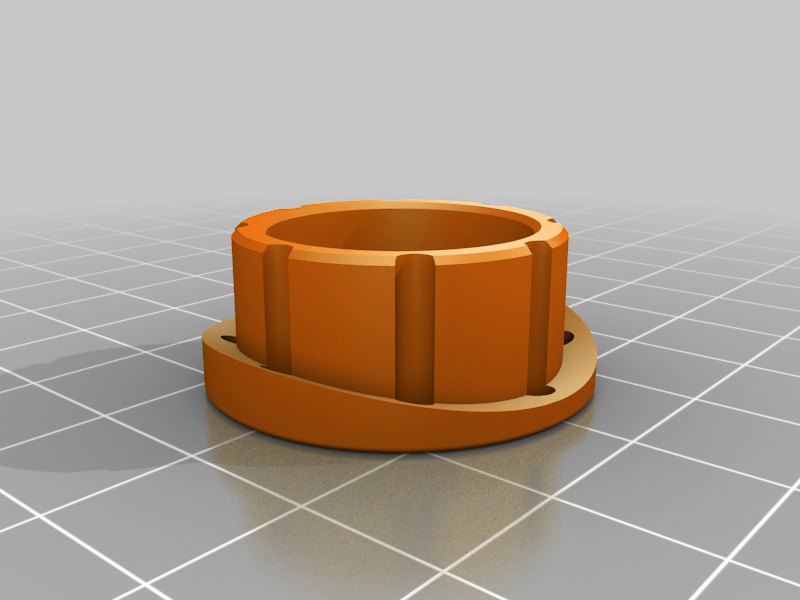

  • window.stl 30.000045 Γ— 30.000000999999997 Γ— 12.0 mm

Learn more about the formats
Last update
Publication date
Design number 301979
Design author M-Factory
M-Factory

M-Factory

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

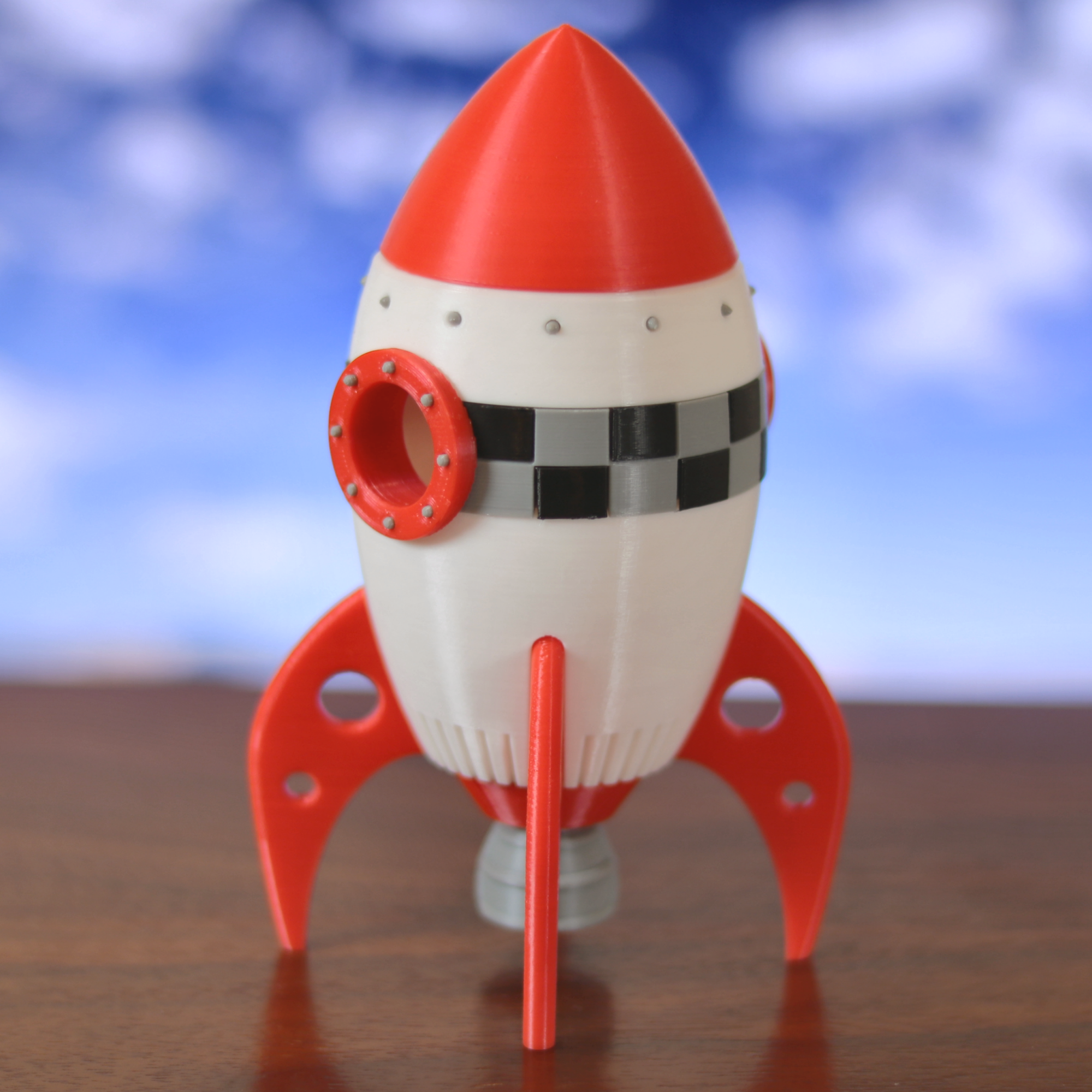

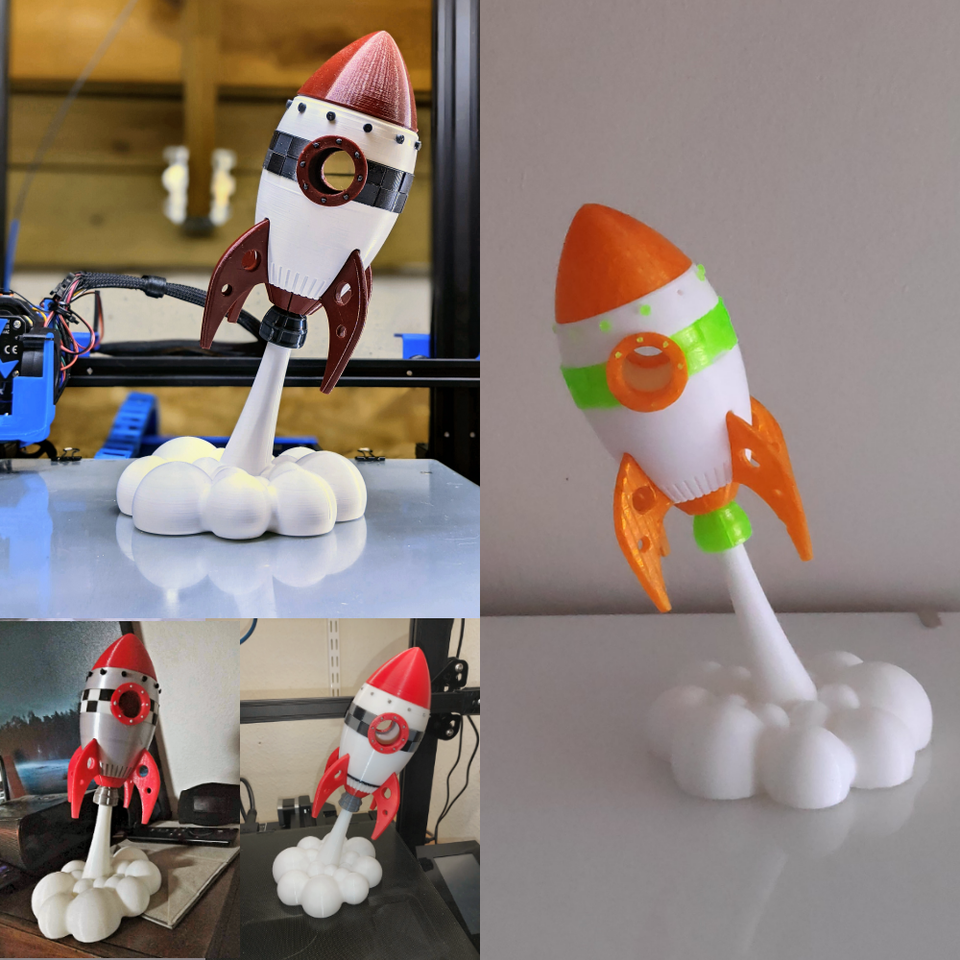

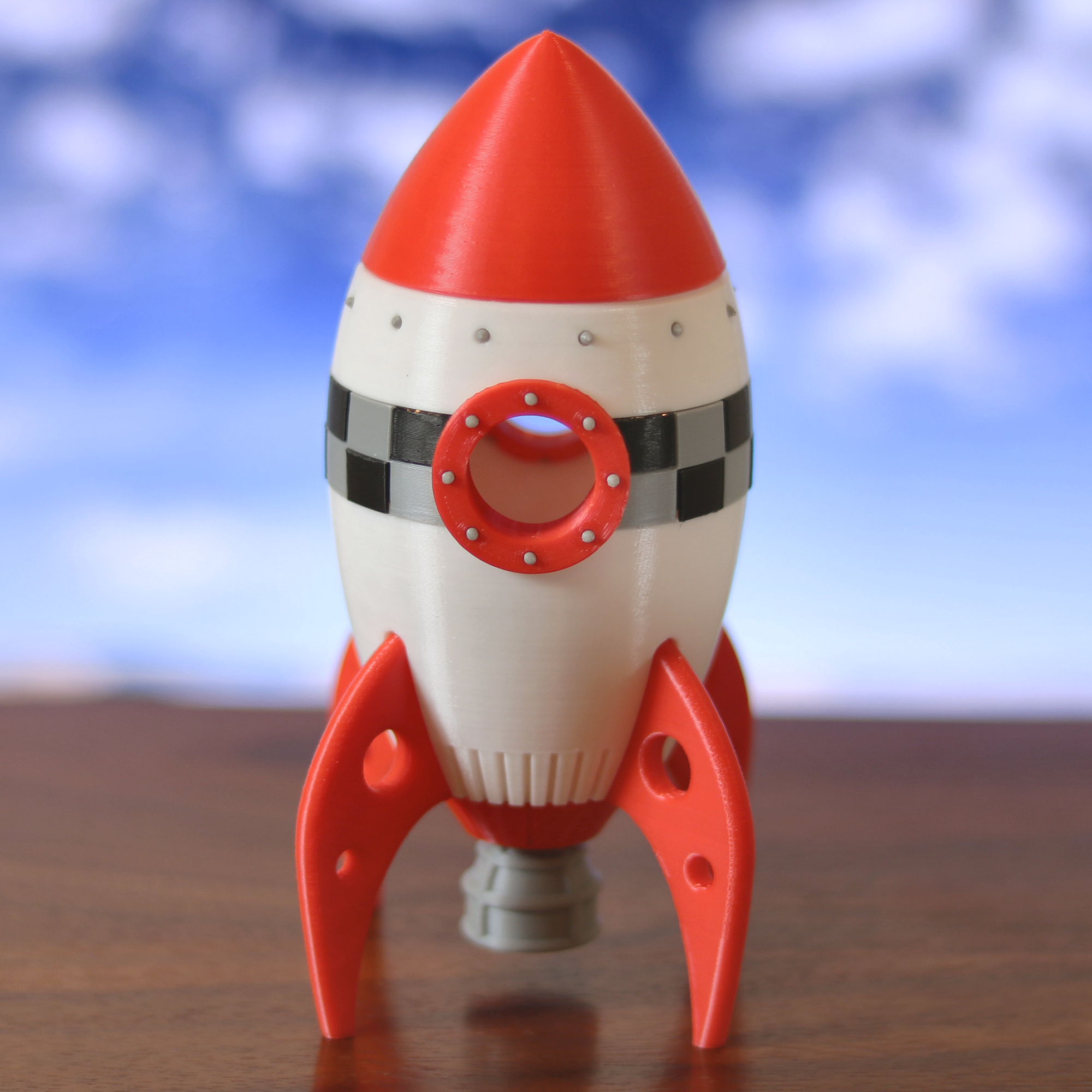

I'm not good at painting so my goal with this "Cartoon Rocket" was to design something that didn't required paint while still looking great. I only used standard Cura settings in order to make it easier to print this model.

All the parts have been orientated the same way as I printed them, everything was printed on my ender 3 pro and I used CA glue to put everything together. Some cleaning of the parts printed with a brim was required, also the window has a thin edge that goes facing down and the window rivets sometimes will break of from the base so you either mount it with the base if the don't brake or just glue each rivet directly to the window.

The rocket is 15cm tall by itself and 22cm tall with the base

Hope you guys enjoy building this rocket as much as I did. If you have any comments/questions or if you need help with a design, please contact me and if you like any of my designs please feel free to buy a me a cup of coffee.

/M Factory

3D printing settings

Red parts:
Nose x1: Standard Quality 0.2mm setting, no supports
Window x2: Standard Quality 0.2mm setting, no supports

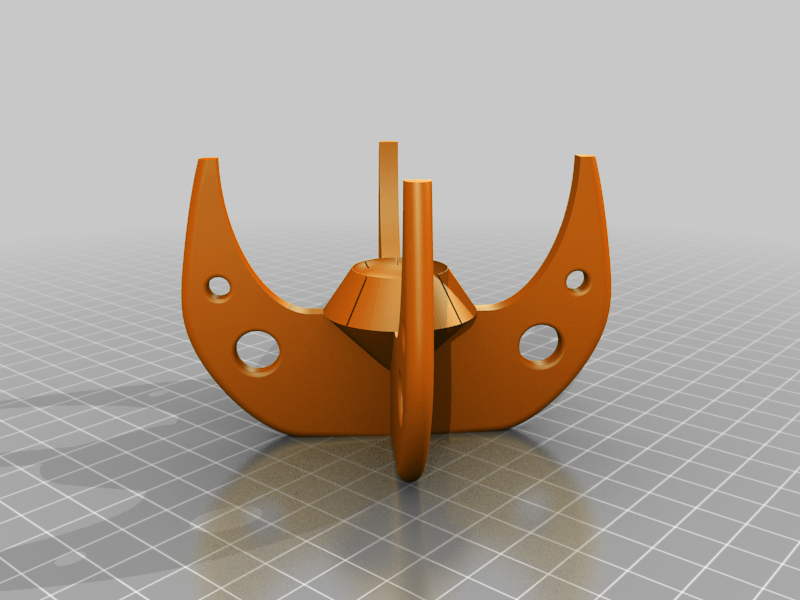

Fins x1: Standard Quality 0.2mm setting, brim and no supports

Gray parts:
Body rivet x12: Standard Quality 0.2mm setting, brim and no supports
Side panel x2: Standard Quality 0.2mm setting, brim and no supports
Window rivets x2: Dynamic Quality 0.16mm setting, brim and no supports
Nozzle x1: Standard Quality 0.2mm setting, brim and no supports

White parts:
Body x1: Standard Quality 0.2mm setting, no supports
Smoke x1: Standard Quality 0.2mm setting, no supports

Black parts:
Tile left x2: Standard Quality 0.2mm setting, brim and no supports
Tile top x4: Standard Quality 0.2mm setting, brim and no supports
Tile right x2: Standard Quality 0.2mm setting, brim and no supports
Tile bottom x6: Standard Quality 0.2mm setting, brim and no supports
