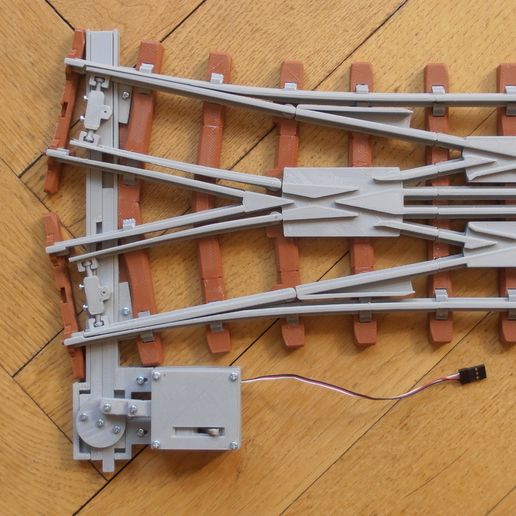

Double crossing turnout 22.5° (R3, track 1)

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
28 files (STL) Close

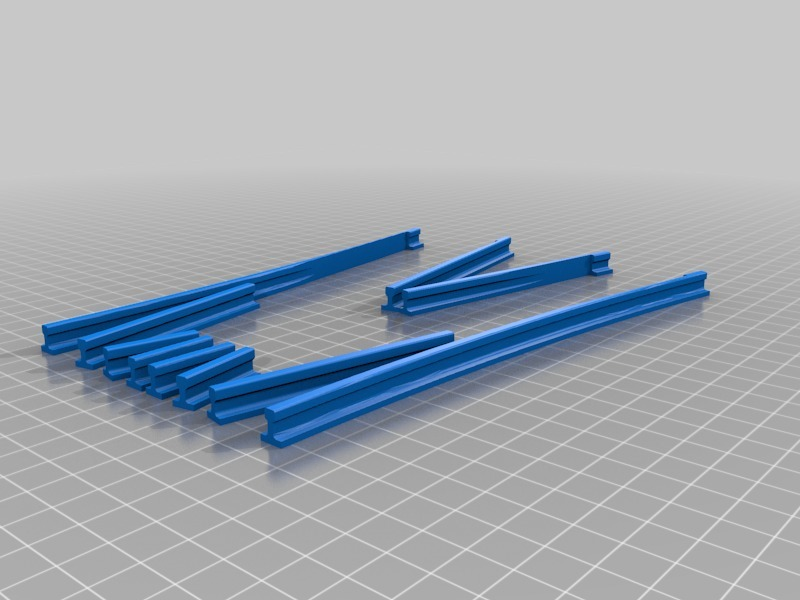

  • KWR3_Geleise.stl 205.219913 × 144.137374 × 8.5 mm
  • KWR3_Geleise_add.stl 74.226139 × 26.170984 × 8.5 mm
  • KWR3_Geraden_80.stl 80.0 × 16.599998 × 8.5 mm
  • KWR3_Gest%C3%A4nge_kurz.stl 149.5 × 14.9 × 4.0 mm
  • KWR3_Gest%C3%A4nge_lang.stl 227.5 × 17.8 × 4.0 mm
  • KWR3_Gest%C3%A4ngef%C3%BChrung.stl 228.0 × 42.599999 × 8.5 mm
  • KWR3_Kreuzung.stl 102.007787 × 40.058001000000004 × 8.5 mm
  • KWR3_Kreuzung_klein.stl 81.753418 × 26.359735999999998 × 8.5 mm
  • KWR3_MechBefestigung.stl 30.0 × 10.0 × 3.0 mm
  • KWR3_Mechanik_all.stl 231.0 × 102.0 × 22.5 mm
  • KWR3_Schwelle_A.stl 12.0 × 76.199996 × 9.5 mm
  • KWR3_Schwelle_A1.stl 12.0 × 76.199996 × 9.5 mm
  • KWR3_Schwelle_B.stl 13.186585000000001 × 78.168862 × 9.5 mm
  • KWR3_Schwelle_C.stl 17.496619999999993 × 82.232742 × 8.0 mm
  • KWR3_Schwelle_D.stl 16.936043000000012 × 91.077288 × 9.5 mm
  • KWR3_Schwelle_E.stl 23.759535999999997 × 86.98725300000001 × 8.0 mm
  • KWR3_Schwelle_E1.stl 7.324134 × 10.901530000000001 × 6.0 mm
  • KWR3_Schwelle_halb.stl 40.415055 × 12.0 × 8.0 mm
  • KWR3_Schwelle_halb_A.stl 16.963723 × 41.04905000000001 × 8.0 mm
  • KWR3_Servoarm.stl 84.0 × 21.75 × 9.0 mm
  • KWR3_TrackholderA.stl 16.0 × 6.299999999999997 × 11.739899 mm
  • KWR3_TrackholderB.stl 8.0 × 6.299999999999997 × 11.739899 mm
  • KWR3_Umlenkung.stl 26.0 × 25.911198 × 3.0 mm
  • KWR3_Zungen.stl 121.584114 × 62.464764 × 8.5 mm
  • KWR3_ZungenMech_A.stl 10.0 × 7.0 × 6.5 mm
  • KWR3_ZungenMech_B.stl 20.0 × 13.5 × 5.0 mm
  • KWR3_ZungenMech_C.stl 5.190633 × 5.195314 × 1.0 mm
  • KWR3_total.stl 292.121002 × 236.5 × 17.5 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 520750
Design author cammon
cammon

cammon

Issue with this design? Report a problem.

3D printer file info

3D model description

To go with the track set (https://www.thingiverse.com/thing:2933228) and LGB turnout R1 (https://www.thingiverse.com/thing:2933244).

The circular arc of 22.5° has a radius of 1020mm (Märklin: Gauge 1)

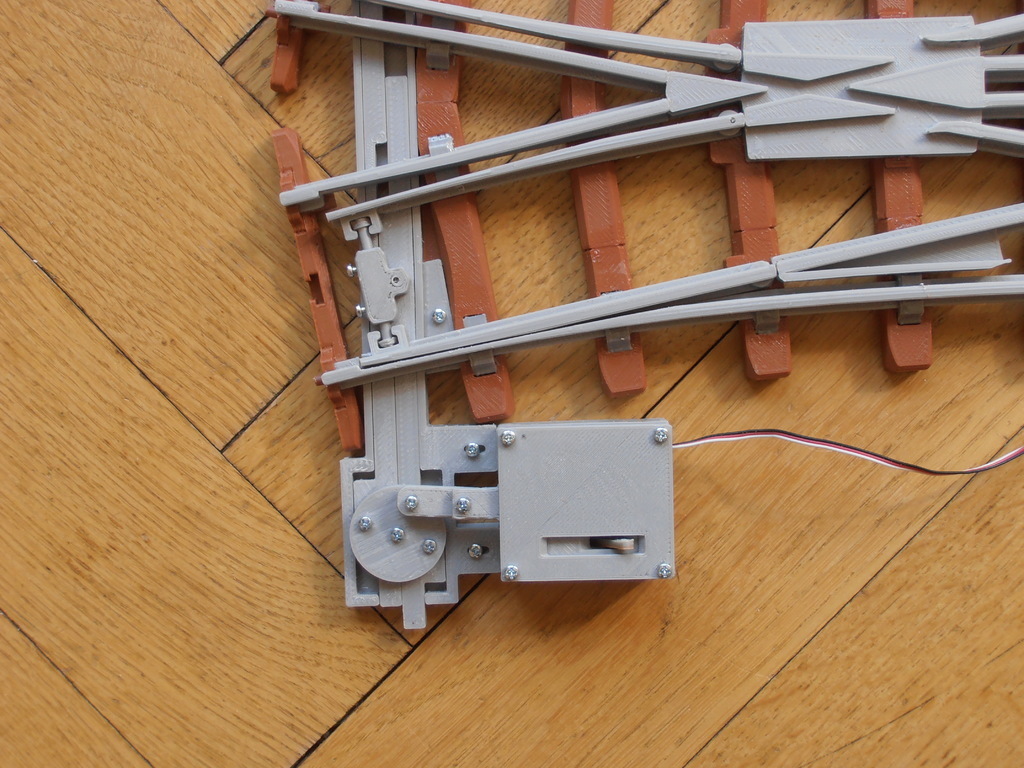

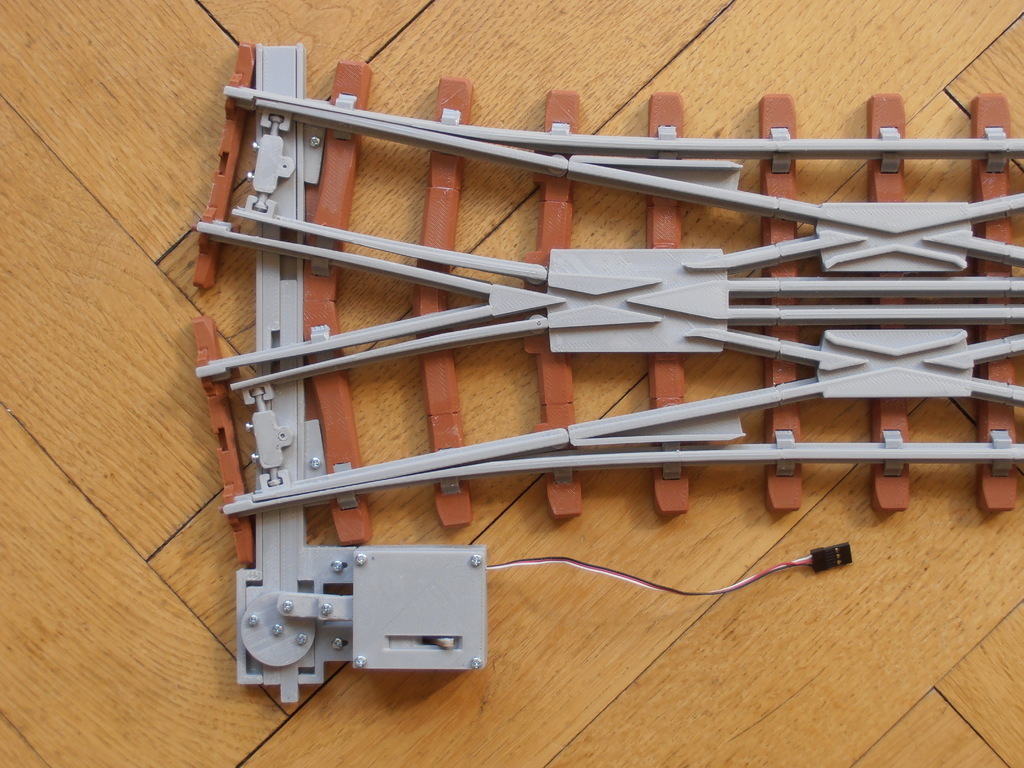

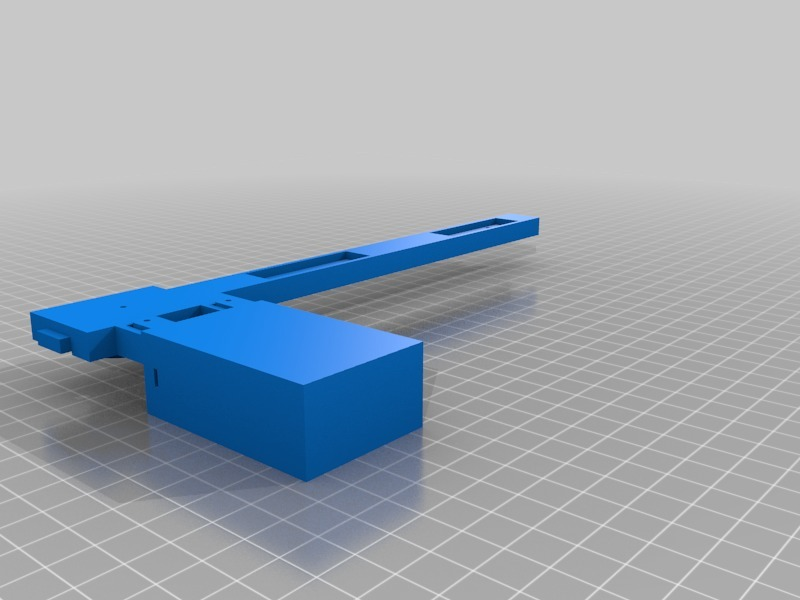

The turnout mechanism is designed so that it can be set individually for all turnout branches. The crossing turnout works optimally with the turnout drive (https://www.thingiverse.com/thing:3528143), which ensures additional functional reliability thanks to the internal suspension.

The two drives can generally be switched individually, provided that the vehicles are heavy enough to split the points. Coupling the two drives via a servo Y cable (Conrad order no.: 223821 - UP) ensures safe operation.
